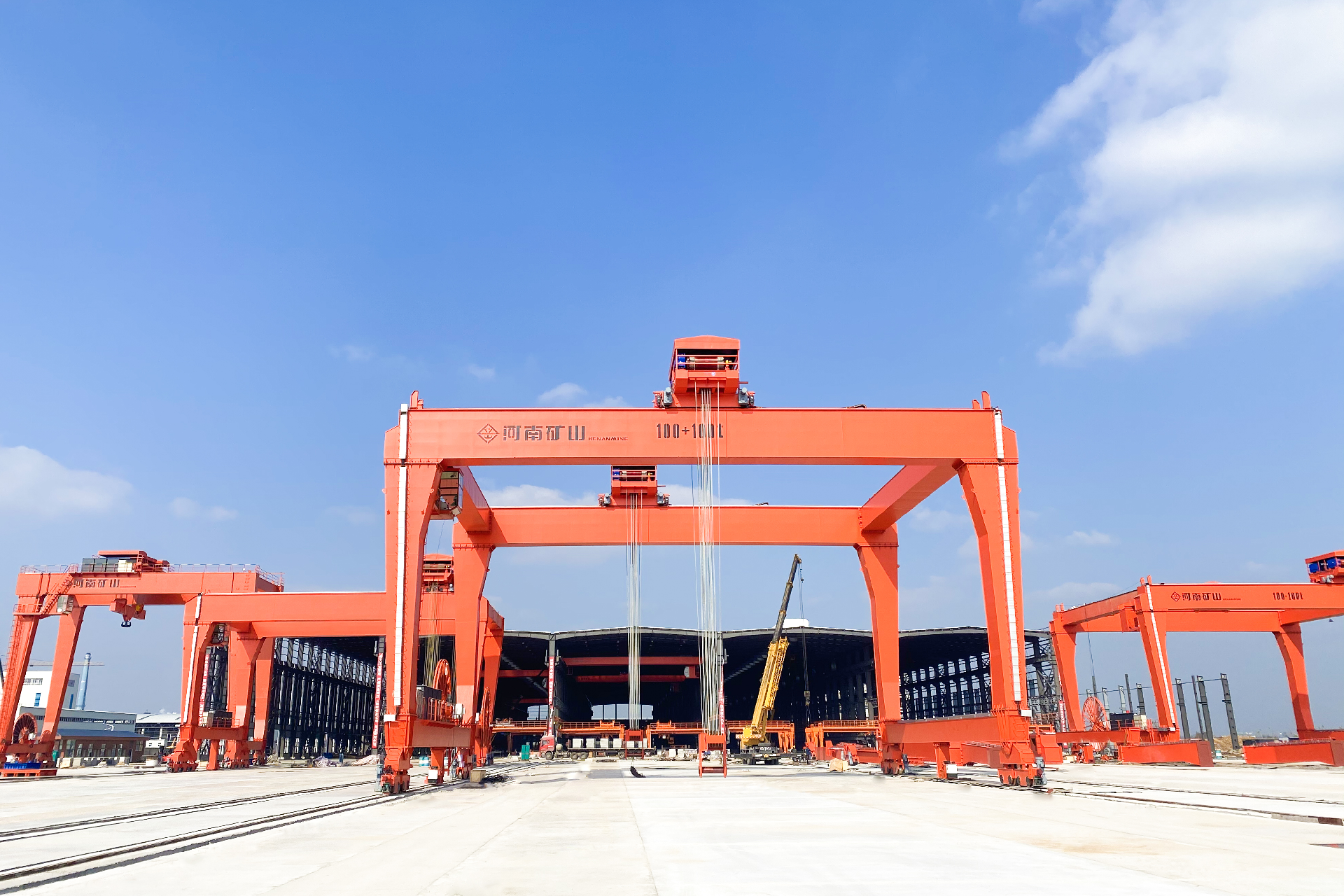

Introduction to Multi-Functional Bridge Gantry Cranes

In major infrastructure projects such as highways, railways, and cross-sea bridges, the transportation and installation of precast beams remain the core bottlenecks constraining construction progress. Traditional lifting equipment either lacks adaptability to handle complex sites or falls short in precision, increasing construction risks. The emergence of the Multifunctional Bridge Gantry Crane has completely broken this deadlock, becoming an indispensable piece of equipment in bridge construction. Whether lifting large components like T-beams or box girders, or achieving precise positioning under complex conditions, this equipment leverages its unique advantages to become a key enabler for contractors to boost efficiency and control costs.

Core Function: Spanning the Entire Bridge Construction Process

The multi-functional bridge gantry crane is not a standalone piece of equipment but a “system-level solution” designed for the full spectrum of bridge construction scenarios. Its role covers the entire chain from the precast beam yard to the bridge piers and abutments, with each function directly addressing critical construction challenges.

1. Core Transfer in Precast Beam Yard: Enabling Efficient Component Flow

Within the precast beam yard, the precast beam yard bridge gantry crane handles the transfer of beams from the curing bed to the storage area and then to the beam transport vehicle after curing is complete. Compared to standard gantry cranes, it features specialized beam-lifting spreaders and a precision positioning system. This enables effortless lifting of T-beams and box girders weighing 50-200 tons, with lifting stability maintained within a 5mm tolerance. This prevents cracks caused by uneven stress distribution in the beams. Following implementation at a highway precast beam yard, beam transfer efficiency increased by 40%. Tasks previously requiring three machines can now be completed by a single multifunctional bridge gantry crane, significantly reducing equipment idle costs.

2. Precise Installation Between Piers: Overcoming Challenges in Long-Span Construction

Installing girders between bridge piers and abutments is a core construction challenge, particularly for long-span bridges, demanding exceptional precision and stability from lifting equipment. The Long-Span Bridge Gantry Crane features adjustable outriggers to accommodate varying pier heights and spans, with a height adjustment range of 3-15 meters, effortlessly handling complex terrains like mountains and water bodies. Simultaneously, the equipment integrates an intelligent alignment system. Cameras and sensors capture real-time girder positioning, allowing operators to remotely control precise girder placement from the ground with millimeter-level accuracy. During a cross-sea bridge project, this equipment successfully completed the continuous installation of 30-meter-span box girders, achieving a daily installation volume exceeding 8 girders—doubling the capacity of traditional equipment.

3. Adaptation to Special Conditions: Meeting Diverse Construction Demands

Different bridge projects have unique requirements. Highway bridge gantry cranes and railway bridge gantry cranes each emphasize distinct functionalities—highway bridges prioritize rapid girder turnover, while railway bridges emphasize installation precision to meet track laying requirements. The multi-functional bridge gantry crane achieves “one machine, multiple uses” by swapping lifting attachments and adjusting parameters: Replacing container attachments enables transport of bridge deck accessories, while activating anti-sway functionality ensures stable operation in high winds. At a railway bridge project, this equipment handled both box girder installation and track slab lifting tasks, boosting utilization rates to over 85%.

Core Benefits: Cost Reduction, Efficiency Enhancement, Safety

For construction companies, equipment value ultimately manifests in tangible outcomes. The multi-functional bridge gantry crane delivers substantial value across efficiency, cost, and safety dimensions—core reasons it stands as the high-value bridge gantry crane benchmark.

1. Efficiency Multiplier: Shortening Construction Periods, Accelerating Capital Turnover

The intelligent control system of the multi-functional bridge gantry crane significantly reduces manual intervention. For instance, the “one-button coupling” function enables two units to operate in tandem. What previously required four people working together for half an hour to complete the coupling process can now be done by one person in just one minute. Simultaneously, the equipment boasts strong continuous operation capabilities, achieving an average daily effective operating time of 16 hours—a 30% increase over traditional equipment. After implementation on a major bridge project, the beam installation schedule was shortened from 12 to 8 months, achieving deck completion 4 months ahead of schedule and accelerating project cash flow.

2. Cost Optimization: Reduced Investment and Lowered Operational Expenses

From a capital investment perspective, the “one machine, multiple uses” feature reduces the number of specialized equipment purchases. A single multifunctional device can replace multiple traditional lifting and transport machines, lowering initial procurement costs by 25%-30%. From an operational perspective, the equipment features a maintenance monitoring system for intelligent bridge gantry cranes. Sensors continuously track data like wire rope wear and motor temperature, enabling early fault warnings and preventing losses from unexpected downtime. One construction company reported that after adopting this equipment, annual maintenance costs dropped by 42%, and equipment failure rates fell from 15% to below 3%.

3. Safety Enhancements: Mitigating Risks to Ensure Construction Safety

Bridge construction involves extensive high-altitude and heavy-load operations, making safety paramount. The multi-functional bridge gantry crane implements a “triple safety protection” system: First, an overload protection system that immediately halts operation when lifting capacity exceeds the rated value by 10%. Second, 360-degree video surveillance and infrared anti-collision systems prevent collisions with piers, abutments, and personnel. Third, a remote control mode eliminates the need for operators to work in elevated cabs, completely avoiding fall hazards. After implementation at one project, high-altitude work accidents dropped to zero, labor safety costs decreased by 50%, and delays caused by safety incidents were minimized.

Choosing the Right Equipment: Making Bridge Construction More Efficient and Worry-Free

Today, with the increase in overseas infrastructure projects under the Belt and Road Initiative and the advancement of domestic new infrastructure, bridge gantry crane manufacturers are continuously upgrading their products. High-quality, multi-functional bridge gantry cranes must not only fulfill core transportation and installation functions but also align with intelligent and green trends—such as featuring energy recovery systems that reduce energy consumption by 19% and supporting 5G remote control for cross-regional operation management.

Whether for highway, railway, offshore, or mountain bridges, these versatile gantry cranes serve as indispensable partners for construction firms through their adaptability, operational efficiency, and reliable safety features. Selecting a multi-functional bridge gantry crane tailored to your specific conditions means choosing shorter project timelines, lower costs, and safer construction environments—laying a solid foundation for the smooth progress of bridge engineering.

As a top global supplier of cranes, Henan Mine Crane has a wide range of products from 5 to 500 tons. We'll provide custom designs based on site drawings, load characteristics and environmental parameters. Our full lifecycle services offer all-in-one solutions, from site surveys and design planning to installation and commissioning, plus regular maintenance.
