Rail-mounted gantry crane: Essential for these industries' efficient operations

In modern logistics systems, containers have become the mainstream carrier for goods transportation due to their “standardized and modular” advantages. Rail-mounted gantry cranes (RMG), with their precise positioning capabilities, ultra-high stacking heights, and stable operational performance, serve as the “core movers” in container handling operations. From port terminals to inland logistics hubs, industrial sites to specialized logistics scenarios, RMG cranes deliver robust support for logistics upgrades across multiple industries through their efficiency, safety, and intelligence.

Port Terminal Industry: The Efficiency Engine of Container Yards

As global trade hubs, ports maintain consistently high container throughput. Yard operations, serving as temporary container storage, directly dictate the port's operational rhythm—and RMG is the “efficiency engine” driving this sector.

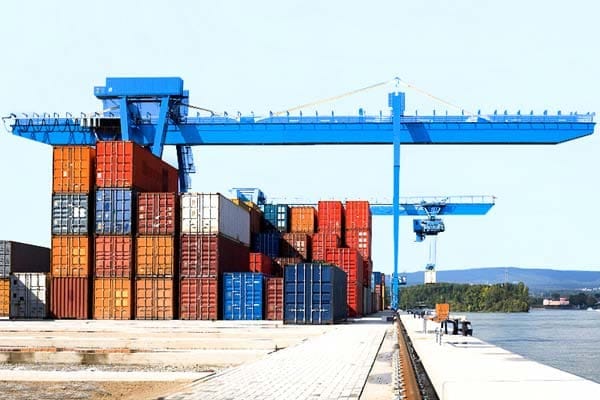

At coastal container ports, RMG primarily handles container stacking and transfer in front-of-dock yards. Compared to traditional rubber-tired gantry cranes, RMG achieves higher operational precision (positioning error controlled within ±50mm) by running on fixed rail paths. It enables “stack 5, pass 6” high-density storage (stacking 5 layers of containers while allowing hooks to pass over the 6th layer), increasing storage capacity in limited yard space by over 30%. For instance, at major ports like Ningbo-Zhoushan Port and Shanghai Yangshan Port, a single RMG can complete 25-30 TEUs per hour. Integrated with Terminal Operating Systems (TOS) for automated scheduling, it effortlessly handles daily throughput demands exceeding 10,000 TEUs.

At inland river ports, where vessel tonnage is relatively smaller and yard space is limited, the RMG's “flexible adaptability” proves particularly advantageous. Through customized spans (typically 18-30 meters) and lifting heights (12-18 meters), RMG cranes precisely cover inland terminal yard areas. They handle container unloading from vessels to yards while also interfacing with trucks and trains for short-haul transfers, enabling seamless “water-land” multimodal connections. This resolves the pain points of “small batches, multiple shipments” in inland port container handling.

Rail Logistics Industry: The Bridge for Container Intermodal Connectivity

With the promotion of intermodal transport models like “rail-water intermodal” and “road-rail intermodal,” rail logistics hubs have become critical nodes for cross-regional container movement. Here, RMG serves as the “connecting bridge,” ensuring efficient container transfers between trains, yards, and trucks.

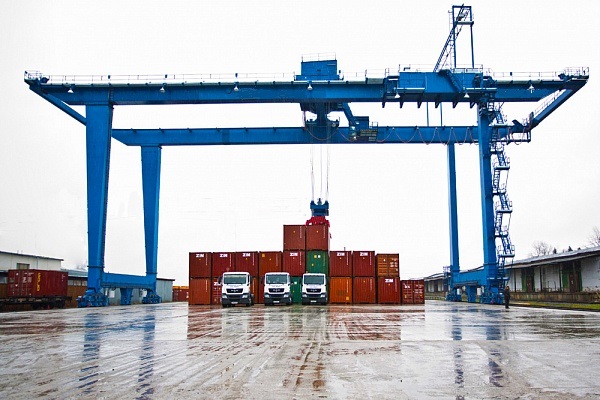

At railway container terminals (e.g., Zhengzhou Railway Container Terminal and Chongqing Railway Container Terminal in China), the core value of RMGs lies in their precise integration with rail lines. Their large-carriage tracks run parallel to railway tracks, while the small-carriage travel direction is perpendicular to the rail lines. This enables rapid lifting of containers from trains for yard storage or precise hoisting from the yard onto train cars, with positioning accuracy controlled within ±30mm to prevent collisions between containers and railway tracks. Simultaneously, RMG systems integrate with railway dispatch systems to automate the entire process: “train arrival – container unloading – yard storage – truck transfer.” This significantly reduces manual intervention, boosting railway container turnover efficiency by over 25%.

For high-volume rail freight terminals, RMG systems employ a “multi-machine coordination” mode. Multiple units operate simultaneously across multiple rail tracks, effortlessly handling peak-period container transfer demands to ensure rail logistics remain “free of bottlenecks and cargo backlogs.”

Industrial Manufacturing Sector: Customized Logistics Manager for On-Site Container Operations

In large manufacturing enterprises like automotive, home appliances, and heavy machinery, containers serve as primary transport vessels for raw materials (e.g., steel plates, components) and finished goods (e.g., complete vehicles, large equipment). Here, RMG functions as a “customized logistics manager” for on-site container operations, solving the challenge of “efficient intra-facility circulation.”

Taking an automotive manufacturing facility as an example: After overseas-imported automotive components (e.g., engines, chassis) arrive at the factory's dedicated container terminal, RMG can directly lift containers to the raw material yard adjacent to the workshop or transfer them via rail to unloading points near production lines. This achieves seamless "terminal - yard - workshop" with zero-distance connectivity, eliminating intermediate transfers and preventing damage from secondary handling. For finished vehicle exports, RMG rapidly stacks completed cars (shipped in specialized containers) from production lines into finished goods yards. Upon arrival of transport vehicles, direct loading ensures timely export.

In heavy machinery manufacturing facilities (e.g., wind power equipment, construction machinery plants), RMG also accommodates the lifting requirements for “oversized and overweight containers.” By customizing models with high lifting capacities (50-100 tons) and wide spans (30-40 meters), combined with specialized lifting attachments, RMG can safely handle special containers loaded with wind turbine blades or excavator chassis, meeting the “heavy-load, high-precision” logistics demands of industrial manufacturing.

Cold Chain Logistics Industry: Guardian of Temperature-Controlled Containers

Cold chain logistics (e.g., fresh produce, pharmaceuticals, frozen foods) demands “temperature control, moisture protection, and low loss” for container storage and transfer. With its “stable operation + intelligent monitoring” capabilities, RMG serves as the “guardian” of temperature-controlled containers.

Within cold chain logistics yard container storage areas, RMG's smooth operation prevents temperature-controlled containers (like refrigerated units) from shifting or damaging internal cargo due to jostling during lifting. Simultaneously, RMG can be equipped with “intelligent lifting attachments” that use sensors to monitor real-time temperature and humidity data within containers. This data is synchronized to the cold chain management system. Should any temperature control anomalies occur—such as refrigeration failure in a refrigerated container—the system immediately triggers an alarm and halts operations, ensuring the quality and safety of perishable goods like fresh produce and pharmaceuticals.

Furthermore, cold chain logistics yards typically require 24/7 continuous operation. The RMG's high reliability (operating at A6-A7 levels) and low failure rate (mean time between failures exceeding 1,200 hours) meet the “uninterrupted, high-efficiency” demands of cold chain logistics, preventing cargo spoilage due to equipment failure.

Specialized Logistics Sector: Dedicated Handling for Hazardous Materials and Oversized Containers

In logistics scenarios involving hazardous materials (e.g., chemical raw materials, liquefied natural gas) and oversized cargo (e.g., nuclear power equipment, large pressure vessels), container handling demands equipment with “high safety and high adaptability.” Customized RMG systems emerge as the “specialized handlers” for such specialized requirements.

Within hazardous materials logistics parks, RMG units incorporate specialized “explosion-proof and anti-static” designs: electrical systems meet Ex dⅡBT4 explosion-proof ratings to prevent sparks from igniting hazardous materials; metal structures are coated with anti-static paint to reduce friction-generated static electricity; and explosion-proof surveillance cameras and sensors enable full-process visual monitoring of hazardous container handling, ensuring operational safety.

For oversized container logistics scenarios (e.g., nuclear power equipment transport), RMG addresses heavy-lift and wide-span container handling through “structural reinforcement + intelligent counterweight” design. For instance, the RMG customized for nuclear power facilities boasts a lifting capacity of 200 tons. Its main girder is fabricated from Q690 high-strength steel welded components, integrated with an automatic counterweight adjustment system. This ensures stable handling during the transport of oversized nuclear equipment containers, preventing damage from swaying and meeting the “zero-error, zero-risk” logistics requirements of specialized industries.

Henan Mine: Delivering Customized RMG Solutions Across Industries

Rail-mounted gantry cranes serve diverse applications demanding exceptional adaptability—standard equipment often falls short of meeting industry-specific needs. With over 30 years of expertise in lifting equipment, Henan Mining leverages deep insights into industry-specific logistics challenges to deliver end-to-end customized RMG solutions—from requirement analysis to lifetime service:

Industry-Specific Design:

- For port terminals requiring high-density stacking, we customize high-lift RMGs capable of stacking 6 containers deep and passing 7 containers wide.

- For rail logistics demanding precise integration, we design track layouts compatible with railway sidings. For hazardous materials logistics, explosion-proof and anti-static RMG models ensure 100% compliance with industry requirements.

Intelligent Technology Integration: All RMG units can be equipped with smart control systems supporting remote operation, automatic positioning, and fault alerts. Seamless integration with customer logistics management systems (e.g., TOS, WMS) enables “unmanned, automated” operations to further enhance logistics efficiency.

Full-Cycle Service Assurance: From site surveys and solution design to installation, commissioning, and ongoing maintenance (including track inspections and brake system adjustments), Henan Mining's service team provides end-to-end support with 24/7 fault response to ensure long-term, stable RMG operation.

Whether for efficient port terminal handling, multimodal rail logistics, industrial plant material flow, or secure special cargo lifting, rail-mounted gantry cranes drive logistics upgrades across industries with their “high efficiency, safety, and intelligence.” Choose Henan Mine' customized RMG solutions to make your logistics operations more efficient, safer, and worry-free, injecting powerful momentum into your business growth.
