Insulated Overhead Cranes

Insulated overhead cranes provide electrical separation at specified lifting interfaces for electrolysis and non-ferrous process handling. Compare QY single-trolley and QYE double-trolley arrangements for your load, lifting points and workshop layout.

Compare modelsRequest a quote
QYE insulated double-girder overhead crane with two winch trolleys and access platforms

Compare insulated overhead cranes

Choose one insulated trolley for process transfer, or two trolley positions for separate loads and approved two-point lifts.

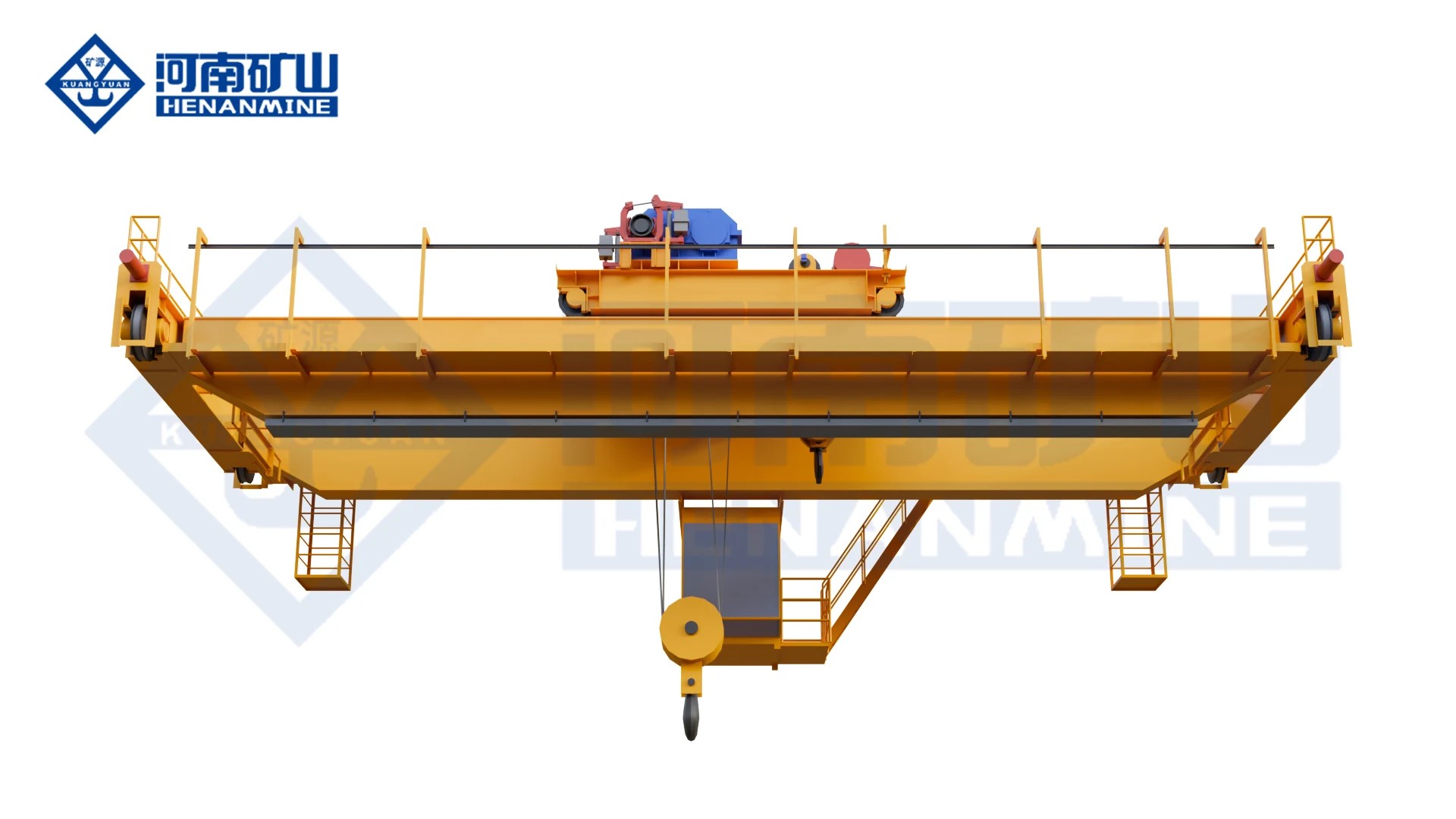

QY insulated double-girder overhead crane with one lifting trolley and hook
QY

Insulated Hook Overhead Crane (QY)

Electrolysis and non-ferrous process lifting with one insulated trolley.

Capacity5 / 10 / 16/3.2 / 20/5 t
Span10.5–31.5 m
Working classA6 listed configurations
View detailsRequest a quote
All specifications
Model QY
Bridge arrangement Double girder, top-running overhead bridge
Standard rated loads 5 t; 10 t; 16/3.2 t; 20/5 t
Standard spans 10.5, 13.5, 16.5, 19.5, 22.5, 25.5, 28.5 and 31.5 m
Maximum lifting height 5 and 10 t: 16 m; 16/3.2 t: main 16 m / aux 18 m; 20/5 t: main 12 m / aux 14 m
Working class A6 for the listed configurations
Hoisting speeds 5 t: 15.6; 10 t: 10.4; 16/3.2 t: 10.7/14.6; 20/5 t: 9.8/15.5 m/min
Trolley speeds 5 t: 37.2; 10 t: 43.8; 16/3.2 and 20/5 t: 44.6 m/min
Bridge speeds 76–93.7 m/min; see the exact load/span row below
Electrical isolation Insulating pads, sleeves and plates at defined load-path interfaces
Insulation acceptance Test values, method and inspection points specified for the process
Motion-control options Speed control and positioning selected for the handling cycle
Environment Electrolytic/non-ferrous process service; heat and corrosion protection specified for exposure
Power supply Listed configurations: 380 V, 50 Hz, three-phase; destination alternatives by specification
Rail and wheel load Configuration-specific values shown below
Custom configuration Capacity, hook arrangement and motion package matched to the required process
5 t · 10.5 m span Lift 16 m; hoist 15.6 m/min; trolley 37.2 m/min; bridge 92.7 m/min; maximum wheel load 85 kN; rail P38
5 t · 13.5 m span Lift 16 m; hoist 15.6 m/min; trolley 37.2 m/min; bridge 92.7 m/min; maximum wheel load 91 kN; rail P38
5 t · 16.5 m span Lift 16 m; hoist 15.6 m/min; trolley 37.2 m/min; bridge 92.7 m/min; maximum wheel load 92 kN; rail P38
5 t · 19.5 m span Lift 16 m; hoist 15.6 m/min; trolley 37.2 m/min; bridge 92.7 m/min; maximum wheel load 104 kN; rail P38
5 t · 22.5 m span Lift 16 m; hoist 15.6 m/min; trolley 37.2 m/min; bridge 92.7 m/min; maximum wheel load 111 kN; rail P38
5 t · 25.5 m span Lift 16 m; hoist 15.6 m/min; trolley 37.2 m/min; bridge 93.7 m/min; maximum wheel load 125 kN; rail P38
5 t · 28.5 m span Lift 16 m; hoist 15.6 m/min; trolley 37.2 m/min; bridge 93.7 m/min; maximum wheel load 133 kN; rail P38
5 t · 31.5 m span Lift 16 m; hoist 15.6 m/min; trolley 37.2 m/min; bridge 93.7 m/min; maximum wheel load 138 kN; rail P38
10 t · 10.5 m span Lift 16 m; hoist 10.4 m/min; trolley 43.8 m/min; bridge 92.7 m/min; maximum wheel load 111 kN; rail P43
10 t · 13.5 m span Lift 16 m; hoist 10.4 m/min; trolley 43.8 m/min; bridge 92.7 m/min; maximum wheel load 118 kN; rail P43
10 t · 16.5 m span Lift 16 m; hoist 10.4 m/min; trolley 43.8 m/min; bridge 92.7 m/min; maximum wheel load 126 kN; rail P43
10 t · 19.5 m span Lift 16 m; hoist 10.4 m/min; trolley 43.8 m/min; bridge 93.7 m/min; maximum wheel load 131 kN; rail P43
10 t · 22.5 m span Lift 16 m; hoist 10.4 m/min; trolley 43.8 m/min; bridge 93.7 m/min; maximum wheel load 138 kN; rail P43
10 t · 25.5 m span Lift 16 m; hoist 10.4 m/min; trolley 43.8 m/min; bridge 86.5 m/min; maximum wheel load 154 kN; rail P43
10 t · 28.5 m span Lift 16 m; hoist 10.4 m/min; trolley 43.8 m/min; bridge 86.5 m/min; maximum wheel load 163 kN; rail P43
10 t · 31.5 m span Lift 16 m; hoist 10.4 m/min; trolley 43.8 m/min; bridge 86.5 m/min; maximum wheel load 171 kN; rail P43
16 / 3.2 t · 10.5 m span Lift 16 / 18 m; hoist 10.7 / 14.6 m/min; trolley 44.6 m/min; bridge 76 m/min; maximum wheel load 155 kN; rail P43 / QU70
16 / 3.2 t · 13.5 m span Lift 16 / 18 m; hoist 10.7 / 14.6 m/min; trolley 44.6 m/min; bridge 76 m/min; maximum wheel load 164 kN; rail P43 / QU70
16 / 3.2 t · 16.5 m span Lift 16 / 18 m; hoist 10.7 / 14.6 m/min; trolley 44.6 m/min; bridge 76 m/min; maximum wheel load 173 kN; rail P43 / QU70
16 / 3.2 t · 19.5 m span Lift 16 / 18 m; hoist 10.7 / 14.6 m/min; trolley 44.6 m/min; bridge 89 m/min; maximum wheel load 194 kN; rail P43 / QU70
16 / 3.2 t · 22.5 m span Lift 16 / 18 m; hoist 10.7 / 14.6 m/min; trolley 44.6 m/min; bridge 89 m/min; maximum wheel load 203 kN; rail P43 / QU70
16 / 3.2 t · 25.5 m span Lift 16 / 18 m; hoist 10.7 / 14.6 m/min; trolley 44.6 m/min; bridge 89 m/min; maximum wheel load 214 kN; rail P43 / QU70
16 / 3.2 t · 28.5 m span Lift 16 / 18 m; hoist 10.7 / 14.6 m/min; trolley 44.6 m/min; bridge 89 m/min; maximum wheel load 223 kN; rail P43 / QU70
16 / 3.2 t · 31.5 m span Lift 16 / 18 m; hoist 10.7 / 14.6 m/min; trolley 44.6 m/min; bridge 89 m/min; maximum wheel load 232 kN; rail P43 / QU70
20 / 5 t · 10.5 m span Lift 12 / 14 m; hoist 9.8 / 15.5 m/min; trolley 44.6 m/min; bridge 76 m/min; maximum wheel load 177 kN; rail P43 / QU70
20 / 5 t · 13.5 m span Lift 12 / 14 m; hoist 9.8 / 15.5 m/min; trolley 44.6 m/min; bridge 76 m/min; maximum wheel load 188 kN; rail P43 / QU70
20 / 5 t · 16.5 m span Lift 12 / 14 m; hoist 9.8 / 15.5 m/min; trolley 44.6 m/min; bridge 76 m/min; maximum wheel load 199 kN; rail P43 / QU70
20 / 5 t · 19.5 m span Lift 12 / 14 m; hoist 9.8 / 15.5 m/min; trolley 44.6 m/min; bridge 89 m/min; maximum wheel load 221 kN; rail P43 / QU70
20 / 5 t · 22.5 m span Lift 12 / 14 m; hoist 9.8 / 15.5 m/min; trolley 44.6 m/min; bridge 89 m/min; maximum wheel load 233 kN; rail P43 / QU70
20 / 5 t · 25.5 m span Lift 12 / 14 m; hoist 9.8 / 15.5 m/min; trolley 44.6 m/min; bridge 89 m/min; maximum wheel load 243 kN; rail P43 / QU70
20 / 5 t · 28.5 m span Lift 12 / 14 m; hoist 9.8 / 15.5 m/min; trolley 44.6 m/min; bridge 89 m/min; maximum wheel load 255 kN; rail P43 / QU70
20 / 5 t · 31.5 m span Lift 12 / 14 m; hoist 9.8 / 15.5 m/min; trolley 44.6 m/min; bridge 89 m/min; maximum wheel load 265 kN; rail P43 / QU70

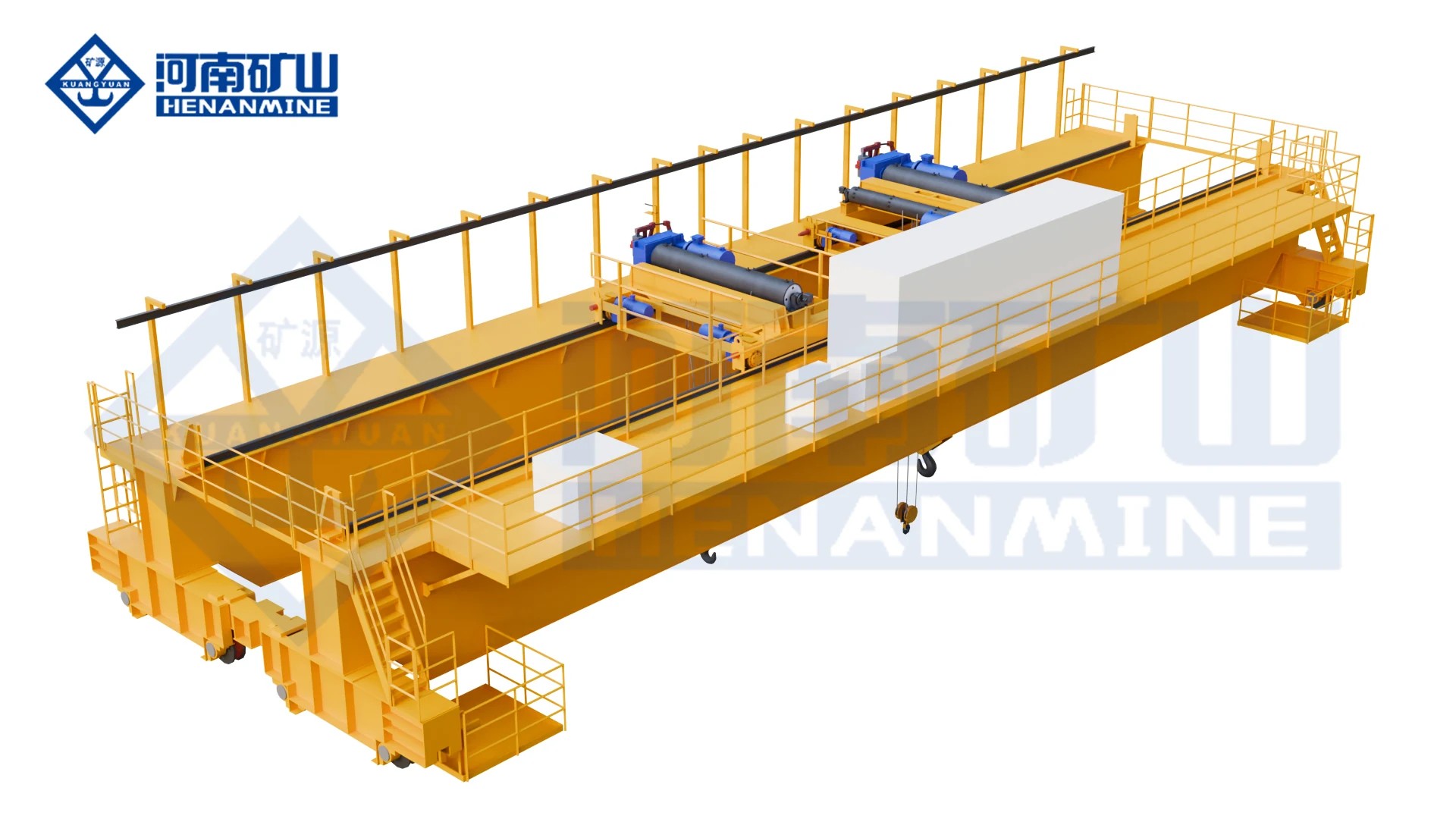

QYE insulated overhead crane showing two winch trolleys on one double-girder bridge
QYE

Double Trolley Insulated Overhead Crane (QYE)

Two insulated trolleys for long components and approved two-point lifts.

Trolleys2 insulated lifting systems
OperationSeparate or approved combined lifting
CapacityIndividual ratings and permitted bridge load
View detailsRequest a quote
All specifications
Model QYE
Bridge arrangement Double girder overhead bridge
Trolley arrangement Two insulated lifting trolleys
Load ratings Individual lifting-point ratings plus maximum permitted combined bridge load
Span Selected for runway rail-centre distance
Lifting height Selected for pickup, transfer and placement levels
Working hook spacing Minimum and maximum separation defined in the arrangement drawing
Working duty Selected from load spectrum, operating frequency and shifts
Hoisting speed Selected for individual and coordinated lifting cases
Trolley and bridge travel Speed-control package selected for the handling cycle
Coordinated control Encoder feedback and inverter control
Electrical isolation Insulating pads, sleeves and plates at specified interfaces
Isolation acceptance Test performance and inspection points defined for both lifting paths
Operator control Operating station and trolley selection functions defined in the offer
Environment Thermal, dust and corrosion conditions specified for the installation
Power supply Three-phase voltage and frequency matched to the destination supply
One trolley in use · Load basis Its complete suspended load
One trolley in use · Movement and control Independent hook and trolley selection
One trolley in use · Configuration to confirm Working coverage and unused trolley position
Two separate loads · Load basis Each trolley load plus combined bridge limit
Two separate loads · Movement and control Independent operation within agreed travel/load limits
Two separate loads · Configuration to confirm Permitted simultaneous operating functions
One component on two lifting points · Load basis Actual reaction at each point plus total suspended load
One component on two lifting points · Movement and control Coordinated lifting with agreed relative movement
One component on two lifting points · Configuration to confirm Hook spacing, geometry and acceptance tolerance
Process-connected equipment · Load basis All connected load paths and attachments
Process-connected equipment · Movement and control Specified sequence with electrical isolation maintained
Process-connected equipment · Configuration to confirm Isolation interfaces and acceptance tests

Read QY capacities, spans, lifts and speeds as matched configurations. Main and auxiliary hook ratings are separate. QYE requires its own individual hook ratings, combined bridge load and operating limits; QY values do not define QYE performance.

Budget planning

How much does an insulated overhead crane cost?

The price depends on the lifting arrangement, isolation interfaces and agreed tests, as well as load, span and duty. Request an itemized quotation for the crane and process conditions you specify.

QY and QYE configured quotations
Configuration Equipment price
QY single-trolley insulated overhead crane Request a configured quotation
QYE double-trolley insulated overhead crane Request a configured quotation

Send the load, span, hook travel and duty with the process electrical conditions and required insulation tests. For QYE, include each hook load, permitted combined load and hook spacing.

Confirm the bridge, trolleys, controls and insulation package, then identify the status of runway steel, rails, power feed, freight, import charges, installation, commissioning and site tests.

Get a quote for your configuration
Workshop arrangement

QYE two-trolley workshop arrangement

QYE provides two lifting positions on one bridge for separate handling tasks or an approved shared lift. Match the hook spacing and individual loads to the component and its lifting points.

Specify the insulating interfaces on both lifting paths, including any fixture linking the hooks. The technical offer should identify the insulation components, verification and operating cases for the ordered crane.

Discuss your lifting process

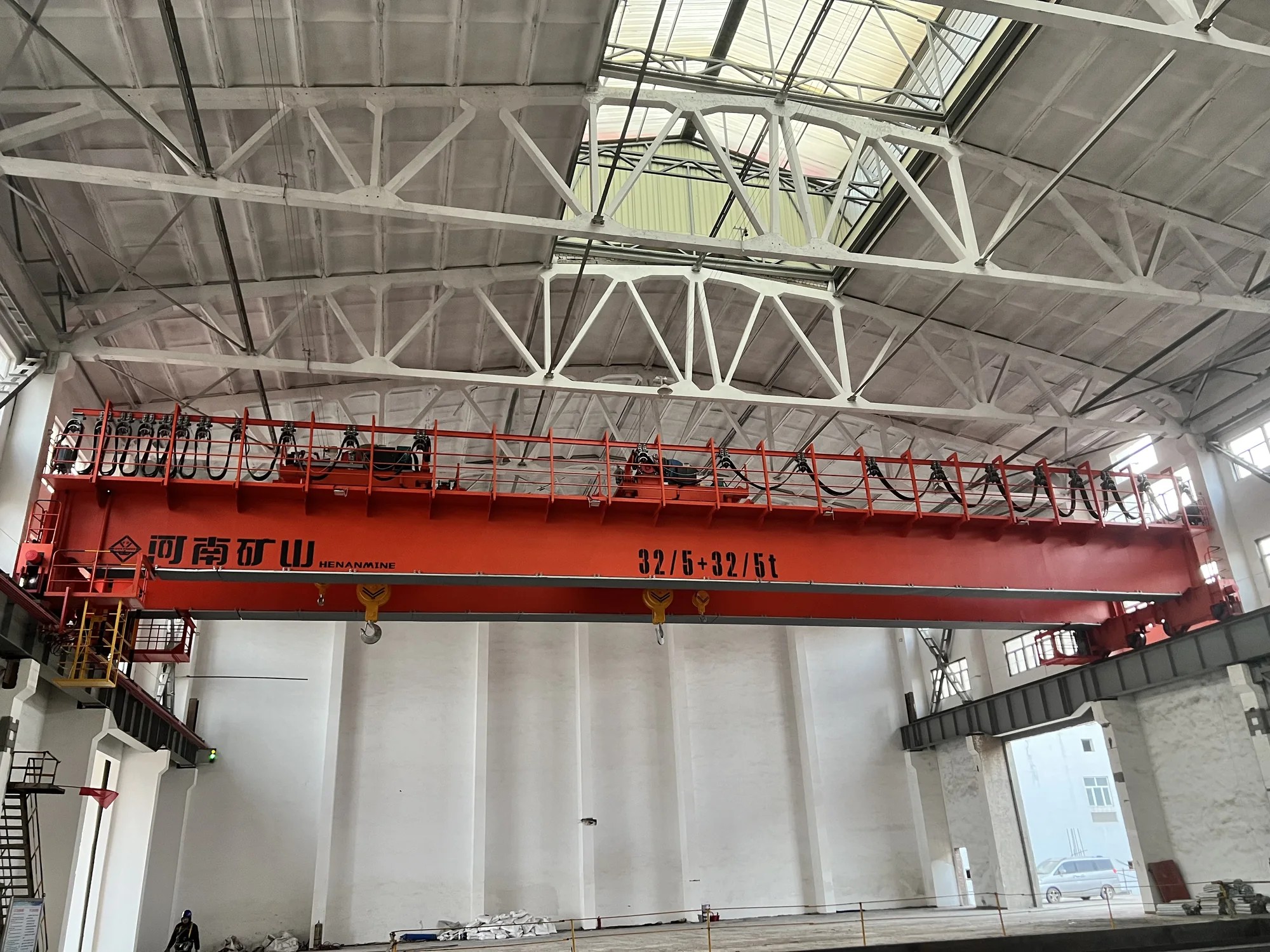

QYE double-trolley overhead crane installed on workshop runways
QYE double-trolley bridge installed on workshop runways.

Insulated crane buying questions

Should I choose QY or QYE for my process?

Choose QY when one trolley provides the required hook coverage; listed options include a single hook or main and auxiliary hooks. Choose QYE for two trolley positions serving separate loads or an approved two-point lift. State the complete suspended load, lifting-point reactions, hook spacing and movement sequence. Main/auxiliary or individual trolley ratings do not automatically add up to an approved combined lifting capacity.

What insulation requirements should the quotation cover?

Identify the process electrical conditions, load connections and attachments, then agree the insulating interfaces, required performance, test method and records. State dust, humidity, heat, fumes and cleaning exposure, with inspection and replacement access. Process isolation requirements are separate from the crane's incoming power supply. The specified insulation interfaces do not establish a rating for live electrical work.

What is needed for a price and delivery proposal?

Start with the maximum load, span, required hook travel, handling cycle and destination. Add process electrical conditions and the isolation/test requirements; for QYE, include hook spacing and load at each lifting point. Ask for an itemized scope covering crane equipment, insulating components, controls, drawings, tests, packing, freight, installation and commissioning, with warranty terms and recommended spares. Confirm dates after the configuration and drawing scope are agreed.

Compare the range

Insulated crane specification comparison

Compare the trolley arrangement, load, span, useful hook height and duty. Select a full product name to open its details.

Swipe across the table to compare specifications.

Model / product Arrangement Capacity Span / working width Lifting height Working class
Insulated Hook Overhead Crane (QY) One insulated hook trolley 5 / 10 / 16/3.2 / 20/5 t 10.5–31.5 m 5/10 t: 16 m; 16/3.2 t: 16/18 m; 20/5 t: 12/14 m A6 listed configurations
Double Trolley Insulated Overhead Crane (QYE) Two insulated lifting trolleys Each hook rating and approved combined bridge load Project rail-centre span Process pickup, transfer and placement levels Selected for the operating cycle

QY values describe listed A6 configurations. Main/auxiliary figures are read separately. QYE ratings, geometry, duty and permitted combined movements are specified for the actual process and supporting runway.

Get an insulated overhead crane quote

Send the component weight, lifting points, approximate span, required hook travel and destination. Add the process electrical conditions and a simple handling sequence if available.

Confirm the insulation interfaces, inspection and test records, drawings, spare parts and site-service scope in the technical offer. Production and delivery milestones follow the agreed configuration.
