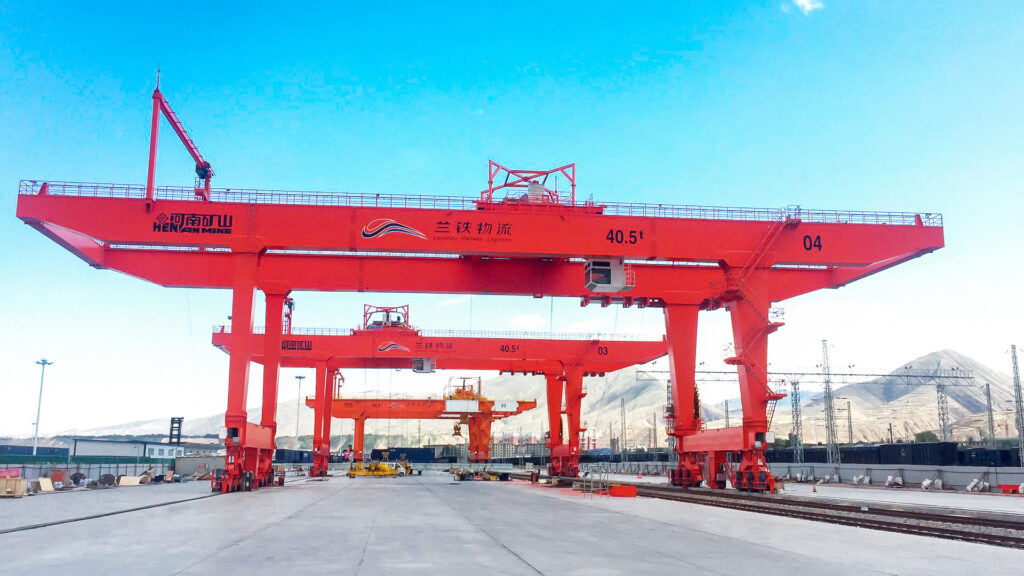

CMJ Rail-Mounted Container Gantry Crane
Handle containers between rail lanes, trucks and yard stacks with a fixed-rail gantry.
All specifications
| Model / equipment family | CMJ rail-mounted container gantry crane (RMG) |
|---|---|
| Application | Container loading, transfer and stacking at ports, railway terminals and container yards |
| Container-load options | 35 / 40.5 / 50 t under-spreader options; the offer confirms the selected rating |
| Rated-load basis | State loaded-container gross mass, including the container and contents; account separately for spreader and other suspended equipment in the hoisting design |
| Rail-centre span / gauge | 18–35 m family options; selected for the yard layout, not overall crane width |
| Lifting-height options | 12.3–21 m family options; useful spreader clearance confirmed on the arrangement |
| Stacking arrangement | Container type, stack tiers, working clearance and transfer-lane geometry defined together; lifting height is not a universal number of stack tiers |
| Working-duty selection | A6–A8 family selection; matched to the complete handling cycle |
| Hoisting and travel speeds | Selected for capacity, duty and handling cycle; request loaded and unloaded speeds separately |
| Trolley and gantry travel | Trolley crosses the gantry; gantry travels along the fixed yard rails |
| Spreader choices | 20 / 40 / 45 ft telescopic container spreader options matched to the required container mix |
| Drive control | Variable-frequency speed control |
| Controls and automation | PLC controls; ordered operating modes and yard-system interfaces defined in the offer |
| Load stability | Wire-rope damping and anti-sway functions selected for the handling cycle and positioning needs |
| Motion and securing functions | Anti-collision, motion limits and gantry anchoring; selected functions and test conditions agreed for the yard |
| Reference electrical supply | Three-phase AC 380 V, 50 Hz in the 35 t reference; destination supply confirmed for the ordered crane |
| Power-feed arrangement | Cable/feed system matched to travel distance, routing and the terminal electrical interface |
| Operator control | Cabin control in the 35 t reference; remote/automation scope confirmed for the ordered system |
| Cantilever coverage | Outreach and loading lanes confirmed with the yard layout; the published 35 t reference condition is kept within its own schedule |
| Rail and wheel reactions | QU80 and 290 kN belong to the 35 t published reference only; use approved crane reactions and rail-interface data for civil design |
| Yard inputs | Container rows, railway/truck lanes, pickup levels, stacking plan and target moves per hour |
| Environmental inputs | Site wind, ambient temperature, corrosion and exposure specified for structural/protection selection |
| Documents and acceptance | Agree the arrangement, spreader/rating basis, load cases, electrical interfaces and factory/site acceptance scope |
| Commercial scope | Crane, spreader, power feed, rails/civil works, freight, erection and commissioning itemized in the quotation |
| Separate RMG reference: 35 t / 30 m span / 16 m lift | Procurement reference, not a verified CMJ serial configuration. Values below belong to this schedule; ordered duty, speeds, outreach and reactions require confirmation. |
| 35 t reference · Rated load under spreader | 35 t |
| 35 t reference · Crane-duty selection | A6–A8; selected for the ordered operating cycle |
| 35 t reference · Rail-centre span | 30 m or as required |
| 35 t reference · Container formats | 20 / 40 / 45 ft |
| 35 t reference · Cantilever condition | By request; no more than 1/3 of span in this published reference |
| 35 t reference · Lifting height | 16 m or as required |
| 35 t reference · Spreader | 20 / 40 / 45 ft telescopic option selected for the container mix |
| 35 t reference · Hoisting speed range | 0–20 m/min; loaded/unloaded condition not separately identified |
| 35 t reference · Trolley cross-travel speed range | 0–30 m/min; loaded/unloaded condition not separately identified |
| 35 t reference · Gantry long-travel speed range | 0–40 m/min; loaded/unloaded condition not separately identified |
| 35 t reference · Reference power supply | Three-phase AC 380 V, 50 Hz; other destination standard by order |
| 35 t reference · Operator control | Cabin |
| 35 t reference · Maximum wheel-load reference | 290 kN; final wheel reactions and load cases confirmed in the crane drawing |
| 35 t reference · Rail reference | QU80; final rail/support design confirmed with the ordered crane |
