RMG / CONTAINER YARD

Rail-Mounted Container Gantry Crane

Stack and transfer containers between rail wagons, truck lanes and storage blocks on a fixed runway.

LOAD
35 / 40.5 / 50 t
HANDLING
Container and spreader
TRAVEL
Fixed rails
QUOTE
Site matched
Choose a fixed rail path when the container block, rail interface and power corridor are planned for long-term use.

Get a configuration and price matched to your load, dimensions, operating cycle and delivery destination.

MINIMUM ORDER1 set
CERTIFICATIONDocuments for your destination
LEAD TIMEConfirmed after configuration approval

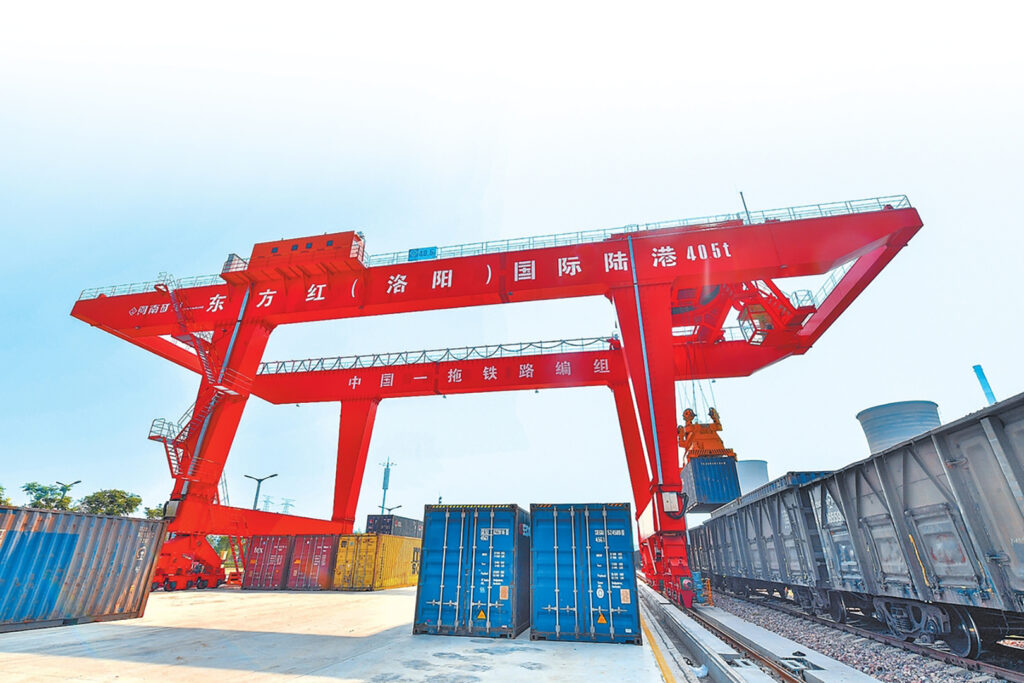

Red container gantry crane spanning railway tracks and an adjacent truck lane at an outdoor terminal
Container gantry crane above a rail transfer lane
02 / APPLICATIONS

Where the Rail-Mounted Container Gantry Crane fits.

Choose a fixed rail path when the container block, rail interface and power corridor are planned for long-term use.

INTERMODAL TERMINAL

Move containers between rail wagons and road vehicles

Dimension the wagon track, truck lane and safe handover position.

CONTAINER BLOCK

Stack and retrieve boxes

State container rows, tiers and spreader clearance.

PORT YARD

Transfer loaded containers along a fixed block

Check runway length, power feed and cross-road interfaces.

When to compare a different arrangement

  • Frequent transfers between separate blocks require a mobile RTG.
  • The civil design cannot accept the selected rail and wheel reactions.
  • The capacity basis excludes the spreader and eccentric container load.
01 / SPECIFICATIONS

Specifications for the CMJ selection.

Compare the RMG capacity and geometry options below with a 35 t container-handling configuration. The 35 t rating is the container payload under the spreader; the crane design also accounts for spreader dead weight. Match loaded speeds, duty and site reactions to your operating cycle in the technical offer.

Compare the specifications and selection requirements

ParameterRMG family options35 t / 30 m / 16 m configuration
Container payload options35 / 40.5 / 50 t35 t under spreader
Rail-centre span18–35 m30 m
Lifting height12.3–21 m16 m
Crane dutyA6–A8Selected within A6–A8 for your operating cycle
Spreader formats20 / 40 / 45 ft optionsTelescopic spreader matched to the required container mix
Hoisting speedSpecified for the selected capacity and duty0–20 m/min speed range
Trolley travelSpecified for the required handling cycle0–30 m/min speed range
Gantry travelSpecified for the required handling cycle0–40 m/min speed range
Power supplyDestination voltage and frequency by order380 V / 50 Hz / three-phase
Operator controlCabin and project-specific remote or automation optionsCabin
Rail and wheel loadsSelected for the final crane and site reactionsQU80 rail; 290 kN maximum wheel-load reference

The 35 t column is one configuration basis, not a specification for every capacity. Final rail and foundation design uses the approved crane geometry, wheel loads and anchoring reactions. Alternative dimensions, power supplies and automation packages are available by project.

EQUIPMENT VIEWS

Review the equipment and configuration views.

Red container gantry crane spanning railway tracks and an adjacent truck lane at an outdoor terminal
Container gantry crane above a rail transfer lane

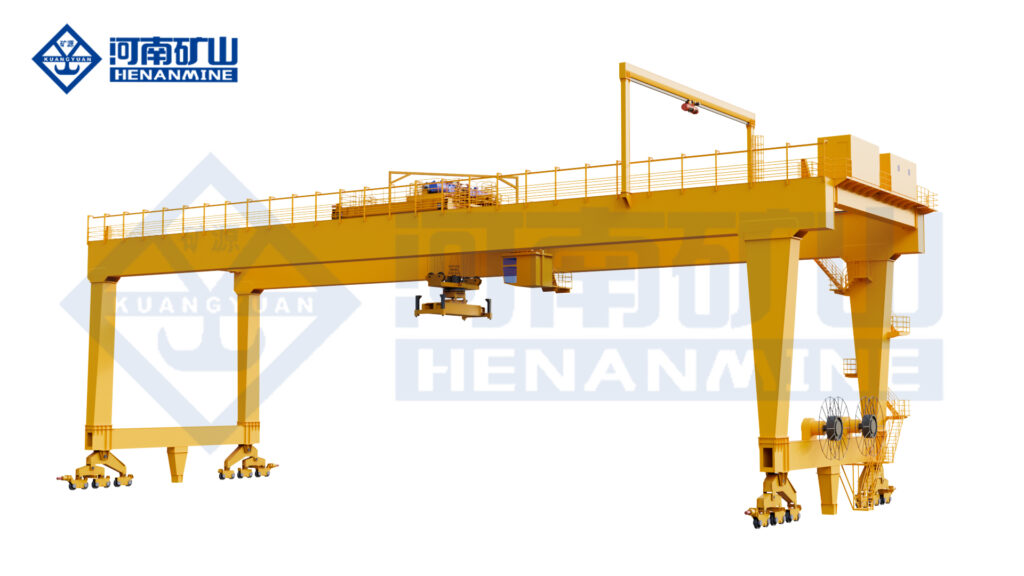

Rows of blue rail-mounted gantry cranes with upper walkways and suspended lifting gear alongside a terminal rail lane
Container cranes along a terminal rail lane
03 / CONFIGURATION

Size the Rail-Mounted Container Gantry Crane for your site.

Send the heaviest load and its lifting points together with a dimensioned route. The quotation should state the selected machine, container spreader, twistlocks and anti-sway controls, site reactions and acceptance method.

01 / PROJECT INPUT

Load and tool

Provide the container and spreader, attachment mass, lifting points and centre of gravity.

02 / PROJECT INPUT

Coverage

Mark rail centres, block length, rows and truck or wagon lane on a drawing.

03 / PROJECT INPUT

Operating cycle

State loaded moves per hour, shifts, distances and required placement accuracy.

04 / PROJECT INPUT

Site interface

Provide bearing capacity, power, climate, access and destination requirements.

Equipment configuration

Your selected configuration determines the installation dimensions and operating envelope.

04 / QUOTATION SCOPE

Buy the complete Rail-Mounted Container Gantry Crane package.

Ask each bidder to quote the same lifting arrangement, site interface, tests and dispatch milestone.

01

Approved machine and site reactions

Request the GA, rated configuration, rail centres, block length, rows and truck or wagon lane and governing reactions.

02

Named crane, tool and controls

List the container spreader, twistlocks and anti-sway controls, drives, braking, control and protection as included or excluded.

03

Defined tests and delivery

Set approved yard layout, rail reactions, FAT, spreader and terminal handover tests, freight, site services and dispatch date in the contract.

05 / ORDERING & DELIVERY

Order with clear documents and delivery milestones.

Align the selected equipment, technical documents, factory dispatch and site responsibilities before placing your order.

MINIMUM ORDER

1 set

Minimum order: 1 set. Single-crane and multi-crane project quotations are available.

CERTIFICATION

Documents for your destination

Agree the documents for the quoted crane and destination: applicable conformity documents, inspection and test records, operating manuals and the approved technical schedule.

LEAD TIME

Confirmed after configuration approval

Agree drawing approval, fabrication, machinery and control integration, factory testing, transport and commissioning milestones for the selected handling system.

Documentation & acceptance

  • Approved general arrangement and installation dimensions
  • Rated-load and operating configuration
  • Support reactions and interface requirements
  • Applicable inspection records and certificates
  • Operating, maintenance and electrical documents
  • Agreed factory and site acceptance procedures

Specify the documents required for your equipment, destination and site approval in the technical offer.

  1. 01

    Configuration & drawing approval

    Agree the load cases, dimensions, operating envelope and supply schedule.

  2. 02

    Manufacture & factory inspection

    Set the inspection scope, acceptance criteria and customer witness points.

  3. 03

    Packing & dispatch

    Confirm transport dimensions, shipping route, packing list and unloading access.

  4. 04

    Installation & handover

    Agree site readiness, commissioning, load testing and operator training.

WARRANTY & AFTER-SALES

Plan support before the equipment arrives.

Request a written warranty schedule identifying the steel structure, drives, controls, power system and lifting attachment, with destination service and wear-part terms.

Request service and warranty terms ↗
TECHNICAL SUPPORT

Installation, maintenance & parts

Include commissioning support, operator training, fault diagnosis and a critical-spares list. Define response arrangements and any on-site technician scope before the order.

SITE RESPONSIBILITIES

Define your handover scope

Identify the equipment and personnel needed for unloading, installation and commissioning. Put responsibilities and acceptance requirements in the agreed project schedule.

06 / RELATED EQUIPMENT

Compare the arrangement for your lifting task.

Review related equipment against your load, site geometry and operating cycle.

07 / BUYER QUESTIONS

CMJ purchasing questions, answered.

Check the selection, commercial scope and installation requirements before ordering.
