Load schedule by plant zone
Integrated Steel Plant Crane System
A large steel plant has separate scrap, melt-shop and finished-product routes; a single crane specification cannot cover every load.

Start with the load and the process route.
A large steel plant has separate scrap, melt-shop and finished-product routes; a single crane specification cannot cover every load.
The crane, lifting attachment, building interface and control sequence need to be reviewed as one operating system.
Prepare the technical brief ↗Runway drawings and yard layout
Attachment and material dimensions
Shifts, cycles and environmental conditions
Coordinate lifting from the port scrap yard to finished steel.
Zone the plant by material and duty. Use dedicated ladle handling in hot areas, clamps or magnetic beams for formed steel, and gantry capacity at the port scrap yard. Align transfer points and runway interfaces before choosing models.

Map the zones
Mark scrap receipt, ladle travel, slab transfer and finished-product storage on one site plan.
Assign lifting tools
Specify hooks, clamps, magnetic beams or grabs against the material at each pickup point.
Link the hand-offs
Coordinate bay coverage, yard access and vehicle movements where routes meet.
Separate hot lifts
A filled ladle calls for its own safety and operating review, including the lifting gear mass.
Size for duty
Use actual shifts and handling cycles for each bay instead of applying one plant-wide capacity.
Southeast Asian integrated steel plant

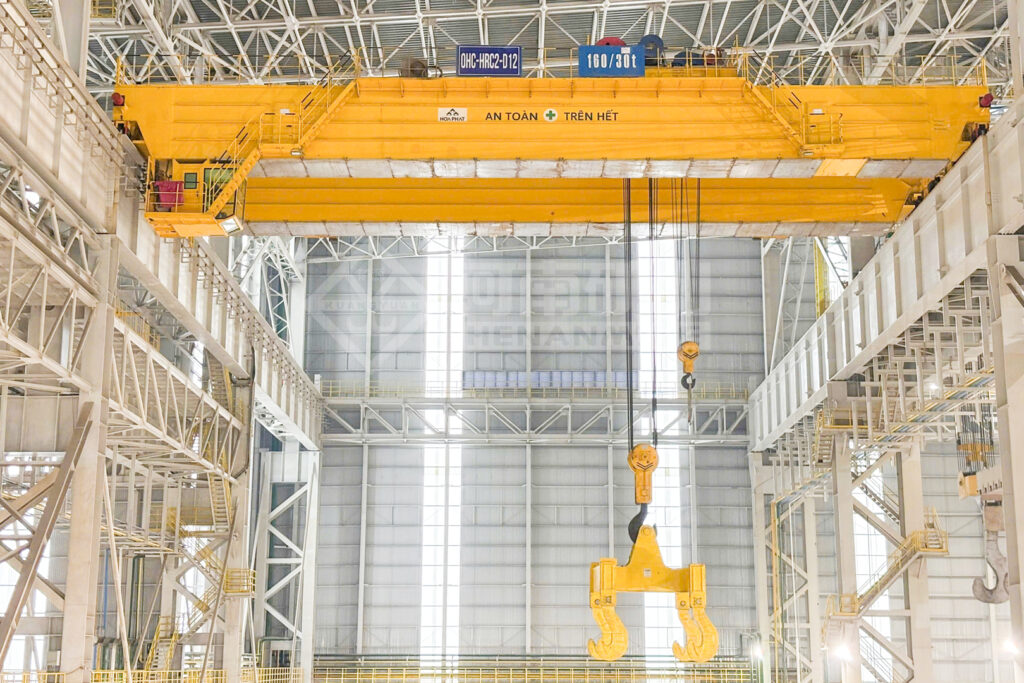

Henan Mine Crane supplied more than 100 lifting systems, including a 160 t double-girder bridge crane, slab-clamp cranes, lower-rotating magnetic-beam cranes and double-trolley gantries for a port scrap yard.






Define the operating brief before fixing a crane model.
Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.
| Input | Information needed for this application | Confirm in the technical offer |
|---|---|---|
| 01 / Load and attachment | Load schedule by plant zone | Rated load including the attachment, lifting-point arrangement and load cases. |
| 02 / Plant geometry | Runway drawings and yard layout | Crane span, lifting height, headroom, wheel loads and runway or foundation interfaces. |
| 03 / Operating duty | Attachment and material dimensions | Duty classification, speeds and control behaviour matched to the agreed operating cycle. |
| 04 / Environment and controls | Shifts, cycles and environmental conditions | Protection, positioning, interlocks, monitoring and safe recovery requirements. |
| Destination and delivery | Country, project standards, quantity, freight and site services. | Documents, inspection and testing, packing, installation support and agreed delivery milestones. |
Send the available load schedule and drawings. The missing inputs can be identified during technical review.
Discuss your project ↗Compare the complete lifting package.
The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.
Engineering
General arrangement, load basis, runway and utility interfaces, control and protection schedule.
Manufacture & inspection
Approved drawings, inspection plan and factory testing for the selected configuration.
Shipping & site work
Packing, freight, erection support, commissioning and operator training as specified.
Handover
Test records, manuals, maintenance instructions and agreed spare-parts list.
Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.
Compare equipment for this operating task.
These product families and related applications provide a starting point. Final selection follows the load and site review.
Before you request a quotation.
What information is needed to specify this crane solution?
Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.
Can the crane be customized for our plant?
Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.
What are the order quantity, certification and lead time?
We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.
Send the integrated steel plant crane system brief. Get a crane proposal built around your process.
Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.
Send your project requirements ↗
