CLEANROOM CRANE SOLUTIONS

Semiconductor Polysilicon Automated Clean Lifting

A semiconductor-grade polysilicon workshop has sensitive cleanliness requirements and a classified atmosphere, so crane friction, dust and ignition protection cannot be treated separately.

ApplicationJiangsu semiconductor-grade polysilicon workshop
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

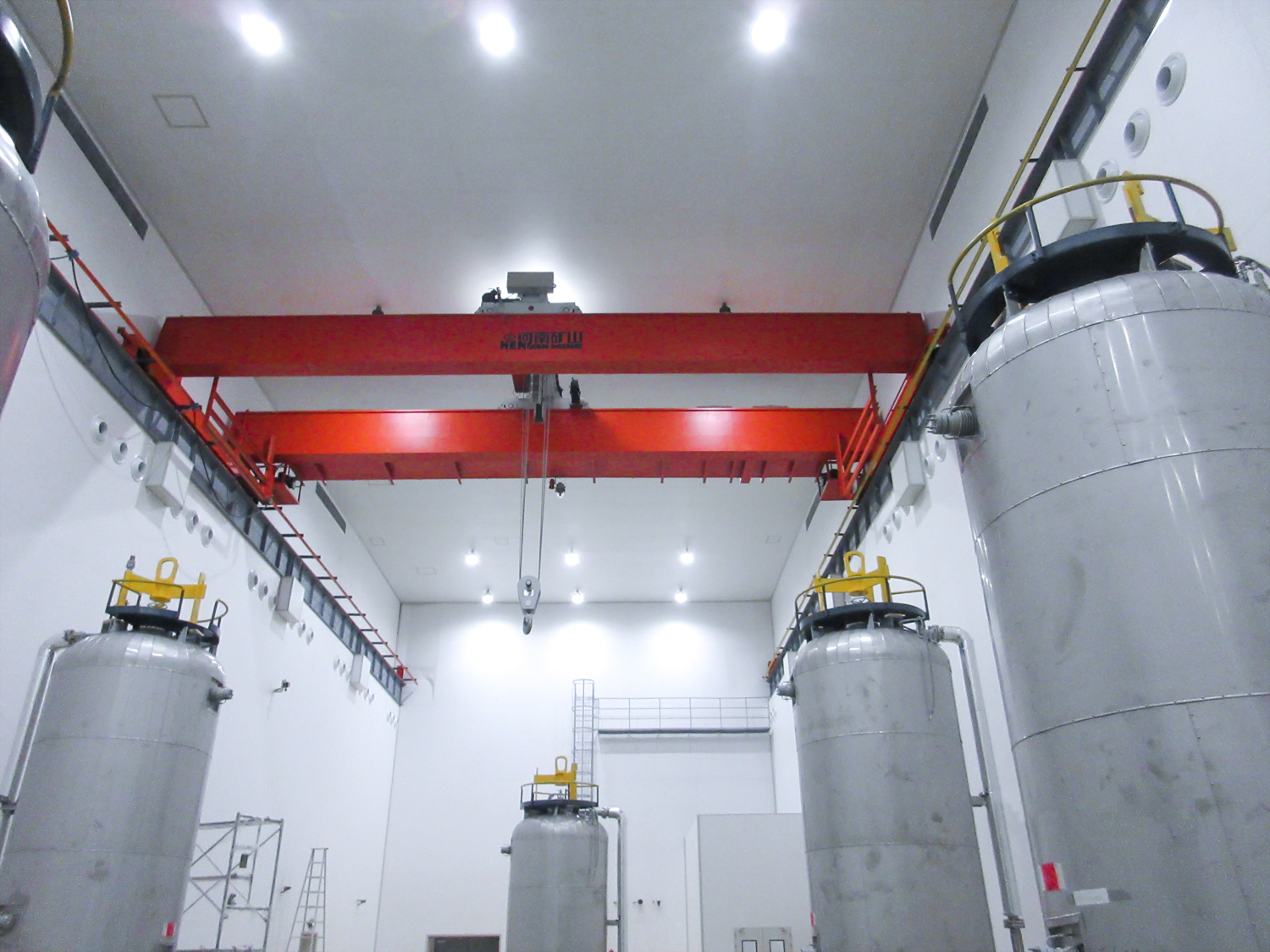

Clean lifting overhead crane installed in a polysilicon process building
Clean lifting overhead crane installed in a polysilicon process building.
THE OPERATING CHALLENGE

Start with the load and the process route.

A semiconductor-grade polysilicon workshop has sensitive cleanliness requirements and a classified atmosphere, so crane friction, dust and ignition protection cannot be treated separately.

The load, lifting attachment, building interface and operating sequence need to be reviewed together.

Prepare the technical brief ↗
01 / DEFINE

Cleanliness and hazardous-zone documents

02 / DEFINE

Furnace and tool mass

03 / DEFINE

Platform route and clearances

04 / DEFINE

Automated hook and cleaning tests

ENGINEERED FOR THE APPLICATION

Move furnace and silicon-tooling assemblies on a defined clean route.

Use an automated cleanroom explosion-proof crane to move furnace and silicon-tooling loads between the reduction furnace, cleaning and transfer platforms. Position feedback, automatic hook handling and particle collection should be verified in the real route.

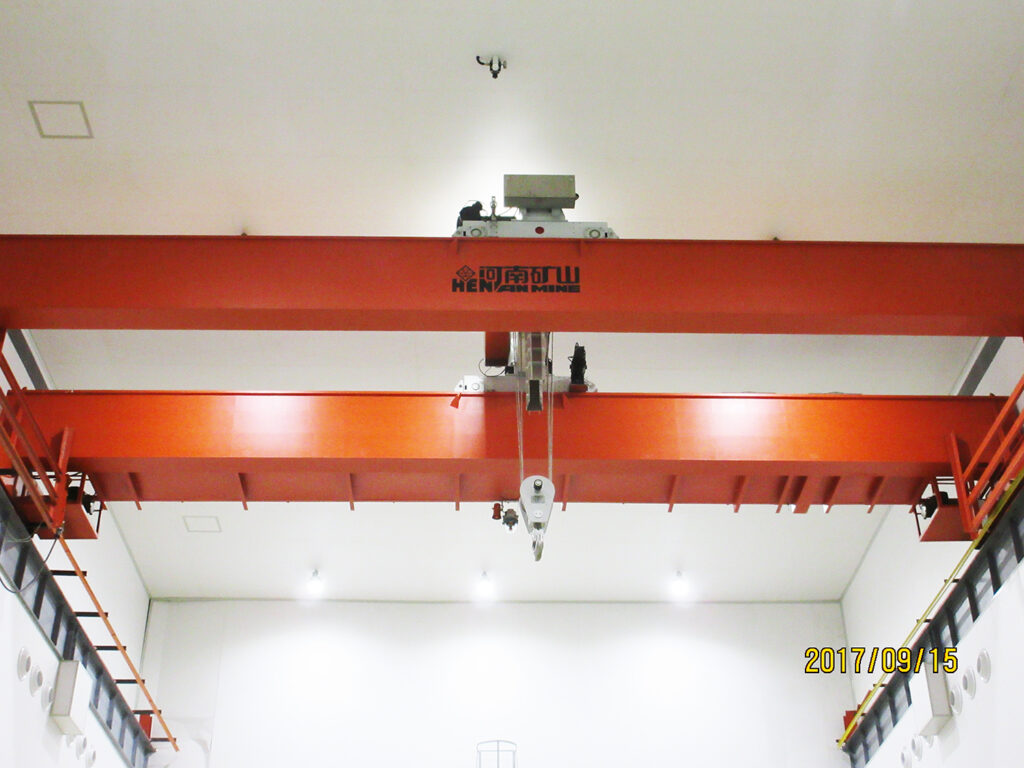

Clean lifting overhead crane installed in a polysilicon process building
Clean lifting overhead crane installed in a polysilicon process building.
01

Prepare the load

Check the furnace or silicon tool and its dedicated lifting interface.

02

Follow the programmed path

Move between platforms with accurate position and sway control.

03

Clean and release

Control particle collection and verify safe release at the destination.

✓

Cleanliness verification

Specify particle-control method, cleaning access and acceptance sampling with the customer.

✓

Explosion protection

Use the site's zone, gas group and temperature class to select certified equipment.

PROJECT IN OPERATION

Jiangsu semiconductor-grade polysilicon workshop

A cleanroom explosion-proof automated crane served a Jiangsu polysilicon producer, following a defined platform-to-platform route with a project explosion-protection rating of dIICT4.

Process fitSemiconductor Polysilicon Automated Clean Lifting Solution
EquipmentCleanroom Explosion-Proof Bridge Crane / Explosion-Proof Double-Girder Bridge Crane
ProjectJiangsu semiconductor-grade polysilicon workshop
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementCleanliness and hazardous-zone documentsRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementFurnace and tool massCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementPlatform route and clearancesDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Site requirementAutomated hook and cleaning testsProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane system be configured for our site and process?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.
