PORT CRANE SOLUTIONS

Luoyang Inland Port Cargo Transfer

An inland port must move containers precisely while accommodating other freight with different lifting attachments.

ApplicationDongfanghong Luoyang International Inland Port
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

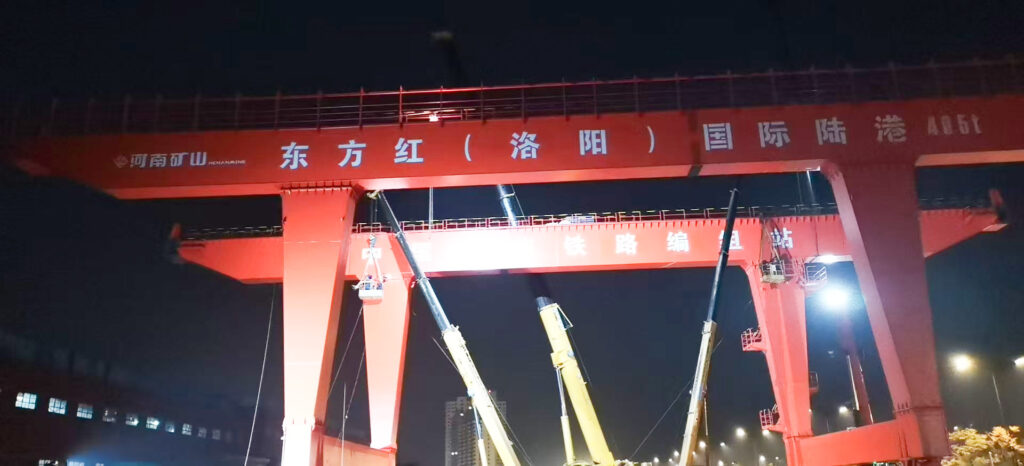

Rail-mounted gantry crane at an inland port cargo transfer site
Rail-mounted gantry crane at an inland port cargo transfer site.
THE OPERATING CHALLENGE

Start with the load and the process route.

An inland port must move containers precisely while accommodating other freight with different lifting attachments.

The load, lifting attachment, traffic interface and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Container and mixed-cargo schedule

02 / DEFINE

Rail gauge and lane layout

03 / DEFINE

Attachment weights and interfaces

04 / DEFINE

Traffic, positioning and recovery rules

ENGINEERED FOR THE APPLICATION

Use one terminal lane for containers and other scheduled cargo.

Configure the rail-mounted gantry around truck and rail transfer lanes. Use variable-frequency travel, PLC control and anti-sway for container positioning; define interchangeable lifting gear and a verified changeover routine for other cargo.

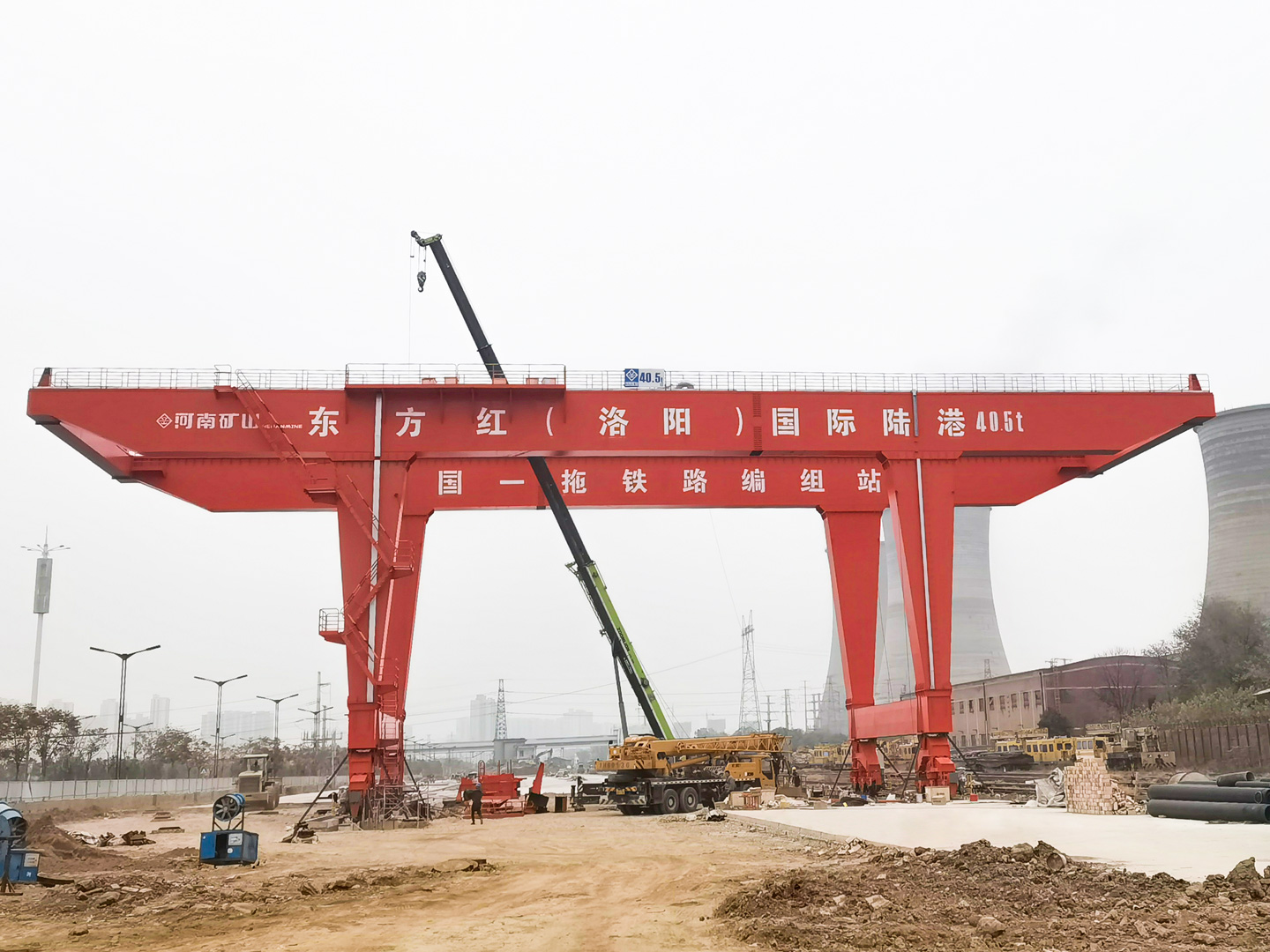

Rail-mounted gantry crane at an inland port cargo transfer site
Rail-mounted gantry crane at an inland port cargo transfer site.
01

Identify each load

Separate container jobs from loads needing another attachment.

02

Transfer through the yard

Coordinate trolley and gantry travel with vehicle routes.

03

Change and release

Verify the attachment, load path and set-down before the next task.

✓

Mixed-cargo lifting

Check capacity and hook coverage in every attachment mode.

✓

Terminal geometry

Confirm end approach, rail span and clearance at busy transfer points.

PROJECT IN OPERATION

Dongfanghong Luoyang International Inland Port

Henan Mine Crane delivered a customized rail-mounted container gantry to the Luoyang inland port, with PLC control, anti-sway, an annular trolley and interchangeable lifting gear.

Process fitLuoyang Inland Port Cargo Transfer Solution
EquipmentRail-Mounted Container Gantry Crane / Grab and Hook Gantry Crane
ProjectDongfanghong Luoyang International Inland Port
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementContainer and mixed-cargo scheduleRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementRail gauge and lane layoutCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementAttachment weights and interfacesAttachment self-weight, rated-load basis, changeover procedure and mechanical/electrical interfaces.
04 / Site requirementTraffic, positioning and recovery rulesProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be customized for our site?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.
