FACTORY CRANE SOLUTIONS

750 t Heavy Fabrication Gantry

A 750 t yard lift can challenge wheel loads, travel control and power supply before the first component is moved.

ApplicationZhejiang 750 t gantry project
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

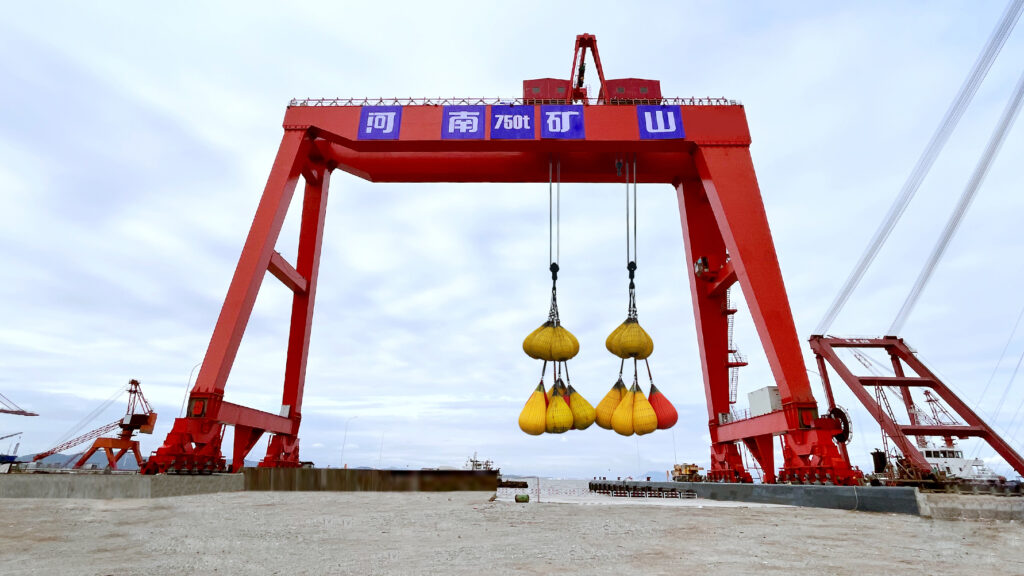

Heavy gantry crane at an outdoor fabrication and assembly site
Heavy gantry crane at an outdoor fabrication and assembly site.
THE OPERATING CHALLENGE

Start with the load and the production route.

A 750 t yard lift can challenge wheel loads, travel control and power supply before the first component is moved.

The lifted load, rigging, building clearances and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Full assembly and rigging mass

02 / DEFINE

Civil and wheel-load limits

03 / DEFINE

Lift-point spacing and route

04 / DEFINE

Electrical supply and recovery plan

ENGINEERED FOR THE APPLICATION

Move extremely heavy assemblies while managing runway pressure.

Coordinate the gantry, runway and supply system as one package. Multi-point synchronized lifting, monitored travel, a site-specific dual-rail arrangement and regenerative power are evaluated against the real lifting cycle.

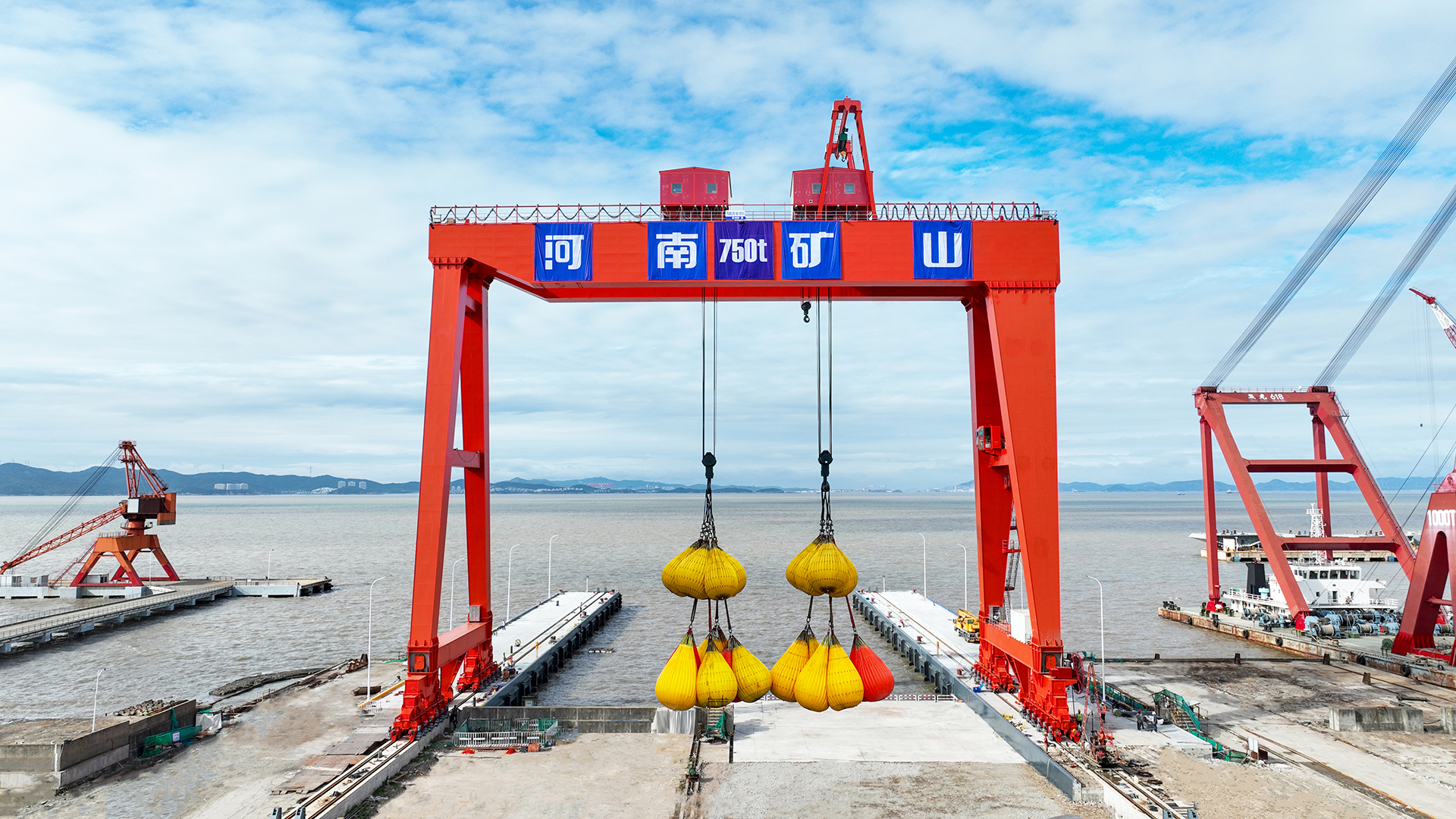

Heavy gantry crane at an outdoor fabrication and assembly site
Heavy gantry crane at an outdoor fabrication and assembly site.
01

Establish the heavy lift

Calculate assembly, rigging and support loads at each pickup point.

02

Move across the site

Balance lifting points and control gantry travel over the chosen rail layout.

03

Set down safely

Monitor load distribution and movement through final placement.

✓

Runway pressure

Verify the single-side dual-rail arrangement against civil design and wheel loads.

✓

Power and recovery

Check the 10 kV supply, regeneration and safe response to power interruption.

PROJECT IN OPERATION

Zhejiang 750 t gantry project

The project used a 750 t double-girder gantry in service at a Zhejiang project, with synchronized multi-point lifting, a single-side dual-rail design and 10 kV power with energy recovery.

Process fit750 t Heavy Fabrication Gantry Solution
Equipment
ProjectZhejiang 750 t gantry project
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementFull assembly and rigging massRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementCivil and wheel-load limitsCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementLift-point spacing and routeDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Site requirementElectrical supply and recovery planProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the lifting system be configured for our load and factory?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
