ALUMINUM PLANT CRANE SOLUTIONS

Aluminum Smelter Process Crane System

An aluminum smelter needs different handling actions at the carbon warehouse, feeding station and electrolytic cell; one hook crane cannot perform all three.

ApplicationBaotou aluminum project
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

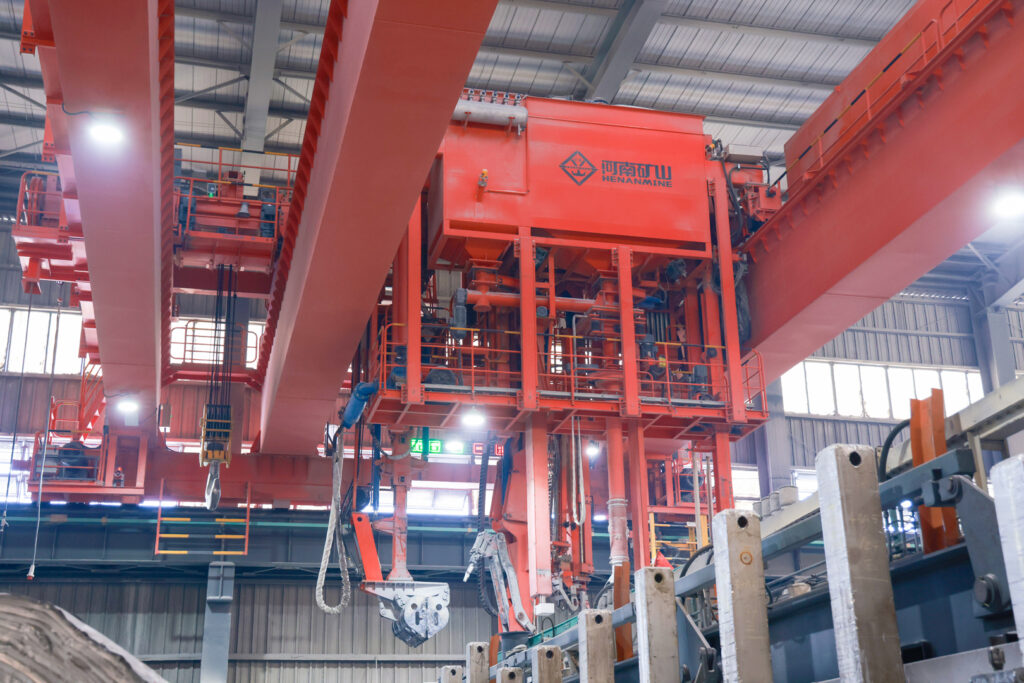

Aluminum smelter process crane with suspended handling tools
Aluminum smelter process crane with suspended handling tools.
THE OPERATING CHALLENGE

Start with the load and the process route.

An aluminum smelter needs different handling actions at the carbon warehouse, feeding station and electrolytic cell; one hook crane cannot perform all three.

The load, lifting attachment, building interface and operating sequence need to be reviewed together.

Prepare the technical brief ↗
01 / DEFINE

Anode dimensions and stack pattern

02 / DEFINE

Cell and furnace layout

03 / DEFINE

Feeding and residue sequence

04 / DEFINE

Automation and personnel-access rules

ENGINEERED FOR THE APPLICATION

Connect carbon-block storage, material feeding and anode replacement.

Plan dedicated equipment by process station. Adjustable clamps lift anode blocks, a suction and distribution crane serves material feeding, and a multi-function unit handles crust breaking, anode exchange and residue tasks.

Aluminum smelter process crane with suspended handling tools
Aluminum smelter process crane with suspended handling tools.
01

Prepare carbon blocks

Grip and stack blocks to match the warehouse pattern.

02

Feed the process

Combine material pickup, suction and distribution where the process requires them.

03

Service the cell

Coordinate anode change and residue removal at each electrolytic position.

✓

Tooling flexibility

Set clamp opening and block count from actual anode sizes.

✓

Hot-zone automation

Define cell access, sensing and personnel exclusion before specifying automatic operation.

PROJECT IN OPERATION

Baotou aluminum project

The project used a customized package for a Baotou aluminum producer including a multifunctional suction crane, anode-block stacking crane and electrolytic-aluminum process unit.

Process fitAluminum Smelter Process Crane System Solution
EquipmentYDJ Anode-Block Stacking Crane / Metallurgical Overhead Crane
ProjectBaotou aluminum project
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementAnode dimensions and stack patternRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementCell and furnace layoutCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementFeeding and residue sequenceDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Site requirementAutomation and personnel-access rulesProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane system be configured for our site and process?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.
