Grab Overhead Cranes for Bulk Material Handling

Move coal, ore, sand, slag and other loose materials from pit to hopper, stockpile or process line. Compare five grab crane arrangements by material, lift capacity, cycle rate and control needs.

Explore crane types Discuss your project ↗

5 crane models4 handling tasks

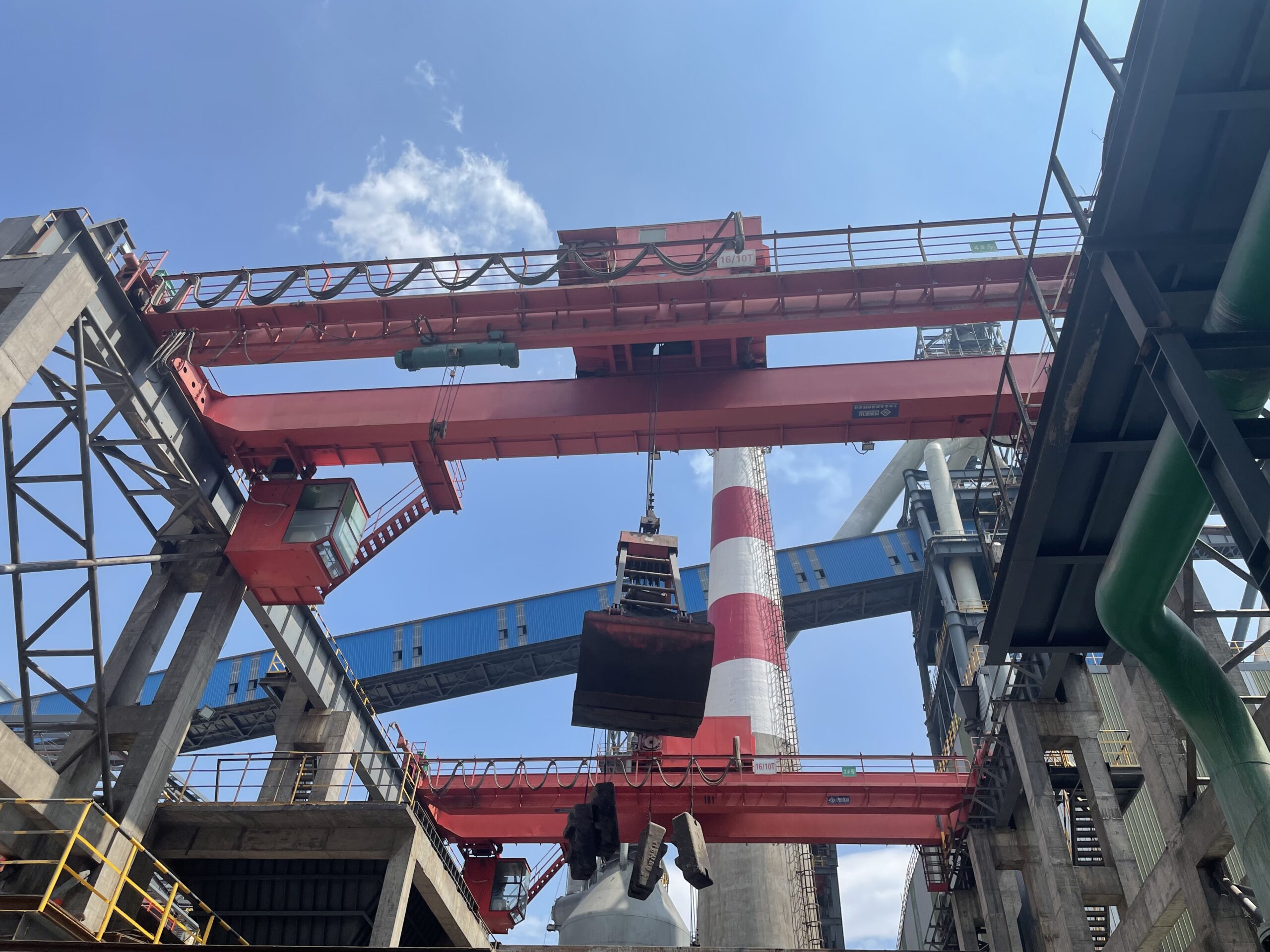

QZ double girder grab overhead crane installed in an industrial material handling bay

MODEL QZ Double-girder grab crane

FIVE MODELS / FOUR HANDLING TASKS

Match the crane to your material flow.

Start with the material and required throughput. The grab type, bucket volume, total suspended load, operating cycles and site geometry determine the right bridge crane configuration.

Compact bulk handling

LDZ offers a single-girder, four-rope grab arrangement for lighter pit-to-hopper and storage work.

Explore models ↗02

Dedicated production duty

QZ double-girder cranes support repeatable loading cycles and a purpose-selected grab for bulk materials.

Explore models ↗03

Automated grab handling

Intelligent QZ adds positioning, anti-sway and control-system integration for repeatable routes.

Explore models ↗04

Mixed-material yards

QEN combines grab and hook duties; QP pairs grab handling with magnetic lifting for ferrous loads.

Explore models ↗

SIZE THE COMPLETE GRAB LOAD

Include material in the bucket, bucket self-weight and lifting gear when specifying rated capacity. Check bulk density, moisture, particle size and fill factor before selecting grab volume.

Approval checklist ↗

01 / CONFIGURATION

Compact bulk handling

LDZ offers a single-girder, four-rope grab arrangement for lighter pit-to-hopper and storage work.

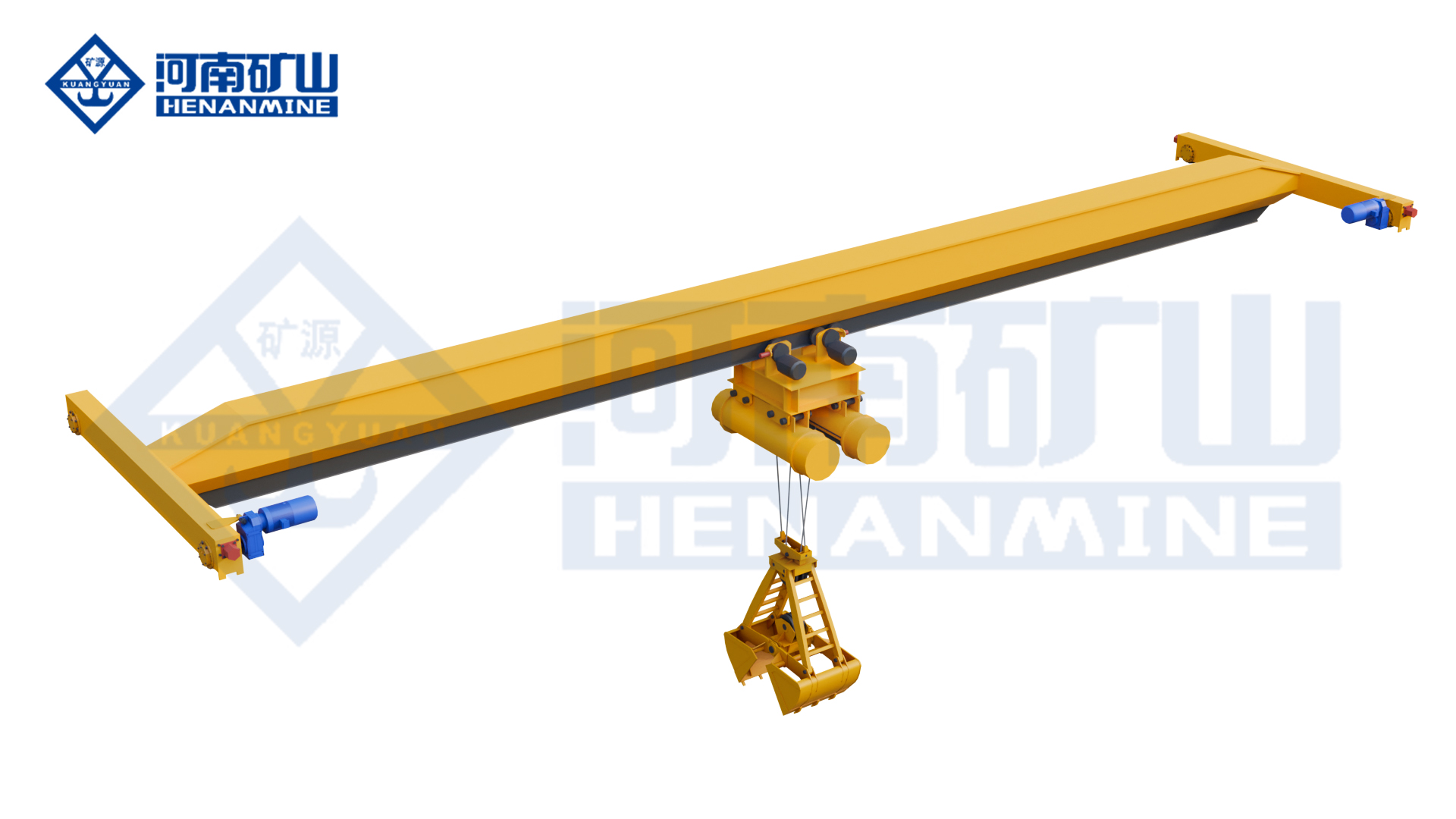

LDZ single girder four rope grab overhead crane

MODEL LDZ

HENAN MINE CRANE / BULK MATERIAL HANDLING

Handle loose material with a compact bridge crane.

Single-Girder Grab Overhead Crane

The LDZ single-girder crane uses a four-rope grab driven by dual electric hoists. It is suited to lighter loading tasks where a dedicated grab is needed and building headroom or bridge weight matters.

SUITABLE TASK: Coal, sand, gravel and similar loose materials in light to medium-duty bays.
BUYER CHECK: Confirm the loaded bucket weight, material density, hopper opening and required cycles per hour.

Technical specifications

Rated capacity	1–10 t	Crane span	7.5–28.5 m
Lifting height	6–30 m	Work class	A3–A5
Hoisting speed	3.2–12 m/min	Bridge structure	Single-girder bridge
Lifting mechanism	Dual electric hoists operating a four-rope grab	Grab type / volume	Four-rope grab; bucket size selected for material density
Safety functions	Load, brake, limit and grab open/close checks

Request LDZ proposal View model details ↗Share your material, throughput and layout for a matched grab handling system.

02 / CONFIGURATION

Dedicated production duty

QZ double-girder cranes support repeatable loading cycles and a purpose-selected grab for bulk materials.

QZ double girder grab overhead crane working in an industrial bay

MODEL QZ

HENAN MINE CRANE / BULK MATERIAL HANDLING

Keep bulk loading cycles moving across the whole bay.

Double-Girder Grab Overhead Crane

The QZ bridge crane carries a four-rope grab on a double-girder structure for repeated transfer from stockpile or pit to hopper, vehicle or process line. Select bucket geometry and opening size around the actual material and receiving point.

SUITABLE TASK: Coal, ore, limestone, sand, slag and other bulk cargo in production or storage areas.
BUYER CHECK: Share required tonnes per hour, travel distance, material density, abrasive content and working shifts.

Technical specifications

Rated capacity	5 t or 10 t configurations, including grab weight	Crane span	10.5–31.5 m across listed configurations
Lifting height	Up to 32 m (5 t) or 30 m (10 t)	Work class	A6
Hoisting speed	28.2 m/min (5 t); 39.0 m/min (10 t)	Travel speed	Trolley 43.5–45.4 m/min; crane 86.5–94 m/min
Bridge structure	Double-girder bridge	Lifting mechanism	Dedicated grab trolley with four-rope opening and closing
Control	Cab or remote control selected for loading visibility	Grab type / volume	Four-rope mechanical grab sized for material and fill factor
Safety functions	Verify grab closing force, spillage, brakes and loaded travel

Request QZ proposal View model details ↗Share your material, throughput and layout for a matched grab handling system.

03 / CONFIGURATION

Automated grab handling

Intelligent QZ adds positioning, anti-sway and control-system integration for repeatable routes.

Intelligent QZ double girder automated grab overhead crane

MODEL QZ Intelligent

HENAN MINE CRANE / BULK MATERIAL HANDLING

Automate a repeatable pit-to-hopper route.

Intelligent Grab Double-Girder Overhead Crane

The intelligent QZ combines a double-girder grab crane with anti-sway, positioning and programmed travel. PLC control can interface with plant systems for defined pickup, discharge and monitoring sequences.

SUITABLE TASK: High-frequency bulk transfer where consistent loading paths and reduced operator intervention matter.
BUYER CHECK: Provide pit and hopper drawings, route obstacles, target throughput, control interfaces and recovery mode.

Technical specifications

Rated capacity	5–50 t	Crane span	10.5–31.5 m
Lifting height	6–30 m	Work class	A6–A8
Hoisting speed	30–49 m/min	Travel speed	Trolley 31–45 m/min; crane 76–94 m/min
Bridge structure	Double-girder bridge	Lifting mechanism	Four-rope grab trolley
Power supply	220–690 V, 50/60 Hz configurations	Control	PLC control with anti-sway, positioning and MES/WMS interface options
Grab type / volume	Grab selected for bulk density and material condition	Safety functions	Commission positioning, emergency stop, interlocks and manual recovery

Request QZ Intelligent proposal View model details ↗Share your material, throughput and layout for a matched grab handling system.

04 / CONFIGURATION

Mixed-material yards

QEN combines grab and hook duties; QP pairs grab handling with magnetic lifting for ferrous loads.

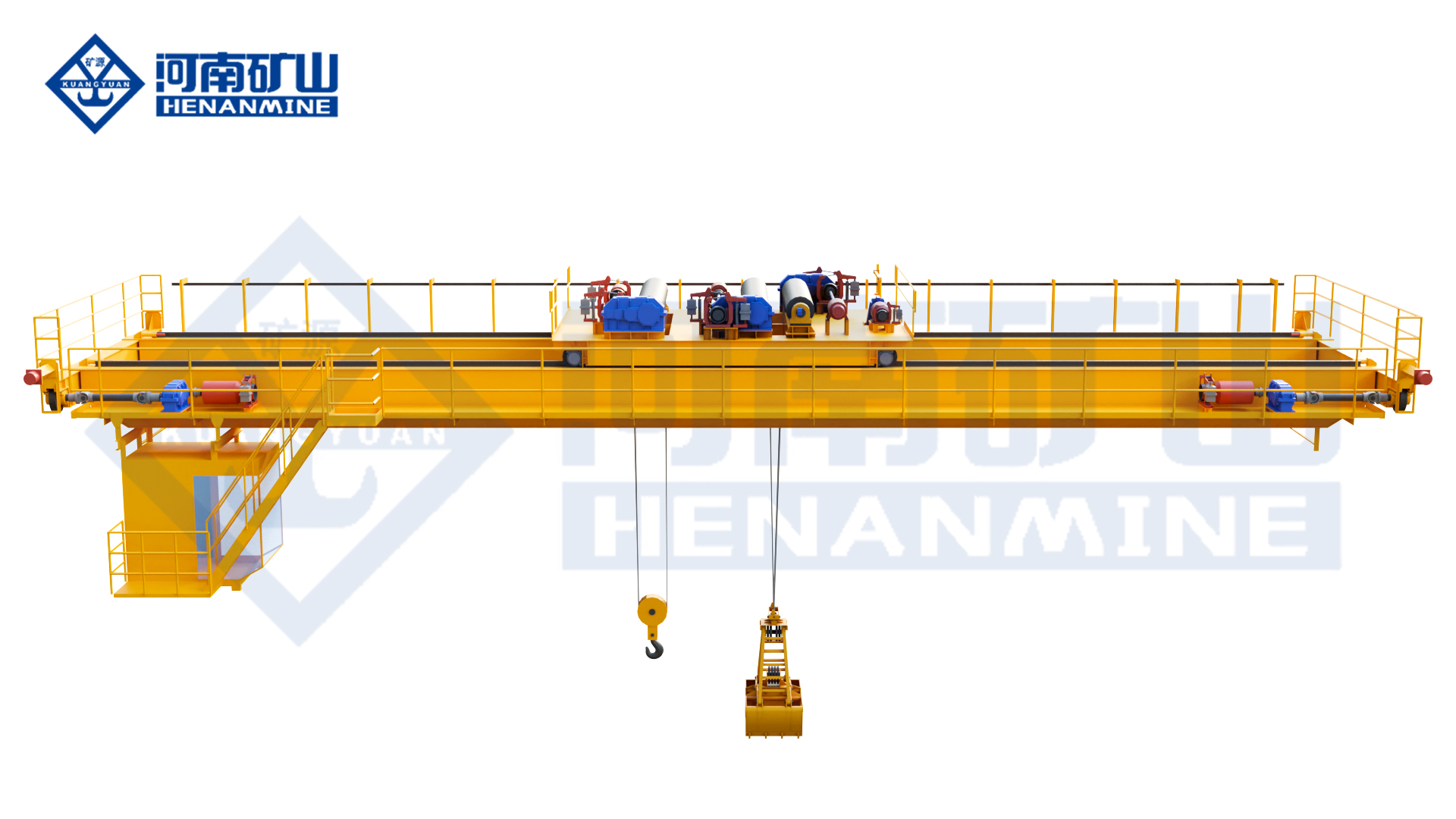

QEN grab and hook double girder overhead crane

MODEL QEN

HENAN MINE CRANE / BULK MATERIAL HANDLING

Use one bridge for loose material and conventional lifts.

Grab-and-Hook Overhead Crane

QEN combines grab handling with hook lifting for facilities that alternate between bulk cargo and equipment or packaged loads. Select the lifting arrangement, grab volume and control method around the way your operators change tasks.

SUITABLE TASK: Bulk material loading plus maintenance, equipment or packaged-load lifts in the same bay.
BUYER CHECK: Confirm whether grab and hook duties share a route, the heaviest load for each, and the time between task changes.

Technical specifications

Rated capacity	5/5–16/16 t configurations	Crane span	10.5–50 m
Lifting height	20–26 m	Work class	A6–A8
Hoisting speed	Hook lifting 40–42 m/min	Bridge structure	Double-girder bridge with grab and hook functions
Power supply	380 V, 50 Hz, 3-phase in listed configurations	Control	Variable-frequency control options
Grab type / volume	Grab volume 0.75–5.2 m³ in listed configurations	Additional lifting attachment	Grab and hook arrangements selected for operating sequence
Working environment	-25 to +45 °C in listed configurations

Request QEN proposal View model details ↗Share your material, throughput and layout for a matched grab handling system.

QP overhead crane with grab bucket and electromagnetic lifter

MODEL QP

HENAN MINE CRANE / BULK MATERIAL HANDLING

Handle bulk cargo and ferrous material in one yard.

Grab-and-Magnet Overhead Crane

QP combines a grab with an electromagnetic lifting attachment for yards that move both loose material and steel. Specify each handling duty separately, including magnet contact conditions and emergency retention.

SUITABLE TASK: Coal, ore or scrap-yard workflows that require both bucket loading and magnetic steel pickup.
BUYER CHECK: List bulk density and bucket payload alongside steel shape, temperature and magnetic holding needs.

Technical specifications

Rated capacity	5/5, 10/10 or 16/16 t configurations	Work class	A6
Bridge structure	Double-girder bridge with grab and magnet handling	Control	Cab or remote control to suit yard visibility
Grab type / volume	Mechanical grab selected for bulk material	Additional lifting attachment	Electromagnet selected for steel dimensions and contact surface
Safety functions	Check both grab operation and power-loss response for magnetic lifting

Request QP proposal View model details ↗Share your material, throughput and layout for a matched grab handling system.

PLAN THE COMPLETE CYCLE

The details that shape your crane.

A clear material flow lets the crane, grab and controls be specified as one working system.

Material and bucket

Identify material type, loose bulk density, particle size, moisture, abrasiveness and desired bucket volume.

Throughput and duty

State tonnes per hour, shifts, cycles per hour and the pickup-to-discharge travel path.

Building and discharge

Send span, lift, runway, pit depth, hopper opening, obstacles and site drawings.

Controls and acceptance

Choose cab, remote or automation requirements and define load tests, safety functions and operator handover.

PLAN YOUR BULK-HANDLING CRANE

Tell us what moves through your plant.

Share your material, required throughput and layout. We will match the grab, bridge and controls to the complete handling cycle.

Request a grab crane proposal

INCLUDE WITH YOUR ENQUIRY

Material, bulk density and particle size
Required throughput and operating cycles
Loaded bucket weight, span, lift and runway
Control method, power supply and destination
