AUTOMATED WAREHOUSE CRANES

Automated Garlic Cold-Store Handling

Garlic storage in a cold store needs dense stacking and reliable inventory location, while manual movement exposes staff to difficult working conditions.

ApplicationJinxiang garlic cold-store installation
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

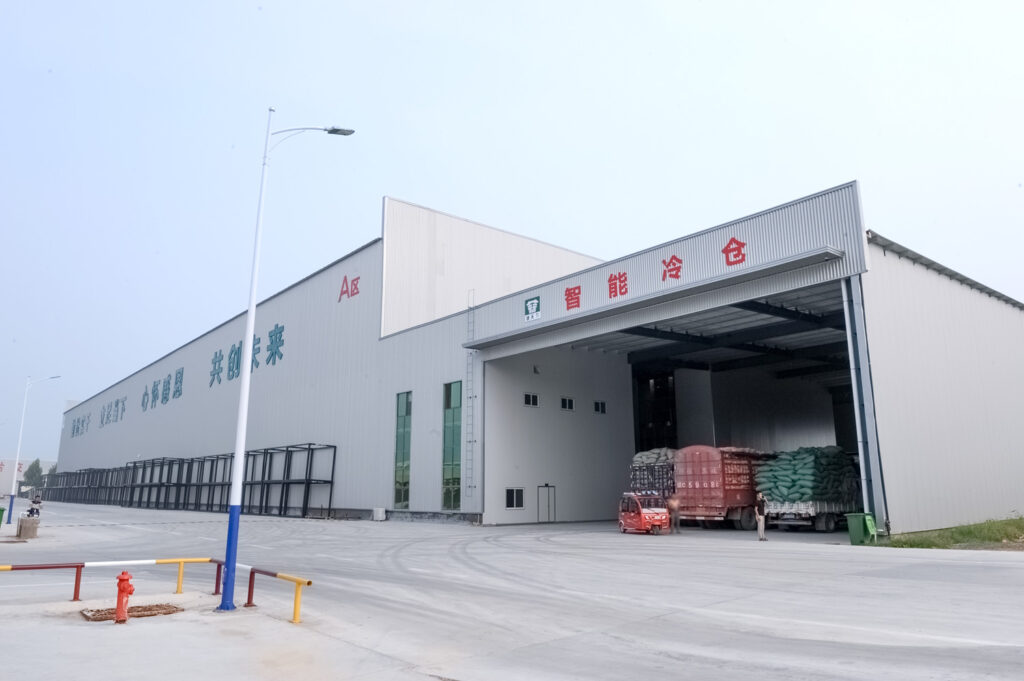

Exterior of a garlic cold storage warehouse building
Exterior of a garlic cold storage warehouse building.
THE OPERATING CHALLENGE

Start with the load and the process route.

Garlic storage in a cold store needs dense stacking and reliable inventory location, while manual movement exposes staff to difficult working conditions.

The load, lifting attachment, traffic interface and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Basket size and loaded mass

02 / DEFINE

Cold-store bay and stack layout

03 / DEFINE

Lot codes and data integration

04 / DEFINE

Operating modes and retrieval rate

ENGINEERED FOR THE APPLICATION

Replace manual basket stacking with traceable crane moves.

Use dedicated large baskets and a matched lifting attachment. Identify each basket by code, then let the crane place and retrieve it through a warehouse database with manual, semi-automatic and automatic operating modes.

Automated overhead crane above a cold-store storage aisle
Automated overhead crane above a cold-store storage aisle.
01

Prepare coded baskets

Use a repeatable basket and lifting interface for each stored lot.

02

Locate and stack

Read the basket identity and move it to the assigned position.

03

Retrieve by record

Use database tasks to select, lift and dispatch the required basket.

✓

Cold-store interface

Check travel, positioning and maintenance conditions in the refrigerated space.

✓

Inventory integrity

Reconcile crane moves with the storage database and exception handling.

PROJECT IN OPERATION

Jinxiang garlic cold-store installation

An 8+8 t intelligent storage crane was installed for a Jinxiang garlic cold store, with more than 1,400 positioning points and tool-position accuracy specified within plus or minus 5 mm.

Process fitAutomated Garlic Cold-Store Handling Solution
EquipmentQE Double-Trolley Hook Overhead Crane / CQJ Container Overhead Crane
ProjectJinxiang garlic cold-store installation
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementBasket size and loaded massRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementCold-store bay and stack layoutCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementLot codes and data integrationDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Site requirementOperating modes and retrieval rateProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be customized for our site?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.
