AEROSPACE CRANE SOLUTIONS

Aerospace Rotating Beam Handling

Long, high-value aerospace components need lifting support along their length and reliable orientation at each workstation.

ApplicationAerospace research institute equipment delivery
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

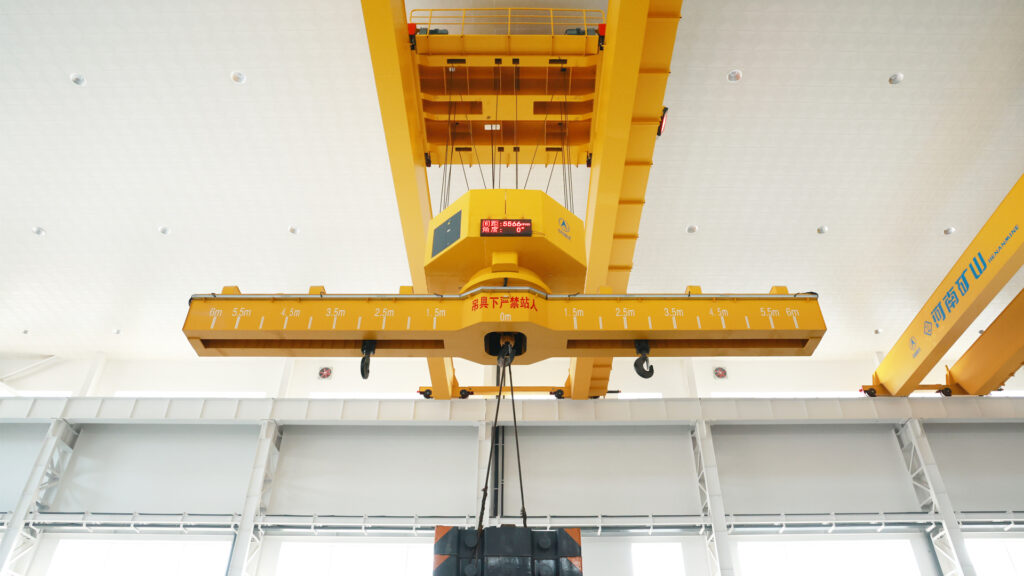

Rotating-beam overhead crane for aerospace component handling
Rotating-beam overhead crane for aerospace component handling.
THE OPERATING CHALLENGE

Start with the component and the lift route.

Long, high-value aerospace components need lifting support along their length and reliable orientation at each workstation.

The lifted component, rigging, building clearances and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Assembly length and lift points

02 / DEFINE

Rotation and bay clearance

03 / DEFINE

Positioning accuracy requirement

04 / DEFINE

Control-mode and detection rules

ENGINEERED FOR THE APPLICATION

Move long aerospace assemblies with controlled rotation and obstacle clearance.

Configure a lower-rotating beam with automatically adjustable lifting gear. Closed-loop drives, anti-sway, obstacle detection and several control modes help move the component from pickup to precise placement without uncontrolled swing.

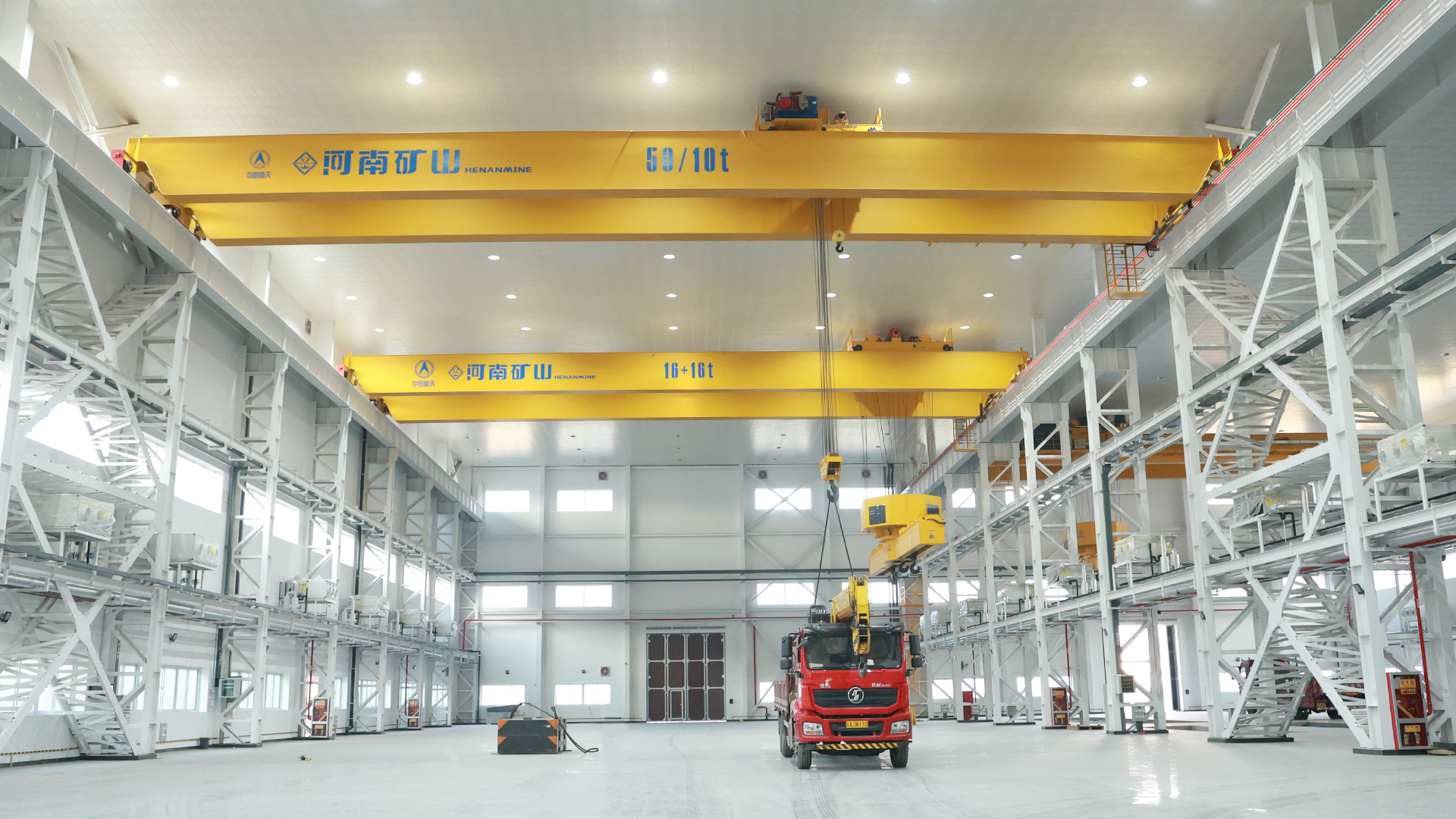

Rotating-beam overhead crane for aerospace component handling
Rotating-beam overhead crane for aerospace component handling.
01

Fit the attachment

Set beam reach and support points to the component and fixture.

02

Travel and rotate

Control bridge motion and beam orientation along a cleared path.

03

Place under supervision

Use detection and remote status to verify clearance and final position.

✓

Support geometry

Check deflection, load sharing and rotation envelope for the longest assembly.

✓

Control modes

Define when remote, hand-held or local operation is permitted.

PROJECT IN OPERATION

Aerospace research institute equipment delivery

The project involved 24 lifting units accepted on site for an aerospace institute, including six lower-rotating beam cranes with PLC and variable-frequency closed-loop control, servo-adjusted lifting gear and obstacle detection.

Process fitAerospace Rotating Beam Handling Solution
EquipmentQJ Lower-Rotating Carrier-Beam Crane / Lower-Rotating Electromagnetic Beam Crane
ProjectAerospace research institute equipment delivery
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementAssembly length and lift pointsRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementRotation and bay clearanceCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementPositioning accuracy requirementDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Site requirementControl-mode and detection rulesProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the lifting system be configured for our component and workshop?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
