PORT CRANE SOLUTIONS

Taicang Port Container Yard Crane

A busy port yard needs repeatable container stacking while leaving room for different cargo-handling attachments.

ApplicationTaicang Port gantry delivery
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

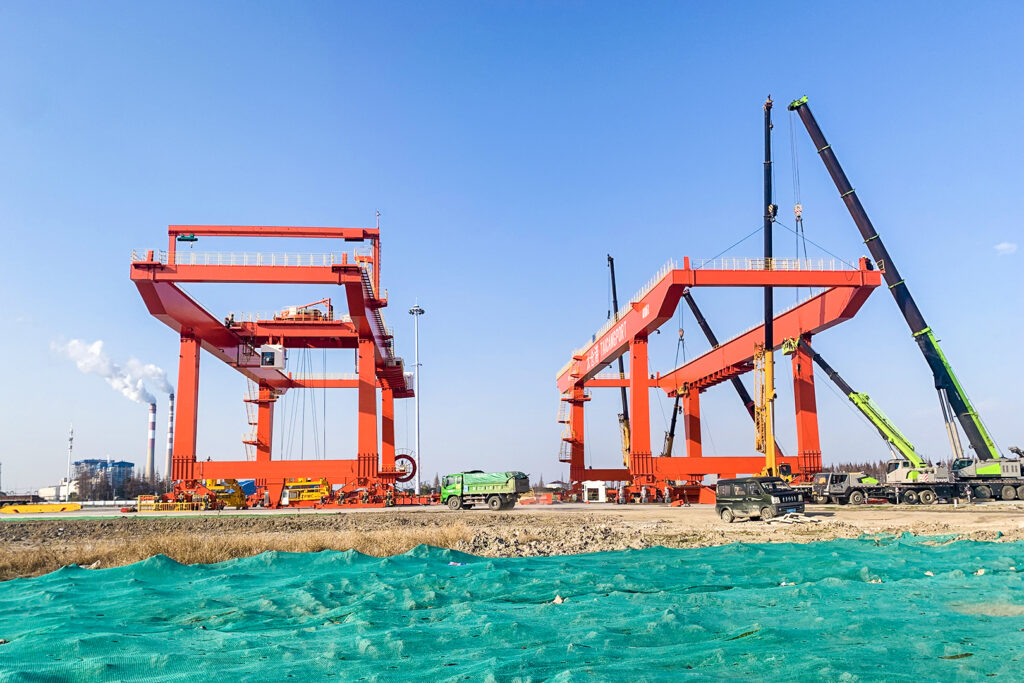

Rail-mounted container gantry crane in a port container yard
Rail-mounted container gantry crane in a port container yard.
THE OPERATING CHALLENGE

Start with the load and the process route.

A busy port yard needs repeatable container stacking while leaving room for different cargo-handling attachments.

The load, lifting attachment, traffic interface and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Container and other cargo dimensions

02 / DEFINE

Rail and traffic layout

03 / DEFINE

Attachment changeover requirements

04 / DEFINE

Peak lifts and maintenance window

ENGINEERED FOR THE APPLICATION

Keep container and mixed-cargo moves aligned with port traffic.

Use rail-mounted gantries with controlled travel, anti-sway, truck protection and guided spreader positioning. Plan the trolley and exchangeable lifting gear for the actual cargo mix rather than assuming every move uses one spreader.

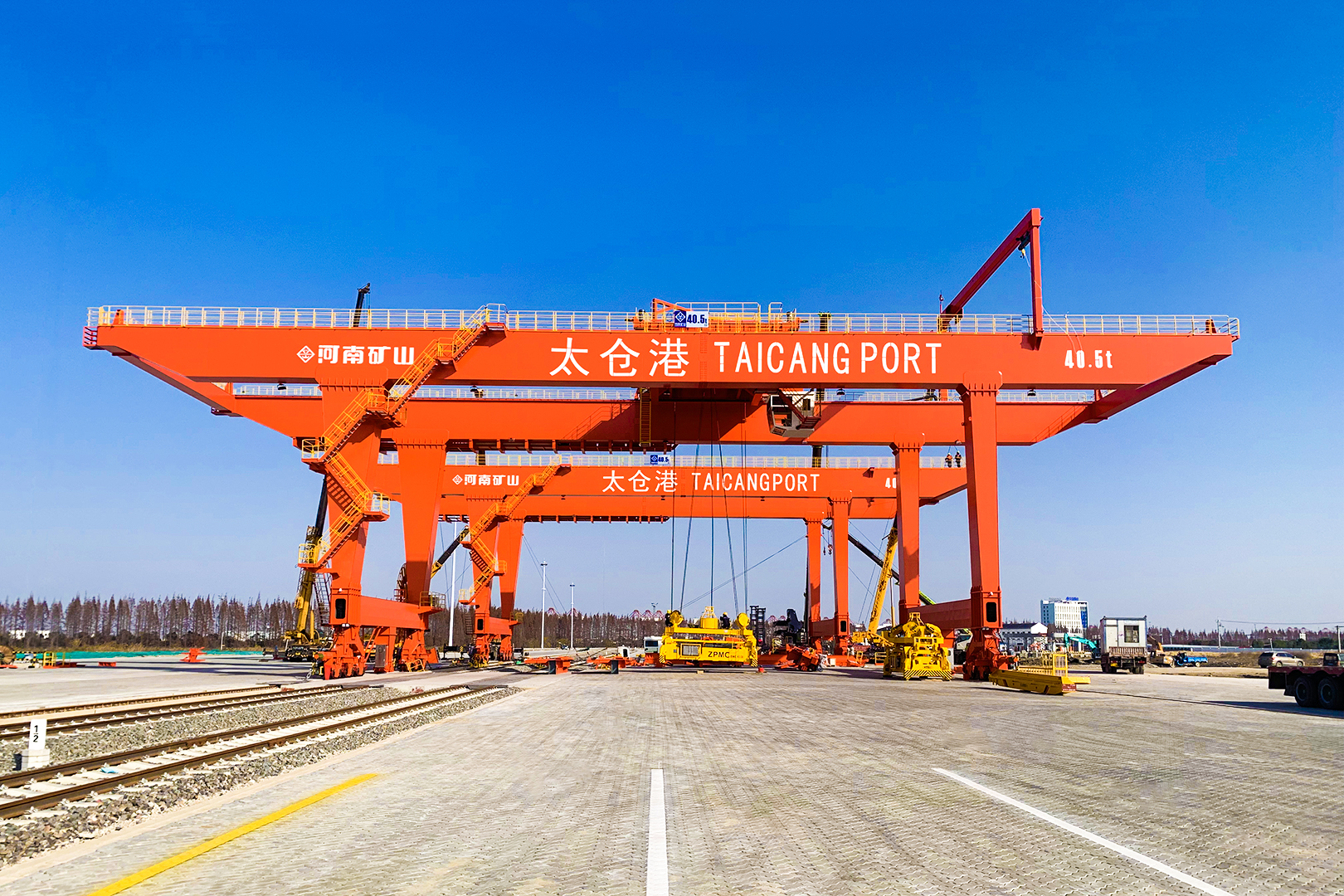

Rail-mounted container gantry crane in a port container yard
Rail-mounted container gantry crane in a port container yard.
01

Plan yard lanes

Set rail span, cantilever and truck clearances from the port layout.

02

Lift and stack

Guide the container between the lane and assigned block with sway control.

03

Change cargo mode

Define a safe method for swapping lifting gear when non-container loads are scheduled.

✓

Attachment interchange

Check capacity and clearance in every lifting-gear configuration.

✓

Port availability

Plan inspection access and operating schedules for continuous yard use.

PROJECT IN OPERATION

Taicang Port gantry delivery

Henan Mine Crane delivered two rail-mounted container gantries to Taicang Port, with PLC and variable-frequency control, remote monitoring, anti-sway, truck anti-lift protection and interchangeable lifting gear.

Process fitTaicang Port Container Yard Crane Solution
EquipmentRail-Mounted Container Gantry Crane / Grab and Hook Gantry Crane
ProjectTaicang Port gantry delivery
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementContainer and other cargo dimensionsRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementRail and traffic layoutCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementAttachment changeover requirementsAttachment dimensions/masses, changeover procedure and connection/interlock interfaces.
04 / Site requirementPeak lifts and maintenance windowHandling rate, duty classification, service access and planned maintenance availability.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be customized for our site?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
