ALUMINUM PLANT CRANE SOLUTIONS

Carbon Block Baking Plant Stacking

A carbon-material baking facility needs secure repeated handling of blocks while keeping drives and controls serviceable despite dust and heat.

ApplicationShandong carbon-material baking project
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

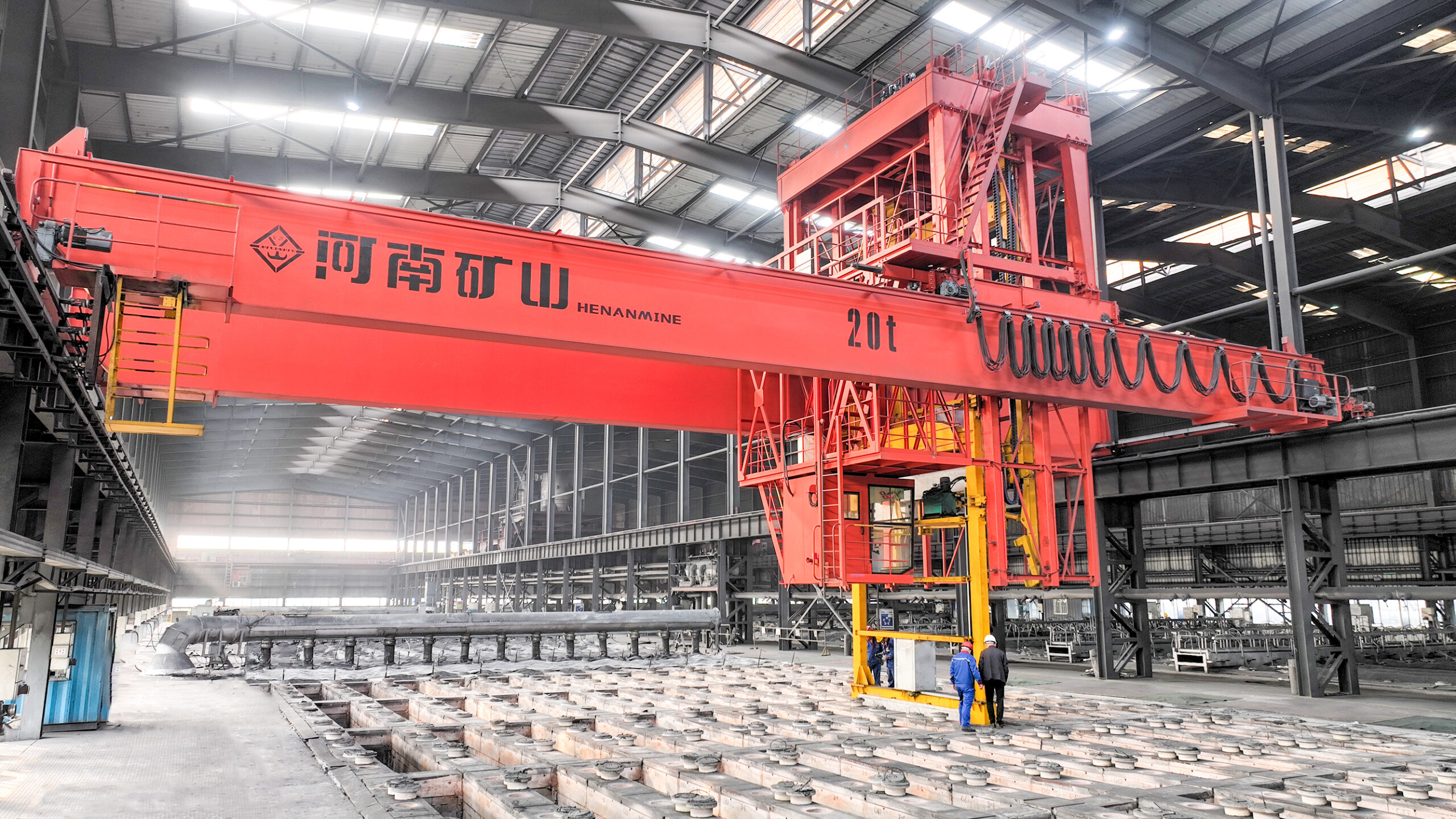

Carbon block stacking crane above a carbon baking production line
Carbon block stacking crane above a carbon baking production line.
THE OPERATING CHALLENGE

Start with the load and the process route.

A carbon-material baking facility needs secure repeated handling of blocks while keeping drives and controls serviceable despite dust and heat.

The load, lifting attachment, building interface and operating sequence need to be reviewed together.

Prepare the technical brief ↗
01 / DEFINE

Block size, mass and stack height

02 / DEFINE

Bay aisle and crane span

03 / DEFINE

Temperature and dust profile

04 / DEFINE

Independent/linked tool sequence

ENGINEERED FOR THE APPLICATION

Grip and stack carbon blocks accurately in a hot, dusty plant.

Specify a double-girder, single-trolley crane with two guided lifting tools where the block layout needs independent or linked operation. Variable-frequency drives, protected electrics and accessible monitoring support steady stacking cycles.

Carbon block stacking crane above a carbon baking production line
Carbon block stacking crane above a carbon baking production line.
01

Set the stack pattern

Record block size, group size and available aisle widths.

02

Grip and lift

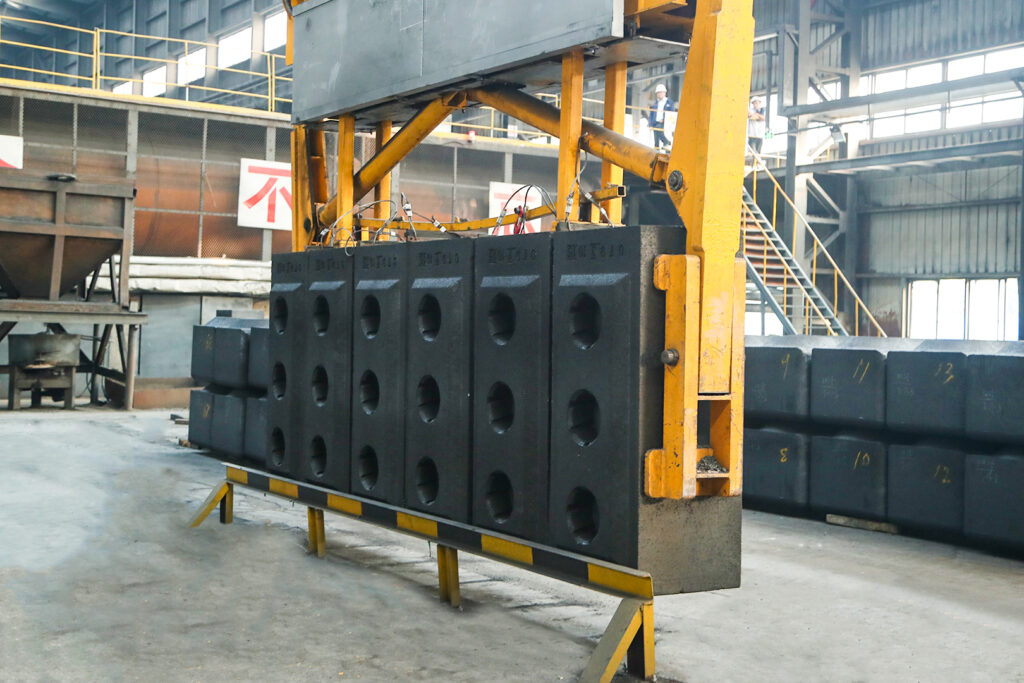

Use guided tools to keep blocks stable through the vertical move.

03

Place and repeat

Coordinate independent or linked attachments with the next stack position.

✓

Dust and heat protection

Locate and cool electrical equipment for the actual environment.

✓

Grip reliability

Confirm pressure holding and release on representative carbon blocks.

PROJECT IN OPERATION

Shandong carbon-material baking project

The project used a carbon-block stacking crane in service for a Shandong baking-furnace project, using double lifting tools, rigid guides and protected electrical control.

Process fitCarbon Block Baking Plant Stacking Solution
EquipmentYDJ Anode-Block Stacking Crane
ProjectShandong carbon-material baking project
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementBlock size, mass and stack heightRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementBay aisle and crane spanCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementTemperature and dust profileAmbient and process temperatures, dust exposure, cooling and enclosure-protection scope.
04 / Site requirementIndependent/linked tool sequenceProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane system be configured for our site and process?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.
