24 Cranes Accepted for an Aerospace Research Facility
A 24-unit aerospace package includes six lower-rotating carrier-beam cranes with servo-controlled attachments and multiple operating modes.
The project and its handling task.
Henan Mine Crane manufactured 24 lifting systems for an aerospace research institute. The equipment completed on-site acceptance by the Xi’an special-equipment inspection organization and reached the conditions required for delivery and use.

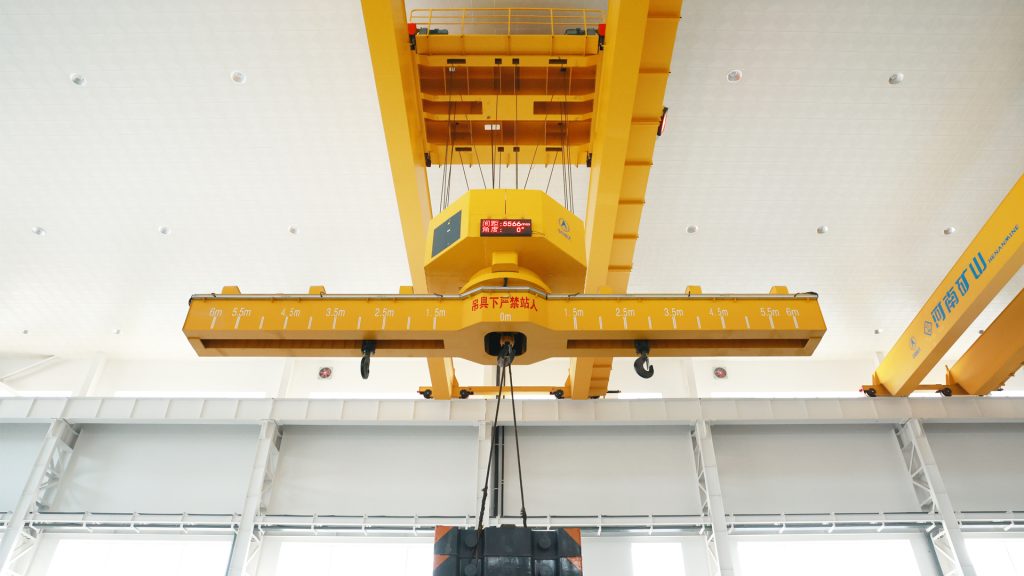

Six lower-rotating overhead carrier-beam cranes form part of the package. PLC and inverter closed-loop vector control, anti-sway and servo-controlled attachment extension and rotation address precise component handling. Remote, manual and tablet modes provide different operating interfaces.
Move long aerospace assemblies with controlled rotation and obstacle clearance.
Long, high-value aerospace components need lifting support along their length and reliable orientation at each workstation.
Set beam reach and support points to the component and fixture.
Control bridge motion and beam orientation along a cleared path.
Use detection and remote status to verify clearance and final position.
Use detection and remote status to verify clearance and final position.
The equipment behind this project.
Six lower-rotating overhead carrier-beam cranes form part of the package. PLC and inverter closed-loop vector control, anti-sway and servo-controlled attachment extension and rotation address precise component handling. Remote, manual and tablet modes provide different operating interfaces.
- Total equipment package24 lifting systems
- Carrier-beam cranes6 lower-rotating overhead cranes
- ControlsPLC and inverter closed-loop vector control
- AttachmentServo-controlled extension and rotation
- ProtectionDetection-based obstacle avoidance and remote monitoring
- AcceptanceOn-site inspection completed
What to compare with your own project.
Match the project configuration to your load, layout and operating sequence before selecting a crane package.
| Design area | This project configuration | Define for your site |
|---|---|---|
| Total equipment package | 24 lifting systems | Assembly length and lift points. Define the required operating envelope and acceptance checks in your technical brief. |
| Carrier-beam cranes | 6 lower-rotating overhead cranes | Rotation and bay clearance. Define the required operating envelope and acceptance checks in your technical brief. |
| Controls | PLC and inverter closed-loop vector control | Positioning accuracy requirement. Define the required operating envelope and acceptance checks in your technical brief. |
| Attachment | Servo-controlled extension and rotation | Control-mode and detection rules. Define the required operating envelope and acceptance checks in your technical brief. |
| Protection | Detection-based obstacle avoidance and remote monitoring | Assembly length and lift points. Define the required operating envelope and acceptance checks in your technical brief. |
| Acceptance | On-site inspection completed | Rotation and bay clearance. Define the required operating envelope and acceptance checks in your technical brief. |
See the equipment and working environment.

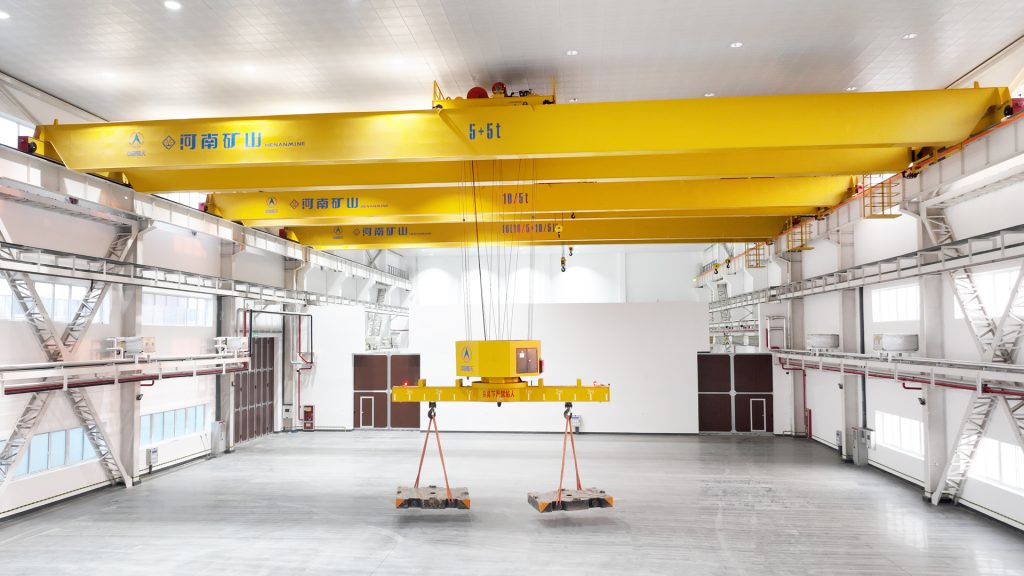

Explore the equipment arrangement and handling environment.
Site acceptance completed.
The package completed site acceptance and met the conditions for delivery and use. The accepted equipment connects precision component movement, adjustable attachments and operating supervision for aerospace manufacturing.
For a similar project, configure a lower-rotating beam with automatically adjustable lifting gear. Closed-loop drives, anti-sway, obstacle detection and several control modes help move the component from pickup to precise placement without uncontrolled swing.
Continue from the project to the right crane family.
Use the project as a reference and specify the crane against your own yard layout and cargo.
Prepare a comparable crane quotation.
Share the load schedule and site drawings. Configure a lower-rotating beam with automatically adjustable lifting gear. Closed-loop drives, anti-sway, obstacle detection and several control modes help move the component from pickup to precise placement without uncontrolled swing.
We can quote a single crane or a coordinated fleet. The offer sets out the destination standards, required certificates and inspection records, manufacturing programme after drawing approval, shipment, installation support and agreed acceptance scope.
- Assembly length and lift points
- Rotation and bay clearance
- Positioning accuracy requirement
- Control-mode and detection rules
- Destination standards, quantity and inspection documentation
- Manufacturing programme, shipment, commissioning, training and spares
Questions before specifying a similar crane.
Can the same project crane be supplied for my site?
We customize the capacity, span, lifting height, attachment and controls to the load, building or yard layout and operating cycle. Assembly length and lift points is one of the inputs to review before final equipment selection.
How are certification, quantity and lead time agreed?
Single-crane and fleet enquiries are welcome. Define the destination and required standards in the enquiry. The project offer confirms certification and inspection documents, the quantity, drawing approval and manufacturing schedule, with the shipping and site-service boundaries.
What should acceptance and after-sales support include?
Agree the inspection plan, representative load and functional tests, operator training, maintenance instructions, spare-parts scope and fault-recovery procedures. For this application, include control-mode and detection rules in the technical review.
