Overhead Cranes

Overhead cranes move loads across workshop and process bays on fixed runways. Compare single-girder, double-girder and specialist series, then review manual and rail-transfer configurations for your load, building layout and handling cycle.

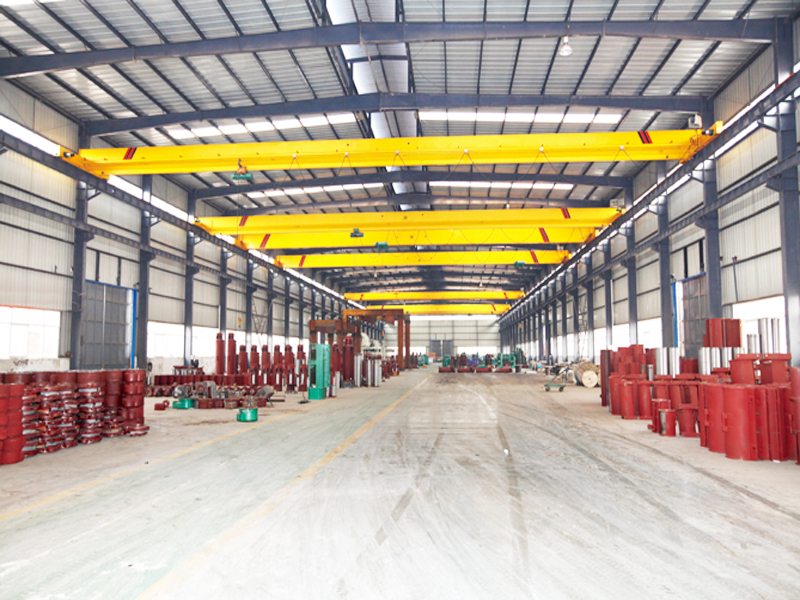

Yellow double-girder overhead crane installed beneath a steel workshop roof

Overhead crane types for workshop lifting

Start with the bridge and runway arrangement. Each series includes model-specific capacities, hook clearances and operating duties.

LD single girder overhead crane manufacturer rendering showing the bridge and hoist arrangement
LD

Single Girder Overhead Cranes

Workshop lifting for parts, assemblies and routine material handling.

Example modelLD
LD capacity1–20 t
Best fitGeneral workshops
All specifications
Entry type Product family; compare the models in this range
Reference model or configuration LD
Reference arrangement Top-running single girder
Reference rated load 1 / 2 / 3 / 5 / 10 / 16 / 20 t
Reference span 6–31.5 m
Reference lifting height 6 / 9 / 12 / 18 / 24 / 30 m
Reference working class A3–A5, by duty
Selection requirements Compare hook coverage, headroom and runway reactions with the selected single-girder model.
Reference scope Reference figures below describe LD only; other models in this family have their own ratings, geometry and duty. Open the family range to select a complete model.
QD double-girder hook crane with winch trolley and service walkway
QD standard selections

Double Girder Overhead Cranes

Heavy components and production loads carried by twin bridge girders.

Example modelQD
QD main rating5–50 t
Best fitHeavy manufacturing
All specifications
Entry type Product family; compare the models in this range
Reference model or configuration QD standard selections
Reference arrangement Top-running double girder
Reference rated load 5 / 10 / 16/3.2 / 20/5 / 32/5 / 50/10 t
Reference span 10.5–31.5 m for these ratings
Reference lifting height 5 / 10 t: 16 m; other main/auxiliary lifts by configuration
Reference working class A5–A6 for standard selections
Selection requirements Main and auxiliary hook ratings are separate; review the operating cycle and runway loads.
Reference scope Reference figures below describe QD standard selections only; other models in this family have their own ratings, geometry and duty. Open the family range to select a complete model.
Henan mine crane co., ltd. LH electric-hoist double-girder overhead crane with one seated hoist trolley, manufacturer rendering
LH

Electric Hoist Overhead Cranes

Repeated workshop lifts using compact electric hoists on bridge trolleys.

Example modelLH
LH capacity3–20 t
Best fitWorkshop handling
All specifications
Entry type Product family; compare the models in this range
Reference model or configuration LH
Reference arrangement Double girder with seated hoist
Reference rated load 3 / 5 / 10 / 16 / 20 t
Reference span 10.5–31.5 m
Reference lifting height 3 t: 6 / 9 / 12 m; 5 t: 6 / 9 / 12 / 18 m; 10–20 t: 9 / 12 m
Reference working class A3–A4
Selection requirements Choose the hoist, trolley arrangement and hook height together; specialist hoist-crane models have their own duty and process limits.
Reference scope Reference figures below describe LH only; other models in this family have their own ratings, geometry and duty. Open the family range to select a complete model.
LX single girder overhead crane manufacturer rendering showing the bridge and hoist arrangement
LX

Underhung Overhead Cranes

Suspended bridge coverage for assembly bays with suitable overhead supports.

Example modelLX
LX capacity0.5–10 t
Best fitAssembly & maintenance
All specifications
Entry type Product family; compare the models in this range
Reference model or configuration LX
Reference arrangement Single girder underhung reference
Reference rated load 0.5 / 1 / 2 / 3 / 5 / 10 t
Reference span 3–16 m
Reference lifting height 6 / 9 / 12 / 18 m
Reference working class A3–A5
Selection requirements Check the suspension points, beam flange geometry, building reactions and required hook approaches.
Reference scope Reference figures below describe LX only; other models in this family have their own ratings, geometry and duty. Open the family range to select a complete model.
QE double-trolley hook crane, manufacturer view 1
QE

Double Trolley Overhead Cranes

Two hook positions for long components and approved shared lifts.

Example modelQE
QE trolley ratings5+5 / 10+10 / 16+16 t
Best fitLong components
All specifications
Entry type Product family; compare the models in this range
Reference model or configuration QE
Reference arrangement Two separate hook trolleys
Reference rated load 5+5 / 10+10 / 16+16 t trolley ratings
Reference span 10.5–31.5 m
Reference lifting height 16 m for the listed selections
Reference working class A5 / A6
Selection requirements Individual trolley ratings do not establish the permitted combined lift; confirm load shares, hook spacing and movement sequence.
Reference scope Reference figures below describe QE only; other models in this family have their own ratings, geometry and duty. Open the family range to select a complete model.

Overhead cranes for specific materials and processes

Match the lifting attachment, process conditions and movement sequence before selecting the crane and its control system.

QB double-girder crane with open winch trolley and access platforms, manufacturer rendering
QB

Explosion-Proof Overhead Cranes

Protected lifting equipment matched to classified gas or dust areas.

Example modelQB
QB main rating5–50 t
Best fitClassified areas
All specifications
Entry type Product family; compare the models in this range
Reference model or configuration QB
Reference arrangement Double girder hook reference
Reference rated load 5 / 10 / 16/3.2 / 20/5 / 32/5 / 50/10 t
Reference span 10.5–31.5 m
Reference lifting height 5 / 10 t: 16 m; main/auxiliary lifts by selected rating
Reference working class A3–A4 for the listed selections
Selection requirements State the hazardous-area classification, substance group and temperature limits; agree exact equipment marking and destination documentation. Gas and dust selections are separate.
Reference scope Reference figures below describe QB only; other models in this family have their own ratings, geometry and duty. Open the family range to select a complete model.
QY insulated double-girder overhead crane with one lifting trolley and hook
QY

Insulated Overhead Cranes

Electrical separation for electrolysis and non-ferrous process lifting interfaces.

Example modelQY
QY main rating5–20 t
Best fitElectrolysis handling
All specifications
Entry type Product family; compare the models in this range
Reference model or configuration QY
Reference arrangement Insulated double girder reference
Reference rated load 5 / 10 / 16/3.2 / 20/5 t
Reference span 10.5–31.5 m
Reference lifting height 5 / 10 t: 16 m; 16/3.2 t: 16/18 m; 20/5 t: 12/14 m
Reference working class A6 for the listed selections
Selection requirements Agree the process electrical conditions, insulating interfaces and test requirements. Process isolation does not establish a live-electrical-work rating.
Reference scope Reference figures below describe QY only; other models in this family have their own ratings, geometry and duty. Open the family range to select a complete model.

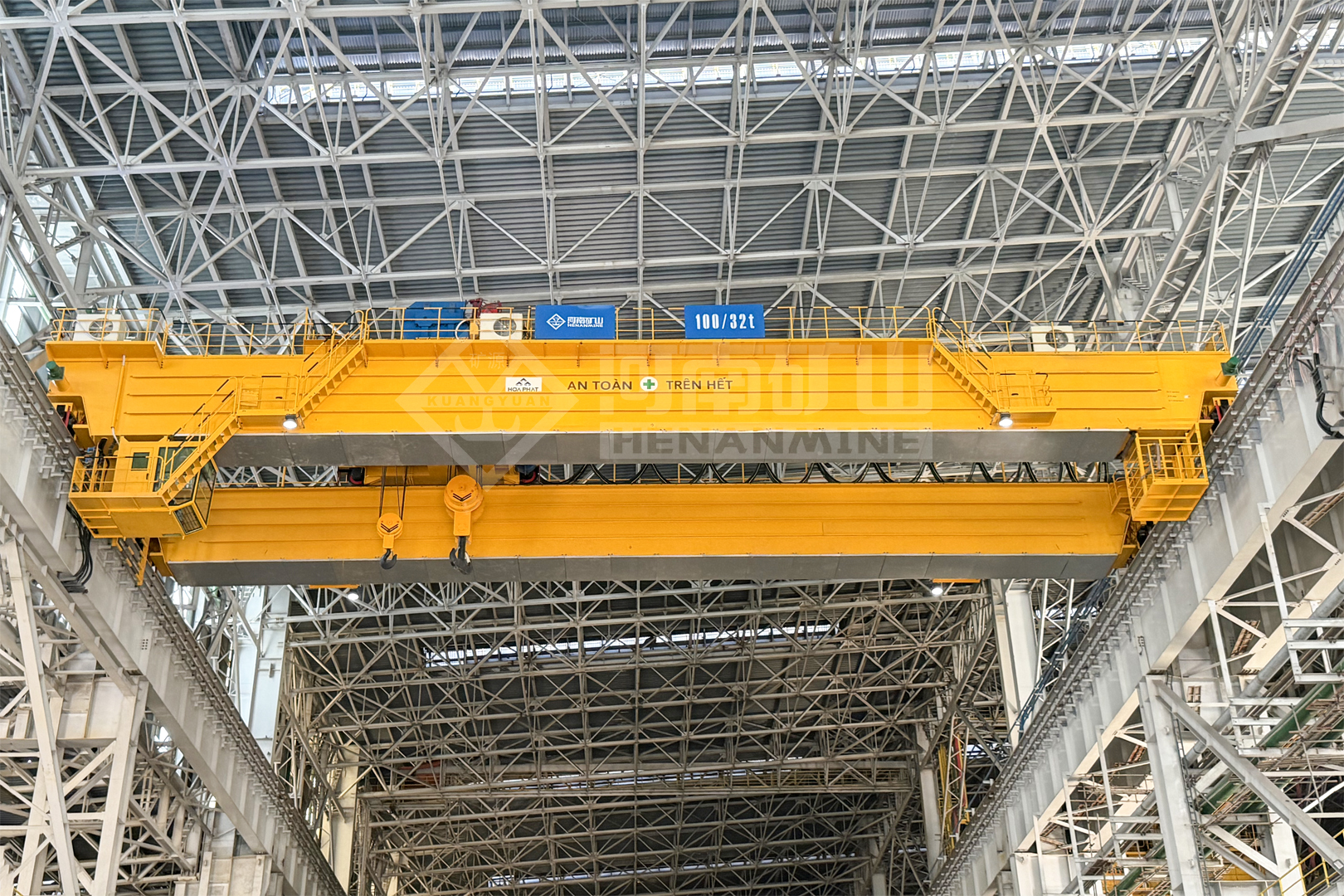

Henan mine crane co., ltd. YZ casting-crane bridge and main and auxiliary hoisting arrangement
YZ 100/32 t example

Metallurgical Overhead Cranes

Molten-metal, charging and hot-process loads with task-specific lifting equipment.

Example modelYZ
YZ example rating100/32 t main/aux.
Best fitHot-process lifting
All specifications
Entry type Product family; compare the models in this range
Reference model or configuration YZ 100/32 t example
Reference arrangement Double girder casting reference
Reference rated load 100/32 t main / auxiliary
Reference span 19 m for this example
Reference lifting height 18 / 20 m main / auxiliary for this example
Reference working class A7 for this example
Selection requirements This YZ example is one matched catalogue configuration, not a family range. State vessel, metal, carrier and rigging weights separately and specify heat exposure.
Reference scope Reference figures below describe YZ 100/32 t example only; other models in this family have their own ratings, geometry and duty. Open the family range to select a complete model.
Henan mine crane co., ltd. QC double-girder overhead crane with a hook-suspended circular electromagnet, manufacturer rendering
QC

Electromagnetic Overhead Cranes

Ferrous scrap and steel products handled with matched lifting magnets.

Example modelQC
QC main rating5–32 t incl. magnet
Best fitFerrous materials
All specifications
Entry type Product family; compare the models in this range
Reference model or configuration QC
Reference arrangement Hook-suspended electromagnet reference
Reference rated load 5 / 10 / 16 t; 16/3.2 / 20/5 / 32/5 t
Reference span 10.5–31.5 m
Reference lifting height Single hoist: 16 m; main/auxiliary lifts by configuration
Reference working class A6 for the listed selections
Selection requirements QC reference ratings include magnet self-weight. Material payload depends on the magnet, steel condition and pickup; specify the power-loss holding package.
Reference scope Reference figures below describe QC only; other models in this family have their own ratings, geometry and duty. Open the family range to select a complete model.
Henan mine crane co., ltd. QZ double-girder overhead crane with a winch trolley and suspended grab, manufacturer rendering
QZ

Grab Overhead Cranes

Bulk materials transferred with grabs matched to density and flow.

Example modelQZ
QZ rating5–20 t incl. grab
Best fitBulk transfer
All specifications
Entry type Product family; compare the models in this range
Reference model or configuration QZ
Reference arrangement Four-rope double girder reference
Reference rated load 5 / 10 / 16 / 20 t, including grab self-weight
Reference span 5 / 10 t: 10.5–31.5 m; 16 / 20 t: 16.5–31.5 m
Reference lifting height 5 / 10 / 16 / 20 t: 20 / 18 / 22 / 26 m respectively
Reference working class A6
Selection requirements Select the grab from bulk density, particle size, moisture and handling cycle. Gross crane rating is separate from useful material payload.
Reference scope Reference figures below describe QZ only; other models in this family have their own ratings, geometry and duty. Open the family range to select a complete model.
QD double-girder hook crane with winch trolley and service walkway
QD slow-speed, 5 / 10 t reference

Slow Speed Overhead Cranes

Controlled vertical movement for equipment installation and careful load placement.

Example modelQD slow-speed
Example ratings5 / 10 t
Best fitInstallation & positioning
All specifications
Entry type Product family; compare the models in this range
Reference model or configuration QD slow-speed, 5 / 10 t reference
Reference arrangement Slow-speed double girder reference
Reference rated load 5 / 10 t for this reference
Reference span 10.5–31.5 m
Reference lifting height 16 m
Reference working class A3
Selection requirements Reference main-hoist speeds are 1.95 m/min at 5 t and 2.04 m/min at 10 t. Specify required approach speed and positioning tolerance; low speed alone is not a positioning-accuracy guarantee.
Reference scope Reference figures below describe QD slow-speed, 5 / 10 t reference only; other models in this family have their own ratings, geometry and duty. Open the family range to select a complete model.
QJ double-girder overhead crane with lower rotating carrier beam and lifting hooks
QJ lower-rotating beam

Carrier-Beam Overhead Cranes

Long steel products lifted with fixed or rotating carrier beams.

Example modelQJ
Best fitLong steel handling
Beam selectionMatch the load layout
All specifications
Entry type Product family; compare the models in this range
Reference model or configuration QJ lower-rotating beam
Reference arrangement Lower-rotating carrier beam reference
Reference rated load Selected for the complete suspended load
Reference span Selected for the workshop layout
Reference lifting height Selected for pickup and placement elevations
Reference working class Selected for the load spectrum
Selection requirements Specify product length, lifting points, centre of gravity, attachment type and required rotation. Beam and attachment weight belong in the load definition.
Reference scope Reference figures below describe QJ lower-rotating beam only; other models in this family have their own ratings, geometry and duty. Open the family range to select a complete model.
Henan mine crane co., ltd. QDXG bridge underside, cantilever structure and extended hook position, manufacturer rendering
QDXG

Galvanizing Overhead Cranes

Empty zinc-pot lifting and equipment maintenance with extended cantilever reach.

Example modelQDXG
Load basisEmpty pot + rigging
ReachPot removal route
All specifications
Entry type Product family; compare the models in this range
Reference model or configuration QDXG
Reference arrangement Single- or double-girder options
Reference rated load Selected from empty pot or component plus rigging
Reference span Selected from the runway and removal route
Reference lifting height Selected from pot elevation, pit depth and withdrawal clearance
Reference working class Selected for the maintenance cycle
Selection requirements QDXG serves empty-pot and equipment maintenance; do not treat it as a molten-zinc vessel rating. State lifting points, cantilever reach and heat/fume exposure.
Reference scope Reference figures below describe QDXG only; other models in this family have their own ratings, geometry and duty. Open the family range to select a complete model.

Track-switching and rail-transfer overhead cranes

Connect defined working tracks through an engineered alignment, locking and transfer arrangement. Compare the actual transfer method and drive scope.

KSX rail-transfer system reference arrangement
Rail transfer

Rail-Transfer Overhead Crane for Multi-Bay Handling

Move hoist units between linked runways for multi-bay maintenance coverage.

TaskCross-runway transfer
LayoutLinked overhead tracks
RatingSelected for your load
All specifications
Product arrangement Rail-transfer overhead lifting system for linked work areas
Rated load Selected for the maintenance component and complete suspended equipment
Span and transfer geometry Specified from the runway layout, alignment and transfer route
Required hook travel Selected from pickup, transfer and set-down elevations
Working class Selected from load spectrum, lifting frequency and operating shifts
Hoisting speed Specified for the actual lifting cycle and positioning task
Controls Specified for visibility, transfer sequence and site interfaces
Lifting mechanism Matched hoist and trolley; rated scope fixed in the technical offer
Transfer interface Agree track alignment, locking, support reactions and movement interlocks on the layout
Image basis KSX family reference illustration; the ordered rail-transfer arrangement follows the approved drawing
KSX rail-transfer system reference arrangement
KSX · Powered bridge travel

Powered-Travel Rail-Transfer Overhead Crane (KSX)

Powered bridge travel for linked maintenance runways and electric hoisting.

Reference rating12.5 t linked system
Reference span3.65 m
TravelPowered main bridge
All specifications
Manufacturer model KSX
Configuration Powered-travel suspended bridge component
Reference system rating 12.5 t for the linked handling arrangement
Reference bridge span 3.65 m
Useful hook travel Selected from pickup and delivery elevations for the complete arrangement
Reference working class A3 for the listed bridge component
Shared lifting mechanism Electric-hoist trolley; manual bridge travel does not make hoisting manual
Reference hoist-trolley speed Lifting 4.66 m/min; trolley travel 10 m/min
Reference bridge travel 20 m/min
Hoist-trolley mechanism duty M3
Controls Unified electrical system and button control, selected for the complete transfer sequence
Power supply Required for the shared electric hoist; voltage and frequency specified for the site
Transfer arrangement Electric-hoist trolley, powered and manual suspended bridges, and rail-transfer device form the linked reference system
Reference scope 12.5 t, bridge span and duty describe one catalogue arrangement; confirm the ordered load, support reactions, clearances and transfer interlocks
Image basis KSX reference-system illustration; the selected bridge-travel component is confirmed on the approved arrangement drawing
KSX rail-transfer system reference arrangement
KSX · Manual bridge travel

Manual-Travel Rail-Transfer Overhead Crane (KSX)

Hand-travel bridge component with shared electric hoisting for maintenance routes.

Reference rating12.5 t linked system
Reference span3.70 m
TravelManual main bridge
All specifications
Manufacturer model KSX
Configuration Manual-main-travel suspended bridge component
Reference system rating 12.5 t for the linked handling arrangement
Reference bridge span 3.70 m
Useful hook travel Selected from pickup and delivery elevations for the complete arrangement
Reference working class A3 for the listed bridge component
Shared lifting mechanism Electric-hoist trolley; manual bridge travel does not make hoisting manual
Reference hoist-trolley speed Lifting 4.66 m/min; trolley travel 10 m/min
Reference bridge travel Hand operated; no motorized bridge-speed rating
Hoist-trolley mechanism duty M3
Controls Unified electrical system and button control, selected for the complete transfer sequence
Power supply Required for the shared electric hoist; voltage and frequency specified for the site
Transfer arrangement Electric-hoist trolley, powered and manual suspended bridges, and rail-transfer device form the linked reference system
Reference scope 12.5 t, bridge span and duty describe one catalogue arrangement; confirm the ordered load, support reactions, clearances and transfer interlocks
Image basis KSX reference-system illustration; the selected bridge-travel component is confirmed on the approved arrangement drawing

Manual overhead cranes

Compare fully manual suspension and top-running cranes for occasional lifting where travel speed and handling frequency are secondary.

SDXQ-3 manual underhung crane front elevation with suspended bridge and hand-chain hoist
SDXQ-3

Manual Underhung Overhead Crane (SDXQ-3)

Occasional maintenance lifting beneath suspended runways, without an electrical supply.

Capacity0.5 / 1 / 2 / 3 t
Span3–12 m
ArrangementUnderhung single girder
All specifications
Model SDXQ-3
Bridge arrangement Single girder suspended beneath runway beams
Rated capacities 0.5 / 1 / 2 / 3 t
Span bands — 0.5 and 1 t 3–5 / 5.5–8 / 9–10 / 11–12 m
Span bands — 2 and 3 t 3–5 / 6–8 / 9–10 / 11–12 m
Lifting height — 0.5 and 1 t 2.5–12 m
Lifting height — 2 and 3 t 3–12 m
Runway beam sizes — 0.5 and 1 t I20a–I30c
Runway beam sizes — 2 and 3 t I24a–I36c
Matched trolley — 0.5 / 1 / 2 / 3 t SDX-3.WA1/2 / SDX-3.WA1 / SDX-3.WA2 / DX-3.WA3
Matched chain hoist — 0.5 / 1 / 2 / 3 t HS1/2 / HS1 / HS2 / HS3
Maximum wheel pressure — 0.5 t 1.98–2.81 kN across the listed spans
Maximum wheel pressure — 1 t 3.40–4.90 kN across the listed spans
Maximum wheel pressure — 2 t 6.41–8.90 kN across the listed spans
Maximum wheel pressure — 3 t Confirm on the approved arrangement drawing
Hoisting hand pull — 0.5 / 1 / 2 / 3 t 19.5 / 21 / 32.5 / 34.5 (listed as kg)
Bridge hand pull — 0.5 / 1 / 2 / 3 t 6 / 9 / 12 / 15 (listed as kg)
Trolley hand pull — 0.5 / 1 / 2 / 3 t 3 / 5 / 11 / 13 (listed as kg)
Manual effort confirmation Confirm hand-pull force units and operating conditions in the technical offer.
Power supply Not required for basic manual lifting and travel
Typical application Low-frequency workshop maintenance and equipment servicing
Building interface Runway beam flanges, suspension reactions and supporting structure require project-specific checks
SDQ manual single-girder overhead crane with top-running end carriages and a hand-chain hoist
SDQ

Manual Single Girder Overhead Crane (SDQ)

Low-duty workshop lifting on top-running rails with hand-chain operation.

Capacity1 / 2 / 3 / 5 / 10 t
Span5–14 m
Working classA1–A3, light duty
All specifications
Model SDQ
Bridge arrangement Single girder, top-running overhead bridge
Rated capacities 1 / 2 / 3 / 5 / 10 t
Span 5–14 m
Lifting height 3–10 m
Working class A1–A3, light duty
Bridge travel speed — 1 / 2 / 3 / 5 / 10 t 5.2 / 5.2 / 5.2 / 4.3 / 4.3 m/min
Trolley travel speed — 1 / 2 / 3 / 5 / 10 t 5.3 / 5.9 / 4.7 / 4.7 / 4.2 m/min
Rail head width 37–51 mm
Hoisting hand pull — 1 / 2 / 3 / 5 / 10 t 21 / 32.5 / 34.5 / 37.5 / 40 (listed as kg)
Bridge hand pull — 1 / 2 / 3 / 5 / 10 t 9.4 / 13.4 / 19.5 / 20 / 20 (listed as kg)
Trolley hand pull — 1 / 2 / 3 / 5 / 10 t 6 / 12 / 14 / 20 / 25 (listed as kg)
Manual effort confirmation Confirm hand-pull force units and operating conditions in the technical offer.
Power supply Not required for basic manual lifting and travel
Typical application Maintenance workshops, warehouses and occasional material transfer
Speed selection Manual travel figures depend on operating conditions; confirm the required cycle and effort
SQ manual double-girder overhead crane front elevation with hand-driven trolley and operating chains
SQ

Manual Double Girder Overhead Crane (SQ)

Heavy maintenance loads on double-girder runways with fully manual operation.

Capacity5 / 10 / 16 / 20 t
Span10–17 m
ArrangementTop-running double girder
All specifications
Model SQ
Bridge arrangement Double girder, top-running overhead bridge
Rated capacities 5 / 10 / 16 / 20 t
Span 10–17 m
Lifting height 10 or 16 m configurations
Rail head width — 5 t 40 or 50 mm
Rail head width — 10 / 16 / 20 t 60 or 70 mm
Hoisting hand pull — 5 / 10 / 16 / 20 t 37 / 53 / 58 / 64 (listed as kg)
Trolley hand pull — 5 / 10 / 16 / 20 t 10 / 16 / 25 / 29 (listed as kg)
Bridge hand pull — 5 / 10 / 16 / 20 t 30 / 35 / 25 / 30 (listed as kg)
Manual effort confirmation Confirm hand-pull force units and operating conditions in the technical offer.
Power supply Not required for basic manual lifting and travel
Typical application Occasional heavy maintenance and storage handling in workshops or warehouses
Wheel-pressure basis Maximum catalogue values for the rated-load/span combinations below; confirm final runway reactions against the approved drawing
Max. wheel pressure — 5 t / 10 m span 33.5 kN
Max. wheel pressure — 5 t / 11 m span 34.2 kN
Max. wheel pressure — 5 t / 12 m span 35.2 kN
Max. wheel pressure — 5 t / 13 m span 36.3 kN
Max. wheel pressure — 5 t / 14 m span 38.3 kN
Max. wheel pressure — 5 t / 15 m span 38.6 kN
Max. wheel pressure — 5 t / 16 m span 40.1 kN
Max. wheel pressure — 5 t / 17 m span 41.0 kN
Max. wheel pressure — 10 t / 10 m span 56.7 kN
Max. wheel pressure — 10 t / 11 m span 57.6 kN
Max. wheel pressure — 10 t / 12 m span 59.7 kN
Max. wheel pressure — 10 t / 13 m span 60.7 kN
Max. wheel pressure — 10 t / 14 m span 62.3 kN
Max. wheel pressure — 10 t / 15 m span 63.1 kN
Max. wheel pressure — 10 t / 16 m span 65.0 kN
Max. wheel pressure — 10 t / 17 m span 65.9 kN
Max. wheel pressure — 16 t / 10 m span 88 kN
Max. wheel pressure — 16 t / 11 m span 89 kN
Max. wheel pressure — 16 t / 12 m span 91.2 kN
Max. wheel pressure — 16 t / 13 m span 93.4 kN
Max. wheel pressure — 16 t / 14 m span 96.2 kN
Max. wheel pressure — 16 t / 15 m span 97.6 kN
Max. wheel pressure — 16 t / 16 m span 99.6 kN
Max. wheel pressure — 16 t / 17 m span 101.0 kN
Max. wheel pressure — 20 t / 10 m span 103 kN
Max. wheel pressure — 20 t / 11 m span 111.3 kN
Max. wheel pressure — 20 t / 12 m span 113.4 kN
Max. wheel pressure — 20 t / 13 m span 115.2 kN
Max. wheel pressure — 20 t / 14 m span 117.8 kN
Max. wheel pressure — 20 t / 15 m span 119.4 kN
Max. wheel pressure — 20 t / 16 m span 122.3 kN
Max. wheel pressure — 20 t / 17 m span 124.3 kN

Numerical specifications for a named reference model apply to that model and configuration. Match load, span, lift, duty and motions together. Confirm the rating basis and attachment weight for grabs, magnets and lifting beams.

Budget planning

Overhead crane price ranges for budget planning

Use these published equipment reference ranges to plan a preliminary budget. Compare the stated configuration envelope before requesting a dated quotation for your exact span, lift, duty and controls.

Configured overhead crane budget references
Reference configuration range Published USD budget range
5 t electric single girder · spans 7.5–31.5 m · lifts 6–30 m USD 3,130–8,680
10 t QD double girder · spans 10.5–31.5 m · 16 m lift · A5/A6 USD 17,200–32,500

Indicative equipment budgets for the configuration ranges shown. Span, lift, controls and included equipment determine the selected price; request a dated, itemized quotation for your crane.

Confirm the equipment bill of supply and trade terms. Runway steel, rails, power supply along the runway, freight, import charges, erection, commissioning and load testing need separate provision unless expressly included. Request configured quotations for manual, rail-transfer and specialist process cranes.

Get a quote for your configuration
Delivered overhead crane project

34 overhead cranes for Chongqing Panhua

Henan Mine Crane supplied 34 double-girder overhead cranes for Chongqing Panhua Sheet’s intelligent hot-rolling project in Chongqing, China. The package covered rated capacities from 10 t to 100 t.

For a multi-bay purchase, specify the load, hook coverage and operating cycle at each handling position. Request one equipment schedule covering the crane configurations, runway interfaces, controls and inspection scope.

View the Panhua project
Overhead crane installed in a steel hot rolling mill
Double-girder overhead cranes installed for Chongqing Panhua’s hot-rolling project.

Overhead crane buying questions

Which overhead crane type fits my building and lifting task?

Start with runway centers, support locations, clear height and the required hook positions. Compare single-girder, double-girder or underhung arrangements, then match the payload and daily handling cycle. Use a process-specific series when the task involves hot metal, bulk material, steel magnets, electrical isolation or a classified hazardous area. Final selection needs the load route and building section together.

How should I specify capacity and working duty?

List the payload, rigging and detachable lifting attachment separately, with the maximum load case and lifting points. Confirm whether the quoted rating describes total suspended load or useful payload, especially for grabs and magnets. Add lifts per hour, shifts, load distribution, travel distances and required speeds. Capacity alone does not define working duty, and main/auxiliary or separate trolley ratings are not automatically additive.

What should an overhead crane quotation include?

Agree the crane model, load cases, dimensions, duty, power supply, controls and destination requirements. Identify bridge equipment, runway steel, rails, attachments, freight, installation and commissioning as included or separately priced. Request the general arrangement drawing, wheel loads, inspection and test records, manuals, warranty terms and spare-parts proposal. Confirm production and delivery milestones after the technical scope and drawings are agreed.

Compare the range

Overhead crane types and configuration comparison

Use the full product or series name to continue your comparison. Reference-model figures are identified explicitly; the selected series contains additional configurations.

Swipe across the table to compare specifications.

Model / product Arrangement Capacity Span / working width Lifting height Working class
Single Girder Overhead Cranes Top-running single girder LD: 1 / 2 / 3 / 5 / 10 / 16 / 20 t LD: 6–31.5 m LD: 6 / 9 / 12 / 18 / 24 / 30 m A3–A5, by duty
Double Girder Overhead Cranes Top-running double girder QD standard selections: 5 / 10 / 16/3.2 / 20/5 / 32/5 / 50/10 t QD standard selections: 10.5–31.5 m for these ratings QD standard selections: 5 / 10 t: 16 m; other main/auxiliary lifts by configuration A5–A6 for standard selections
Electric Hoist Overhead Cranes Double girder with seated hoist LH: 3 / 5 / 10 / 16 / 20 t LH: 10.5–31.5 m LH: 3 t: 6 / 9 / 12 m; 5 t: 6 / 9 / 12 / 18 m; 10–20 t: 9 / 12 m A3–A4
Underhung Overhead Cranes Single girder underhung reference LX: 0.5 / 1 / 2 / 3 / 5 / 10 t LX: 3–16 m LX: 6 / 9 / 12 / 18 m A3–A5
Double Trolley Overhead Cranes Two separate hook trolleys QE: 5+5 / 10+10 / 16+16 t trolley ratings QE: 10.5–31.5 m QE: 16 m for the listed selections A5 / A6
Explosion-Proof Overhead Cranes Double girder hook reference QB: 5 / 10 / 16/3.2 / 20/5 / 32/5 / 50/10 t QB: 10.5–31.5 m QB: 5 / 10 t: 16 m; main/auxiliary lifts by selected rating A3–A4 for the listed selections
Insulated Overhead Cranes Insulated double girder reference QY: 5 / 10 / 16/3.2 / 20/5 t QY: 10.5–31.5 m QY: 5 / 10 t: 16 m; 16/3.2 t: 16/18 m; 20/5 t: 12/14 m A6 for the listed selections
Metallurgical Overhead Cranes Double girder casting reference YZ 100/32 t example: 100/32 t main / auxiliary YZ 100/32 t example: 19 m for this example YZ 100/32 t example: 18 / 20 m main / auxiliary for this example A7 for this example
Electromagnetic Overhead Cranes Hook-suspended electromagnet reference QC: 5 / 10 / 16 t; 16/3.2 / 20/5 / 32/5 t QC: 10.5–31.5 m QC: Single hoist: 16 m; main/auxiliary lifts by configuration A6 for the listed selections
Grab Overhead Cranes Four-rope double girder reference QZ: 5 / 10 / 16 / 20 t, including grab self-weight QZ: 5 / 10 t: 10.5–31.5 m; 16 / 20 t: 16.5–31.5 m QZ: 5 / 10 / 16 / 20 t: 20 / 18 / 22 / 26 m respectively A6
Slow Speed Overhead Cranes Slow-speed double girder reference QD slow-speed, 5 / 10 t reference: 5 / 10 t for this reference QD slow-speed, 5 / 10 t reference: 10.5–31.5 m QD slow-speed, 5 / 10 t reference: 16 m A3
Carrier-Beam Overhead Cranes Lower-rotating carrier beam reference QJ lower-rotating beam: Selected for the complete suspended load QJ lower-rotating beam: Selected for the workshop layout QJ lower-rotating beam: Selected for pickup and placement elevations Selected for the load spectrum
Galvanizing Overhead Cranes Single- or double-girder options QDXG: Selected from empty pot or component plus rigging QDXG: Selected from the runway and removal route QDXG: Selected from pot elevation, pit depth and withdrawal clearance Selected for the maintenance cycle
Rail-Transfer Overhead Crane for Multi-Bay Handling Linked runway transfer Selected for suspended load Layout-specific Pickup and delivery elevations Selected for operating cycle
Powered-Travel Rail-Transfer Overhead Crane (KSX) Powered underhung bridge 12.5 t reference 3.65 m reference Selected for complete layout A3 reference
Manual-Travel Rail-Transfer Overhead Crane (KSX) Manual-main-travel underhung bridge 12.5 t reference 3.70 m reference Selected for complete layout A3 reference
Manual Underhung Overhead Crane (SDXQ-3) Underhung single girder 0.5 / 1 / 2 / 3 t 3–12 m; capacity-specific bands 0.5–1 t: 2.5–12 m; 2–3 t: 3–12 m Specified for the operating cycle
Manual Single Girder Overhead Crane (SDQ) Top-running single girder 1 / 2 / 3 / 5 / 10 t 5–14 m 3–10 m A1–A3, light duty
Manual Double Girder Overhead Crane (SQ) Top-running double girder 5 / 10 / 16 / 20 t 10–17 m 10 or 16 m Specified for the operating cycle

Use reference-model figures as a starting point for selection. Other configurations in the series can differ. Specific-model values remain tied to their capacity, span and drive arrangement. The approved equipment schedule defines the supplied crane.

Get an overhead crane proposal for your site

Send the maximum payload, lifting attachment, span, hook height and runway length. Add a building sketch, handling cycle, power supply and delivery country.

State any hazardous-area, heat, insulation or process-control requirements. Confirm drawings, acceptance tests, shipping terms and site responsibilities in the written offer.

Request a quotation
