PORT CRANE SOLUTIONS

Smart Dry Port Container Handling

A dry port must move containers across truck lanes and stacks without lifting a trailer or losing control of the spreader.

ApplicationWanli New Energy Smart Dry Port
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope
Container gantry crane serving an intermodal dry port yard
Container gantry crane serving an intermodal dry port yard.
THE OPERATING CHALLENGE

Start with the load and the process route.

A dry port must move containers across truck lanes and stacks without lifting a trailer or losing control of the spreader.

The load, lifting attachment, traffic interface and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Container mix and gross mass

02 / DEFINE

Truck lanes and rail gauge

03 / DEFINE

Stack height and annual/peak moves

04 / DEFINE

Remote-control and vehicle safeguards

ENGINEERED FOR THE APPLICATION

Handle daily dry-port traffic with controlled container positioning.

Use a rail-mounted container gantry with variable-frequency travel, PLC control, anti-sway and truck anti-lift protection. Coordinate automatic container search and spreader guidance with the terminal's operating positions.

Container gantry crane serving an intermodal dry port yard
Container gantry crane serving an intermodal dry port yard.
01

Receive the vehicle

Identify the container and confirm the truck has reached a safe transfer position.

02

Lift and travel

Monitor spreader engagement and sway as the container moves to its stack.

03

Set down accurately

Guide the spreader to the assigned slot and verify release.

✓

Truck interface

Specify anti-lift safeguards and sight lines around each lane.

✓

Monitoring and control

Agree remote operation, status signals and recovery from interrupted moves.

PROJECT IN OPERATION

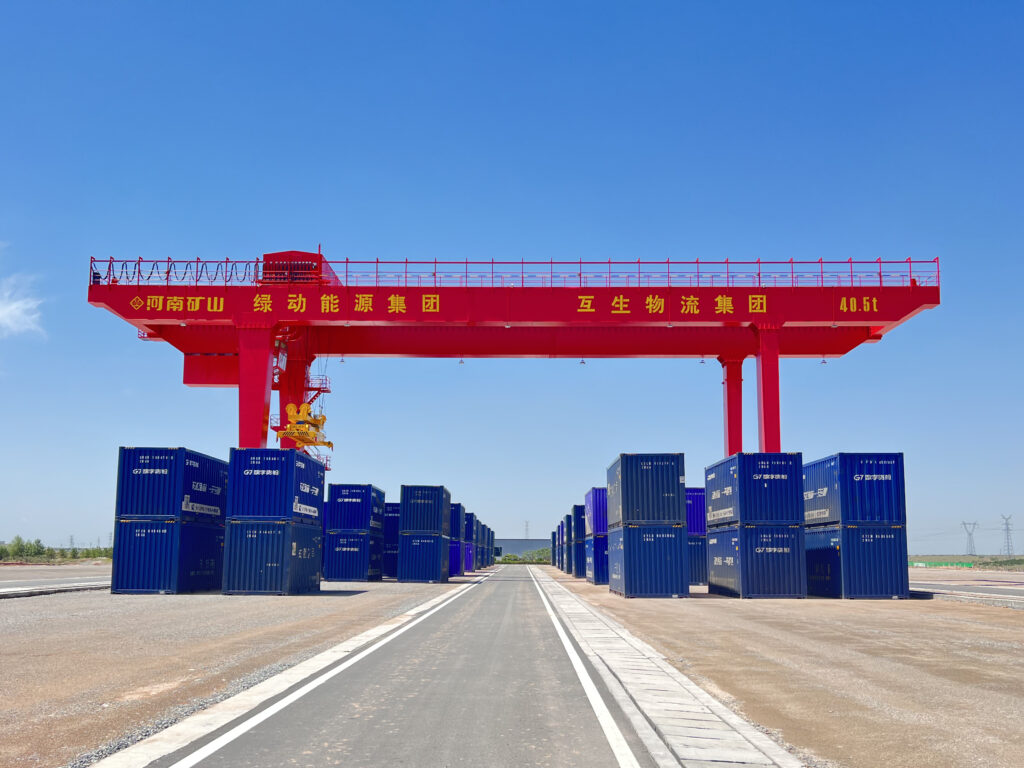

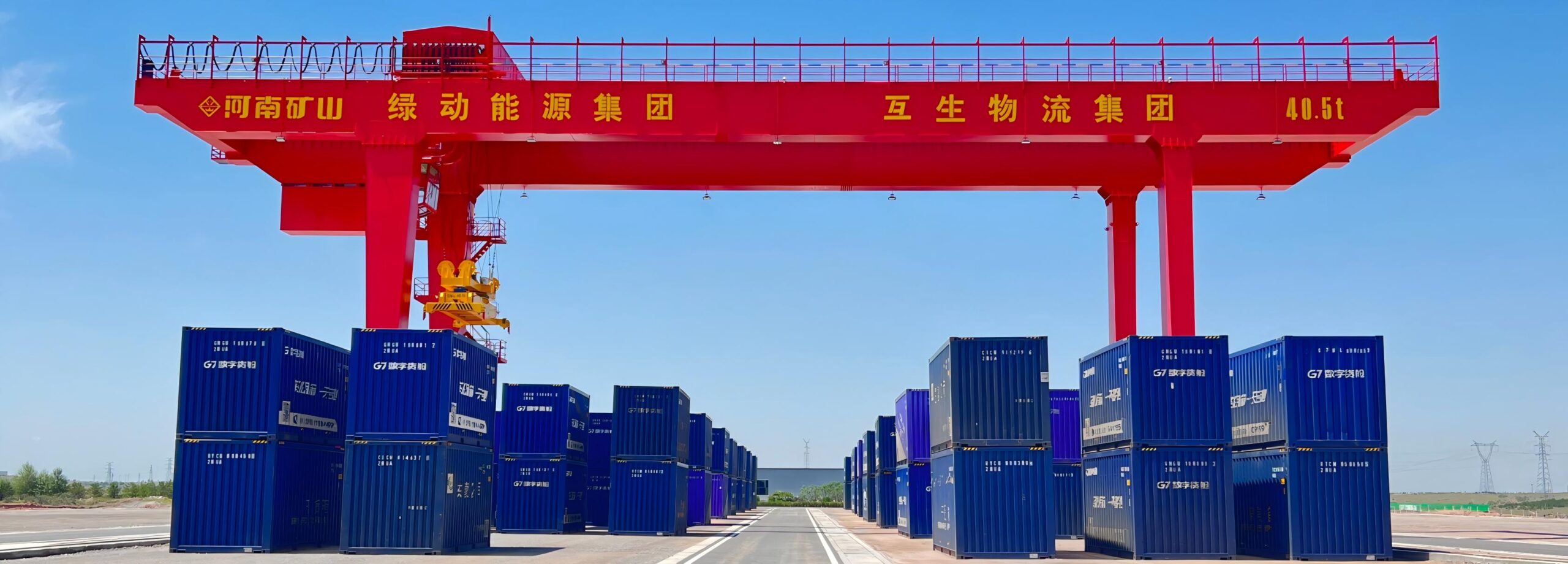

Wanli New Energy Smart Dry Port

Henan Mine Crane delivered a rail-mounted container gantry to the Wanli Dry Port project, whose planned annual throughput was 5 million tons; the crane used PLC control, remote monitoring and container guidance.

Process fitSmart Dry Port Container Handling Solution

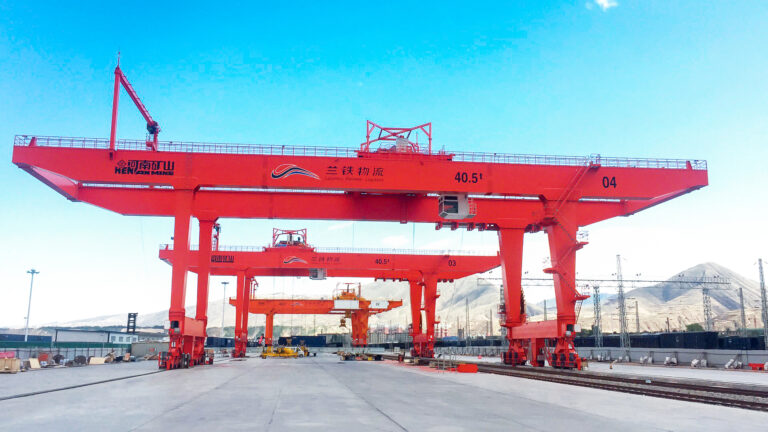

EquipmentRail-Mounted Container Gantry Crane
ProjectWanli New Energy Smart Dry Port
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementContainer mix and gross massRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementTruck lanes and rail gaugeCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementStack height and annual/peak movesDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Site requirementRemote-control and vehicle safeguardsProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be customized for our site?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.
