POWER PLANT CRANE SOLUTIONS

600 t Low-Headroom Crane for Pumped-Storage Powerhouses

A pumped-storage powerhouse needs to position heavy generating equipment within strict building height and hook-coverage limits.

ApplicationNational pumped-storage station
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

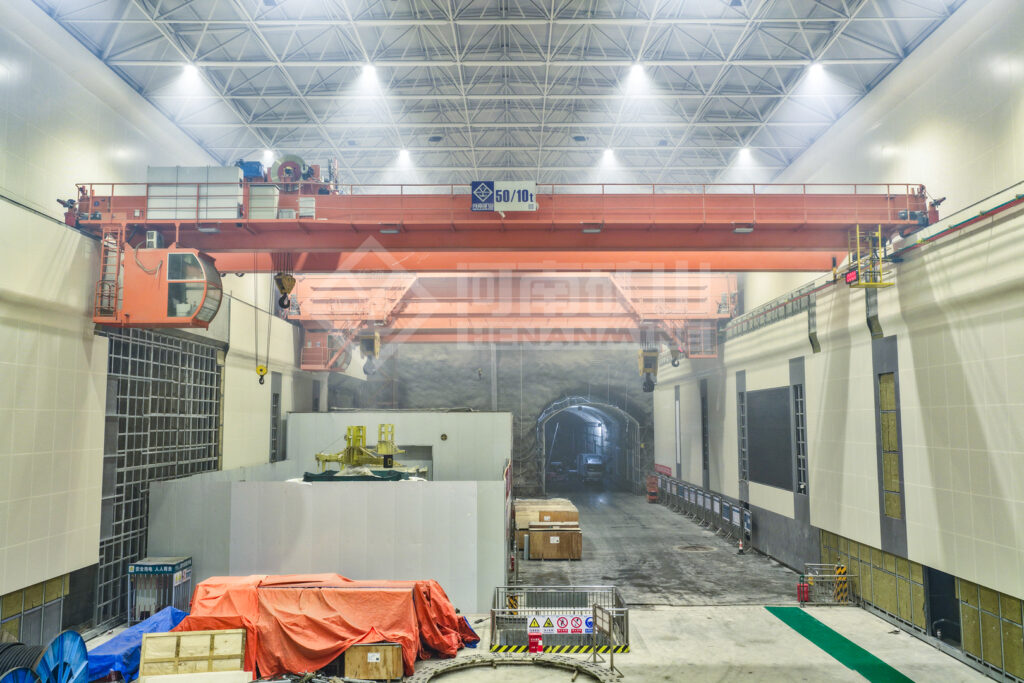

Overhead crane installed in a pumped-storage powerhouse
Overhead crane installed in a pumped-storage powerhouse.
THE OPERATING CHALLENGE

Start with the component and the lift route.

A pumped-storage powerhouse needs to position heavy generating equipment within strict building height and hook-coverage limits.

The lifted component, rigging, building clearances and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Heaviest component and rigging

02 / DEFINE

Powerhouse sections and runway elevation

03 / DEFINE

Dual-hook lift plan

04 / DEFINE

Installation and overhaul sequence

ENGINEERED FOR THE APPLICATION

Plan the heaviest installation and future overhaul in a low-headroom bay.

Use a low-headroom bridge-crane arrangement with synchronized hooks, variable-frequency control, anti-sway and digital monitoring. Confirm the lifting envelope against construction drawings and retain access for future component removal.

Overhead crane installed in a pumped-storage powerhouse
Overhead crane installed in a pumped-storage powerhouse.
01

Bring in major components

Check delivery opening, laydown area and lifted assembly mass.

02

Position over the unit

Coordinate both hooks and the lift path within the powerhouse envelope.

03

Retain maintenance access

Verify the same crane can support later removal and overhaul.

✓

Headroom and hook approach

Protect clearance at every critical station, not only the main assembly bay.

✓

Synchronized lifting

Define acceptable load balance and monitoring for dual-hook lifts.

PROJECT IN OPERATION

National pumped-storage station

The project used a 600 t low-headroom bridge crane for a pumped-storage project, with high-precision dual-hook synchronization, anti-sway and digital monitoring.

Process fit600 t Pumped-Storage Powerhouse Lifting Solution
EquipmentQE Double-Trolley Hook Overhead Crane / KSQE New-Design Double-Trolley Crane
ProjectNational pumped-storage station
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementHeaviest component and riggingRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementPowerhouse sections and runway elevationCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementDual-hook lift planIndividual hook reactions, permitted combined load, hook spacing and synchronization tolerance.
04 / Site requirementInstallation and overhaul sequenceInstallation/overhaul sequence, temporary supports, access and lifting/acceptance responsibilities.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be configured for our powerhouse or factory?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
