KSQE Modular Double Trolley Overhead Crane

Move long workpieces with two hook trolleys on a compact modular double girder bridge. KSQE supports independent or coordinated handling, while its segmented bridge and bolted connections help arrange transport and on-site assembly.

HELP CHOOSING YOUR CRANE

Tell us what you need to lift and your approximate span. We’ll help you choose the lifting arrangement.

Lifting arrangement
Two hook trolleys
Operating modes
Independent / tandem
Bridge arrangement
Modular bolted segments
Load and span
Project configured
Two trolleys on a common trackStepless speed optionsSegmented transport

Start with the dimensions you already know. A workshop photo or sketch can help us recommend a configuration.

01
Match two lifting points to a long load

Select the individual trolley ratings and permitted paired operation for the workpiece, lifting gear and required pickup spacing.

02
Plan transport around the site

Bolted main-girder and end-carriage connections allow the bridge arrangement to be considered as transportable sections for delivery and assembly.

03
Control the approach and placement

The modular control package can combine stepless motion, low-speed positioning and anti-sway functions for the selected handling sequence.

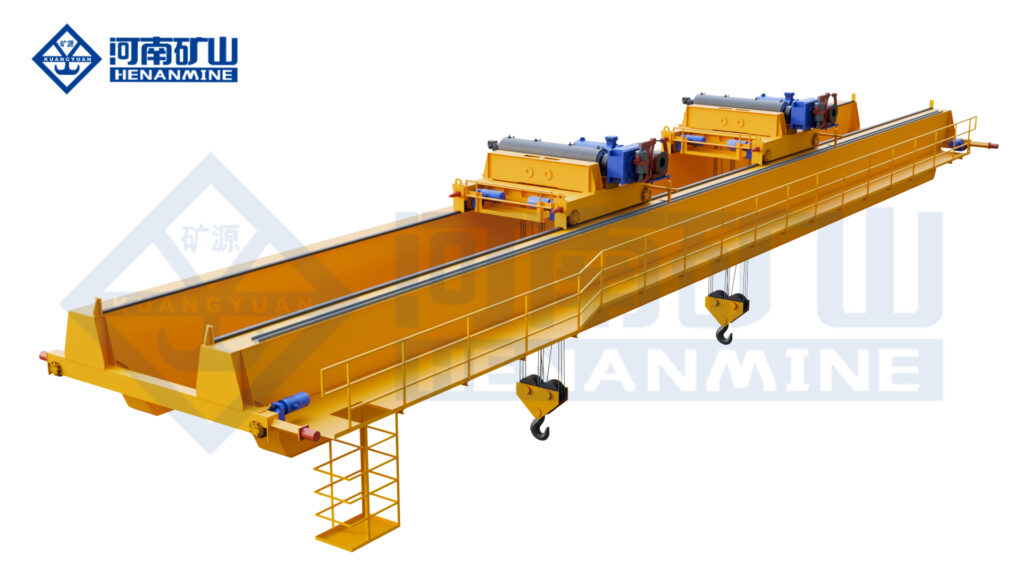

Henan mine crane co., ltd. double-girder bridge with two winch trolleys and independently suspended hooks

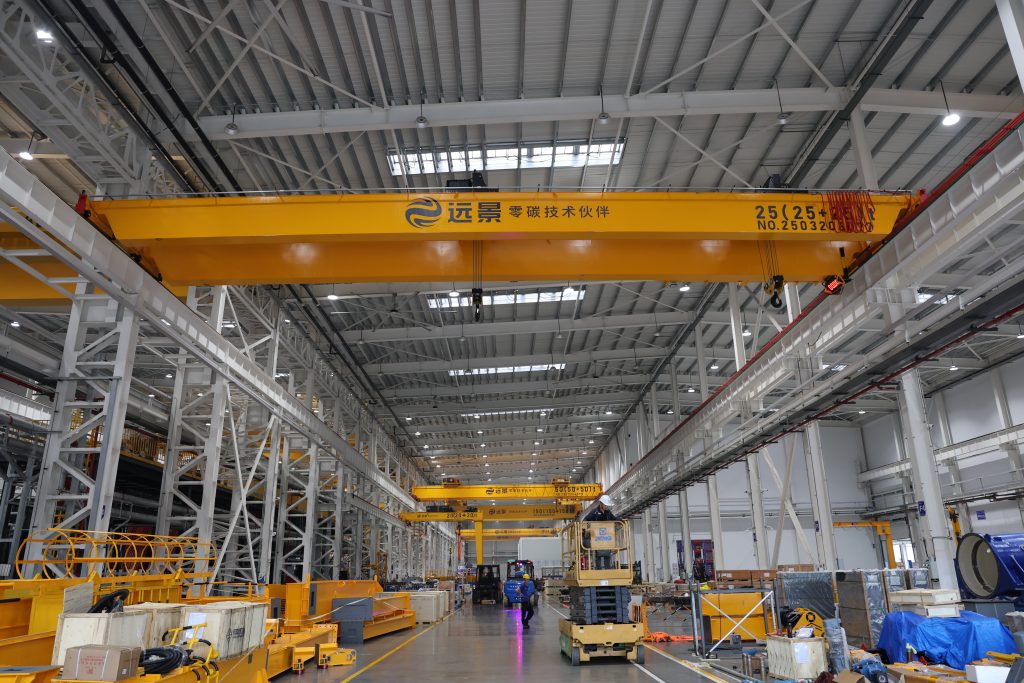

Double-trolley hook crane in a production hall
01 / APPLICATIONS

Handle long workpieces with a matched trolley pair.

01

Long fabricated components

Move girders, frames and other long assemblies with two selected lifting points, keeping the individual hook loads within the ordered ratings.

02

Coordinated equipment handling

Use the paired operating mode for a defined lifting sequence; individual trolley operation also serves smaller jobs in the same bay.

03

Controlled turning operations

A purpose-selected hook and control arrangement can support balanced turning of suitable workpieces. The load geometry and turning sequence are part of the crane selection.

The technical offer identifies each trolley rating, the permitted tandem load and the lifting-point spacing for the application.

02 / TECHNICAL SPECIFICATIONS

KSQE specifications and configuration options

Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.

ModelKSQE
Rated capacityEach trolley rated for its maximum reaction; combined lifting rating specified separately
SpanCustom rail-centre span to the production bay
Lifting heightCustom hook travel from pickup to placement level
Working dutySelected from load spectrum, lifts per hour and operating shifts
Hoisting speedConfigured for independent and coordinated lifting
Trolley / bridge travelCoordinated trolley and bridge travel to the load-handling sequence
Lifting arrangementTwo hooks; Two trolleys on common track
ControlIndependent/tandem control with feedback and operating interlocks
Power supplyThree-phase supply matched to destination voltage and frequency
Operating environmentIndustrial service package matched to site conditions
Trolley arrangementTwo winch trolleys on a compact modular double-girder bridge
03 / EQUIPMENT VIEWS

See the modular bridge and two trolleys.

The product and installation views show the trolley pair, bridge arrangement and bolted construction.

Henan mine crane co., ltd. double-girder bridge with two winch trolleys and independently suspended hooks
Double-trolley hook crane in a production hall
04 / CONFIGURATION

Specify the load path and the delivery arrangement.

A useful KSQE selection brings together the lifting task, coordinated controls and practical transport sections.

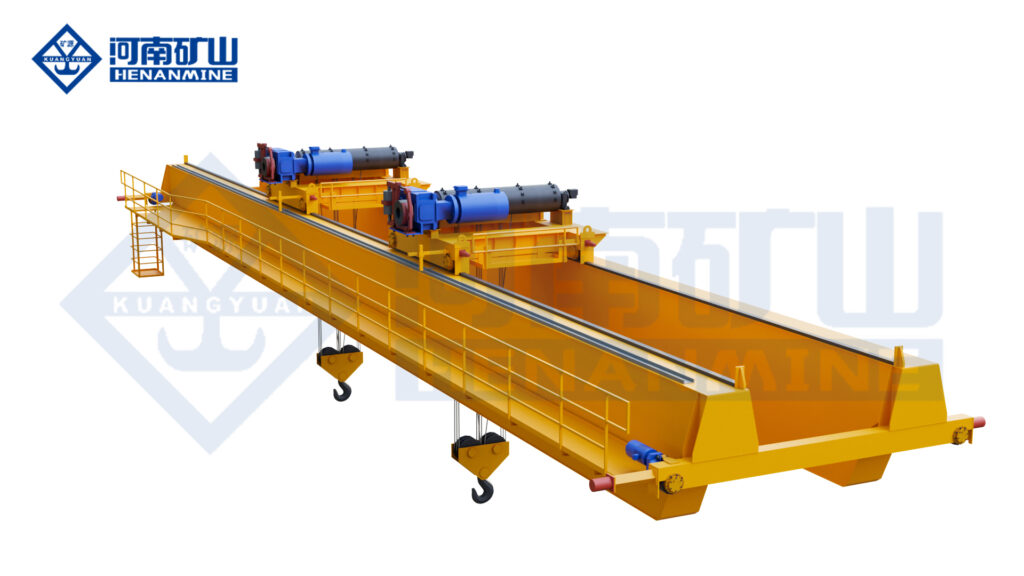

KSQE new-design double-trolley hook crane, manufacturer view 3

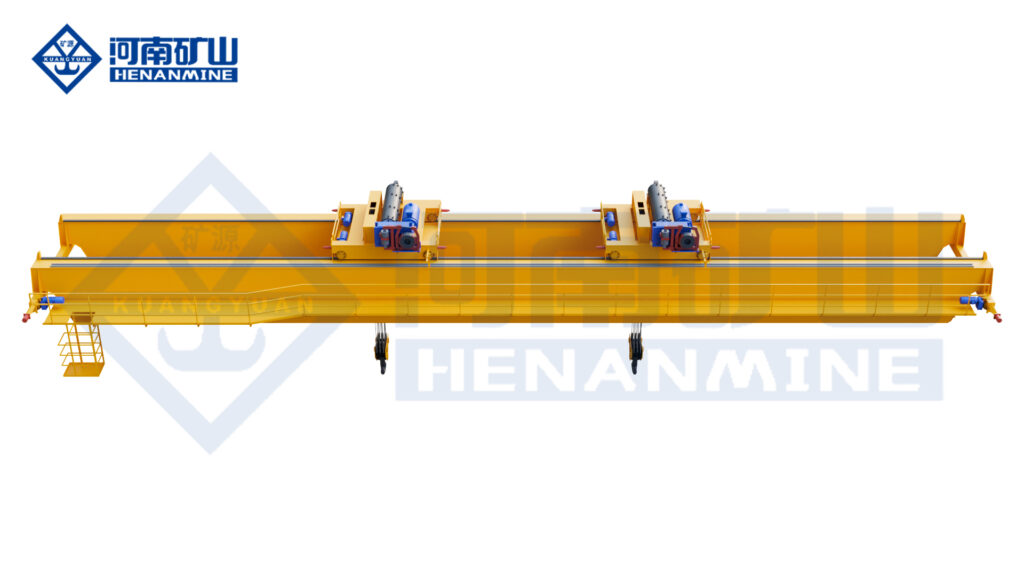

KSQE end and trolley arrangement
01 / OPTION

Individual and paired loads

State the maximum load on each hook and the load carried together. Include the lifting gear and the centre of gravity of long workpieces.

02 / OPTION

Trolley spacing and travel

Define the lifting-point spacing, hook travel and working span. Both trolleys use the common track, so their working positions are coordinated in the crane arrangement.

03 / OPTION

Speed and control functions

Choose independent and tandem modes, positioning speeds and the required feedback or interlocks. Add anti-sway or automated positioning where the production task benefits.

04 / OPTION

Transport and on-site assembly

Match the bridge sections, packing and handling points to the delivery route and available site assembly area. The order defines connections and installation requirements.

05 / PURCHASING & DELIVERY

What comes with your KSQE crane?

Compare the equipment, documentation, delivery and service scope for the configuration you need.

ORDER QUANTITY

Order the crane you need

Request a KSQE selection for one lifting bay or a project quantity. Confirm the order quantity with the individual and combined trolley load cases.

QUOTATION

See the equipment included

List the modular bridge, both trolleys, hook equipment and selected control functions. Identify packing sections, special transport, conductor equipment, site assembly and commissioning as named items.

DOCUMENTS

Documents for your destination

Include the assembled arrangement, transport section details, connection requirements, trolley load cases, operating modes, electrical drawings, manuals and inspection records. Define destination conformity documents in the order.

DELIVERY

Plan production and dispatch

Schedule dispatch after the trolley ratings, bridge sections and control sequence are approved. Packing, international transport and site assembly have separate milestones.

INSTALLATION

Installation and commissioning support

Agree bridge assembly, bolted connections, alignment, electrical work and testing. Commission individual and tandem modes, together with any ordered turning or positioning sequence.

WARRANTY & SPARES

Know the warranty and support scope

Agree coverage for both trolley mechanisms, drives, bridge and selected controls. The after-sales package identifies the supplied components, service contacts and recommended spares.

07 / BUYER QUESTIONS

Answers for your KSQE crane purchase

Find the arrangement, equipment options and order information that suit your application.

How is KSQE different from QE?

KSQE uses a modular segmented bridge with bolted main-girder and end-carriage connections. It offers a compact two-trolley arrangement with control options for positioning and coordinated handling. QE is the conventional two-winch-trolley family.

How are the two trolley capacities selected?

Each trolley is selected for its maximum load reaction, including the lifting attachment. The crane also receives a defined combined-load case for paired lifting; this is specified separately from the individual hook ratings.

Can I operate either trolley on its own?

Yes. The selected control package can provide independent and coordinated modes. The offer identifies the movements and load conditions available in each mode.

Can the crane turn a long workpiece?

A turning sequence can be considered when the hooks, lifting gear, load geometry and controls are matched to it. Provide the workpiece dimensions, mass, centre of gravity and desired turning motion with the enquiry.

What benefit does the segmented bridge offer?

The bridge can be planned in sections for transport and on-site assembly. The quotation identifies the actual section sizes, connection arrangement and the site assembly scope for the selected crane.

Can anti-sway and positioning be included?

Electronic anti-sway, low-speed positioning and PLC functions can be specified. The operating modes and any automatic sequence are defined around the loads and production positions.

Can you provide a price before the final workshop drawing?

A preliminary selection can start with the load, span, lift, hook spacing and a simple handling layout. The final offer identifies the selected ratings, control scope and equipment arrangement.

What should the order say about delivery and site work?

It should identify the transport sections, dispatch date, packing, unloading, assembly and commissioning responsibilities. Include the warranty terms, selected component list and the required technical documents in the same order scope.
