Lift workshop equipment and production loads with a compact modular double girder crane. KSQ combines a hook trolley with stepless speed control and low-speed positioning, with electronic anti-sway and monitoring functions available for the handling task.
Tell us what you need to lift and your approximate span. We’ll help you choose the lifting arrangement.

Start with the dimensions you already know. A workshop photo or sketch can help us recommend a configuration.
Stepless speed control and low-speed positioning support controlled pickup, transfer and placement within the workshop.
The compact bridge and trolley arrangement can be selected around the required hook height and the workstations the crane needs to serve.
Specify anti-sway, operating-state monitoring or automated positioning where they support the production cycle and operator workflow.

Move machine components to assembly positions with a selected low-speed mode for the final approach.
Carry workpieces between repeat pickup and set-down positions with travel and lifting speeds suited to the production route.
Match one hook trolley to the load mix, available crane space and the required equipment-removal positions.
Select the load rating, lifting height, travel speeds and control functions as one crane package for the application.
Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.
| Model | KSQ |
|---|---|
| Rated capacity | Custom rating for workpiece plus lifting gear |
| Span | Custom rail-centre span and runway length |
| Lifting height | Custom upper/lower hook positions |
| Working duty | Selected for load spectrum and lifts per shift |
| Hoisting speed | Stepless lifting with low-speed positioning |
| Trolley / bridge travel | VFD travel; selected normal and positioning speeds |
| Lifting arrangement | Main hook; Single trolley |
| Control | PLC/VFD; electronic anti-sway and positioning options |
| Power supply | Three-phase supply matched to destination voltage and frequency |
| Operating environment | Industrial service package matched to site conditions |
| Structure | Compact modular bridge and trolley arrangement |

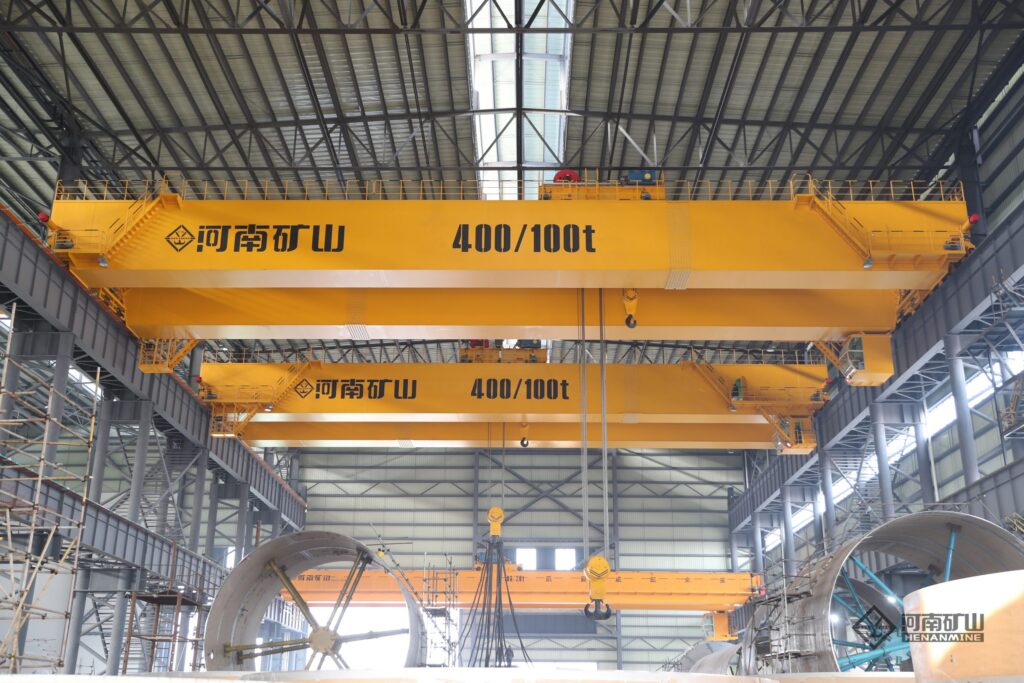

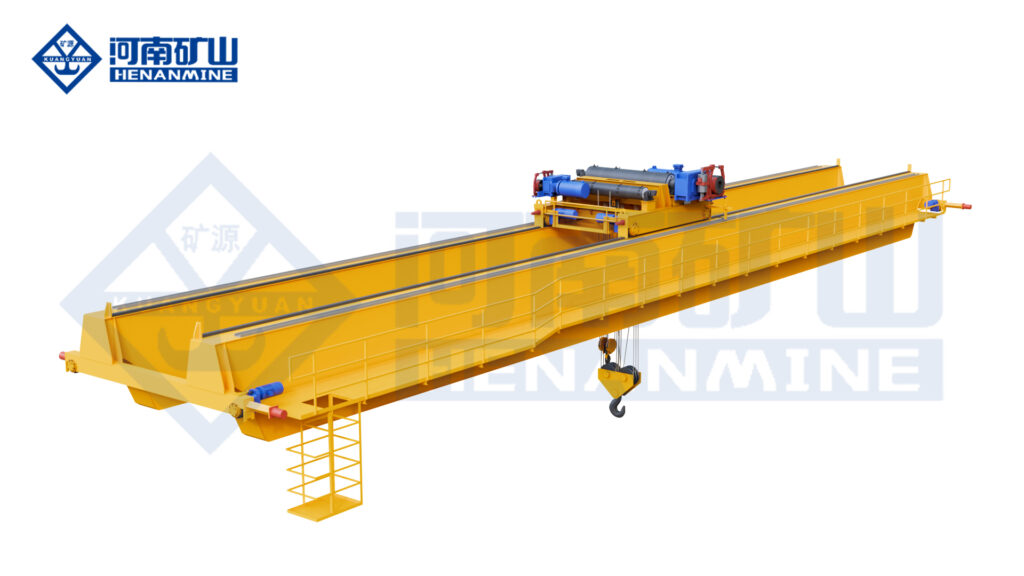

The complete equipment and installed views show the bridge, trolley and hook layout.


Start with the load and the required motion. Add the control functions that make pickup and placement easier for the operator.

Set the rating for the workpiece plus lifting gear. Select the rail-centre span and hook travel for the working bay.
Choose operating and positioning speeds for the handling cycle. Stepless motion lets the operator control the approach to a load or landing position.
Electronic anti-sway, PLC control and automated positioning can be specified. Define the load types and repeat positions these functions will serve.
Select the operator control, monitoring functions and destination electrical supply. Include access to the lifting mechanism and replaceable components in the crane arrangement.
Compare the equipment, documentation, delivery and service scope for the configuration you need.
Request a KSQ quotation for one production bay or a multi-crane installation. The offer confirms the order quantity and selected package.
Identify the bridge, hook trolley, drives, brakes and operator controls. List anti-sway, positioning, monitoring, power supply equipment and installation services as named line items.
Specify the approved arrangement, selected load and duty, mechanism data, control and electrical drawings, manuals and inspection records. Agree destination conformity requirements with the technical order.
Agree dispatch after the load, geometry, mechanisms and control functions are selected. Positioning, monitoring and project interfaces are included in the production and test schedule when ordered.
Define site assembly, electrical connection, commissioning and operator familiarisation. Ordered anti-sway or positioning functions form part of the agreed commissioning scope.
Confirm the warranty period, component coverage and service response for the selected mechanical and electrical package. The parts list follows the crane as supplied.
Find the arrangement, equipment options and order information that suit your application.
KSQ uses a compact modular crane arrangement with stepless motion and low-speed positioning. QD is the conventional winch-trolley family. Compare the proposed dimensions, duty, speeds and selected controls for the actual load.
The crane is configured for your load and bay. Send the heaviest workpiece, lifting attachment weight, rail-centre span and required hook travel to receive the selected rating and arrangement.
It allows a slower approach when picking up or placing a load, such as aligning an assembly or setting equipment onto its supports. The required operating and positioning speeds are specified with the crane.
Electronic anti-sway can be included in the selected control package. The quotation identifies the functions, operating modes and load conditions covered.
Automated positioning and PLC functions are available for suitable handling sequences. Provide the pickup and landing positions and the required operator interaction so the control scope can be defined.
The compact arrangement can be assessed against the available space. Send the available crane height and the highest required hook position so the proposed dimensions can be compared with the workshop.
The selected load rating, span, duty, lifting mechanism and control functions shape the price. The offer also identifies whether conductor equipment, rails, shipping and site support are included.
The order sets the dispatch date for the approved crane and controls, the required documents, warranty coverage and installation support. Recommended spares are selected for the installed lifting and travel equipment.
Tell us what you need to lift, your project location and any dimensions you already know. We’ll help you choose a suitable configuration.
