KSSL / COMPACT HOIST & VFD TRAVEL

KSSL European Electric Hoist Double Girder Crane

Handle production loads with a compact wire-rope hoist, dual-speed lifting and variable-frequency bridge and trolley travel. KSSL suits manufacturing, machining and assembly bays where controlled starts, stops and final placement matter. The standard A5 configuration range offers 5–80 t capacities, with the hoist, dimensions and speeds selected as one crane package.

HELP CHOOSING YOUR CRANE

Tell us your load and lifting height, then describe the transfer or placement task. We can help select the hoist and travel speeds.

Capacity options
5–80 t
Span options
7.5–31.5 m
Crane duty
A5
Motion package
Dual-speed lift · VFD travel
Compact C-shaped hoistManufacturing & assembly

Start with the dimensions you already know. A workshop photo or sketch can help us recommend a configuration.

01
A slower final approach

Dual-speed hoisting provides a normal lifting speed and a slower positioning speed, useful when placing machinery, fitted assemblies or finished components.

02
Adjustable horizontal movement

Variable-frequency trolley and bridge travel lets the operator choose a suitable approach speed and reduces abrupt acceleration during workshop transfers.

03
Compact equipment above the hook

The C-shaped hoist arrangement, large-diameter drum and compact trolley package reduce the space occupied by the lifting unit, helping make efficient use of the workshop height.

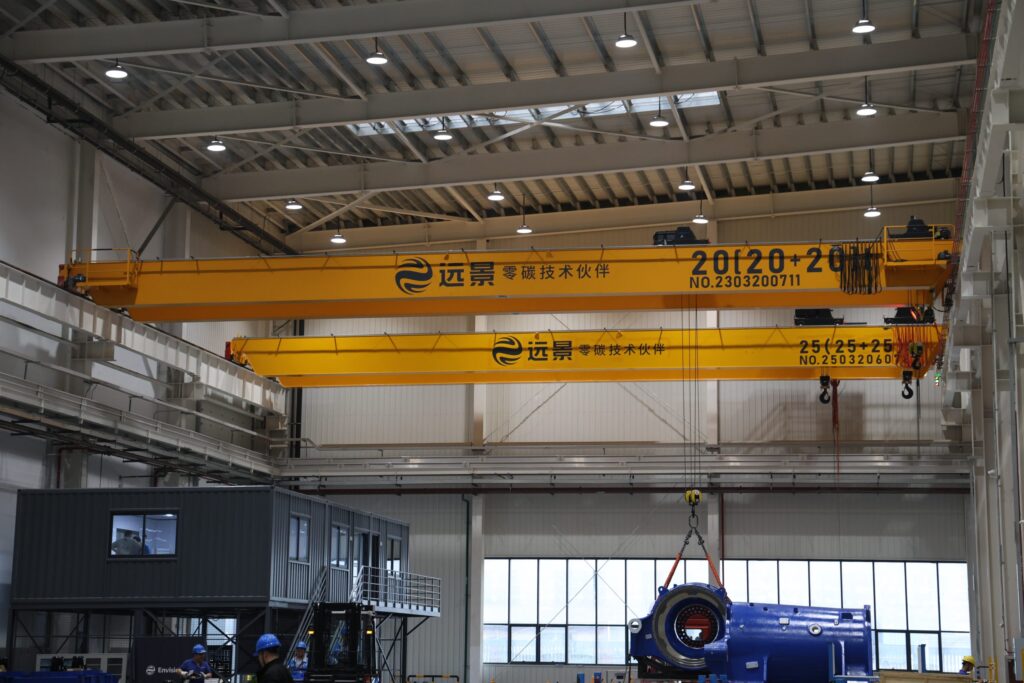

Double-girder electric-hoist cranes installed above a manufacturing hall
Electric-hoist cranes serving a production hall
01 / APPLICATIONS

Controlled lifting from production to final assembly.

01

Machinery & equipment manufacturing

Transfer castings, housings and assembled machinery through the production bay. Match the load capacity and A5 duty to the planned handling cycle.

02

Assembly & placement

Bring a component close to its final position with adjustable travel, then use the lower lifting speed for the vertical approach to the prepared assembly point.

03

Workshop upgrades

Compare the compact hoist package when replacing lifting equipment or planning a new production bay with limited overhead space. Final crane dimensions and wheel loads are supplied for the selected configuration.

KSSL is a single-trolley hoist crane. Where the load needs two separated lifting positions, compare LHE and LHEA rather than selecting capacity from total weight alone.

02 / TECHNICAL SPECIFICATIONS

KSSL specifications and configuration options

Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.

ModelKSSL
Rated capacity options5–80 t in the standard A5 configuration range
Span options7.5–31.5 m
Lifting height options3–20 m
Crane dutyA5 for the standard configuration range
Hoisting speedNormal and positioning speeds matched to the selected hoist capacity
Trolley travelVariable-frequency drive
Bridge travelVariable-frequency drive
Hoist layoutCompact C-shaped electric wire-rope hoist with large-diameter rope drum
Trolley quantityOne
Control optionsPendant / radio / cabin according to the selected package
Standard power supply380 V / 50 Hz / three-phase; destination supply by order
Monitoring optionRemote equipment monitoring and maintenance diagnostics
Custom configurationsCapacity, dimensions, hoist, controls and service conditions reviewed for the project

Matched capacity and dimensional configurations

ConfigurationCapacity optionsSpan optionsLifting heightDutyHoist & travel
Standard A5 KSSL range5–80 t7.5–31.5 m3–20 mA5Dual-speed hoist; VFD travel
Custom workshop configurationMatched to complete suspended loadMatched to runway rail centresMatched to pickup and placement levelsMatched to operating cycleHoist and drive package specified in offer

Range endpoints describe configuration options. Rated capacity, span, lift height and speeds are matched as one crane package in the technical offer.

03 / EQUIPMENT VIEWS

Compare the compact hoist and bridge arrangement.

The KSSL lifting package combines a compact hoist, rope drum, trolley frame and VFD travel drives. Check the complete crane views and lifting-unit details when comparing a production-bay specification.

Double-girder electric-hoist cranes installed above a manufacturing hall
Electric-hoist cranes serving a production hall
04 / CONFIGURATION

Build the lifting package around your production cycle.

Capacity, span and lift height define the size of the crane. Positioning needs and operating hours define the hoist and travel controls.

KSSL new-design electric-hoist double-girder crane, manufacturer view 3
KSSL end and trolley arrangement
01 / OPTION

Capacity, span & hook travel

The standard A5 configuration range covers 5–80 t, 7.5–31.5 m span and 3–20 m lifting height. The selected dimensions and capacity are combined in the technical offer; custom requirements can be reviewed.

02 / OPTION

Dual-speed lifting

Choose the normal and positioning speeds for the selected hoist capacity. Include the required placement accuracy and the nature of the load, especially where the crane feeds an assembly operation.

03 / OPTION

VFD travel & control

Variable-frequency bridge and trolley travel supports controlled acceleration and approach. Specify pendant, radio or cabin control and any required travel limits or collision protection.

04 / OPTION

Monitoring & destination supply

The control package can be extended with remote condition monitoring. Match the electrical supply to the destination voltage and frequency; the standard reference supply is 380 V, 50 Hz, three-phase.

05 / PURCHASING & DELIVERY

What comes with your KSSL crane?

Compare the equipment, documentation, delivery and service scope for the configuration you need.

ORDER QUANTITY

Order the crane you need

From 1 crane for the standard KSSL equipment package; project batches can be quoted together.

QUOTATION

See the equipment included

Identify the crane and hoist package, controls, component options, power feed, runway items, monitoring, export packing, freight, installation and spares as separate quotation items.

DOCUMENTS

Documents for your destination

Confirm destination compliance, configuration drawings, test report, outgoing-inspection video, electrical documents and operation and maintenance manuals with the order.

DELIVERY

Plan production and dispatch

Typical production time for a standard KSSL crane is 30–45 calendar days after the technical specification is confirmed and the agreed advance payment is received, until ready for factory dispatch. Shipping and installation are scheduled separately.

INSTALLATION

Installation and commissioning support

Installation guidance, site commissioning and operator training can be included by agreement. State the destination, local lifting resources and required service scope when requesting a quotation.

WARRANTY & SPARES

Know the warranty and support scope

Free lifetime warranty for manufacturing and quality defects, with full lifecycle service. Consumables and normal wear are excluded.

07 / BUYER QUESTIONS

Answers for your KSSL crane purchase

Find the arrangement, equipment options and order information that suit your application.

Why choose KSSL over a conventional LH hoist crane?

KSSL combines a compact new-type hoist with dual-speed lifting and VFD horizontal travel. Compare it when assembly positioning, adjustable travel and frequent production handling are priorities. LH remains a practical conventional option for intermittent general lifting.

What capacities and dimensions can I compare?

The standard A5 KSSL range covers 5–80 t capacity, 7.5–31.5 m span and 3–20 m lifting height. Send your actual load, span and hook travel so the hoist, bridge and drives can be selected together. Custom dimensions can be reviewed.

Does VFD control apply to both bridge and trolley travel?

Yes. The new-type KSSL arrangement uses variable-frequency travel for the trolley and the bridge. The technical offer states the speed ranges and acceleration settings supplied for your crane.

How do I choose lifting and travel speeds?

Tell us the transfer distance, lifts per shift and how the component is placed. The selected hoist provides normal and positioning lifting speeds; variable-frequency drives control trolley and bridge travel. The quotation identifies the speed package for the ordered load and operating cycle.

Can I specify radio control, component brands or remote monitoring?

Yes. Include your preferred control method and any component requirements in the enquiry. Radio or cabin operation and remote equipment monitoring can be reviewed with the electrical package. The quotation lists the components, functions and options included.

What is the minimum order and production lead time?

You can order one KSSL crane. Typical production takes 30–45 calendar days after technical specification confirmation and receipt of the agreed advance payment, until factory dispatch readiness. Your quotation confirms the schedule for custom dimensions or controls; sea freight and site installation are planned separately.

Can the order include compliance and inspection documents?

Yes. Identify the destination and required compliance documents before ordering. Include the technical drawing, inspection and test report, outgoing-inspection video, electrical information and operating manuals in the handover scope; certification coverage is confirmed for the ordered equipment.

How are warranty, installation and spare parts arranged?

We provide a free lifetime warranty for manufacturing and quality defects and full lifecycle service. Consumables and normal wear are excluded. For a covered defect, we pay international freight for replacement parts and, where overseas on-site repair is necessary, the engineer’s travel and accommodation. Installation guidance, site commissioning, operator training and recommended spares are identified separately in your quotation.

08 / YOUR KSSL CRANE PROJECT

Get a quotation for your crane.

Send the load, approximate span, required lifting height and destination. Describe the part you need to position or share a workshop photograph, and we can help select your KSSL configuration and control package.
