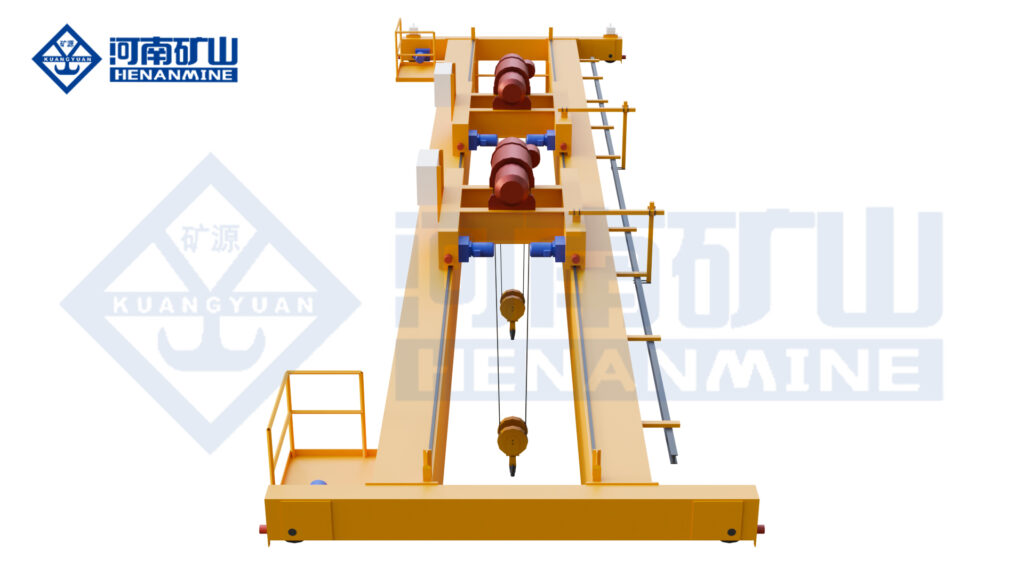

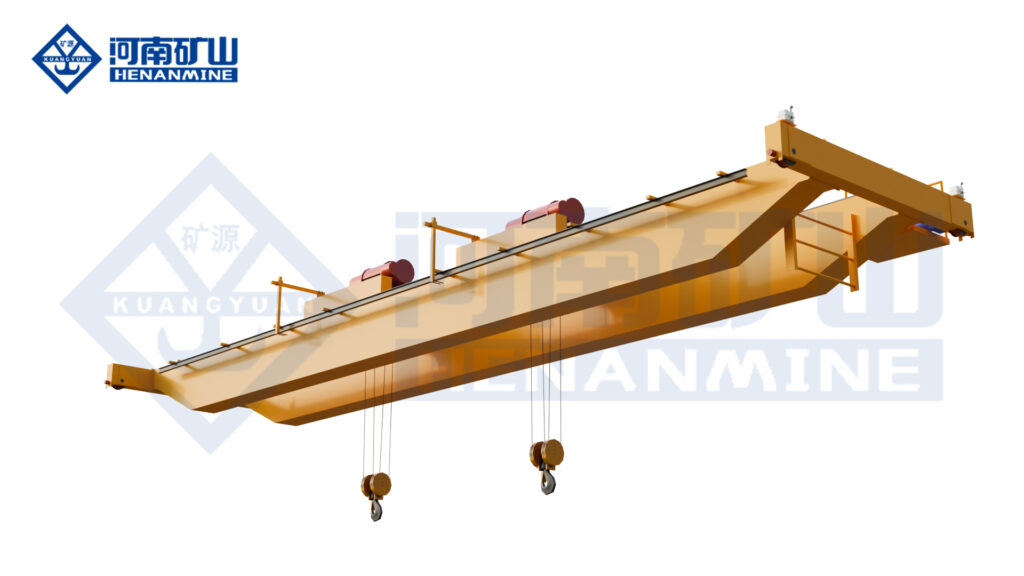

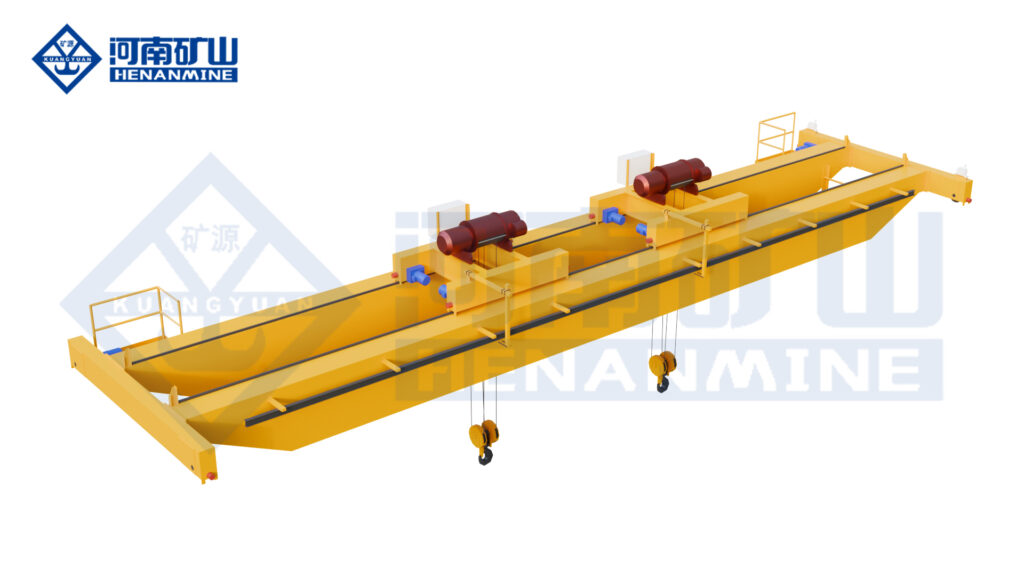

Support long beams, fabricated frames and machinery at two separated lifting points on one overhead bridge. LHE combines two wire-rope electric-hoist trolleys for independent tasks or a specified shared lift. Select the trolley ratings, hook spacing and coordinated controls around the component, with soft-start or variable-frequency travel for the transfer cycle.
Send the component weight, approximate length and whether the hooks work separately or together. We can help develop the two-trolley configuration.

Start with the dimensions you already know. A workshop photo or sketch can help us recommend a configuration.
Position the two trolleys to suit separated lifting points on a beam, frame or machinery assembly. Each trolley is rated for the load it actually carries.
When a job needs only one hook, an individual trolley can perform the lift within its rated working range. Both lifting units share the same bridge travel.
Encoder and inverter control can coordinate the two lifting positions. Select the permitted hook-height difference and operating functions around the load and assembly process.

Lift steel beams and large frames using their designated lifting points. Adjustable trolley spacing accommodates different component lengths within the available travel range.
Support large housings and machinery assemblies at two positions while transferring them between assembly stations. Specify the load centre of gravity and permitted tilt.
Use one trolley for an individual repair task or both for a larger component when the approved lifting arrangement requires two supports.
For a shared load, rate each trolley from the lifting-point reactions and agree the combined bridge rating. A two-hook lift does not automatically divide the weight equally.
Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.
| Model | LHE |
|---|---|
| Bridge arrangement | Double girder overhead bridge |
| Trolley quantity | 2 |
| Lifting mechanism | Two compact steel wire-rope electric hoists |
| Rated capacity | Individual trolley ratings and combined bridge rating selected from the load cases |
| Span | Matched to the runway rail-centre distance |
| Lifting height | Matched to pickup and placement levels |
| Hook spacing | Minimum and maximum spacing matched to component lifting points |
| Crane duty | Selected from load spectrum, lifts per hour and operating shifts |
| Hoisting speed | Matched to each hoist capacity and positioning requirement |
| Trolley & bridge travel | Soft-start or VFD drives |
| Operating modes | Independent or coordinated two-trolley operation |
| Coordinated controls | Encoder and inverter control package selected for the paired lift |
| Lifting attachment | Hooks or specified lifting attachment |
| Power supply | Three-phase voltage and frequency matched to the destination supply |
| Working environment | General industrial production, assembly and maintenance |
| Handling requirement | Trolley ratings | Hook movement | Control package |
|---|---|---|---|
| Separate lifting tasks | Each trolley rated for its own maximum load | Independent hoist and trolley movement | Individual selection and agreed travel limits |
| One long load on two hooks | Individual reactions plus combined bridge load | Coordinated lifting as specified | Encoder / inverter feedback and agreed relative hook movement |
| Mixed workshop duties | Separate and paired load cases included | Independent and paired operating modes | Mode selection and protection matched to the process |
Capacity, span, lift height, speed and hook-spacing values are selected together for the component and handling cycle. Send the load dimensions and lifting-point drawing with your enquiry.
Compare the trolley positions, electric-hoist arrangement and space between the lifting points. The selected arrangement should let both hooks reach the required pickup and placement positions.


Send the maximum load, component length and lifting-point spacing. We can then match the two trolley ratings, working range and control functions.

State the total suspended load and the maximum load at each lifting point. The two trolley ratings and combined bridge rating are selected for those load cases, including the lifting attachment.
Specify minimum and maximum lifting-point spacing, span and hook travel. Trolley dimensions, approach limits and separation are matched to the component and workstations.
Select independent hoist and trolley movement, coordinated lifting or both. Where relative hook height matters, specify the permitted difference so the encoder and inverter control package can be selected.
Choose soft-start or VFD travel for the transfer cycle. Working duty, lifting speeds, voltage and frequency are matched to the load spectrum, lifts per hour and destination supply.
Compare the equipment, documentation, delivery and service scope for the configuration you need.
Request a quotation for one complete crane or a project batch; confirm quantity with the two-trolley specification.
List both hoists and trolleys, bridge, independent/paired controls, feedback devices, power feed, lifting attachments, freight, installation and spares separately.
Include the configuration and lifting-point drawings, individual and combined ratings, operating-mode description, electrical documents, inspection/test records and manuals; agree destination compliance before ordering.
Production and dispatch dates are confirmed for the selected trolley ratings, bridge dimensions and paired-control package after the technical scope and drawings are agreed.
Define bridge assembly, trolley setup, paired-operation commissioning, load testing and operator handover in the site-service scope, including local equipment and access responsibilities.
The offer and order identify the warranty duration, start date, covered components and exclusions for the custom two-trolley crane, with the after-sales contact and spares scope.
Find the arrangement, equipment options and order information that suit your application.
Choose LHE when a beam, frame or machine needs support at two separated lifting points, or when the workshop needs two selectable lifting positions on one bridge. A single-trolley LH or KSSL is simpler when one hook can handle the full task.
Yes. The LHE can be configured for independent trolley use and combined operation. The operating modes, permitted movement and protection functions are defined for your process; both trolleys remain on the same bridge.
The technical offer identifies the individual trolley ratings and the permitted combined bridge load. When two hooks share one component, the load at each hook depends on the centre of gravity, lifting-point positions and attachment, so it should not be assumed to be an equal split.
Paired operation can use encoder and inverter control. The required coordination is specified around the load: include the acceptable hook-height difference, permitted tilt and lifting speed. A numerical synchronization tolerance is agreed for the ordered control package.
The usable spacing depends on the bridge span, trolley dimensions and end approaches. Send the minimum and maximum lifting-point spacing for your components; the configuration drawing confirms the available working range.
All three provide two lifting positions. LHE combines wire-rope electric-hoist trolleys with a control and travel package selected for the task. LHEA emphasizes seated hoists and usable hook height. KSSLE uses compact new-design hoists with dual-speed lifting and variable-frequency travel. Compare the complete lifting and motion package for your component.
Start with the component weight and length, approximate workshop span, lifting height and destination. State whether the hooks work separately or together, and include any available photograph or drawing. The proposal develops the trolley ratings, spacing, controls and service scope so you can compare a complete quotation.
Specify the destination country, required inspection or certification documents and site-service scope at enquiry. The order sets out the documentation, warranty period and start date, covered components, installation responsibilities and after-sales support for the supplied equipment.
Share the component weight and length, approximate span and required lifting height. Tell us whether the trolleys work separately or together. If the load at each lifting point is not yet known, a component drawing or photograph can help us develop the arrangement.
