Heavy Chemical Equipment Fabrication Crane
Large chemical-process equipment can require high-capacity outdoor handling, long travel and careful positioning at welding or assembly stations.

Start with the load and the production route.
Large chemical-process equipment can require high-capacity outdoor handling, long travel and careful positioning at welding or assembly stations.
The lifted load, rigging, building clearances and control sequence need to be reviewed as one operating system.
Prepare the technical brief ↗Yard/runway drawing
Production lift frequency
Control, visibility and safety scope
Move oversized vessels and assemblies through a fabrication plant.
Lay out the gantry runway around the largest vessel, fabrication bays and vehicle access. Coordinate PLC and variable-frequency travel, anti-sway and operator monitoring for controlled moves between work areas.

Rig the assembly
Determine lifting lugs, center of gravity and support method for each vessel.
Cross the yard
Check gantry clearance and travel beside fabrication work.
Place for production
Use controlled low-speed movement at the assembly fixture.
Oversized loads
Check the full swept path, not only the nominal span and capacity.
Operator information
Provide visible crane status and safety monitoring throughout the lift.
Shandong chemical-equipment manufacturer

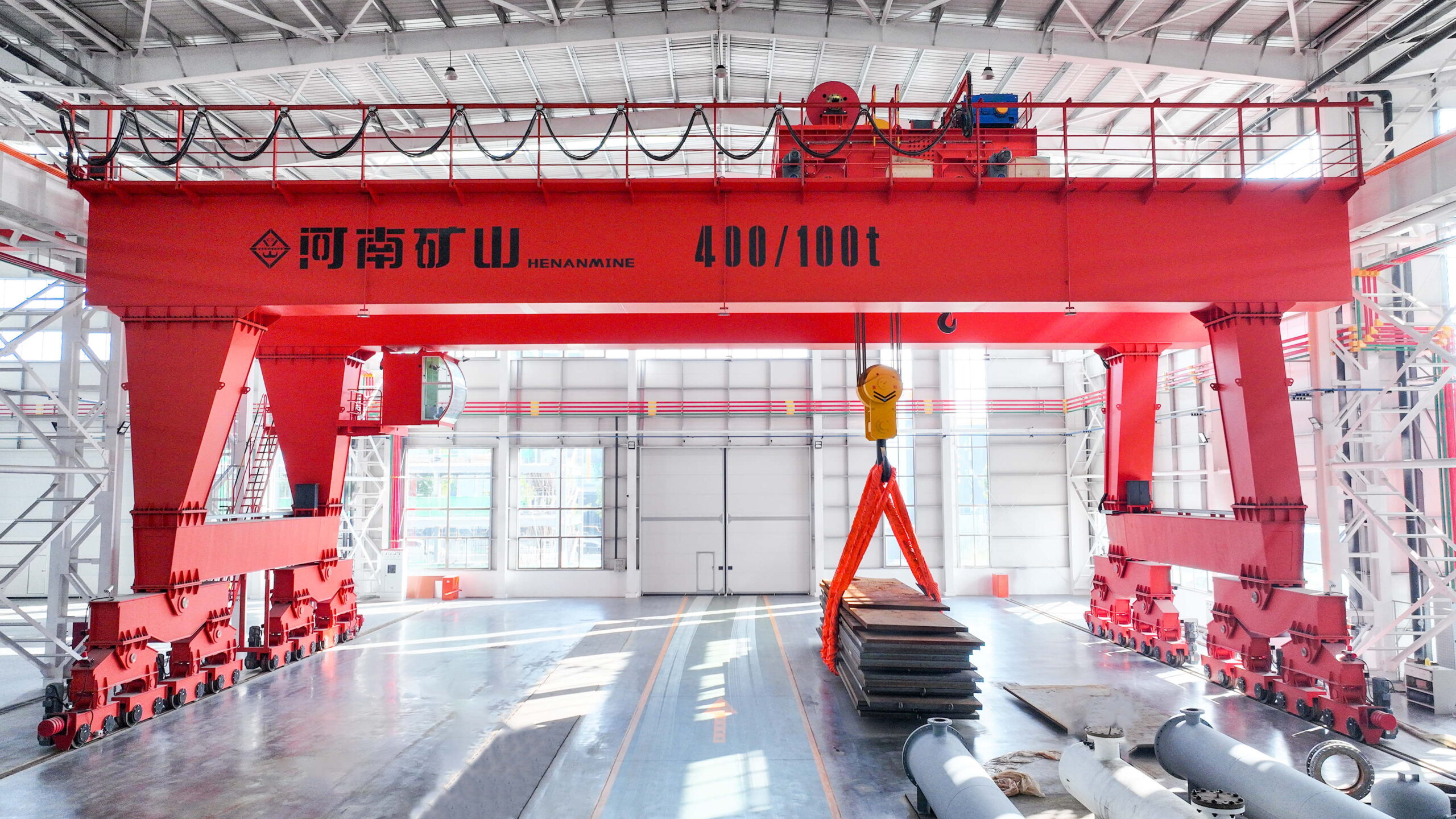

The project involved more than 30 cranes for a Shandong high-end chemical-equipment manufacturer, including a 400 t double-girder gantry with PLC and variable-frequency control.


Define the operating brief before fixing a crane model.
Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.
| Input | Information needed for this application | Confirm in the technical offer |
|---|---|---|
| 01 / Site requirement | Largest vessel and rigging mass | Rated load including the attachment, lifting-point arrangement and load cases. |
| 02 / Site requirement | Yard/runway drawing | Crane span, lifting height, headroom, wheel loads and runway or foundation interfaces. |
| 03 / Site requirement | Production lift frequency | Duty classification, speeds and control behaviour matched to the agreed operating cycle. |
| 04 / Site requirement | Control, visibility and safety scope | Protection, positioning, interlocks, monitoring and safe recovery requirements. |
| Destination and delivery | Country, project standards, quantity, freight and site services. | Documents, inspection and testing, packing, installation support and agreed delivery milestones. |
Send the available load schedule and drawings. The missing inputs can be identified during technical review.
Discuss your project ↗Compare the complete lifting package.
The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.
Engineering
General arrangement, load basis, runway and utility interfaces, control and protection schedule.
Manufacture & inspection
Approved drawings, inspection plan and factory testing for the selected configuration.
Shipping & site work
Packing, freight, erection support, commissioning and operator training as specified.
Handover
Test records, manuals, maintenance instructions and agreed spare-parts list.
Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.
Compare equipment for this operating task.
These product families and related applications provide a starting point. Final selection follows the load and site review.
Before you request a quotation.
What information is needed to specify this crane solution?
Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.
Can the lifting system be configured for our load and factory?
Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.
What are the order quantity, certification and lead time?
We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.
Send your project brief. Get a crane proposal built around your process.
Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.
Send your project requirements ↗
