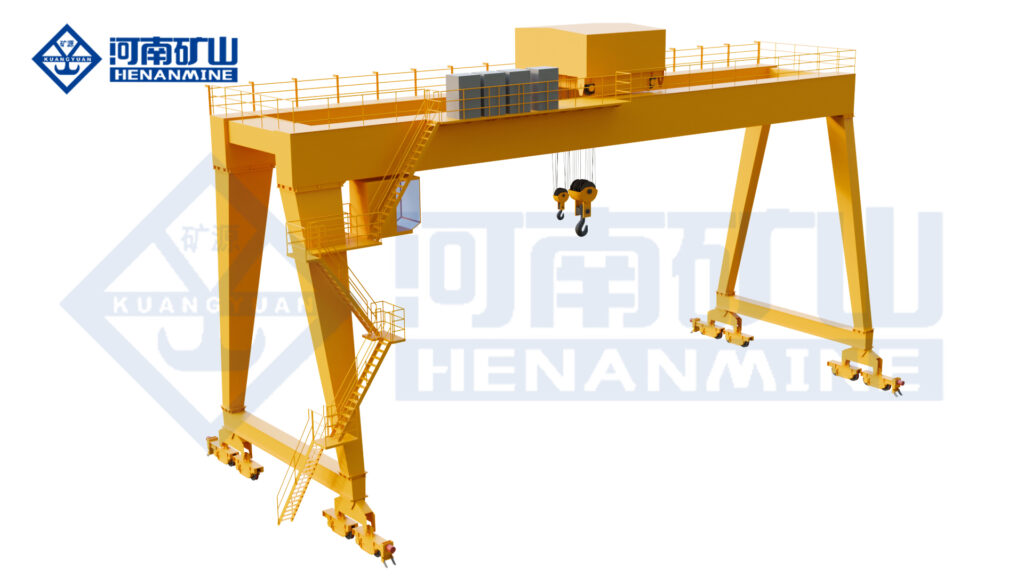

MG Double-Girder Hook Gantry Crane

MG brings double-girder hook handling to a defined yard or factory rail route. Select the lifting package for the complete suspended load and operating cycle. Check leg opening, useful hook coverage, travel-end positions and any outside-span task with the pickup, transfer and landing positions.

Handling
Hook-lifted components and cargo
Structure
Double-girder gantry
Selection focus
Hook coverage and operating cycle
Red MG-series double-girder hook gantry in a paved yard
Red MG-series double-girder hook gantry in a paved yard.Equipment application photograph
01 / APPLICATIONS

Where the MG
fits the work.

01

Fabrication and component yards

Transfer fabricated sections or machine components between storage and work positions. Check the widest load with its rigging as it passes between the legs and approaches other equipment.

02

Vehicle loading areas

Position the runway around the loading location and vehicle access. Where lifting outside the rail span is required, define that reach and its load condition in the selected arrangement.

03

Factory and maintenance transfer

Serve assembly or maintenance positions that need a gantry rail route. The required working hook height must allow for the component, lifting attachment and transfer obstacles.

02 / TECHNICAL SPECIFICATIONS

MG specifications
and equipment configuration.

Compare the lifting mechanism, control functions and site interfaces for the selected crane.

MG technical specifications and configuration
ModelMGCrane arrangementDouble-girder hook gantry
Lifting attachmentHookApplication focusOutdoor material handling; warehouses, factories and loading areas
Rated lifting capacitySelected for the complete suspended load, including lifting attachments and riggingSpanRail-centre span selected for the working area
Lifting heightWorking lifting height selected for the pickup and placement levelsWorking classSelected from load spectrum, lifts per hour and shifts
Hoisting packageMechanism, hook block and reeving identified for the selected load and liftLifting speedLoaded lifting and positioning speeds specified with the hoisting package
Trolley travelCross-travel speed and hook approaches selected for the transfer positionsCrane travelTravel speed and stopping control selected for the runway
Main / auxiliary hookHook capacities, heights and permitted operating modes specified where an auxiliary hook is requiredHook coverageLeg opening, end approach and any cantilever shown on the general arrangement
Operator controlsOperator position and control package selected for visibility and handlingRunway interfaceRail section, wheel loads and horizontal reactions provided for the selected crane
Electrical supplySite voltage, frequency, phases and power-feed route specifiedOutdoor exposureWorking and parked wind conditions and corrosion exposure addressed in the equipment scope
Delivery arrangementTransport sections, assembly joints and site access agreed for the destinationOrder quantityEnquire for one complete crane or a multi-crane project

Capacity, span, lifting height and duty are selected together. The agreed equipment schedule and drawing define your crane configuration.

A-frame and U-leg reference configurations.

These examples compare four complete structure arrangements. Use each column as one matched reference, including its hook ratings, span, speeds and runway information. Your MG crane is selected for the required load, layout and working cycle.

Swipe to compare the complete configurations.

Matched A-frame and U-leg configuration examples
SpecificationA-frame · 5 t / 22 mA-frame · 32/5 t / 22 mU-frame · 10 t / 22 mU-frame · 20/10 t / 26 m
Portal geometryA-frame · double girderA-frame · double girderU-frame · double girderU-frame · double girder
Main hook capacity5 t32 t10 t20 t
Auxiliary hook capacity—5 t—10 t
Span22 m22 m22 m26 m
Main lifting height10 m10 m11.5 m10.5 m
Auxiliary lifting height—10.73 m—11 m
Crane working classA5A5A5A5
Main hoisting speed11.3 m/min7.5 m/min8.5 m/min7.2 m/min
Auxiliary hoisting speed—15.4 m/min—10.4 m/min
Trolley travel speed37.3 m/min37 m/min43.8 m/min44.5 m/min
Crane travel speed37.3 m/min39.4 m/min37.6 m/min36 m/min
Maximum wheel load159 kN258 kN235 kN208 kN
Crane railP43P43 / QU70 · confirm selectionP4350 kg/m; QU70 · confirm specification
Motor power40.8 kW total99.3 kW totalHoist 17 kW; trolley 2 × 2.5 kW; crane 2 × 13 kWMain 26 kW; auxiliary 26 kW; trolley 2 × 4 kW; crane 4 × 8.5 kW
Supply voltage380 V380 V380 V380 V
Supply frequency50 Hz50 Hz50 Hz50 Hz
AC phases3-phase AC3-phase AC3-phase AC3-phase AC

Main and auxiliary ratings are separate hook capacities. The figures apply to the stated arrangements; the technical offer confirms the selected crane.

03 / EQUIPMENT VIEWS

See the MG arrangement.

Review the original equipment views alongside the selected crane drawing.

Red MG-series double-girder hook gantry in a paved yard
Red MG-series double-girder hook gantry in a paved yard.
MG-series hook gantry spanning an industrial storage route
MG-series hook gantry spanning an industrial storage route.
Yellow MG-series double-girder hook gantry outdoors
Yellow MG-series double-girder hook gantry outdoors.
04 / CONFIGURATION

Choose the MG equipment and site interfaces.

01 / OPTION

Load and hook packages

Include slings, beams and attachments in the complete load; describe routine lighter lifts and frequency. Specify main and any auxiliary hook ratings, heights and permitted operating modes separately. Shared or turning operations require their own agreed method.

02 / OPTION

Frame and usable coverage

Compare selected A-frame or U-frame geometry with bulky loads and vehicle access. Check leg opening, hook approaches, upper hook and travel-end positions. Identify any cantilever pickup point, its load and resulting reach; reference configurations remain matched selections.

03 / OPTION

Motion and operator position

Define rapid transfer, careful placement and stopping needs for the actual load spectrum and shifts. Select hoisting, trolley and crane-travel equipment and controls with visibility of pickup, transfer and landing areas.

04 / OPTION

Runway and outdoor interfaces

Provide existing rail information and the site location. Coordinate wheel loads, horizontal reactions, rail profile, supply and conductor/cable route. Agree wind, parking restraint and corrosion provisions, transport sections, assembly access and maintenance space.

05 / PURCHASING & DELIVERY

Confirm the complete MG supply scope.

ORDER

Order quantity

Enquire for one complete crane or several cranes. Price follows the selected load, dimensions, hoisting package, controls, site conditions and delivery destination.

QUOTATION

Equipment and quotation scope

Ask the offer to identify the crane equipment, rails and power feed where included, packing and freight terms. Mark unknown dimensions so they can be confirmed without delaying the first discussion.

DOCUMENTS

Drawings and equipment documents

Agree a general arrangement, technical equipment schedule, wheel-load information, electrical drawings and operating instructions for the selected MG.

ACCEPTANCE

Standards and acceptance

State the applicable destination requirements and any inspection or testing expectations. The offer should identify the standards, factory checks, load testing and conformity documents included.

DELIVERY

Delivery and installation

Confirm the manufacturing and delivery schedule after the configuration is defined. Allocate unloading, rail work, assembly, commissioning and operator instruction responsibilities.

SUPPORT

Warranty and spare parts

Record the warranty period, its starting point, service arrangements and spare-parts scope in the written offer. Include the destination when discussing on-site support.

CONTINUE YOUR COMPARISON

Compare related
gantry arrangements.

All 16 double-girder gantry models ↗
07 / QUESTIONS BEFORE ORDERING

Choose the MG
with the job in view.

Compare the handling task, selected lifting equipment and supply scope before ordering.

What should I send for an MG quotation?

Start with the complete load, estimated rail-centre span, working lifting height and destination. If dimensions are unknown, describe the lifting task and leave them open. A simple sketch can show transfer points and vehicle access.

Does rated load tell me whether the crane fits my yard?

Also compare the hook path, clear leg opening, upper hook position and travel-end approaches. The load and rigging need space through the whole transfer route, not only at the pickup point.

Can an auxiliary hook add to the main-hook capacity?

Use the capacities and operating modes stated for the selected crane. If the task requires simultaneous hook use or turning a load, describe that sequence so it can be assessed and specified.

Are A-frame and U-frame figures a universal MG specification?

Structural references help compare frame geometry and clearance. The dimensions and performance for your MG are confirmed as one selected crane. Do not combine capacity, speed or height from unrelated reference configurations.

How is working class selected?

Describe the load spectrum, lifts per hour and shifts. The mechanism and structure are selected for that pattern, together with the required load and dimensions. A peak load alone does not describe the working cycle.

Can existing rails be used?

Provide the rail section, spacing, supporting arrangement and known condition. Suitability is assessed with the selected wheel geometry, wheel loads, reactions and installation requirements before the runway scope is agreed.

What affects the quotation price?

The capacity and dimensions, hoisting and drive package, controls, outdoor provisions and delivery scope all affect the offer. Compare included rails, power feed, freight and installation services alongside the equipment price.

Can I order a single crane?

Enquire for one complete MG. The written offer confirms the selected configuration, quantity, manufacturing schedule, destination documents, installation responsibilities and warranty terms for that order.
