MGB double-girder hook semi-gantry crane

MGB provides double-girder hook handling beside an elevated runway. One side uses a ground-running leg and rail; the other follows a suitable building-side or independent support. Compare this semi-gantry arrangement for workshop edges, storage lanes and restricted bays using the actual load route and both support reactions.

Arrangement
Double-girder hook semi-gantry
Floor side
Leg-supported ground rail
Opposite side
Elevated runway support

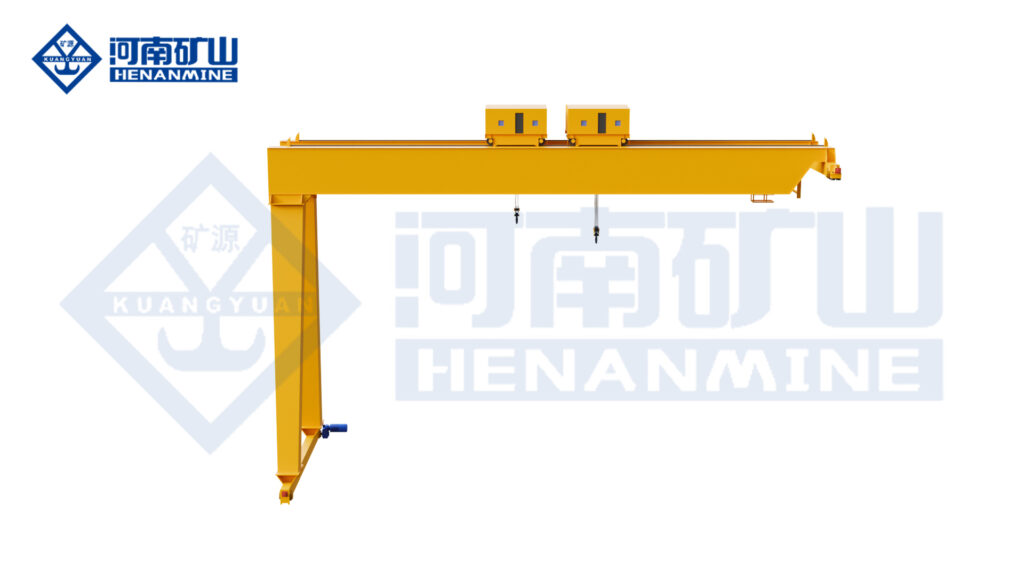

MGB complete gantry arrangement, view 1
Hook semi-gantry layout reference — manufacturer rendering.Product arrangement rendering
01 / APPLICATIONS

Where the MGB
fits the work.

01

Workshop wall-side bays

Move components between machines, preparation positions and a side storage area. The layout can use the building-side runway while retaining a defined rail route on the opposite floor edge.

02

Warehouse and rack edges

Transfer goods beside a storage zone without placing a full gantry leg arrangement on both sides. Hook approaches and load swing clearance remain important near racks and structural columns.

03

Loading and platform-side areas

A semi-gantry route may serve a loading edge or platform-side space where one support can be elevated. Coordinate the floor rail with vehicles, walking routes and the receiving positions.

02 / TECHNICAL SPECIFICATIONS

MGB specifications
and equipment configuration.

Compare the lifting mechanism, control functions and site interfaces for the selected crane.

The final capacity, span, lifting height and hoisting package are selected for the complete suspended load and both supporting runways.

MGB technical specifications and configuration
ModelMGBCrane arrangementHook semi-gantry developed from a double-girder gantry layout
Lifting attachmentHookFloor-side supportLeg-supported ground-level rail
Elevated-side supportSuitable building structure or independent elevated supportWorking motionsVertical lifting, trolley cross travel and crane long travel
Application focusWall-side workshop areas, storage edges and restricted working baysRated lifting capacitySelected for the complete suspended load, including lifting attachments and rigging
SpanHorizontal rail-centre distance selected for the working bayLifting heightUsable hook height selected with both runway elevations
Runway elevation differenceGround-side and elevated-side rail levels shown in the arrangementBuilding-side reactionsVertical and horizontal runway reactions provided for support design
Ground-side foundationWheel loads and rail interface supplied for the floor-side supportWorking classSelected for load spectrum, handling frequency and shifts
Lifting packageHoisting mechanism, hook block and speeds selected for the loadCross-travel coverageHook approaches and work-area coverage checked against the elevated support
Travel and accessRunway length, stopping positions and clear floor route coordinatedOperator controlsOperator position and control package selected for the bay
Electrical supplySite voltage, frequency, phases and power-feed route specifiedInstallation scopeRunway supports, rail installation and crane assembly responsibilities agreed
03 / EQUIPMENT VIEWS

See the MGB arrangement.

Review the original equipment views alongside the selected crane drawing.

MGB complete gantry arrangement, view 1
MGB gantry arrangement — manufacturer rendering, view 1.
MGB complete gantry arrangement, view 2
MGB gantry arrangement — manufacturer rendering, view 2.
MGB complete gantry arrangement, view 3
MGB gantry arrangement — manufacturer rendering, view 3.
04 / CONFIGURATION

Choose the MGB equipment and site interfaces.

01 / OPTION

Hook, load and cycle

Select the hoisting mechanism, hook block and lifting performance for complete cargo, spreader and rigging. Specify handling frequency, shifts and final placement; a generic full-gantry rating does not establish the semi-gantry duty.

02 / OPTION

Two runway levels

Show horizontal rail centres, floor-rail and elevated-rail levels, working hook height and approaches. Assess the building-side or independent support using selected vertical and horizontal reactions; a nearby wall or existing runway is not automatically suitable.

03 / OPTION

Working bay and controls

Check the load and rigging against racks, columns, machines and overhead structure through pickup and placement. Choose the operator position and controls for visibility. Coordinate the ground-running leg, lane crossings and stopping positions with ongoing floor activity.

04 / OPTION

Supply and installation scope

State voltage, phases and frequency; define power-feed routing around building services. Allocate the elevated runway, floor rail, foundations, assembly and alignment checks. Provide maintenance access and confirm both support interfaces before delivery.

05 / PURCHASING & DELIVERY

Confirm the complete MGB supply scope.

ORDER

Order quantity

Enquire for one crane or your project quantity. Share load, approximate rail-centre span, useful lift and destination; develop unknown dimensions, both runway levels and support information with the proposal.

QUOTATION

Equipment and quotation scope

Identify crane equipment and included runway or building work. Confirm arrangement-specific price, manufacturing schedule and delivery terms.

DOCUMENTS

Drawings and equipment documents

Agree project and destination requirements, general arrangement, support reactions, lifting and electrical schedules, installation information and operating instructions.

ACCEPTANCE

Standards and acceptance

Define factory tests, site checks and acceptance records. Separate responsibility for elevated-support and floor-side civil validation from crane inspection.

DELIVERY

Delivery and installation

Review unloading, erection and readiness of both runways in the occupied facility. Allocate rail alignment, assembly, power connection and commissioning before delivery.

SUPPORT

Warranty and spare parts

Request maintenance and spares information. State warranty terms, installation assistance, operator familiarisation and after-sales responsibilities for the ordered crane and services.

CONTINUE YOUR COMPARISON

Compare related
gantry arrangements.

All 5 semi-gantry models ↗
07 / QUESTIONS BEFORE ORDERING

Choose the MGB
with the job in view.

Compare the handling task, selected lifting equipment and supply scope before ordering.

How is MGB supported?

MGB uses a leg-supported ground rail on one side and an elevated runway on the other. The elevated side can use a suitable building structure or an independent support designed for the crane reactions.

Does a semi-gantry need two floor rails?

This arrangement does not use ground-running legs on both sides. It still needs two coordinated running interfaces: the floor-side rail and the elevated runway on the opposite side.

Can an existing building carry the elevated runway?

Its suitability must be checked against the selected crane's vertical and horizontal reactions and the existing structure. A nearby wall or beam is not automatically an approved runway support.

Is MGB a single-girder crane?

MGB is the hook semi-gantry developed from a double-girder gantry arrangement. Semi-gantry describes the support layout; it does not mean that the bridge has only one girder.

What is the difference between MGB and MGBE?

MGB provides the hook semi-gantry arrangement described here. MGBE has two lifting trolleys and a control scope suited to specified coordinated handling, making load distribution and trolley spacing additional decisions.

Will it leave the whole floor clear?

The floor-side leg and rail still occupy a defined route. Compare that route, vehicle crossings and load coverage with the facility layout before deciding how much working space is available.

How should lifting height be measured?

State the required working hook positions and both runway elevations. Include the load and lifting accessories so the arrangement can establish useful hook height and the necessary structural clearances.

Can rails and installation be included in the offer?

Describe the desired supply boundary in the enquiry. The written offer can identify rail equipment, supports, installation assistance and commissioning responsibilities, together with the work retained by the site team.
