Henan Mine Crane · Gantry lifting

Gantry Cranes

Gantry cranes move loads on supporting legs and a defined runway. Compare electric-hoist, hook, grab, magnetic, container and shipbuilding configurations by suspended load, working width, hook coverage and operating duty.

Manufacturer rendering of the MHS gantry crane arrangement

Electric Hoist Gantry Cranes

Compare single-girder, double-girder and semi-gantry layouts for powered hook lifting and mixed-material handling.

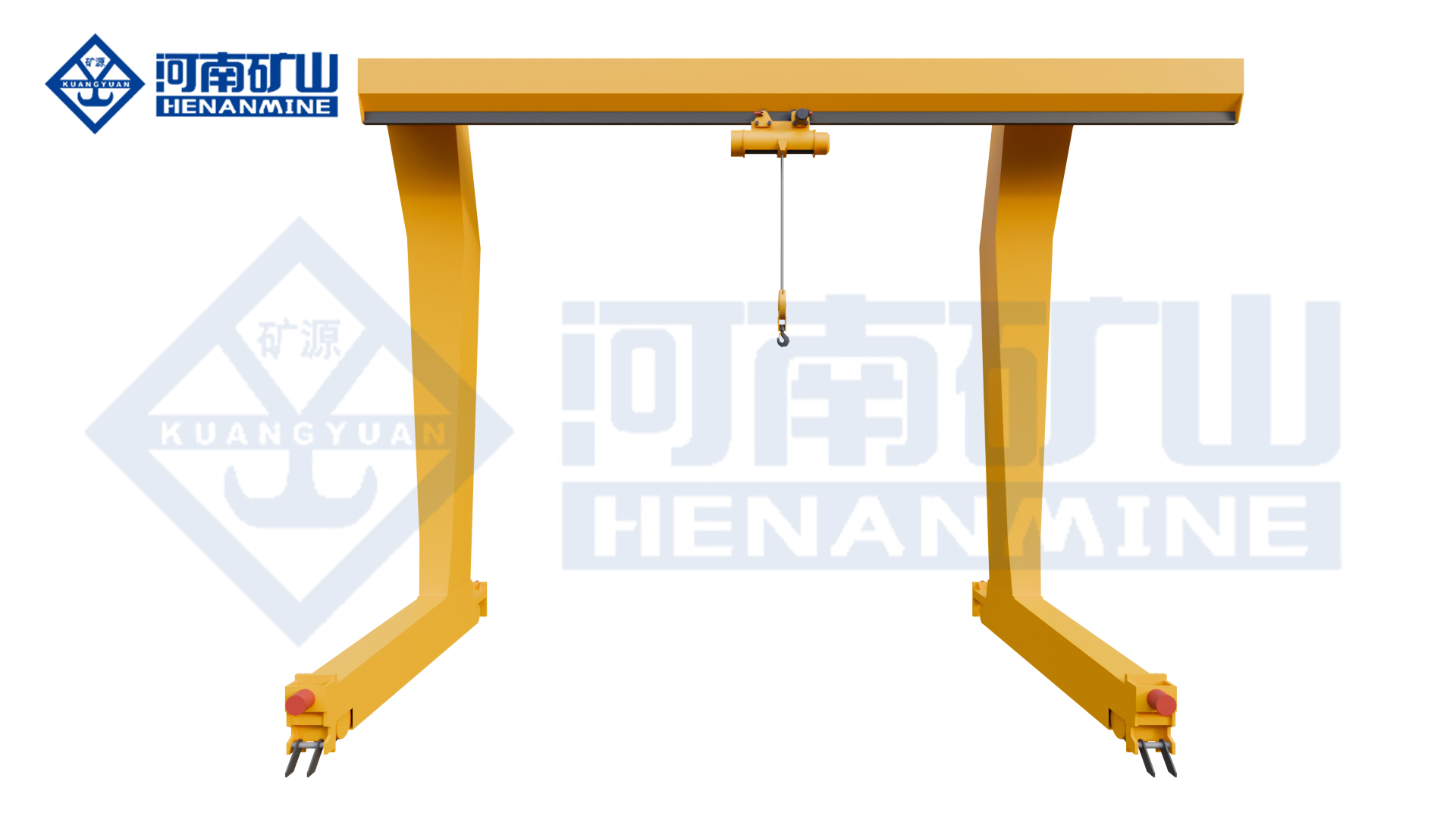

Manufacturer rendering of the MHL gantry crane arrangement
MHL series

L-Type Electric Hoist Gantry Crane (MHL)

Long-load handling with L-shaped legs for side access and passage.

Capacity options1 / 2 / 3 / 5 / 10 / 16 / 20 t
Span options3–31.5 m
Working classA3–A5
All specifications
Model MHL
Rated capacity options 1 / 2 / 3 / 5 / 10 / 16 / 20 t
Span options 3–31.5 m, selected with the required load
Lifting-height options 6 / 9 / 12 / 18 / 24 / 30 m
Working class A3–A5, selected for the operating cycle
Lifting mechanism Electric wire-rope hoist
Girder arrangement Single girder
Supporting legs L-shaped legs for side access and load passage
Hoisting-speed options 8 or 8 / 0.8; 7 or 7 / 0.7; 3.5 or 3.5 / 0.35 m/min
Speed selection Choose one matched hoist speed package for the rated load
Crane-travel drive Three-in-one variable-frequency drive
Power supply 380 V, 50 Hz, 3-phase; site supply options
Operating controls Ground pendant / wireless remote / cabin
Lifting attachments Hook; grab or electromagnetic attachment by configuration
Crane runway Two ground-level runway rails
Cantilever arrangement With or without cantilever
Clear passage Leg opening selected for the load and vehicle route
Hook coverage In-span lifting and agreed outside-span reach
Working motions Vertical lifting, hoist cross travel and crane long travel
Operating pattern Intermittent, repeated loading and material handling
Rail and wheel selection Matched to span, wheel reactions and foundation layout
Application focus Long loads and tasks requiring turning clearance between the legs

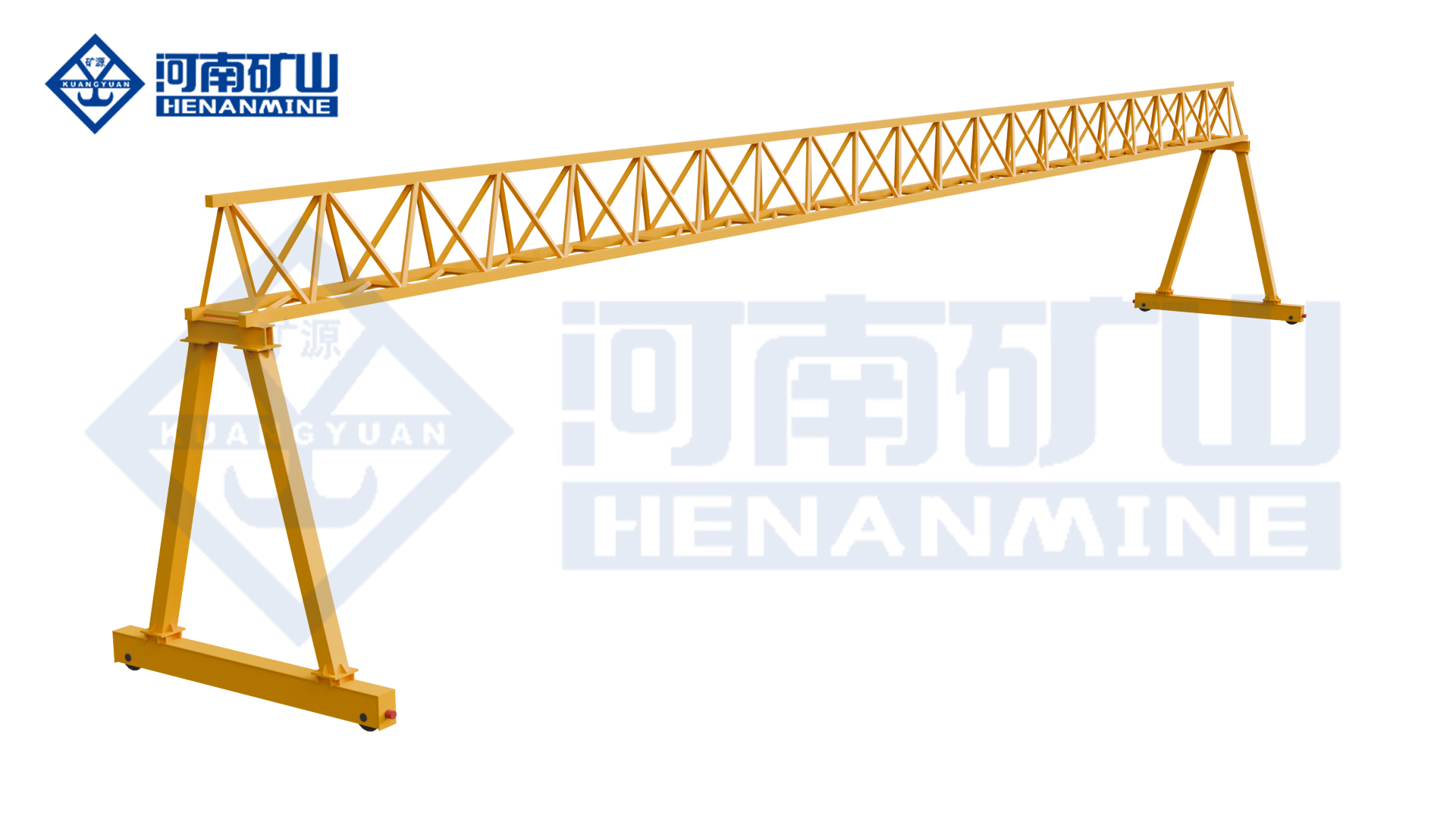

Manufacturer rendering of the MHH gantry crane arrangement
MHH series

Truss Girder Electric Hoist Gantry Crane (MHH)

Outdoor material handling with an open-truss single-girder structure.

Capacity range1–20 t
Span range10–30 m
Working classA3–A5
All specifications
Model MHH
Rated capacity range 1–20 t, with the required configuration selected together
Span range 10–30 m
Lifting-height reference 10 m; other requirements reviewed with the crane layout
Working class A3–A5
Lifting mechanism Electric wire-rope hoist
Main-girder structure Open truss welded from structural steel sections
Girder arrangement Single girder
Lifting attachments Hook; grab or electromagnetic attachment by configuration
Crane runway Ground-level rails on both sides
Cantilever arrangement With or without cantilever
Structural selection Truss sections matched to load, span and local wind exposure
Power supply 380 V, 50 Hz, 3-phase
Operating control Ground control for the reference arrangement
Hoisting speed Specified with the selected load and electric-hoist package
Cross travel Powered electric-hoist travel along the girder
Long travel Rail travel selected for the runway length and handling cycle
Frame alternatives Fixed or travelling arrangements; bogie options by design
Working motions Vertical lifting and movement across / along the runway
Operating pattern Intermittent, repeated material and equipment handling
Transport arrangement Girder sections and assembly joints selected for delivery access
Application focus Outdoor handling where truss structure and wind exposure matter

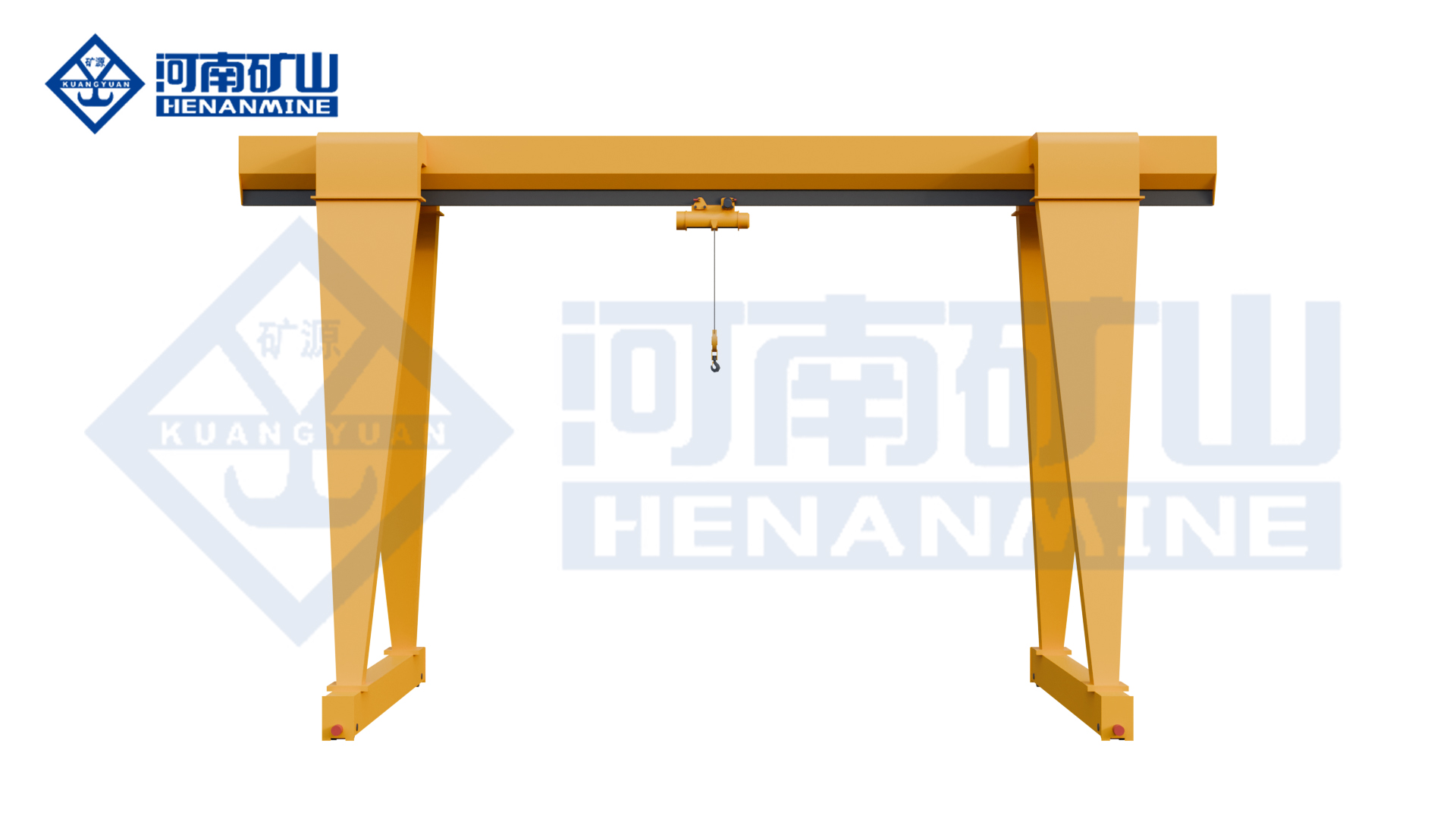

Manufacturer rendering of the MH gantry crane arrangement
MH series

Single Girder Electric Hoist Gantry Crane (MH)

Everyday component handling and vehicle loading on two ground rails.

Capacity options3 / 5 / 10 / 16 / 20 t
Span options12–30 m, by capacity
Lifting height6 m or 9 m
All specifications
Model MH
Rated capacity 3 / 5 / 10 / 16 / 20 t
Span options 12 / 16 / 20 / 24 m; 30 m on 5–20 t configurations
Lifting height 6 m or 9 m
Working class A3 at 3–16 t; 20 t duty selected with the HC hoist package
Girder construction Welded box girder / full gantry
Hoist type, 3–10 t CD1 single-speed or MD1 dual-speed wire-rope hoist
Hoist type, 16 / 20 t CD1 at 16 t; HC at 20 t
Hoisting speed, 3 / 5 t 8 m/min or 8 / 0.8 m/min
Hoisting speed, 10 t 7 m/min or 7 / 0.7 m/min
Hoisting speed, 16 / 20 t 3.5 m/min
Hoist cross-travel speed 20 m/min
Hoist motor, 3 / 5 t 4.5 kW / 7.5 kW, single-speed hoist
Hoist motor, 10 / 16 / 20 t 13 kW / 13 kW / 18.5 kW, single-speed hoist
Hoist-travel motors, 3 / 5 t 0.4 kW / 0.8 kW
Hoist-travel motors, 10 / 16 / 20 t 2 × 0.8 kW / 2 × 0.8 kW / 4 × 0.8 kW
Runway rails, 3 / 5 t P24 or P38, selected with span and wheel reactions
Runway rails, 10 / 16 / 20 t P38 or P43 at 10 / 16 t; P43 or P50 at 20 t
Power supply 380 V, 50 Hz, 3-phase
Operating temperature −20°C to +40°C for the specified equipment
Operating controls Ground pendant / cabin; remote control by configuration
Cantilever arrangement With or without cantilever; outside-span reach by design
Crane runway Ground-level rails on both sides
Operating pattern Intermittent, repeated material and component handling

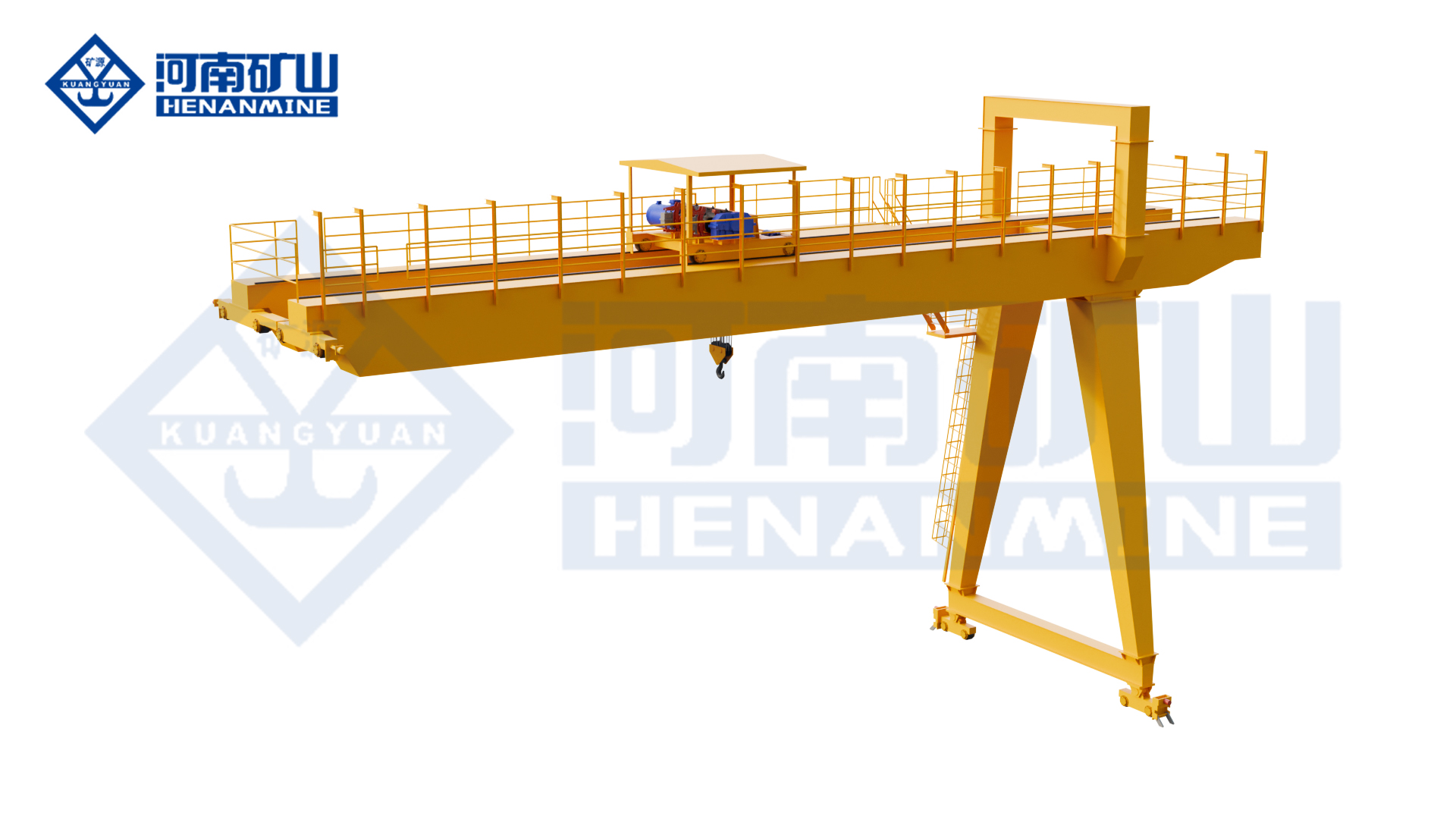

Manufacturer rendering of the MB1 gantry crane arrangement
MB₁ series

Double Girder Electric Hoist Semi-Gantry Crane (MB₁)

Double-girder lifting alongside a building-supported runway and floor rail.

Support layoutElevated runway + floor rail
Girder layoutDouble girder
Working classA3–A5
All specifications
Model MB₁
Rated lifting capacity Selected for the complete suspended load, including rigging
Span Rail-centre span selected for the working area
Lifting height Hook travel and headroom selected for pickup / set-down levels
Girder arrangement Double girder
Runway/support layout Semi-gantry; one elevated runway and one ground rail
Lifting mechanism Electric hoist
Hoist/trolley arrangement Electric-hoist trolley on twin girders
Lifting attachment Hook / grab / electromagnetic lifting configurations
Working class A3–A5
Lifting speed Lifting and positioning speeds matched to the selected electric hoist
Trolley travel speed Cross-travel speed and stopping control selected for the load route
Crane travel speed Long-travel speed selected for the runway and operating cycle
Travel drive / motion control Three-in-one direct-connected crane and trolley travel drives
Operating controls Pendant / wireless remote; cabin or PLC-linked control by configuration
Cantilever arrangement With or without cantilever
Electrical supply Site voltage, phases, frequency and power feed matched in the electrical package
Electrical protection Cabinet, motor and connector protection selected for the environment
Runway rail profile Rail section matched to wheel geometry, reactions and supporting structure
Motor ratings Lifting, trolley and crane-travel motor ratings specified in the equipment schedule
Operating pattern Intermittent, repeated loading/unloading and material handling
Site layout Overall height, leg clearance and hook approach shown in the crane drawing

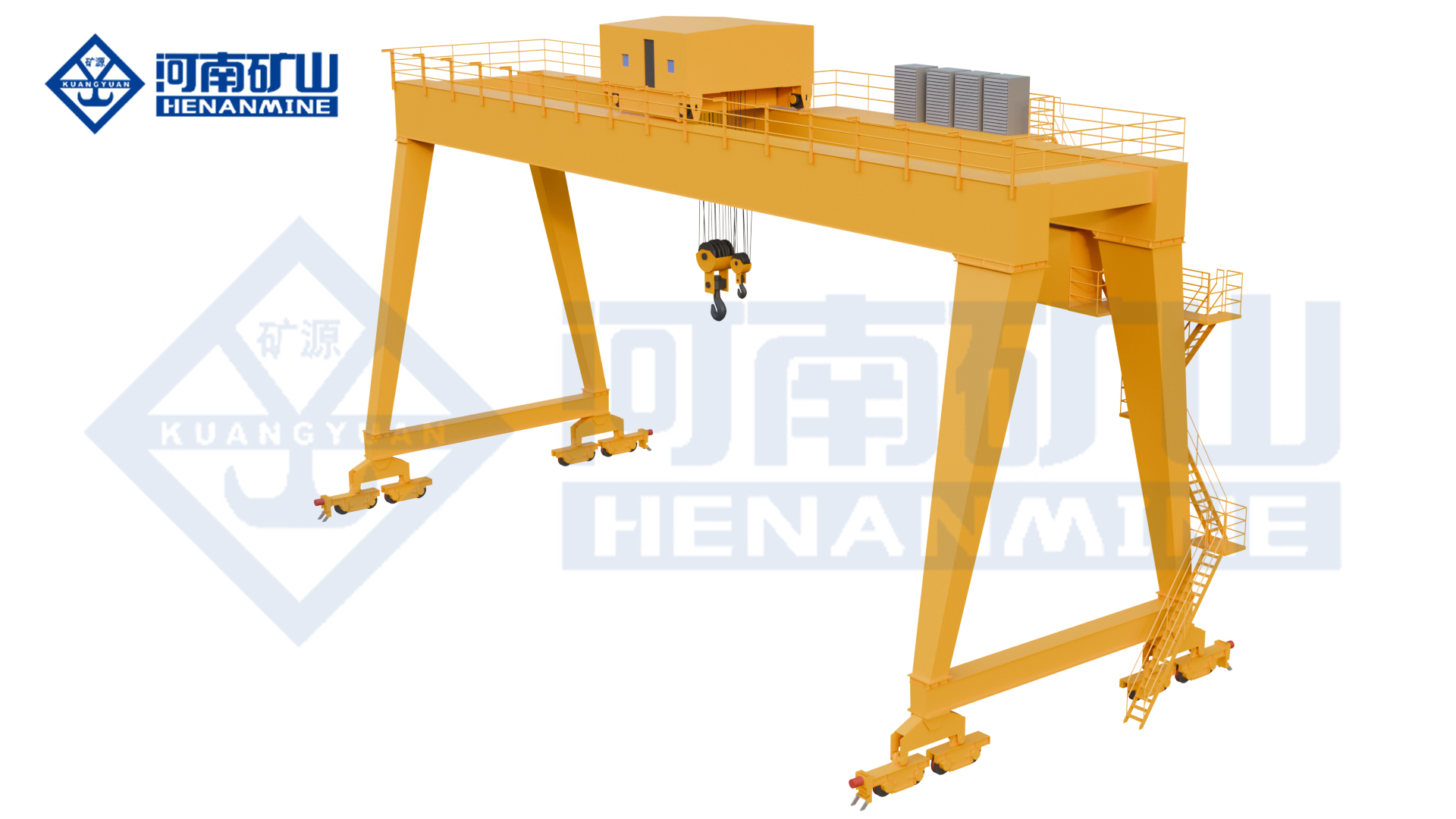

Manufacturer rendering of the MHS gantry crane arrangement
MHS series

Double Girder Electric Hoist Gantry Crane (MHS)

Electric-hoist lifting for repeated loading, unloading and component transfer.

Capacity range3–50 t
Span range7.5–35 m
Lifting height4–30 m
All specifications
Model MHS
Rated lifting capacity 3–50 t
Span 7.5–35 m
Lifting height 4–30 m
Girder arrangement Double girder
Runway/support layout Full gantry; ground rails on both sides
Lifting mechanism Electric hoist
Hoist/trolley arrangement Seated electric-hoist trolley
Lifting attachment Hook
Working class A-class selected for the load spectrum and operating cycle
Lifting speed Lifting and positioning speeds matched to the selected electric hoist
Trolley travel speed Cross-travel speed and stopping control selected for the load route
Crane travel speed Long-travel speed selected for the runway and operating cycle
Travel drive Motor / gearbox / brake package matched to duty and wheel reactions
Operating controls Pendant / wireless remote / cabin options
Cantilever arrangement With or without cantilever
Electrical supply 380 V / 50 Hz; 220–660 V / 50–60 Hz supply options
Electrical protection IP54 option; protected equipment scope defined in the electrical schedule
Runway rail profile Rail section matched to wheel geometry, reactions and supporting structure
Motor ratings Lifting, trolley and crane-travel motor ratings specified in the equipment schedule
Operating pattern Intermittent, repeated loading/unloading and material handling
Site layout Overall height, leg clearance and hook approach shown in the crane drawing

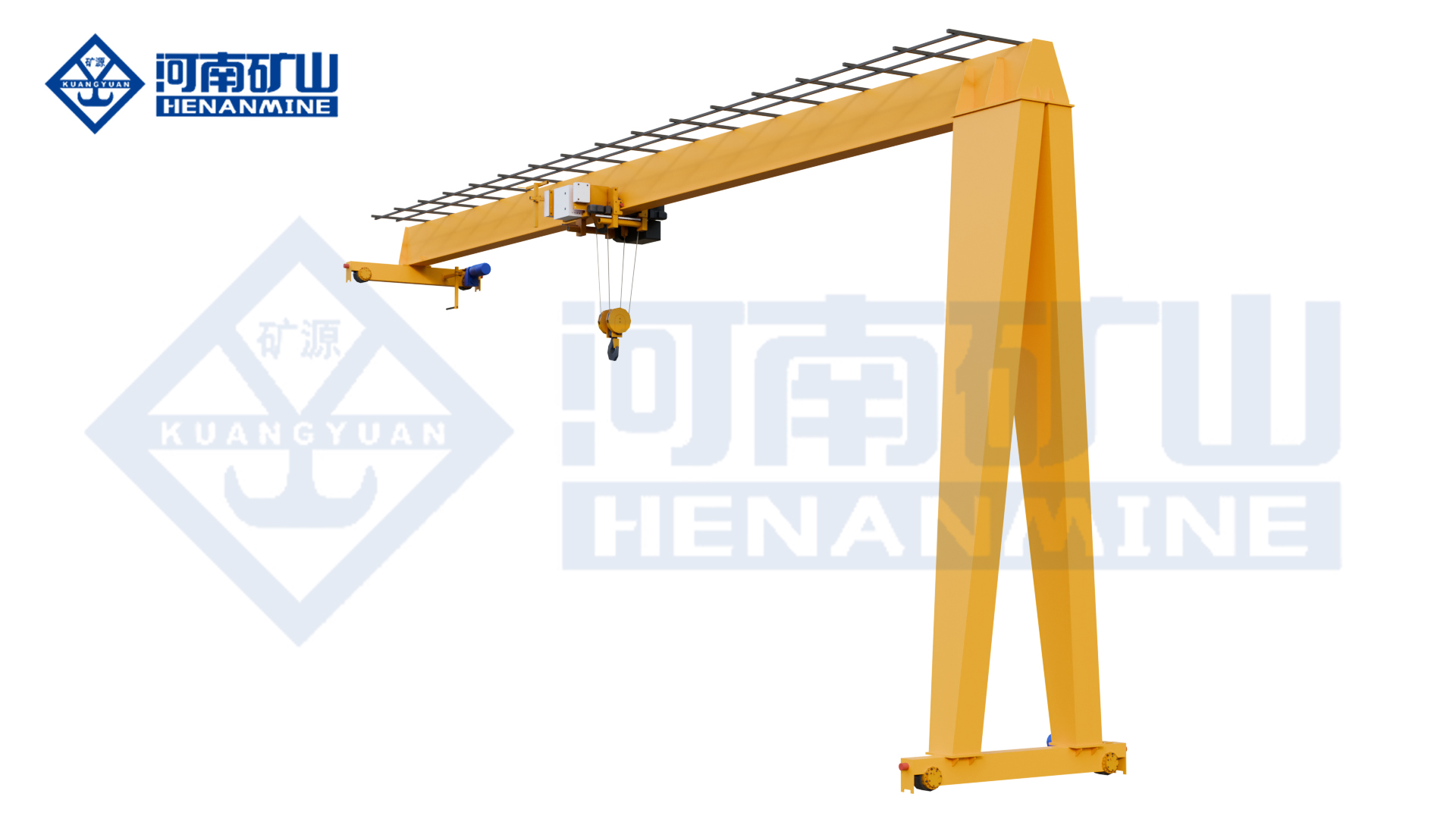

Manufacturer rendering of the KSMB gantry crane arrangement
KSMB series

New-Design Single Girder Electric Hoist Semi-Gantry Crane (KSMB)

Single-girder semi-gantry lifting for workshop loading and material transfer.

Capacity range1–32 t
Span range6–35 m
Lifting height4–20 m
All specifications
Model KSMB
Rated lifting capacity 1–32 t
Span 6–35 m
Lifting height 4–20 m
Girder arrangement Single girder
Runway/support layout Semi-gantry; one elevated runway and one ground rail
Lifting mechanism Electric hoist
Hoist/trolley arrangement European-style electric hoist; suspended travel arrangement shown
Lifting attachment Hook / grab / electromagnetic chuck options
Working class A3–A5
Lifting speed Lifting and positioning speeds matched to the selected electric hoist
Trolley travel speed Cross-travel speed and stopping control selected for the load route
Crane travel speed Long-travel speed selected for the runway and operating cycle
Travel drive / motion control Three-in-one direct-connected travel drive; variable-frequency lifting/travel
Operating controls Cabin / pendant / wireless remote / PLC linkage options
Cantilever arrangement With or without cantilever
Electrical supply 380 V / 50 Hz; 220–660 V / 50–60 Hz supply options
Electrical protection IP54 option; protected equipment scope defined in the electrical schedule
Runway rail profile Rail section matched to wheel geometry, reactions and supporting structure
Motor ratings Lifting, trolley and crane-travel motor ratings specified in the equipment schedule
Operating pattern Intermittent, repeated loading/unloading and material handling
Speed adjustment ratio 1:10
Reducer gear tooth hardness ≥60 HRC
Site layout Overall height, leg clearance and hook approach shown in the crane drawing

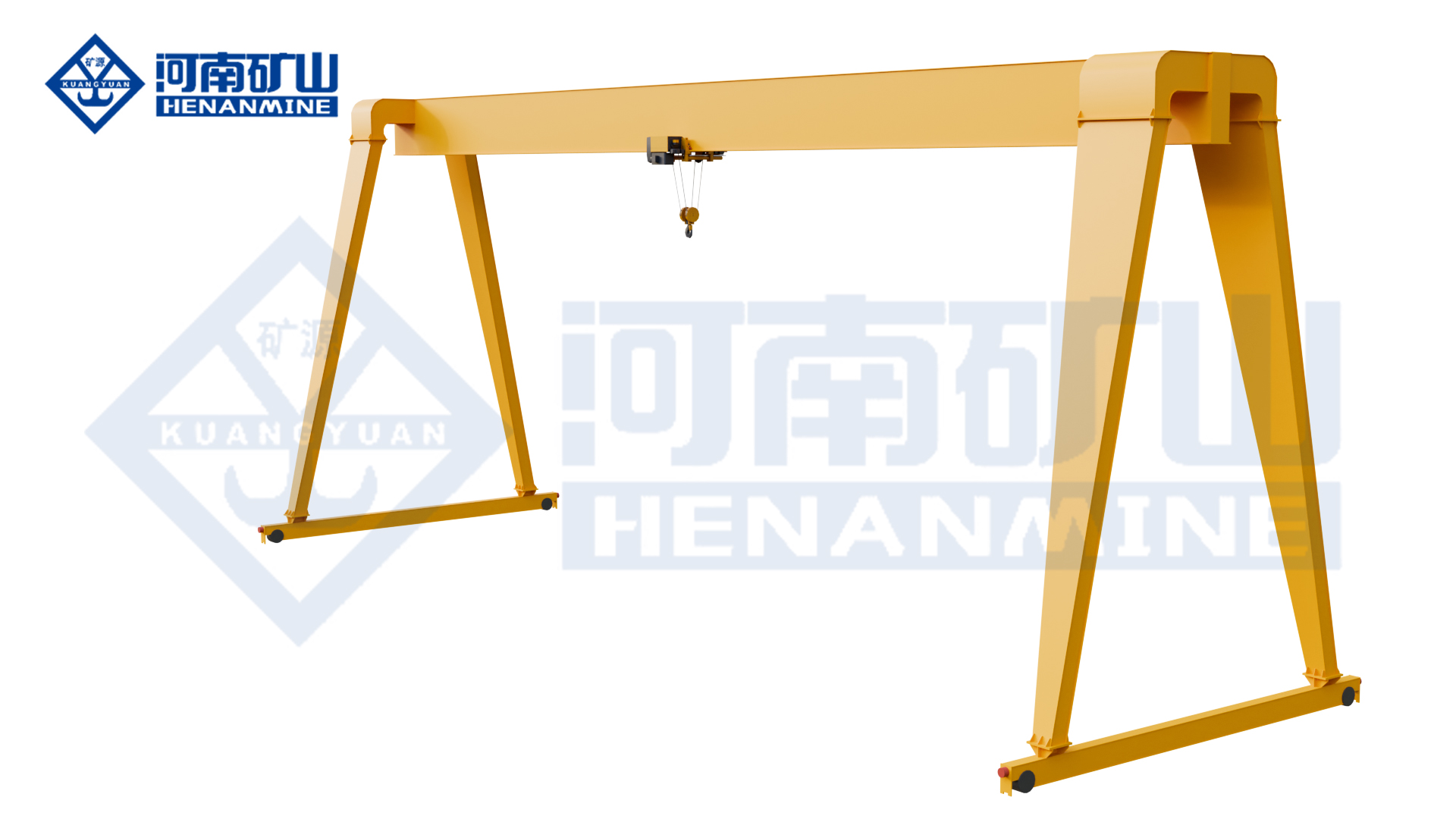

Manufacturer rendering of the KSMH gantry crane arrangement
KSMH series

New-Design Single Girder Electric Hoist Gantry Crane (KSMH)

Component lifting and positioning with a new-design wire-rope hoist.

Capacity options5–20 t; 30 t by design
Span options10–30 m
Working classA5 reference
All specifications
Model KSMH
Rated capacity options 5 / 10 / 16 / 20 t; 30 t configuration by design
Span options 10–30 m; custom span by design
Lifting-height options 6 / 9 / 12 / 15 m; custom lift by design
Working class A5 for the reference configuration
Hoist type New-design European-style wire-rope electric hoist
Girder arrangement Single girder / full gantry
Hoisting-speed reference 7 m/min; selected for the load and working cycle
Travel-speed reference 20 m/min; final mechanism speeds in the equipment schedule
Positioning configuration Hoist and travel controls selected for pickup and set-down tasks
Power supply 380 V, 50 Hz, 3-phase; site supply options
Operating controls Pendant buttons / wireless remote, by configuration
Crane runway Two ground-level rails
Cantilever arrangement With or without cantilever
Lifting attachments Hook; grab or electromagnetic attachment by configuration
Working motions Vertical lifting, hoist cross travel and crane long travel
Load-dependent operation Heavy-load slow / light-load fast operation with the selected package
Core-component layout Modular design with replaceable wheels and couplings
Headroom and approach Hoist envelope and upper hook position checked against the bay
Rail and foundation interface Selected wheel reactions and rail geometry define the civil interface
Operating pattern Intermittent, repeated loading and material handling
Application focus Workshop and yard tasks comparing a new-design hoist package

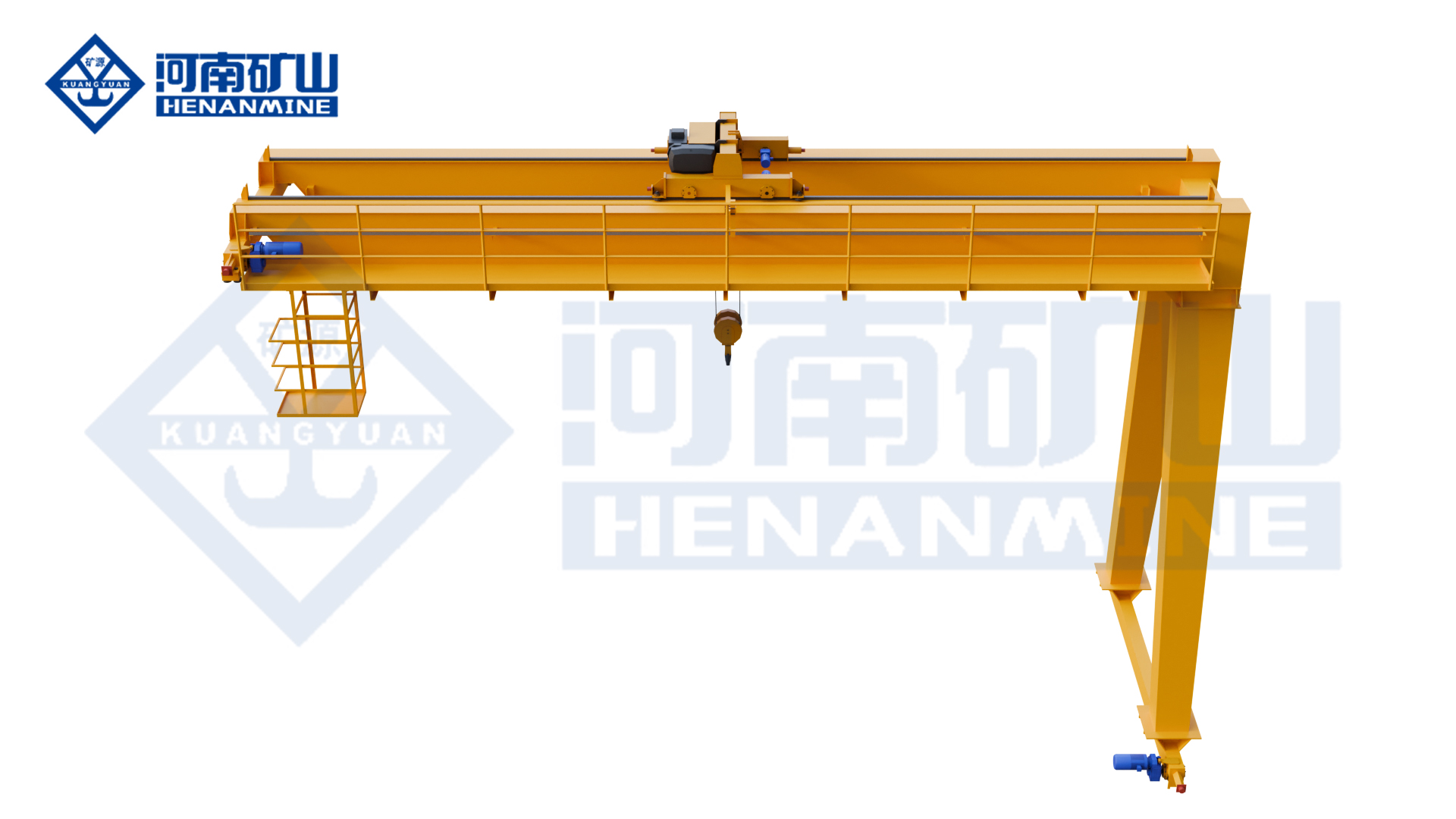

Manufacturer rendering of the MBES gantry crane arrangement
MBES series

New-Design Double Girder Electric Hoist Semi-Gantry Crane (MBES)

Double-girder semi-gantry handling with a new-design electric-hoist package.

Support layoutElevated runway + floor rail
Girder layoutDouble girder
Working classA3–A5
All specifications
Model MBES
Rated lifting capacity Selected for the complete suspended load, including rigging
Span Rail-centre span selected for the working area
Lifting height Hook travel and headroom selected for pickup / set-down levels
Girder arrangement Double girder
Runway/support layout Semi-gantry; one elevated runway and one ground rail
Lifting mechanism Electric hoist
Hoist/trolley arrangement Top-running electric-hoist trolley
Lifting attachment Hook / grab / electromagnetic lifting configurations
Working class A3–A5
Lifting speed Lifting and positioning speeds matched to the selected electric hoist
Trolley travel speed Cross-travel speed and stopping control selected for the load route
Crane travel speed Long-travel speed selected for the runway and operating cycle
Travel drive / motion control Three-in-one direct-connected crane and trolley travel drives
Operating controls Pendant / wireless remote options
Cantilever arrangement With or without cantilever
Electrical supply Site voltage, phases, frequency and power feed matched in the electrical package
Electrical protection Cabinet, motor and connector protection selected for the environment
Runway rail profile Rail section matched to wheel geometry, reactions and supporting structure
Motor ratings Lifting, trolley and crane-travel motor ratings specified in the equipment schedule
Operating pattern Intermittent, repeated loading/unloading and material handling
Site layout Overall height, leg clearance and hook approach shown in the crane drawing

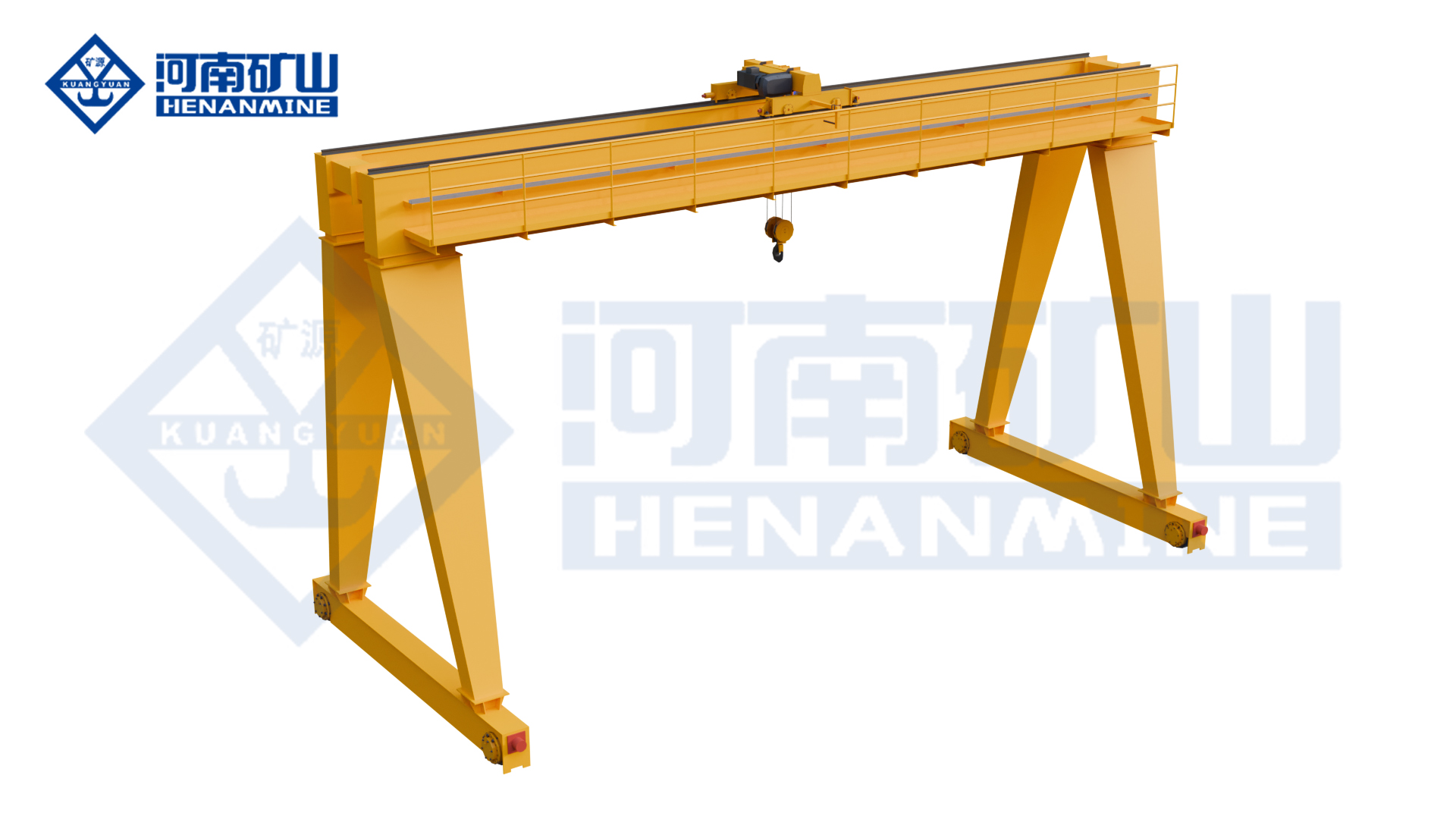

Manufacturer rendering of the KSMHS gantry crane arrangement
KSMHS series

New-Design Double Girder Electric Hoist Gantry Crane (KSMHS)

Top-running electric-hoist lifting for controlled component pickup and positioning.

Hoist arrangementTop-running electric-hoist trolley
Motion controlVariable-frequency lifting & travel
Working classA3–A5
All specifications
Model KSMHS
Rated lifting capacity Selected for the complete suspended load, including rigging
Span Rail-centre span selected for the working area
Lifting height Hook travel and headroom selected for pickup / set-down levels
Girder arrangement Double girder
Runway/support layout Full gantry; ground rails on both sides
Lifting mechanism Electric hoist
Hoist/trolley arrangement Top-running electric-hoist trolley
Lifting attachment Hook / grab / electromagnetic lifting configurations
Working class A3–A5
Lifting speed Lifting and positioning speeds matched to the selected electric hoist
Trolley travel speed Cross-travel speed and stopping control selected for the load route
Crane travel speed Long-travel speed selected for the runway and operating cycle
Travel drive / motion control Variable-frequency lifting and travel
Operating controls Operator control package selected for visibility and the lifting task
Cantilever arrangement With or without cantilever
Electrical supply Site voltage, phases, frequency and power feed matched in the electrical package
Electrical connectors Heavy-duty electrical plug connectors: IP55
Runway rail profile Rail section matched to wheel geometry, reactions and supporting structure
Motor ratings Lifting, trolley and crane-travel motor ratings specified in the equipment schedule
Operating pattern Intermittent, repeated loading/unloading and material handling
Speed adjustment ratio 1:10

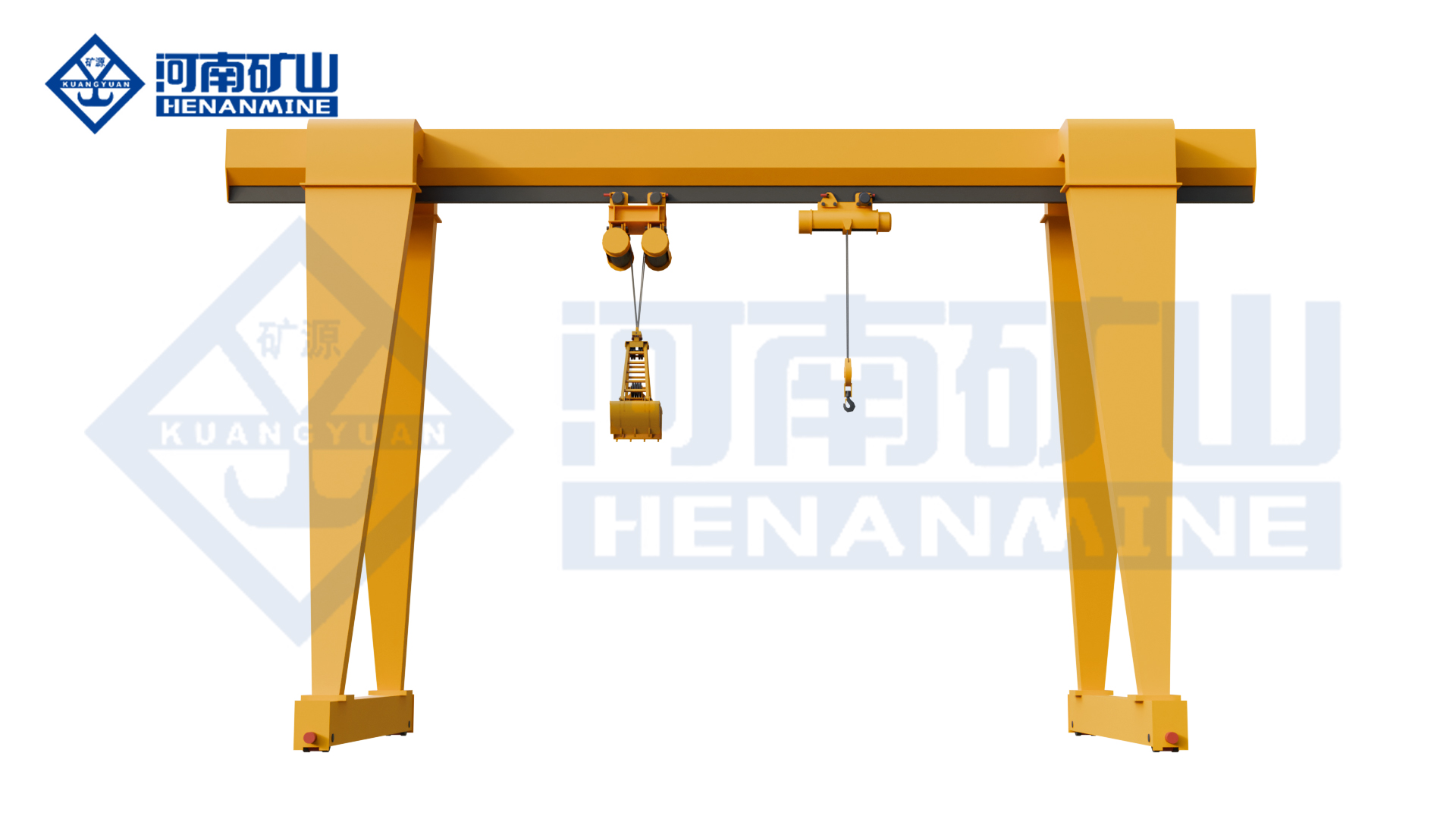

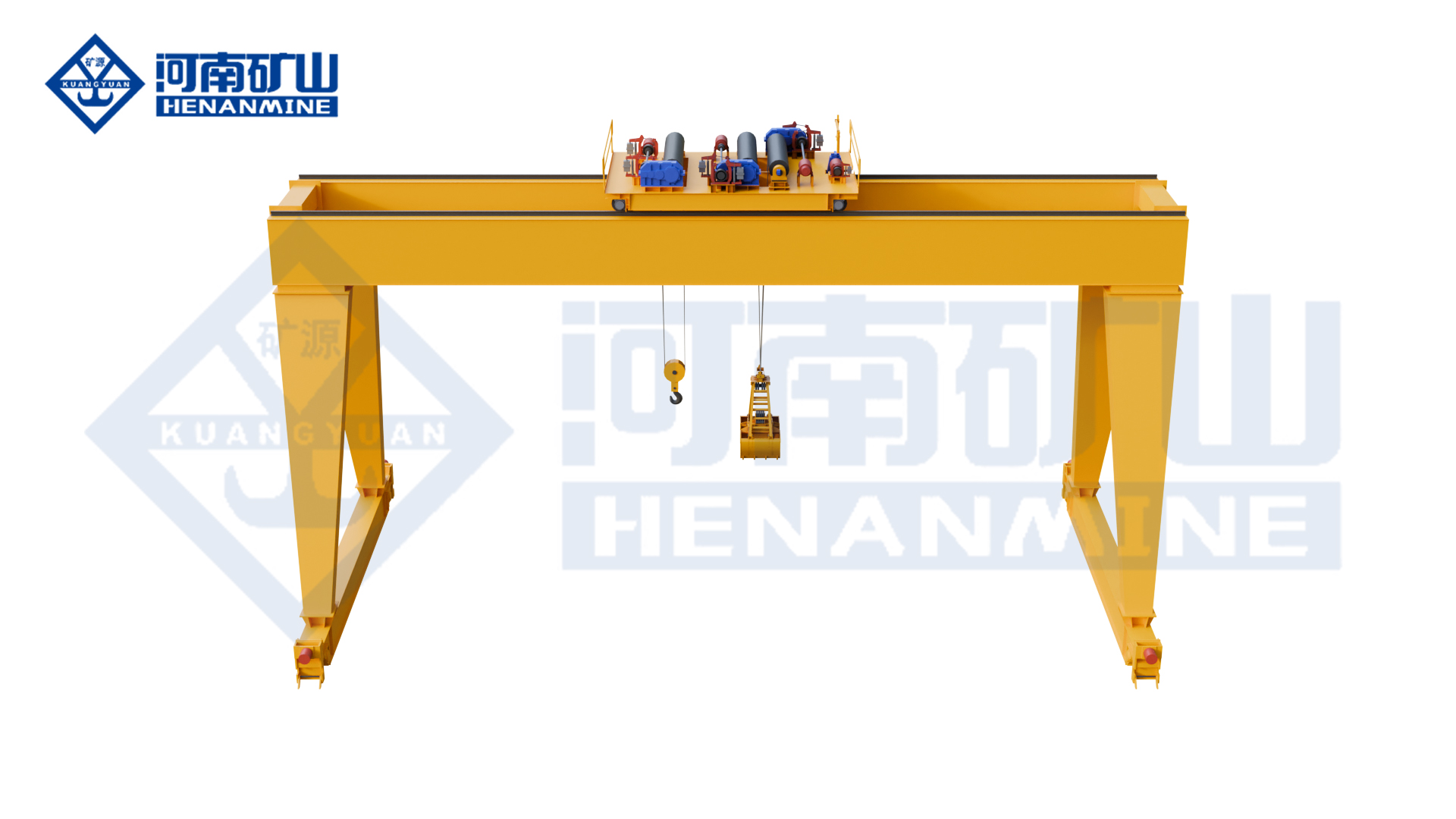

Manufacturer rendering of the MHZE gantry crane arrangement
MHZE series

Grab and Hook Electric Hoist Gantry Crane (MHZE)

Grab-and-hook lifting for loose bulk material and general cargo.

Handling modesGrab and hook
Attachment interfaceDedicated quick connection
Rated loadSpecified for each handling mode
All specifications
Model MHZE
Lifting system Electric-hoist gantry arrangement
Handling modes Grab for bulk material; hook for general cargo
Attachment changeover Dedicated quick-connection mechanism for grab / hook exchange
Grab application Bulk material such as coal or ore; select the grab for your material
Hook application Components and general cargo handled by hook
Rope-grab arrangement Coordinated supporting and opening / closing ropes, where specified
Grab actuation Hydraulic or mechanical, selected with the grab package
Grab opening / closing 3–5 s for the matched grab configuration; confirm material and operating conditions
Hook-mode load Rate for the complete hook-lifted load, including slings and lifting attachments
Grab-mode suspended load Check grab self-weight plus the material carried and connecting equipment
Grab volume and material Select from material density, particle size and required load per cycle
Duty and cycle Define lifts per hour, shifts and load spectrum for both handling modes
Span and runway Set rail-centre span and travel length from the loading / discharge route
Usable lifting height Specify pickup level, discharge height and the selected grab's closed height
Lifting speed Quote loaded and positioning speeds for the selected attachment and duty
Trolley and crane travel Select travel speed and stopping control for the loading and discharge positions
Wheel manufacture Forging and rolling combined process
Transmission coupling Crowned gear coupling
Maintenance arrangement Modular design with replaceable core components
Operating control Operator position and grab / hook control functions selected for the work area
Power interface Site voltage, frequency and phases; separate grab power / control interface where required

Hook, Trolley and Process Gantry Cranes

Match the leg geometry, trolley arrangement and lifting attachment to the load, working route and industrial process.

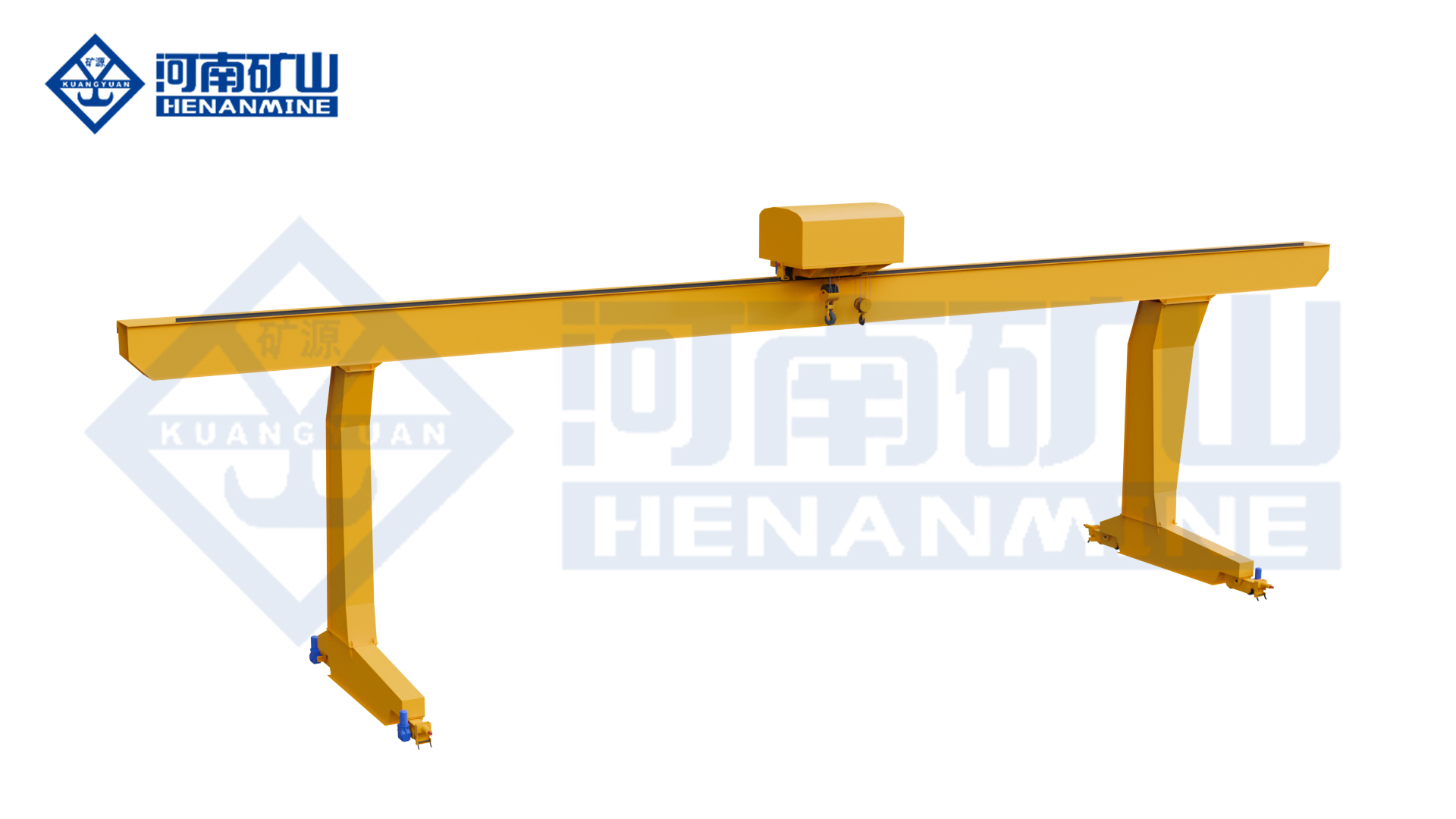

Manufacturer rendering of the MDG gantry crane arrangement
MDG series

L-Type Single Girder Winch Gantry Crane (MDG)

Winch lifting and loading with L-shaped legs for long-load passage.

Capacity range5–50 t model selections
Span range18–35 m
Lifting layoutWinch and hook
All specifications
Model MDG
Main-girder arrangement Single main girder
Lifting mechanism Winch hoisting mechanism
Leg geometry L-shaped legs
Rated capacity range 5–50 t; select the complete rated arrangement
Span range 18–35 m; select with load and site geometry
Operating controls Ground / remote / cabin options
Power-feed choices Cable or conductor-line supply
Crane-travel drive Three-in-one variable-frequency drive
System arrangement Gantry frame, winch hoisting, travel mechanisms and electrical controls
Load passage L-leg opening for long items and loads requiring large-angle turning
Application focus Outdoor loading and transfer in freight yards, terminals and similar areas
Useful lifting height Select upper and lower hook positions with rigging and load height
Working class Select from the load spectrum, handling frequency and shifts
Hoisting performance State lifting and positioning speeds for the chosen winch package
Trolley coverage Check hook approaches and required pickup / landing positions
Runway and wheel reactions Final rail section and wheel loads matched to the selected crane
Site power supply Specify voltage, phases, frequency and the power-feed route
Travel corridor Define runway length, stopping positions and vehicle clearance
Installation interfaces Agree crane assembly, rail work, foundations and commissioning scope

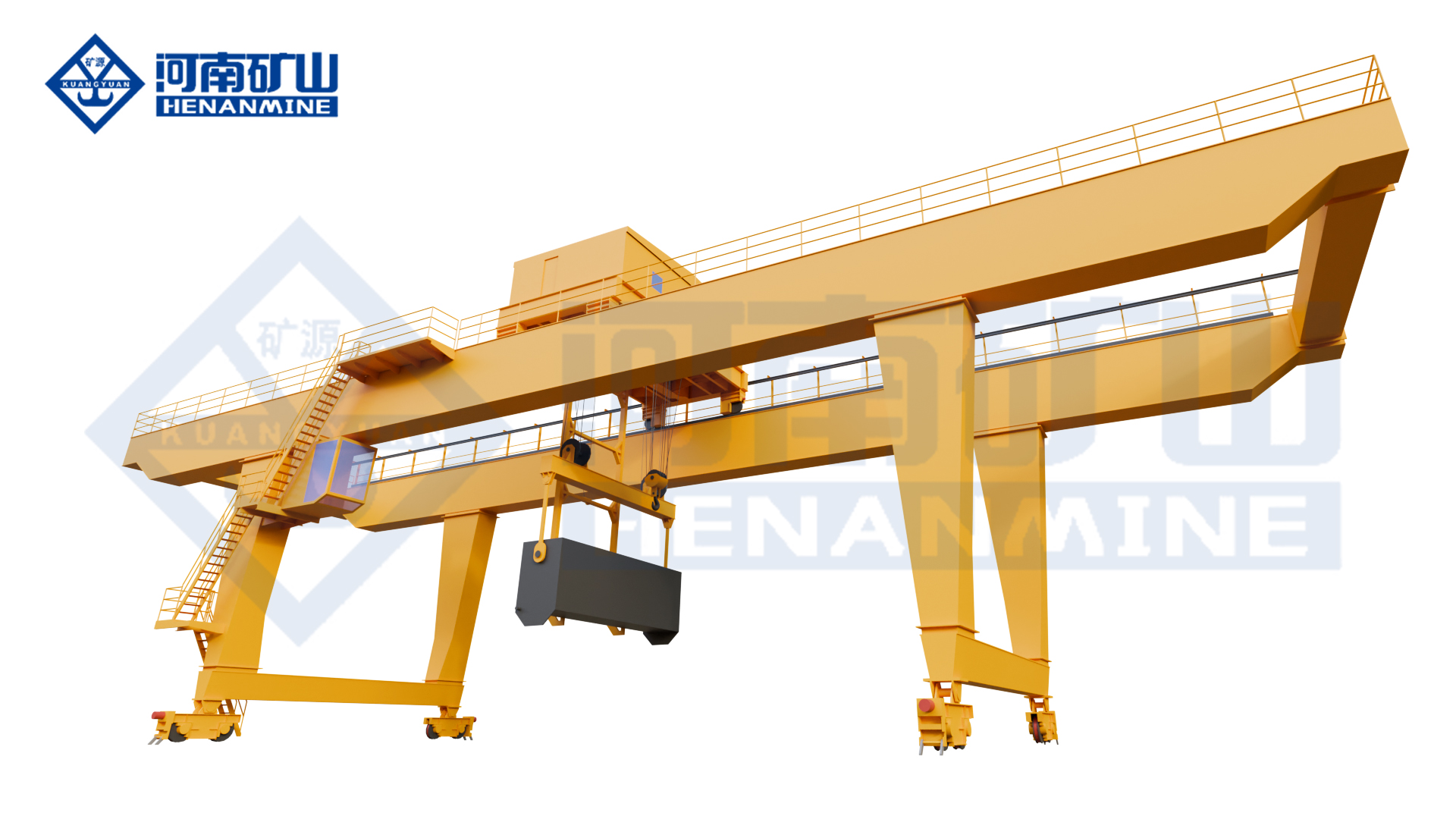

Manufacturer rendering of the MGC gantry crane arrangement
MGC series

Tunnel Muck Handling Gantry Crane (MGC)

Tunnel muck removal and segment handling with a project-selected attachment.

Handling taskTunnel muck and segments
SystemMatched bin and tipping gear
Lift requirementSelected with shaft depth
All specifications
Model MGC
Application focus Tunnel muck lifting, tipping and segment handling
Typical lifting capacity Typically 45–50 t; selected for the project and complete suspended load
Lifting-height capability Up to 100 m in project-specific arrangements; confirm with the selected load
Working duty Generally heavy-duty; exact working class selected for the cycle
Tipping system Dedicated spreader / tipping-hook arrangement with hydraulic tipping mechanism
Protection functions Overload protection, travel limits, buffers and wind protection
Key transmission components Forged wheels, crowned gear couplings and rolled steel-plate drums
Span Selected for the shaft, discharge positions and site rail layout
Variable-span provision Variable-span construction arrangement available where specified
Trolley rotation 180° rotating trolley arrangement available for the discharge direction
Long-travel arrangement Eight-wheel, four-drive arrangement specified with the selected crane
Wind restraint Rail clamps and ground-anchor arrangement coordinated with the site
Muck-bin interface Bin, lifting beam and tipping hooks selected as a matched system
Deep-lift rope system Hook travel, rope arrangement and hoisting package specified for the shaft depth
Discharge position Tipping envelope and discharge clearance shown in the layout
Segment handling Segment load and lifting attachment specified where this duty is required
Operating controls Lifting, transfer, rotation and tipping functions defined for the selected equipment
Power and cables Site supply and crane / trolley cable routes specified for the working area
Runway reactions Wheel loads, horizontal reactions and anchoring interfaces supplied for the selected arrangement

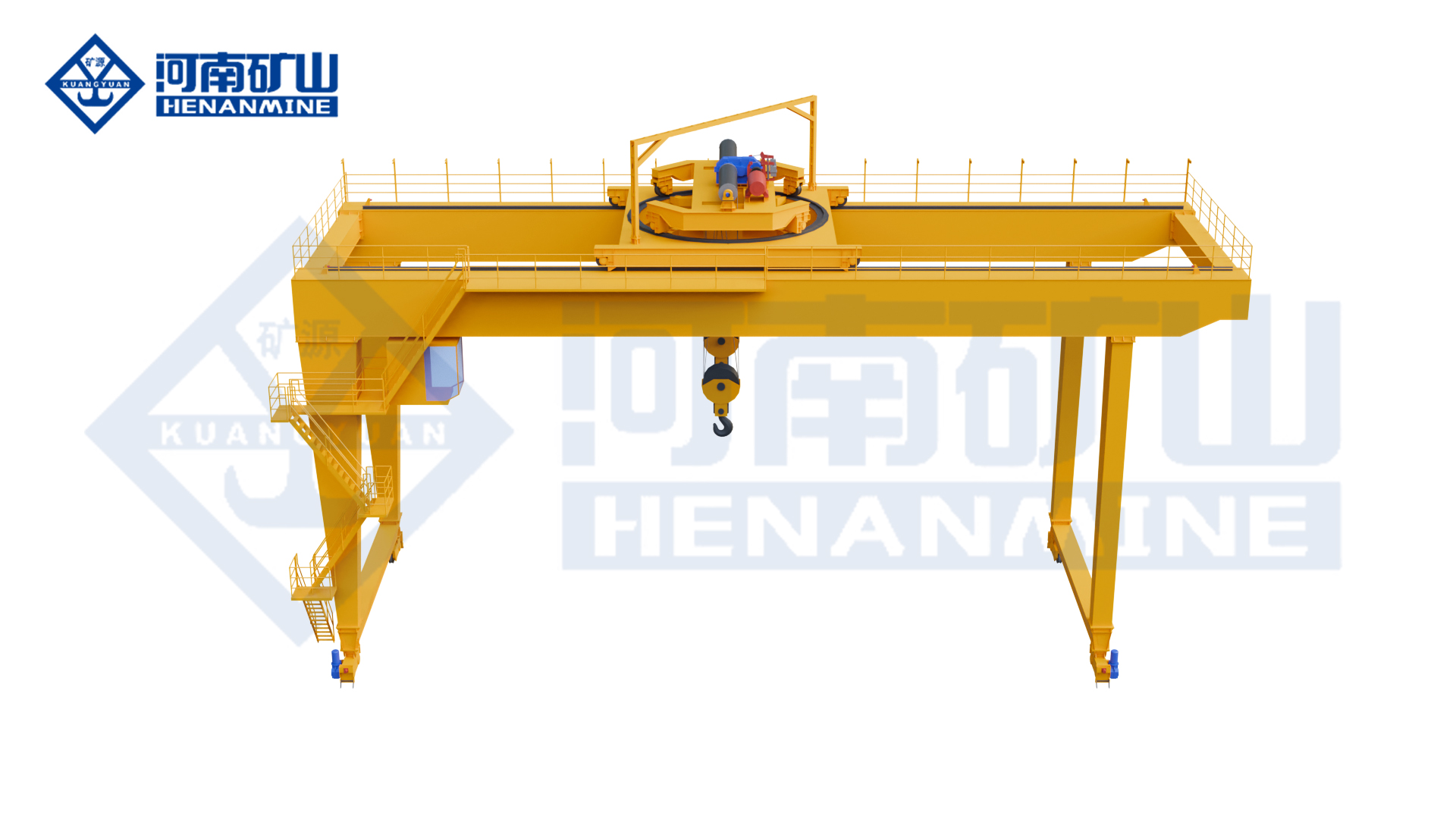

Manufacturer rendering of the MC gantry crane arrangement
MC series

Electromagnetic Gantry Crane (MC)

Magnetic lifting for suitable ferrous scrap, billets and steel loads.

Lifting systemElectromagnetic
MaterialsSuitable ferrous loads
Motion controlVariable frequency
All specifications
Model MC
Crane structure Double-girder electromagnetic gantry
Lifting attachment Integrated electromagnetic lifting system
Material focus Ferromagnetic material such as suitable scrap and steel billets
Motion control Variable-frequency control throughout the crane
Structural arrangement Modular crane design
Wheels Forged wheels
Transmission coupling Crowned gear coupling
Rope drum Rolled steel-plate drum
Protection functions Overload protection, travel limits, buffers and wind protection
Cantilever arrangement One side, both sides or no cantilever, according to the selected layout
Rated suspended load Material plus magnet, suspension and connecting equipment
Span Rail-centre span selected for the working area
Lifting height Working lifting height selected for the pickup and placement levels
Magnet selection Magnet arrangement selected for steel form, load condition and temperature
Magnet electrical package Power supply, holding / release functions and any backup requirements defined in the offer
Working class Selected for the magnet handling cycle, load spectrum and shifts
Motion speeds Lifting, trolley and crane-travel speeds specified for the work route
Operator controls Operator position, visibility and magnet control functions selected together
Runway and wind interface Wheel reactions and specified wind-restraint provisions coordinated with the site
Manufacturer MGB hook semi-gantry rendering with one trolley and one supporting leg line
MGB series

Hook Semi-Gantry Crane (MGB)

Hook lifting beside a building-supported runway and ground-level rail.

Lifting attachmentHook
Support layoutFloor rail + elevated runway
Lifting packageSpecified in the offer
All specifications
Model MGB
Crane arrangement Hook semi-gantry developed from a double-girder gantry layout
Lifting attachment Hook
Floor-side support Leg-supported ground-level rail
Elevated-side support Suitable building structure or independent elevated support
Working motions Vertical lifting, trolley cross travel and crane long travel
Application focus Wall-side workshop areas, storage edges and restricted working bays
Rated lifting capacity Selected for the complete suspended load, including lifting attachments and rigging
Span Horizontal rail-centre distance selected for the working bay
Lifting height Usable hook height selected with both runway elevations
Runway elevation difference Ground-side and elevated-side rail levels shown in the arrangement
Building-side reactions Vertical and horizontal runway reactions provided for support design
Ground-side foundation Wheel loads and rail interface supplied for the floor-side support
Working class Selected for load spectrum, handling frequency and shifts
Lifting package Hoisting mechanism, hook block and speeds selected for the load
Cross-travel coverage Hook approaches and work-area coverage checked against the elevated support
Travel and access Runway length, stopping positions and clear floor route coordinated
Operator controls Operator position and control package selected for the bay
Electrical supply Site voltage, frequency, phases and power-feed route specified
Installation scope Runway supports, rail installation and crane assembly responsibilities agreed

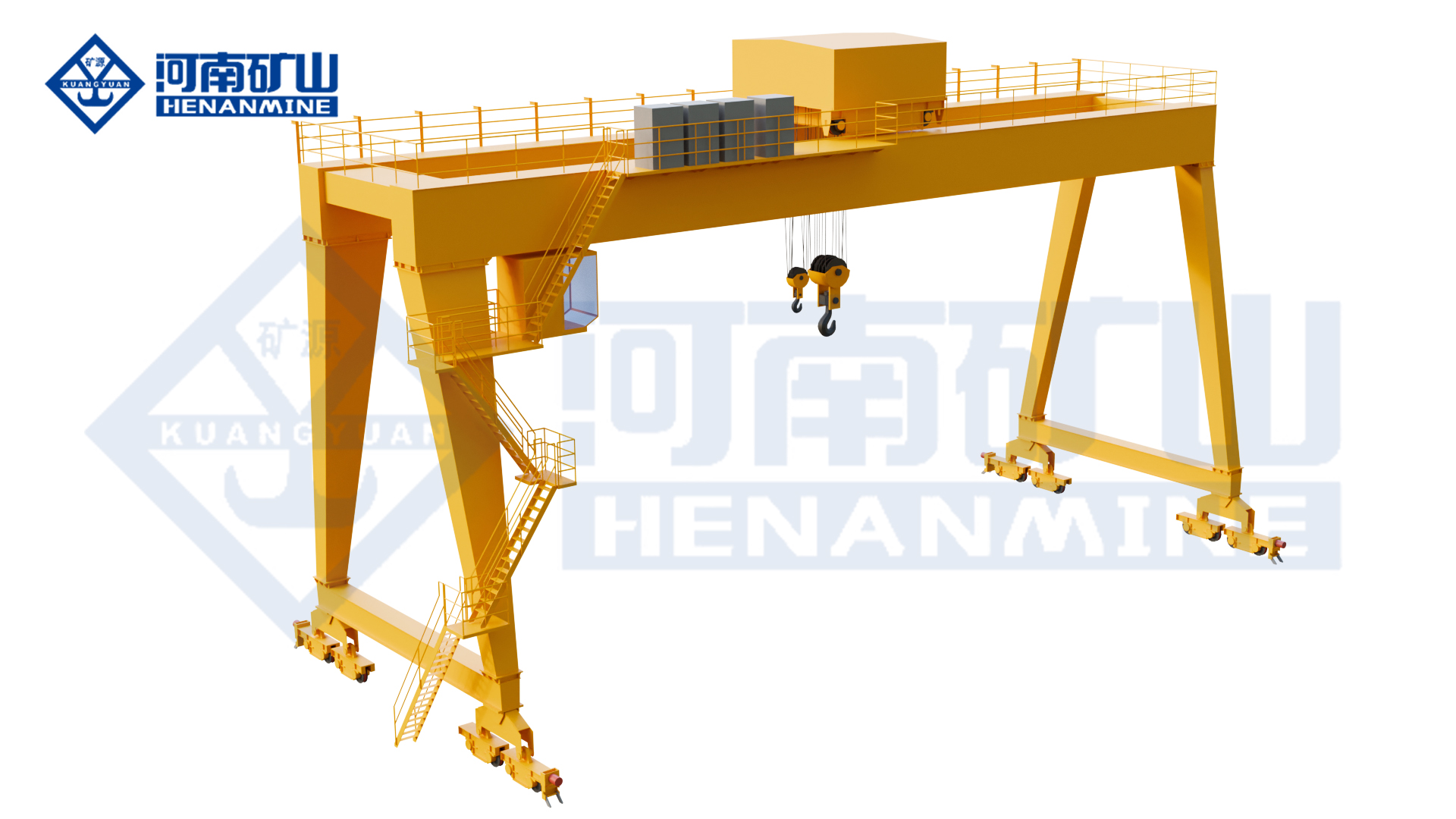

Manufacturer rendering of the MG gantry crane arrangement
MG series

Double Girder Hook Gantry Crane (MG)

Hook lifting for yard storage, component transfer and vehicle loading.

Lifting systemWinch and hook
RunwayGround rails, both sides
Capacity & spanSelected for the project
All specifications
Model MG
Crane arrangement Double-girder hook gantry
Lifting attachment Hook
Application focus Outdoor material handling; warehouses, factories and loading areas
Rated lifting capacity Selected for the complete suspended load, including lifting attachments and rigging
Span Rail-centre span selected for the working area
Lifting height Working lifting height selected for the pickup and placement levels
Working class Selected from load spectrum, lifts per hour and shifts
Hoisting package Mechanism, hook block and reeving identified for the selected load and lift
Lifting speed Loaded lifting and positioning speeds specified with the hoisting package
Trolley travel Cross-travel speed and hook approaches selected for the transfer positions
Crane travel Travel speed and stopping control selected for the runway
Main / auxiliary hook Hook capacities, heights and permitted operating modes specified where an auxiliary hook is required
Hook coverage Leg opening, end approach and any cantilever shown on the general arrangement
Operator controls Operator position and control package selected for visibility and handling
Runway interface Rail section, wheel loads and horizontal reactions provided for the selected crane
Electrical supply Site voltage, frequency, phases and power-feed route specified
Outdoor exposure Working and parked wind conditions and corrosion exposure addressed in the equipment scope
Delivery arrangement Transport sections, assembly joints and site access agreed for the destination
Order quantity Enquire for one complete crane or a multi-crane project
Reference scope Separate A-frame catalogue examples; not universal MG ratings. Each set is one matched configuration. Main and auxiliary hook ratings are separate. The ordered drawing and wheel-load schedule govern.
Reference configuration 5 t · 22 m span
Rated hook load 5 t
Span 22 m
Main hook lifting height 10 m
Auxiliary hook lifting height Not applicable
Crane working class A5
Main hoisting speed 11.3 m/min
Auxiliary hoisting speed Not applicable
Trolley travel speed 37.3 m/min
Crane travel speed 37.3 m/min
Total motor power 40.8 kW
Maximum wheel load 159 kN
Recommended rail P43
Power supply 380 V, 50 Hz, 3 phase
Reference configuration 32/5 t · 22 m span
Rated hook load 32 / 5 t (main / auxiliary)
Span 22 m
Main hook lifting height 10 m
Auxiliary hook lifting height 10.73 m
Crane working class A5
Main hoisting speed 7.5 m/min
Auxiliary hoisting speed 15.4 m/min
Trolley travel speed 37 m/min
Crane travel speed 39.4 m/min
Total motor power 99.3 kW
Maximum wheel load 258 kN
Recommended rail Not listed
Power supply 380 V, 50 Hz, 3 phase
Reference configuration 50/10 t · 30 m span
Rated hook load 50 / 10 t (main / auxiliary)
Span 30 m
Main hook lifting height 12 m
Auxiliary hook lifting height 12.918 m
Crane working class A5
Main hoisting speed 5.9 m/min
Auxiliary hoisting speed 10.4 m/min
Trolley travel speed 36 m/min
Crane travel speed 38.5 m/min
Total motor power 126.5 kW
Maximum wheel load 409 kN
Recommended rail Not listed
Power supply 380 V, 50 Hz, 3 phase

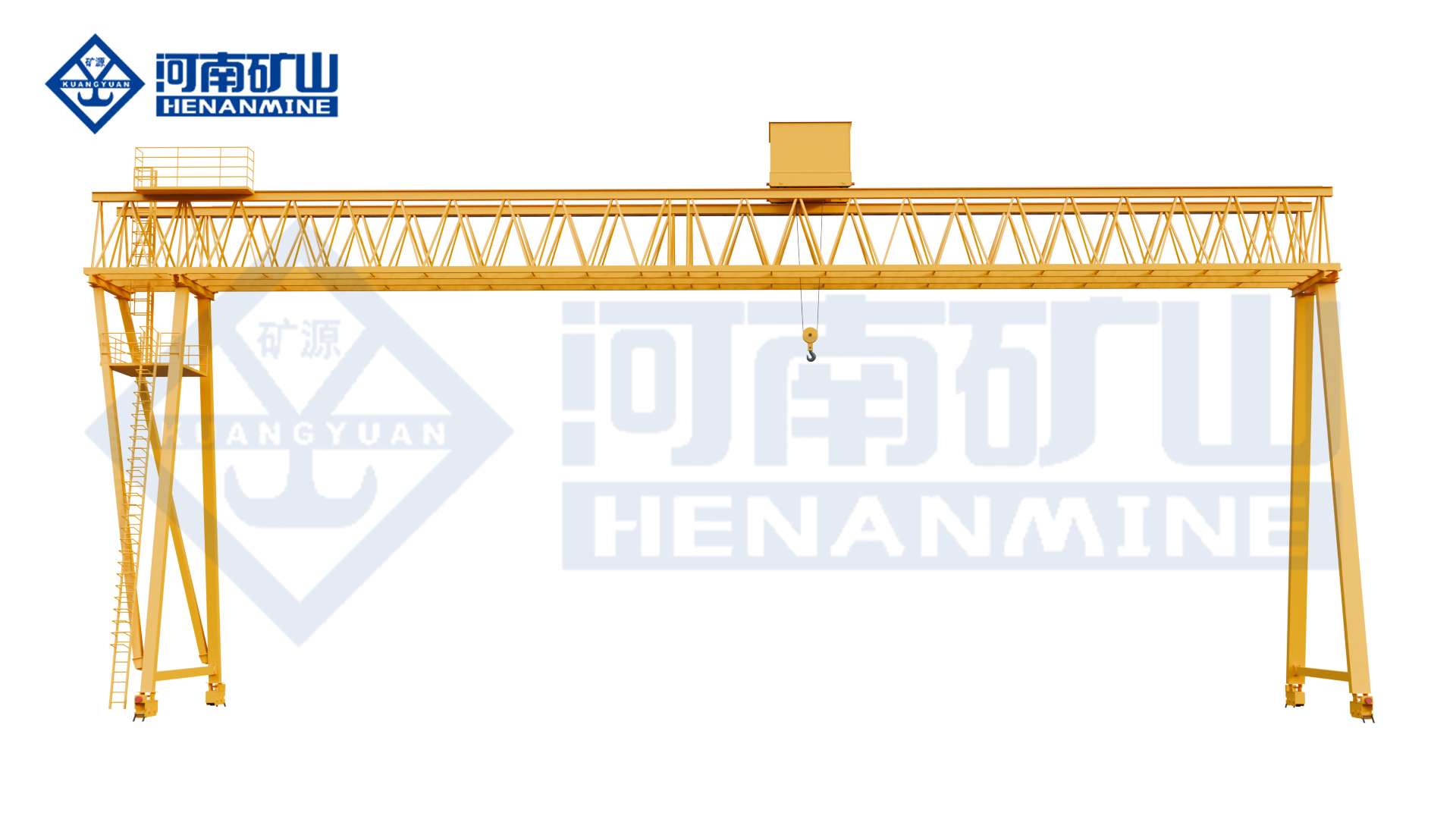

Manufacturer rendering of the MGG gantry crane arrangement
MGG series

Construction Gantry Crane (MGG)

Single-trolley winch lifting for precast beams and construction materials.

BridgeTwin truss girders
Lifting arrangementSingle trolley and winch
ApplicationBridge and highway work
All specifications
Model MGG
Main-girder structure Twin truss main girders
Leg structure Tubular steel legs
Trolley arrangement Single trolley
Hoisting mechanism Single winch
Application focus Bridge and highway construction work
Handling tasks Precast-beam lifting, material transfer and specified piling-spoil operations
Rated lifting capacity Selected for the complete suspended load, including lifting attachments and rigging
Span Rail-centre span selected for the construction work area
Lifting height Working hook travel selected for the construction lifting sequence
Working class Selected for the load spectrum, lifts per hour and shifts
Lifting attachment Hook, lifting beam or other attachment specified for the actual load
Hoisting speed Loaded lifting and positioning speeds selected with the winch package
Trolley travel Cross-travel speed and usable hook approaches specified for the load route
Crane travel Long-travel speed and stopping control selected for the runway
Site clearances Leg opening, load envelope and vehicle access shown in the arrangement
Transport and assembly Transport sections, site assembly and installation access agreed
Operator controls Operator position and control package selected for visibility
Electrical supply Voltage, phases, frequency and power-feed route specified
Runway and exposure Wheel reactions, rail interfaces and relevant wind provisions coordinated with the site

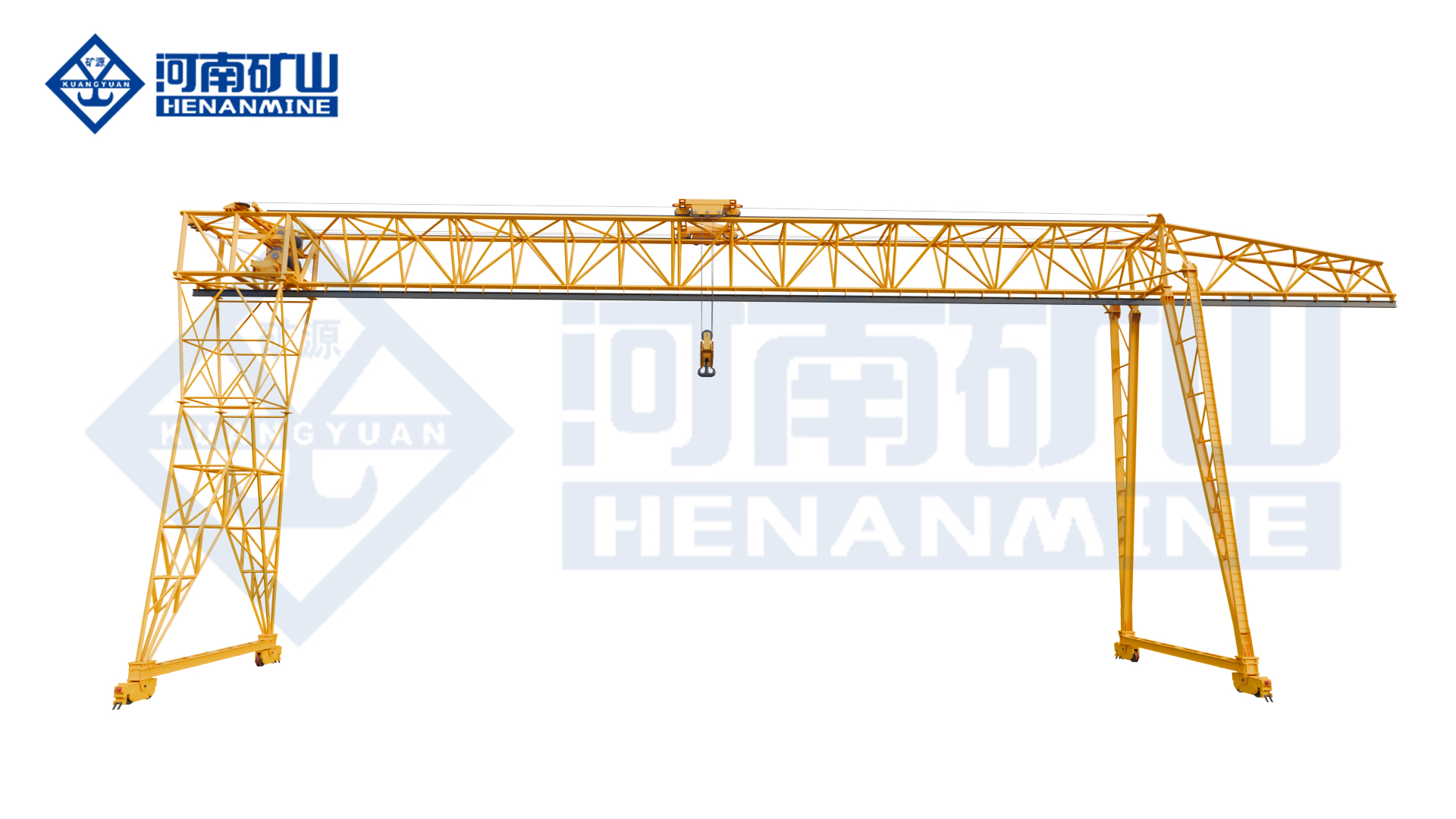

Manufacturer rendering of the MGH gantry crane arrangement
MGH series

Truss Gantry Crane (MGH)

Outdoor component handling with an open-truss gantry structure.

StructureOpen steel truss
RunwayTwo ground-level rails
Capacity and spanSelected for the project
All specifications
Model MGH
Crane arrangement Truss-girder full gantry
Lifting attachment Hook; lifting package selected in the technical offer
Rated suspended load Selected for the load, complete attachment and rigging
Span Selected from the runway centres and required working coverage
Lifting height Upper and lower pickup levels specified with attachment depth and headroom
Working class Selected for the load spectrum, lifts per hour and shifts
Hoisting performance Lifting and positioning speeds specified with the selected mechanism
Trolley travel Travel speed, stopping control and hook approaches selected for the task
Crane travel Speed, runway length and stopping positions specified for the working route
Operating controls Operator position and controls selected for visibility and the process
Electrical supply Site voltage, phases, frequency and power-feed arrangement specified in the offer
Rail and civil interface Rail section, wheel reactions and supporting foundations selected together
Outdoor design Site wind exposure, parking restraint and environmental protection specified where applicable
Clearance envelope Load passage, access and maintenance clearances shown in the arrangement drawing
Supply scope Crane equipment, rail work, installation and commissioning responsibilities agreed in the quotation
Girder construction Truss welded from structural steel sections
Cantilever With or without cantilever, selected for the working reach

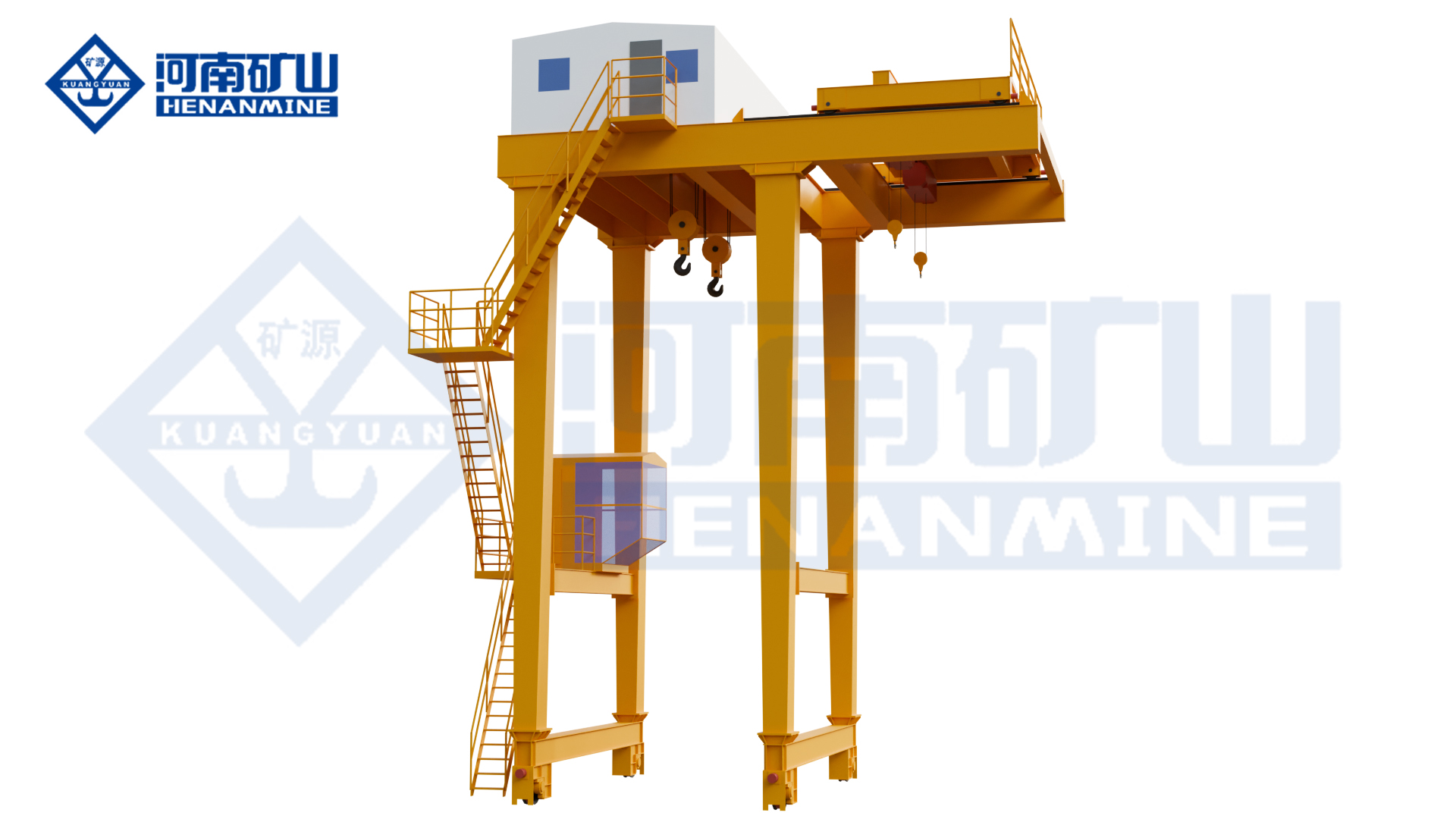

Manufacturer rendering of the QM gantry crane arrangement
QM series

Gate Hoist Gantry Crane (QM)

Gate lifting and positioning for reservoirs, waterways and hydropower facilities.

ApplicationHydraulic gate lifting
SitesReservoirs, waterways and hydropower
Capacity and spanSelected for the gate
All specifications
Model QM
Crane arrangement Gate-hoisting crane
Lifting attachment Gate lifting arrangement
Rated suspended load Selected for the load, complete attachment and rigging
Span Selected from the runway centres and required working coverage
Lifting height Upper and lower pickup levels specified with attachment depth and headroom
Working class Selected for the load spectrum, lifts per hour and shifts
Hoisting performance Lifting and positioning speeds specified with the selected mechanism
Trolley travel Travel speed, stopping control and hook approaches selected for the task
Crane travel Speed, runway length and stopping positions specified for the working route
Operating controls Operator position and controls selected for visibility and the process
Electrical supply Site voltage, phases, frequency and power-feed arrangement specified in the offer
Rail and civil interface Rail section, wheel reactions and supporting foundations selected together
Outdoor design Site wind exposure, parking restraint and environmental protection specified where applicable
Clearance envelope Load passage, access and maintenance clearances shown in the arrangement drawing
Supply scope Crane equipment, rail work, installation and commissioning responsibilities agreed in the quotation
Gate interface Gate mass, lifting points, sealing friction and operating loads specified for the installation
Corrosion exposure Water, humidity and site conditions specified for the coating and equipment package

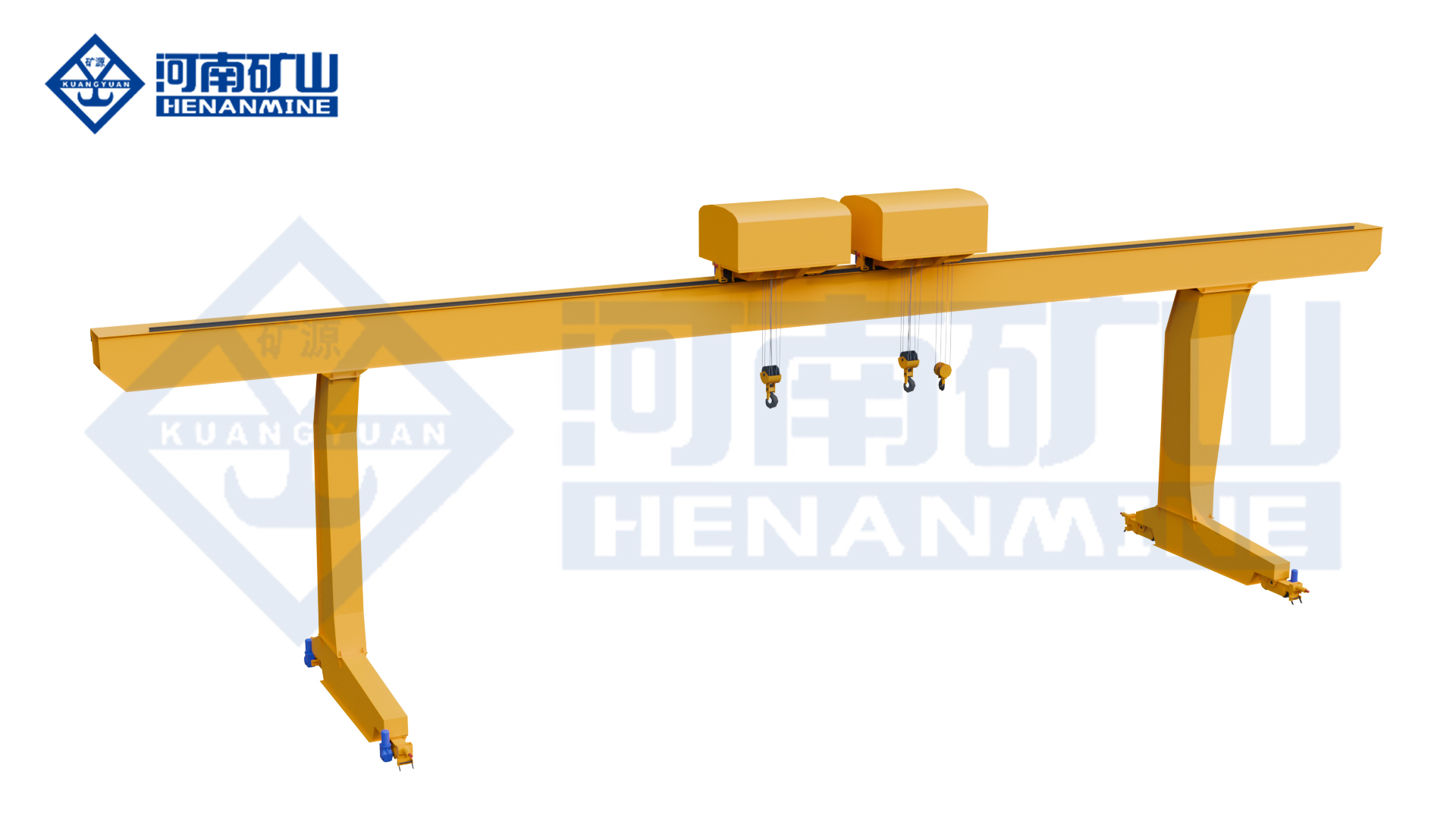

Manufacturer rendering of the MDE gantry crane arrangement
MDE series

Double Trolley L-Type Gantry Crane (MDE)

Two-trolley winch handling for long components through an L-leg opening.

Capacity range5–50 t model selections
Span range18–35 m
Lifting layoutTwo winch trolleys
All specifications
Model MDE
Base arrangement Double-trolley development of the MDG L-type single-main-girder crane
Lifting trolleys Two lifting trolleys
Lifting mechanism Winch hoisting mechanisms
Leg geometry L-shaped legs
Rated capacity range 5–50 t model range; individual and joint ratings selected in the offer
Span range 18–35 m; select with load and site geometry
Operating controls Ground / remote / cabin options
Power-feed choices Cable or conductor-line supply
Crane-travel drive Three-in-one variable-frequency drive
Load passage L-leg opening for long items and loads requiring large-angle turning
Application focus Outdoor loading and transfer in freight yards, terminals and similar areas
Permitted shared lifting Agree each trolley rating and any approved shared-load operating condition
Lifting-point spacing Select trolley separation and approaches around the load lifting points
Useful lifting height Specify each hook working level with rigging and load dimensions
Working class Select from each mechanism load spectrum and operating cycle
Motion performance State lifting / travel speeds and required independent or joint functions
Site power supply Specify voltage, phases, frequency and the power-feed route
Runway and foundations Match final rail geometry, wheel reactions and support interfaces
Operator control scope Agree visibility, control authority and permitted trolley operating modes

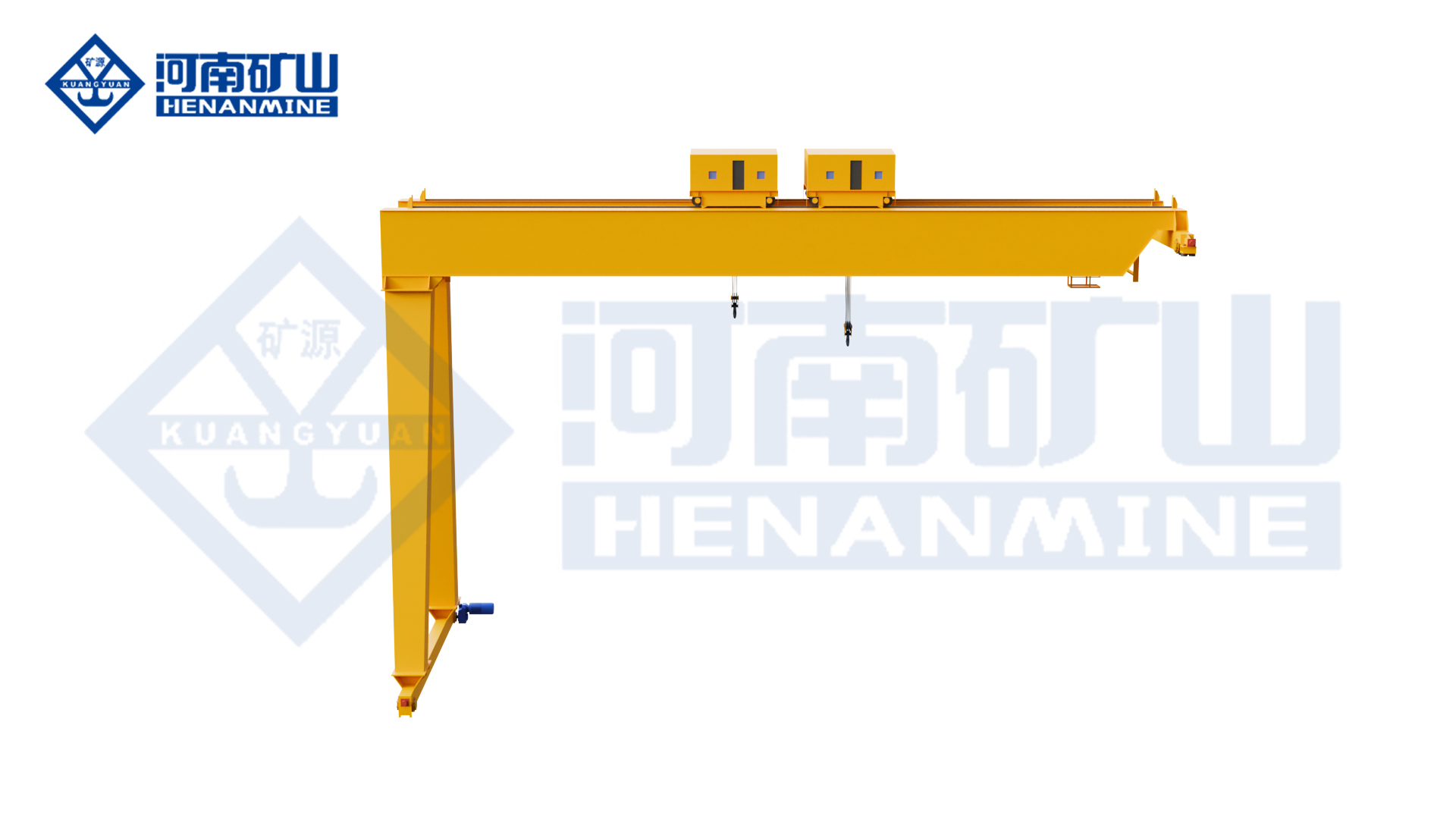

Manufacturer rendering of the MGBE gantry crane arrangement
MGBE series

Double Trolley Semi-Gantry Crane (MGBE)

Two-trolley handling for long loads beside an elevated workshop runway.

Lifting trolleysTwo
Support layoutSemi-gantry
Motion controlVariable frequency
All specifications
Model MGBE
Crane arrangement Double-trolley semi-gantry
Trolley arrangement Two lifting trolleys
Working-class range A3–A8; select the class for the operating cycle
Drive control Variable-frequency motion control
Communication choices 5G or industrial Ethernet communication for crane information synchronisation
Coordinated system Multi-crane linked operation within a specified shared working area
Available attachments Hook, grab or electromagnetic arrangements selected for the process
Rated lifting capacity Specify trolley ratings and the permitted shared lifting load
Span Rail-centre span selected for the floor-side and elevated-side runways
Lifting height Working hook levels selected with both runway elevations
Lifting-point spacing Trolley separation selected for the load geometry
Permitted operating modes Trolley and multi-crane independent / joint functions specified in the control scope
Communication integration Network coverage, interfaces and system responsibilities agreed for the site
Elevated-runway support Building-side or independent support reactions supplied for the selected layout
Floor-side runway Rail interface, wheel loads and clear travel route coordinated
Motion speeds Lifting and travel speeds selected for the coordinated process
Operator controls Operator positions, visibility and control authority agreed for linked operation
Electrical supply Crane and attachment supply and power-feed routes specified
Cantilever coverage Any required outside-span coverage confirmed in the selected arrangement

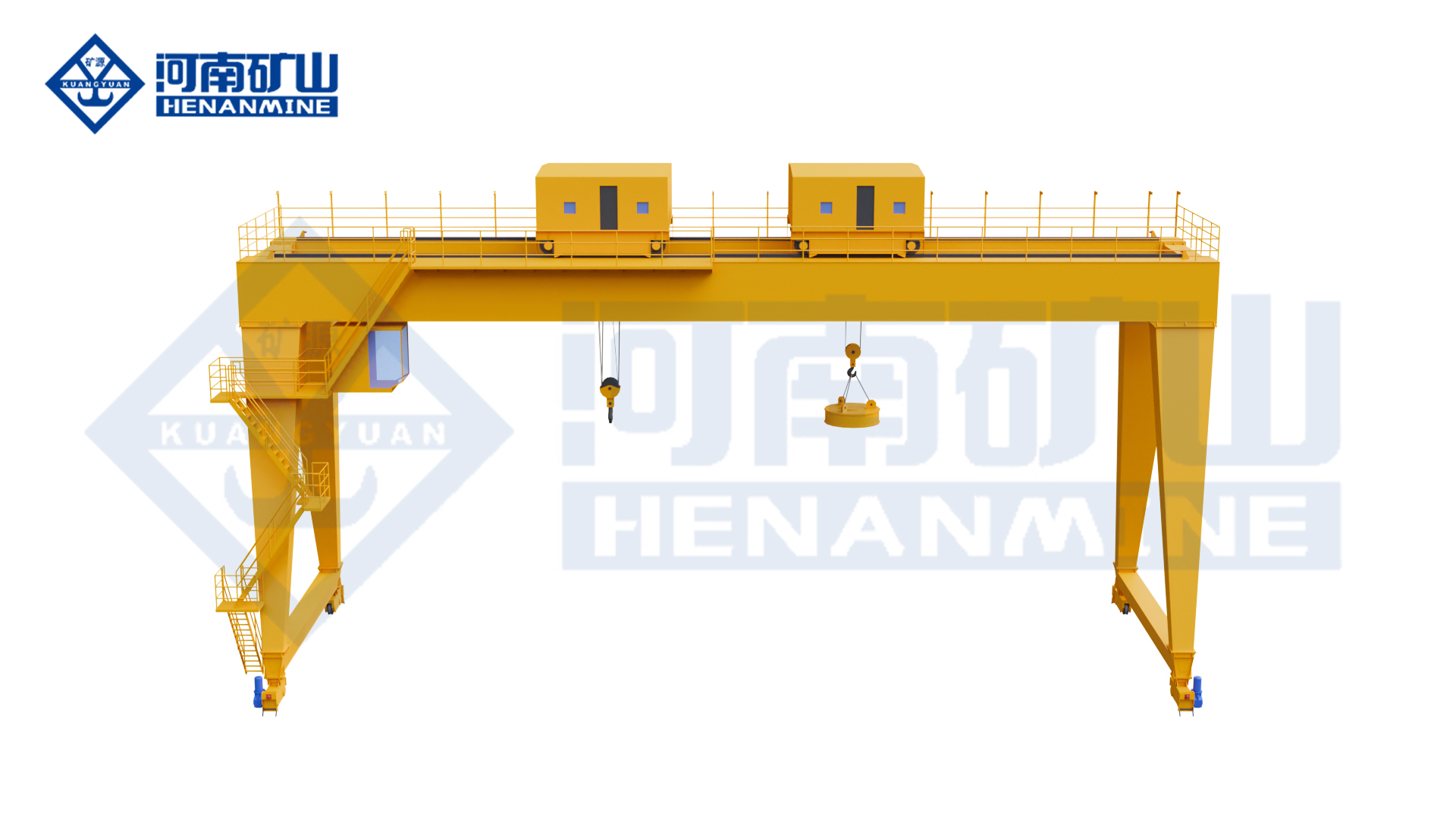

Manufacturer rendering of the MEN gantry crane arrangement
MEN series

Double Trolley Magnet and Hook Gantry Crane (MEN)

Double-trolley magnetic and hook handling for steel material.

Trolley arrangementDouble trolley
Handling modesMagnet and hook
Working-class optionsA3–A8, selected to duty
All specifications
Model MEN
Trolley arrangement Double trolley
Handling modes Electromagnetic and hook handling
Working-class range A3–A8; select the class for the operating cycle
Control platform PLC module integrated with the control station
Operator interface HMI touch-screen interface
Master controller WLK master controller
Controller functions Defined operating steps, zero-return and locking functions
Magnet actuation Pickup and release through electrical current switching
Structural design Main-girder, leg and end-girder stress distribution optimised by finite-element analysis
Cantilever arrangement One side, both sides or no cantilever, according to the selected layout
Rated lifting capacity Specify complete suspended load for each hook and electromagnetic handling mode
Span Rail-centre span selected for the working area
Lifting height Hook and magnet working heights selected for pickup and stacking levels
Trolley coordination Permitted independent and coordinated functions defined for the process
Magnet package Magnet type, suspension, power circuit and required holding / release functions specified
Steel material Specify material form, dimensions and relevant operating temperature
Duty and handling rate Selected for the actual pickup, travel, release and return cycle
Motion speeds Lifting and travel speeds selected for controlled material placement
Site electrical supply Voltage, frequency, phases and crane / magnet power-feed interfaces specified
Manufacturer rendering of the MEH gantry crane arrangement
MEH series

Double Trolley Truss Gantry Crane (MEH)

Two-point component lifting with a truss gantry and separate trolleys.

BridgeTruss arrangement
Lifting trolleysTwo
Working classA3–A5
All specifications
Model MEH
Structure Truss gantry arrangement
Trolley arrangement Double trolley
Working class A3–A5
Lifting control Variable-frequency lifting-speed control
Travel control Variable-frequency travel-speed control
Transport structure Segmented main and end-girder components
Site joints Bolted site assembly
Runway arrangement Legs on both sides; ground-level rail travel
Cantilever arrangement One side, both sides or no cantilever, according to the selected layout
Rated lifting capacity Specify each trolley load and the permitted shared lifting load
Span Selected for the work-area coverage and transport-section design
Lifting height Selected for pickup, stacking or equipment-installation levels
Trolley spacing Usable separation selected for lifting-point spacing
Handling modes Independent and coordinated functions specified for the lifting task
Motion speeds Lifting and travel speeds matched to positioning and cycle requirements
Transport envelope Section dimensions and joint positions agreed for delivery access
Operator controls Control package selected for the two-trolley arrangement
Electrical supply Site voltage, phases, frequency and crane power feed specified
Runway reactions Wheel loads and relevant horizontal reactions supplied for the selected crane

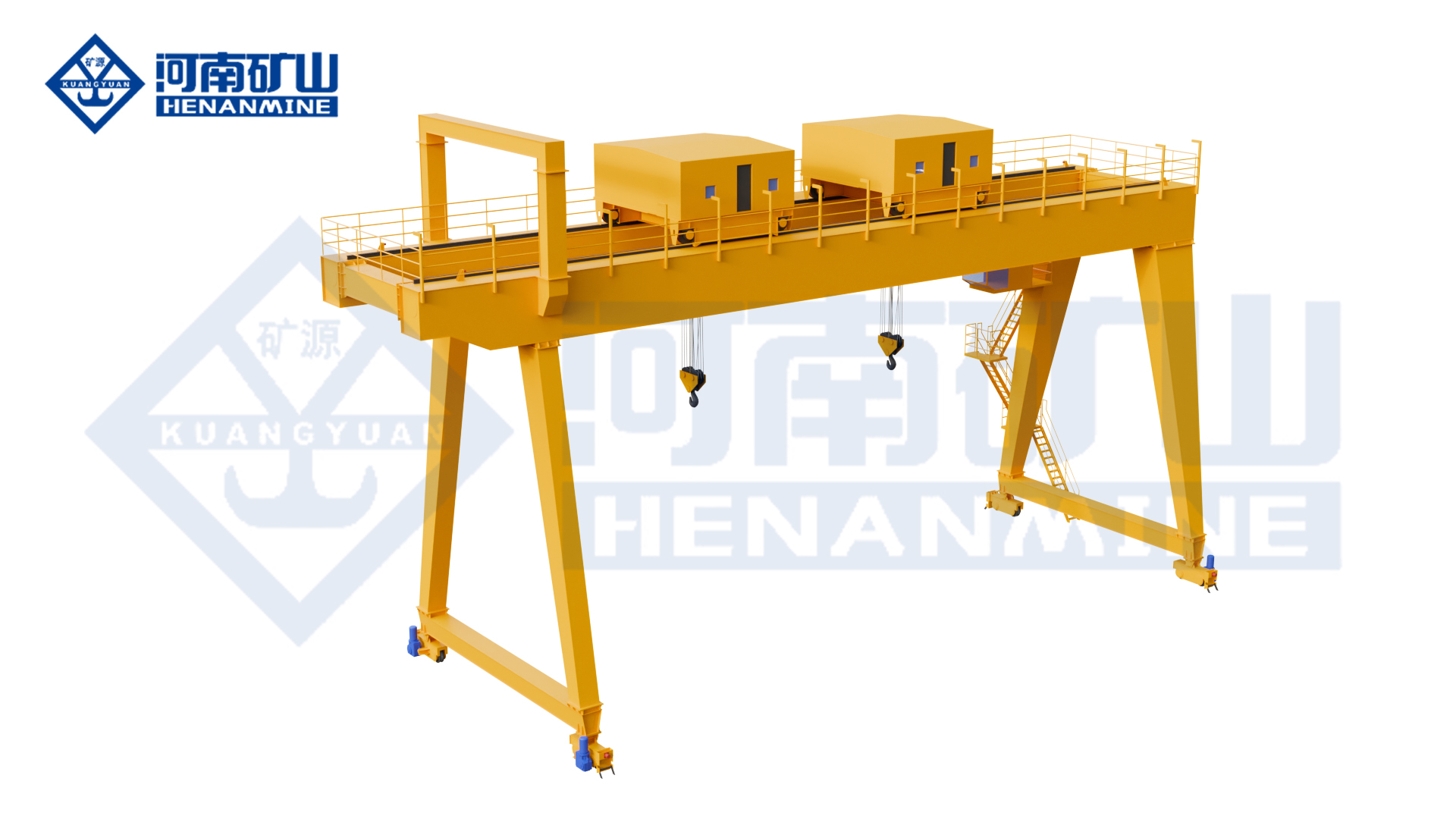

Manufacturer rendering of the ME gantry crane arrangement
ME series

Double Trolley Gantry Crane (ME)

Two-trolley handling for long components with separated lifting points.

Lifting trolleysTwo
Operating modesIndependent or joint
Working-class optionsA3–A8, selected to duty
All specifications
Model ME
Trolley arrangement Two travelling lifting trolleys
Operating modes Trolleys can operate independently or jointly
Working-class range A3–A8; select the class for the operating cycle
Travel drives Three-in-one direct-connected crane and trolley travel drives
Trolley feedback Encoder-based double-trolley control
Drive control Variable-frequency drive control with CI-card functionality
Cantilever arrangement One side, both sides or no cantilever, according to the selected layout
Working motions Vertical lifting, cross travel and crane long travel
Rated lifting capacity Specify the rating of each trolley and the permitted combined lifting load
Span Rail-centre span selected for the working area
Lifting height Working lifting height selected for the pickup and placement levels
Lifting-point spacing Usable trolley separation selected for the load geometry
Coordinated control Load sharing, positioning and permitted joint motions defined for the handling sequence
Projection warning light Hoisting-area projection light available by configuration
Lifting attachment Hook or other specified attachment matched to the handling task
Lifting and travel speeds Working and positioning speeds specified for each motion
Operator controls Operator position and independent / joint control functions specified
Electrical supply Site voltage, frequency, phases and power-feed route specified
Runway reactions Wheel-load and horizontal-reaction schedule supplied for the selected arrangement

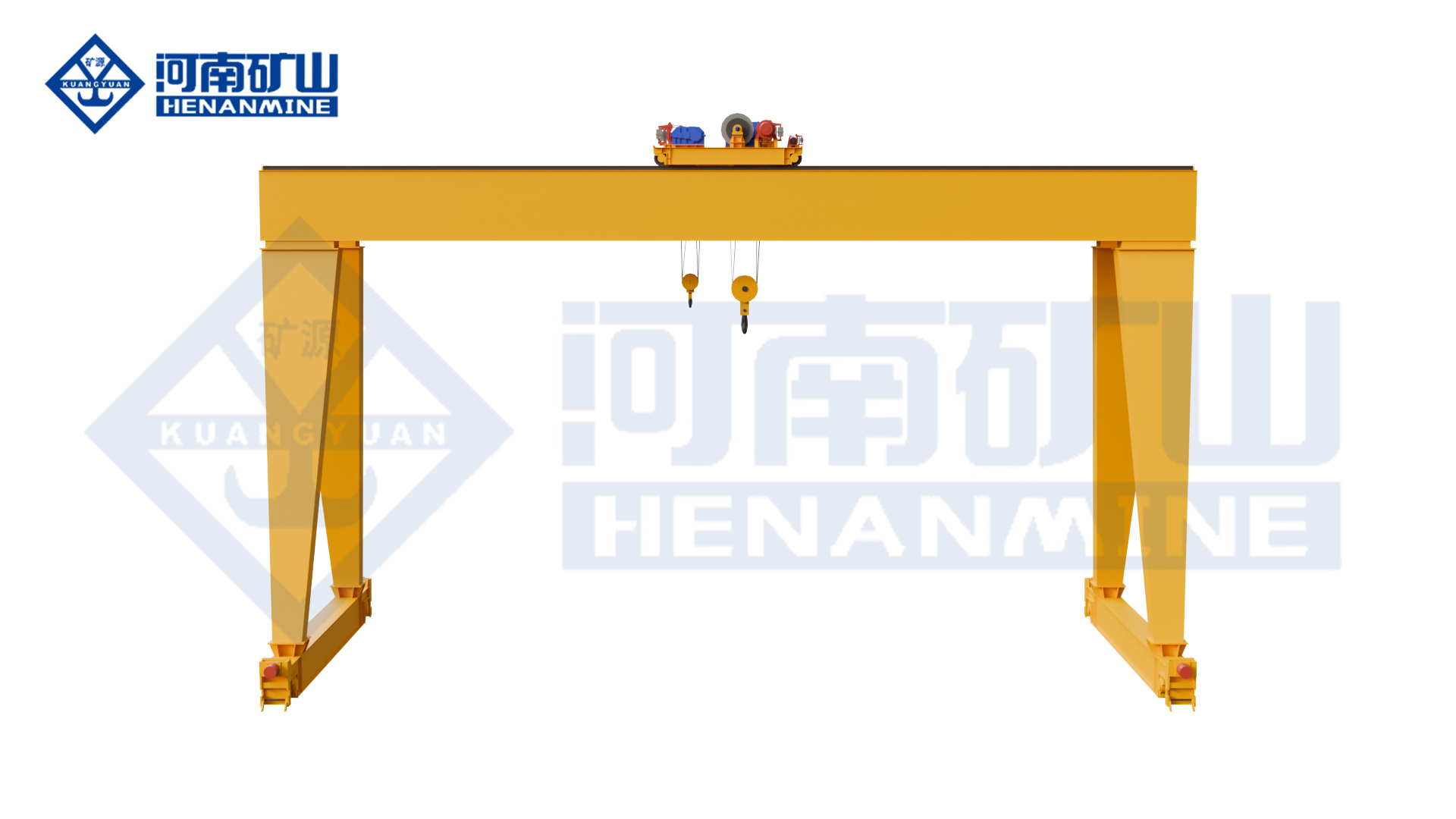

Manufacturer rendering of the MGY gantry crane arrangement
MGY series

Metallurgical Gantry Crane (MGY)

Metallurgical lifting for specified steel-ladle handling and slag-pot maintenance.

ApplicationLadle or slag-pot handling
ProtectionHeat-protection arrangement
ControlsPLC and HMI
All specifications
Model MGY
Crane structure Metallurgical double-girder gantry
Lifting attachment Gantry-hook attachment for the selected vessel
Application focus Steel-ladle lifting or slag-pot maintenance
Thermal protection Heat protection for key main-girder and leg structures
Thermal exposure Arrangement intended for radiant-heat exposure in metallurgical work
Control platform PLC module with HMI touch screen
Master controller WLK controller with defined steps, zero-return and locking functions
Lifting control Stator-voltage regulation for lifting speed control
Travel control Variable-frequency travel-speed control
Structural design Key load-bearing members optimised by finite-element analysis
Rated lifting capacity Vessel, contents, lifting attachment and connecting equipment assessed together
Span Rail-centre span selected for the working area
Lifting height Working hook levels selected for vessel pickup, transfer and maintenance
Vessel interface Gantry-hook geometry and engagement matched to the vessel lifting points
Process and duty Load spectrum, handling sequence, shifts and required operating modes specified
Heat conditions Vessel temperatures and radiant-heat exposure stated for the selected equipment
Lifting and travel speeds Loaded, positioning and travel speeds specified for the process
Electrical package Site supply, protection and cable routing selected for the environment
Runway reactions Rail interface, wheel loads and relevant horizontal reactions provided for the selected crane
Manufacturer rendering of the MN gantry crane arrangement
MN series

Grab and Hook Gantry Crane (MN)

Grab-and-hook handling for bulk material and general cargo.

Handling modesGrab and hook
ChangeoverQuick-connection arrangement
Duty basisDefined for each mode
All specifications
Model MN
Handling modes Grab for bulk material; hook for general cargo
Changeover system Dedicated quick-connection arrangement for grab / hook exchange
Grab rope system Coordinated opening / closing ropes and supporting ropes for a rope-operated grab
Hook mode Conventional hook-lifting operation
Motion control Variable-frequency control
Wheel manufacture Combined forging and rolling process
Transmission coupling Crowned gear coupling
Maintenance arrangement Modular design with replaceable core components
Grab-mode suspended load Grab self-weight plus carried material and connecting equipment
Hook-mode capacity Complete hook-lifted load including slings and attachments
Span Rail-centre span selected for the working area
Lifting height Pickup level, discharge height and attachment dimensions selected together
Grab volume and material Selected from material density, particle size and required load per cycle
Grab actuation Hydraulic or mechanical opening / closing selected with the attachment package
Grab cycle Opening / closing speed and full handling cycle confirmed for the selected configuration
Working duty Load spectrum and cycle defined separately for grab and hook modes
Changeover procedure Connection, parking and attachment-handling provisions agreed for the work area
Operator controls Mode selection and required rope / attachment control functions specified
Electrical supply Crane and any separate attachment power / control interfaces specified

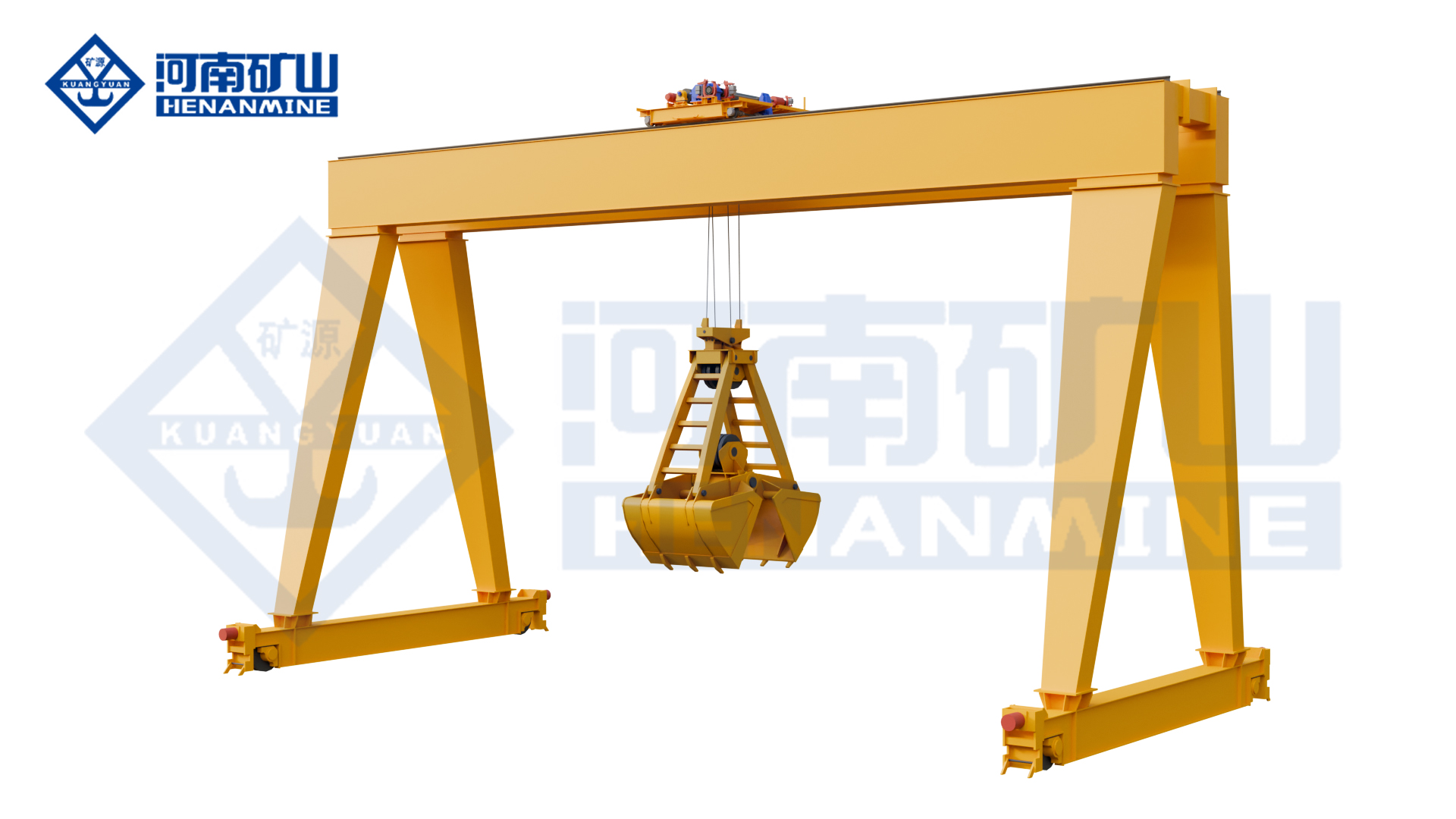

Manufacturer rendering of the MZ gantry crane arrangement
MZ series

Grab Bucket Gantry Crane (MZ)

Grab handling for loading and transferring loose bulk material.

AttachmentDedicated grab
Reference load20 t suspended load
Reference span options18–35 m
All specifications
Model MZ
Rated-load reference 20 t; check the complete suspended load with the selected grab
Crane structure Double-girder gantry frame
Primary attachment Grab
Handling task Dedicated bulk-material loading and unloading
Runway arrangement Legs on both sides; ground-level rail travel
Working motions Grab lifting, trolley cross travel and crane long travel
Structural design Main and end-girder stress distribution optimised by finite-element analysis
Rated suspended load Grab self-weight plus material load and connecting equipment
Span options, reference package 18–35 m; select the matched load/span arrangement
Maximum lift, reference package 10 m; confirm the grab working levels
Grab volume Selected from material density and the required load per cycle
Material properties Specify density, particle size and flow characteristics
Bulk density, reference grab < 1.5 t/m³ for the stated grab package
Grab actuation Hydraulic or mechanical opening / closing selected with the grab
Grab cycle Opening / closing speed and full handling cycle confirmed for the material and grab
Duty options, reference package A6–A8; selected for the required load spectrum
Automation control Manual and automated operating functions specified in the control package
Authorised access Fingerprint-based operator access available by configuration
Camera system Multiple camera views and operator display available by configuration
Lifting and travel speeds Motion speeds selected for pickup, transfer and controlled discharge
Electrical supply Crane and grab power / control interfaces specified for the site

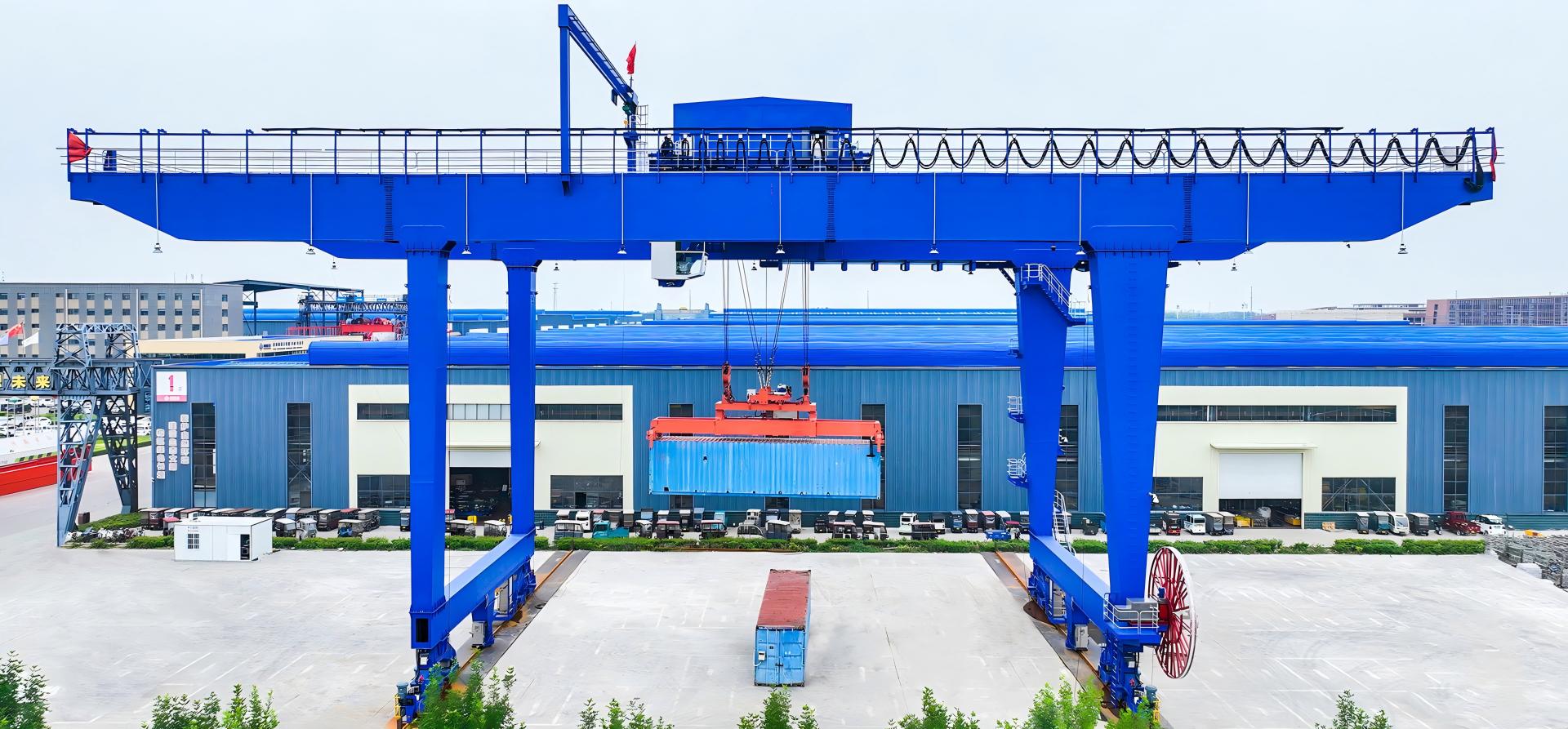

Rail-Mounted Container Gantry Cranes

Plan container rows, rail or truck lanes and stacking height around a fixed terminal runway.

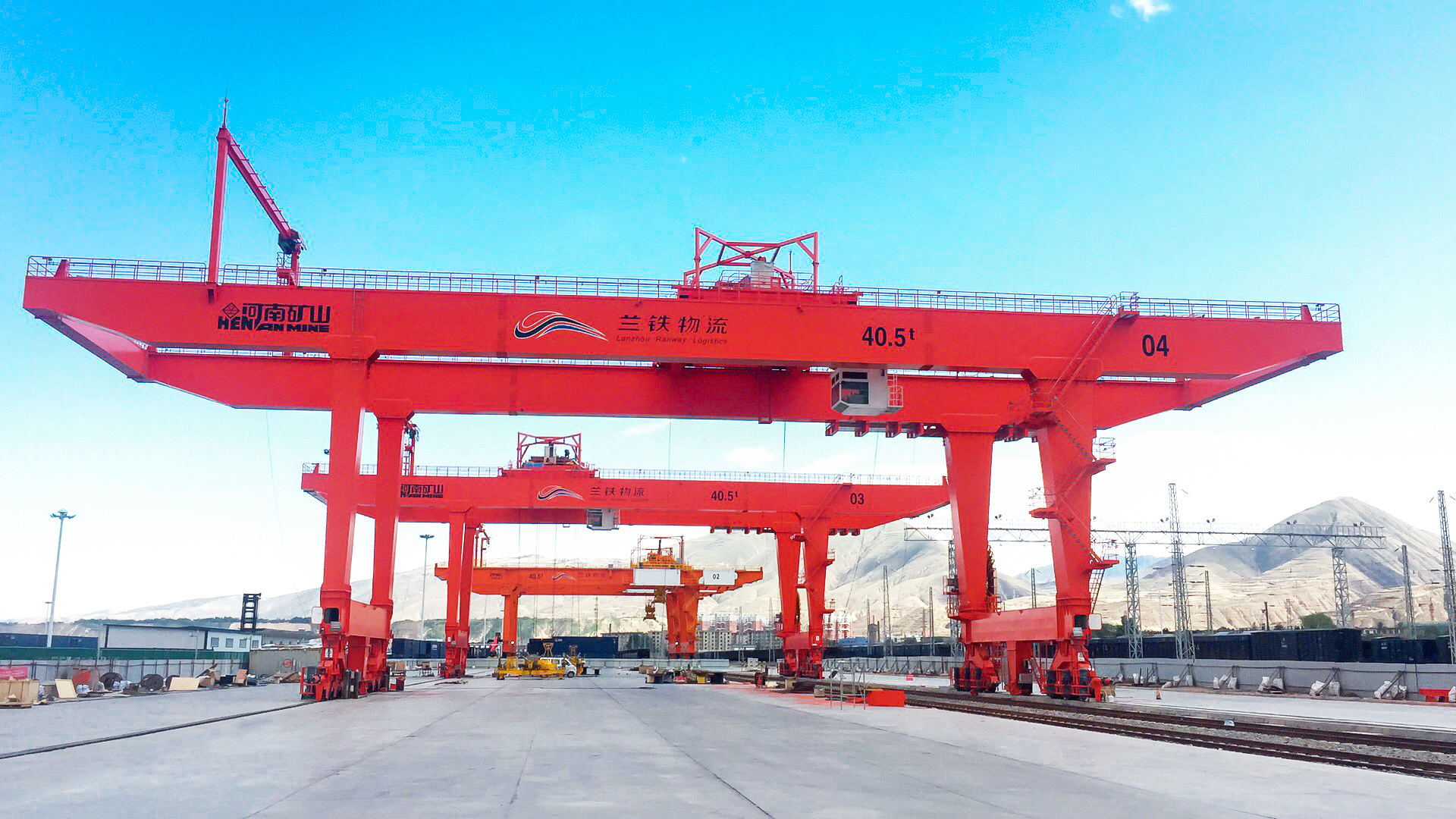

Manufacturer rendering of the CMJ gantry crane arrangement
CMJ / RMG family

Rail-Mounted Container Gantry Crane (CMJ / RMG)

Container loading, stacking and transfer along fixed terminal rails.

Payload options35 / 40.5 / 50 t
Rail-centre span18–35 m options
Lift options12.3–21 m
All specifications
Equipment Rail-mounted container gantry crane; CMJ / RMG family
Payload options 35 / 40.5 / 50 t under-spreader family options
Span options 18–35 m rail-centre distance
Lifting-height options 12.3–21 m; selected for the stacking plan
Duty options A6–A8, selected for the load spectrum and shifts
Container formats 20 / 40 / 45 ft by spreader selection
Working layout Container rows, truck or rail lanes, and any cantilever defined in the drawing
Hoisting / trolley / gantry speeds Selected for the capacity, travel distance and handling cycle
Power Terminal electrical supply and cable management specified by order
Controls PLC and variable-frequency drives; anti-sway and remote functions by scope
Spreader modes Telescopic and additional handling modes as selected
Rail / civil interface Crane rails, wheel reactions, foundations and end stops
Safety package Load limiting, travel limits, wind monitoring and storm restraint by design
Configuration boundary Capacity, span, lift and speed must be confirmed as one rated arrangement

Shipbuilding Gantry Cranes

Specify hook loads, lifting-point spacing and coordinated movements for ship-section assembly.

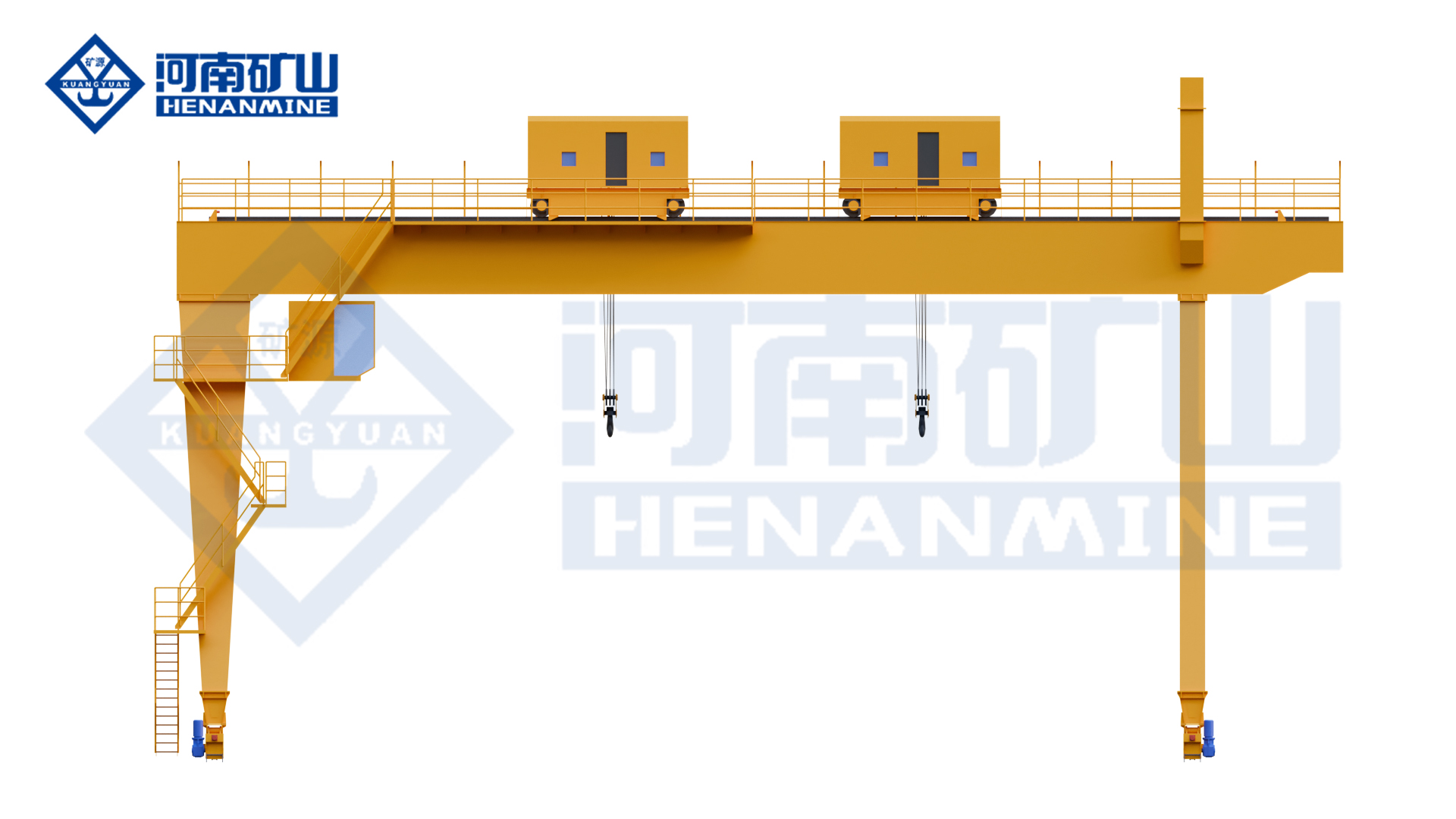

Manufacturer rendering of the MU gantry crane arrangement
MU series

Shipbuilding Gantry Crane (MU)

Ship-section lifting, turning and assembly along dock or slipway rails.

ApplicationShip-section lifting and assembly
Support layoutRigid and flexible supporting legs
Rated arrangementSpecified for the ship section
All specifications
Model MU
Crane arrangement Shipbuilding gantry on dock or slipway rails
Lifting attachment Hook and ship-section lifting tools
Rated suspended load Selected for the load, complete attachment and rigging
Span Selected from the runway centres and required working coverage
Lifting height Upper and lower pickup levels specified with attachment depth and headroom
Working class Selected for the load spectrum, lifts per hour and shifts
Hoisting performance Lifting and positioning speeds specified with the selected mechanism
Trolley travel Travel speed, stopping control and hook approaches selected for the task
Crane travel Speed, runway length and stopping positions specified for the working route
Operating controls Operator position and controls selected for visibility and the process
Electrical supply Site voltage, phases, frequency and power-feed arrangement specified in the offer
Rail and civil interface Rail section, wheel reactions and supporting foundations selected together
Outdoor design Site wind exposure, parking restraint and environmental protection specified where applicable
Clearance envelope Load passage, access and maintenance clearances shown in the arrangement drawing
Supply scope Crane equipment, rail work, installation and commissioning responsibilities agreed in the quotation
Girder layout Single- or double-main-girder arrangement selected for the project
Control package PLC and variable-frequency communication control
Safety monitoring Data and video monitoring functions defined in the equipment scope
Multiple lifting points Individual hook ratings, permitted combined loads and turning sequence specified in the lift plan

Explosion-Proof and U-Type Gantry Cranes

Compare equipment for classified areas, wide portal clearance and below-rail subway construction lifting.

Manufacturer rendering of the Explosion-Proof Electric Hoist Gantry Crane (BMH)
BMH series

Explosion-Proof Electric Hoist Gantry Crane (BMH)

Hook lifting for sites requiring an assessed explosion-protection package.

Hoisting equipmentExplosion-proof electric hoist
Support layoutTwo ground-level rails
Working classA3
All specifications
Model BMH
Working class A3
Lifting mechanism Explosion-proof electric hoist
Lifting attachment Hook
Crane support and runway Two supporting leg frames running on ground rails
Working motions Hoisting, hoist cross travel and crane long travel
Cantilever arrangement With or without cantilever; specify the outside-span lifting reach
Operating control Cab, ground or remote arrangement
Operating pattern Intermittent, repeated loading and material handling
Crane-travel drive layout Vertically arranged travel gearing
Rated suspended load Select for the heaviest complete hook load, rigging and attachment
Rail-centre span Define from the two runway lines and required hook coverage
Lifting height and hook reach State pickup / set-down levels, upper hook position and approach limits
Hoisting speed Match lifting and positioning speed to the selected protected hoist
Trolley and crane speeds Specify loaded travel, approach speed and stopping needs
Site power supply Provide voltage, frequency, phases and power-feed arrangement
Hazardous-area classification State hazardous medium, zone, gas / dust group and temperature requirement
Protection package Define the hoist, travel equipment, controls and accessories for the same area
Applicable standard and documents Agree destination standard, equipment marking and model-specific protection documents
Rails and foundation interface Request final rail section, wheel reactions and foundation / outdoor load cases
Supplier-original rendering of a U-type double-girder hook gantry with upright portal legs; family arrangement, not the exact 10 t reference configuration
U-type hook configuration

U-Type Double Girder Hook Gantry Crane

Hook lifting for bulky loads requiring clear passage between legs.

Portal geometryU-shaped clear opening
Lifting arrangementMain hook; auxiliary hook by selection
Catalogue reference10 t × 18 m, A5
All specifications
Model U-type hook configuration
Crane arrangement U-shaped double-girder hook gantry
Lifting attachment Hook
Rated suspended load Selected for the load, complete attachment and rigging
Span Selected from the runway centres and required working coverage
Lifting height Upper and lower pickup levels specified with attachment depth and headroom
Working class Selected for the load spectrum, lifts per hour and shifts
Hoisting performance Lifting and positioning speeds specified with the selected mechanism
Trolley travel Travel speed, stopping control and hook approaches selected for the task
Crane travel Speed, runway length and stopping positions specified for the working route
Operating controls Operator position and controls selected for visibility and the process
Electrical supply Site voltage, phases, frequency and power-feed arrangement specified in the offer
Rail and civil interface Rail section, wheel reactions and supporting foundations selected together
Outdoor design Site wind exposure, parking restraint and environmental protection specified where applicable
Clearance envelope Load passage, access and maintenance clearances shown in the arrangement drawing
Supply scope Crane equipment, rail work, installation and commissioning responsibilities agreed in the quotation
Portal clearance Leg opening and load envelope checked in the selected drawing
Power-feed arrangement Conductor-line or cable arrangement specified for the runway
Catalogue reference scope One 10 t × 18 m-span selection; separate from custom crane ratings
Reference rated capacity 10 t
Reference span 18 m
Reference main lifting height 11.5 m
Reference working class A5
Reference main hoisting speed 8.5 m/min
Reference trolley travel speed 43.8 m/min
Reference crane travel speed 37.6 m/min
Reference hoist motor YZR180L-6; 17 kW
Reference maximum wheel pressure 225 kN
Reference runway rail P43
Reference power supply 380 V, 50 Hz, 3-phase
Manufacturer catalogue full technical sheet for the 75 t U-type subway slag gantry reference, including correct U-frame drawing and mechanism schedule
U-type subway slag configuration

U-Type Subway Slag Handling Gantry Crane

Below-rail muck lifting and bucket discharge for subway construction shafts.

Catalogue rated load75 t reference arrangement
Reference span30 m
Lift above / below rail10 m / 16.5 m
All specifications
Configuration scope 75 t manufacturer catalogue example; final construction arrangement selected for the project
Crane arrangement U-type subway slag-handling gantry
Lifting attachment Hook with project-selected slag bucket and turning arrangement
Reference rated capacity 75 t
Reference crane span 30,000 mm
Maximum lift above rail 10 m
Maximum lift below rail 16.5 m
Hoisting speed 1 / 10 m/min in the reference configuration
Mechanism classification M6 for the listed hoisting, trolley and crane-travel mechanisms; not a whole-crane A-class
Trolley gauge 9,000 mm
Trolley travel speed 2 / 20 m/min
Crane travel speed 3 / 30 m/min
Trolley / crane base distance 3,560 / 11,740 mm
Trolley / crane rail P43 / 50 kg/m
Trolley / crane maximum wheel pressure 285 / 248 kN in this configuration
Main hoist motor YZP400L1-10; 160 kW; 585 r/min
Power supply 380 V, 50 Hz, 3-phase
Operating controls Operator position and process controls selected for shaft visibility
Working load definition Include the filled bucket, rigging and all suspended equipment
Installation interfaces Shaft opening, discharge level, rails, foundations and commissioning scope agreed in the offer

Select capacity, span, lifting height, duty and speeds as one configuration. Include attachments and rigging in the suspended load; main and auxiliary hook ratings are separate.

Budget planning

Gantry crane price guide

Use these USD ranges for early budget planning. Load, span, lifting height, duty and lifting attachments determine the final quotation.

Indicative USD budget ranges · checked 23 October 2026
Reference configuration Budget range (USD)
5 t single-girder gantry · 18 m span · 3–30 m lifting-height configurations · A3 · 2026 reference USD 11,000–17,500
20/5 t A-type double-girder gantry · A5 · two 2025 examples: 24 m span / 9 m lift / 3+3 m cantilevers; 28 m span / 10 m lift / 10+10 m cantilevers USD 80,000–105,000

Published supplier references, not Henan Mine Crane quotations or installed project prices. The first range covers multiple lifting heights; the second is rounded across two different historical builds. Neither applies to every model. Main and auxiliary hook ratings are not added together.

Confirm trade terms and whether lifting attachments, rails, power feed, freight, taxes, foundations, installation and commissioning are included. Specialist grab, magnetic, metallurgical and container configurations require a separate quotation.

Get a quote for your configuration
Factory acceptance · 100 t

100 t gantry crane for a nuclear project

Henan Mine Crane completed factory acceptance of a 100 t double-girder gantry for a nuclear project. Heavy-load movement and positioning tests formed part of the acceptance process.

The factory-test photograph shows the crane carrying a suspended load. This project-specific example illustrates an acceptance milestone; configuration and test requirements are defined for each order.

View project
100 t double-girder gantry with a suspended test load during factory testing for a nuclear project
100 t nuclear-project gantry during factory testing.

Gantry crane buying questions

Which gantry crane type should I choose?

Start with the material and load route. Electric-hoist and hook cranes handle suspended loads; grab and magnetic arrangements suit compatible bulk or steel materials. Container and shipbuilding cranes require dedicated layouts and lifting interfaces.

What is the difference between a full and semi gantry crane?

Full gantries run on two ground rails. Semi gantries use one ground rail and one elevated runway. Check building support, runway reactions and the material route before selecting the arrangement.

How should I calculate the required lifting capacity?

Account for the workpiece, lifting attachment and all suspended rigging. Confirm whether a published rating includes the grab, magnet or spreader. Main and auxiliary hook ratings are separate; multi-trolley shared loads require an approved operating mode.

Does crane span describe all the space available for a load?

No. Rail-centre span, clear passage between the legs, hook approaches and cantilever reach describe different parts of the working envelope. Check pickup, travel and landing positions against the general arrangement drawing.

Can I combine any capacity, span and lifting height shown?

No. Published ranges and catalogue examples describe different selections. The technical offer confirms one compatible arrangement, including hoist or winch, duty, speeds, wheel loads, power supply and environmental requirements.

What should a gantry crane quotation include?

Send the total suspended load, span, useful lifting height, runway length, operating cycle and destination. Ask the offer to identify the crane, attachment, rails, power feed, freight, taxes, site services and acceptance documents. Confirm the schedule against the agreed configuration and drawing approval.

Compare the range

Gantry crane specification comparison

Compare the support layout, rated load, span, lifting height and duty. Select a full product name to review the configuration.

Swipe across the table to compare specifications.

Model / product Arrangement Capacity Span / working width Lifting height Working class
L-Type Electric Hoist Gantry Crane (MHL) Single girder / L-leg full gantry 1 / 2 / 3 / 5 / 10 / 16 / 20 t 3–31.5 m 6 / 9 / 12 / 18 / 24 / 30 m A3–A5, selected for the operating cycle
Truss Girder Electric Hoist Gantry Crane (MHH) Single girder / truss full gantry 1–20 t 10–30 m 10 m reference A3–A5
Single Girder Electric Hoist Gantry Crane (MH) Single girder / full gantry 3 / 5 / 10 / 16 / 20 t 12–30 m, by capacity 6 m or 9 m A3 at 3–16 t; 20 t by hoist selection
Double Girder Electric Hoist Semi-Gantry Crane (MB₁) Double girder / semi-gantry Project-specific To suit the runway To suit the task A3–A5
Double Girder Electric Hoist Gantry Crane (MHS) Double girder / full gantry 3–50 t 7.5–35 m 4–30 m Selected for the load spectrum and cycle
New-Design Single Girder Electric Hoist Semi-Gantry Crane (KSMB) Single girder / new-design semi-gantry 1–32 t 6–35 m 4–20 m A3–A5
New-Design Single Girder Electric Hoist Gantry Crane (KSMH) Single girder / new-design full gantry 5–20 t; 30 t by design 10–30 m 6 / 9 / 12 / 15 m A5 reference
New-Design Double Girder Electric Hoist Semi-Gantry Crane (MBES) Double girder / new-design semi-gantry Project-specific To suit the runway To suit the task A3–A5
New-Design Double Girder Electric Hoist Gantry Crane (KSMHS) Double girder / new-design full gantry Project-specific To suit the runway To suit the task A3–A5
Grab and Hook Electric Hoist Gantry Crane (MHZE) Grab and hook / full gantry Project-specific To suit the runway To suit the task Project-specific
L-Type Single Girder Winch Gantry Crane (MDG) L-leg / single girder / winch 5–50 t options 18–35 m Selected for the task Selected for the operating cycle
Tunnel Muck Handling Gantry Crane (MGC) Project-selected gantry Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Electromagnetic Gantry Crane (MC) Project-selected gantry Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Hook Semi-Gantry Crane (MGB) Hook semi-gantry developed from a double-girder gantry layout Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Double Girder Hook Gantry Crane (MG) Double-girder hook gantry Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Construction Gantry Crane (MGG) Project-selected gantry Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Truss Gantry Crane (MGH) Truss-girder full gantry Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Gate Hoist Gantry Crane (QM) Gate-hoisting crane Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Double Trolley L-Type Gantry Crane (MDE) L-leg / two winch trolleys 5–50 t model range; individual ratings by offer 18–35 m Selected for the task Selected for the operating cycle
Double Trolley Semi-Gantry Crane (MGBE) Double-trolley semi-gantry Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Double Trolley Magnet and Hook Gantry Crane (MEN) Project-selected gantry Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Double Trolley Truss Gantry Crane (MEH) Project-selected gantry Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Double Trolley Gantry Crane (ME) Project-selected gantry Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Metallurgical Gantry Crane (MGY) Project-selected gantry Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Grab and Hook Gantry Crane (MN) Project-selected gantry Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Grab Bucket Gantry Crane (MZ) Project-selected gantry Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Rail-Mounted Container Gantry Crane (CMJ / RMG) Rail-mounted container gantry 35 / 40.5 / 50 t under-spreader options 18–35 m options 12.3–21 m options A6–A8 options
Shipbuilding Gantry Crane (MU) Shipbuilding / multiple lifting points Project-specific Selected for the runway Selected for the task Selected for the operating cycle
Explosion-Proof Electric Hoist Gantry Crane (BMH) Explosion-proof / full gantry Project-specific To suit the runway To suit the task A3
U-Type Double Girder Hook Gantry Crane U-frame / hook Project-specific; 10 t catalogue example 18 m catalogue example 11.5 m catalogue example A5 catalogue example
U-Type Subway Slag Handling Gantry Crane U-frame / subway slag 75 t reference configuration 30 m reference 10 m above / 16.5 m below rail M6 mechanisms in reference configuration

Model options and project examples are not interchangeable specifications. Confirm the complete load case, geometry, operating mode, environmental conditions and supplied equipment in the technical offer.

Get a gantry crane quote

Send the material, total suspended load, span, useful hook height and destination. A site sketch helps define the lifting route.

Add lift frequency, shifts, power supply, cantilever reach and any special attachment or hazardous-area requirements.

Request a quotation
