What makes KSMB a semi-gantry crane?
One supporting side runs on an elevated runway and the opposite side uses a ground rail and travelling leg. Both interfaces carry crane reactions. The arrangement therefore needs a suitable elevated support as well as a coordinated floor-side runway and foundation.

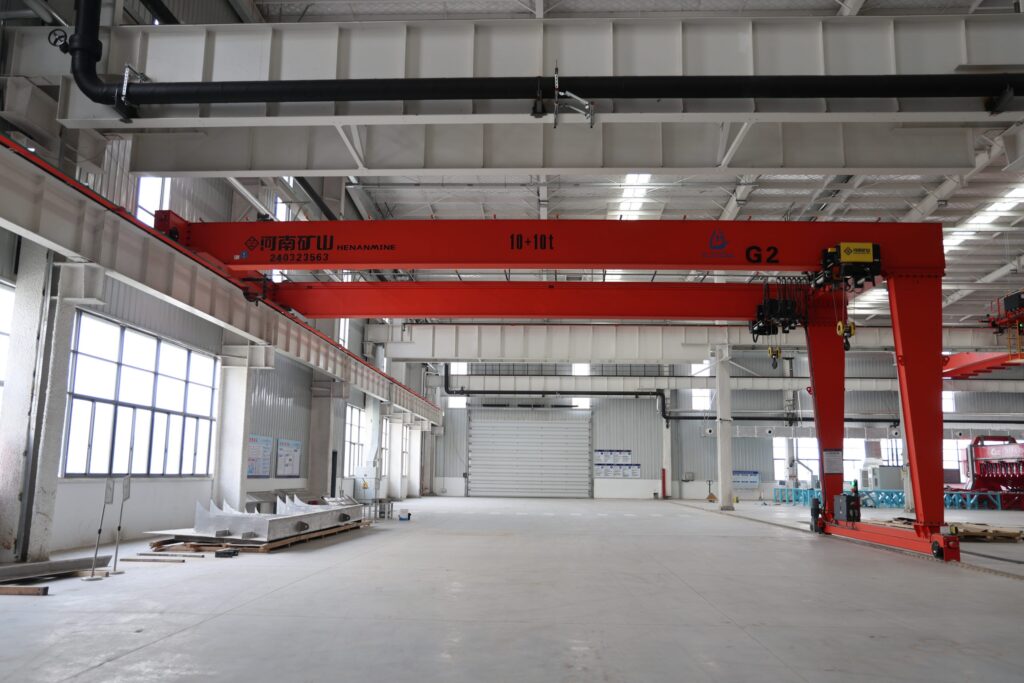

How does KSMB differ from MB₁ and MBES?
KSMB has a single-girder bridge with a European-style electric hoist. MB₁ and MBES use double-girder electric-hoist trolley arrangements. Compare the selected drawings for hook height, approaches, support reactions and duty; the model name alone does not establish which arrangement fits your bay.
Can an existing building support the elevated runway?
It can be considered when the existing beams, connections, columns and foundations are suitable for the selected crane reactions and operating duty. A nearby wall or an existing rail does not establish that suitability. You can begin the crane enquiry before the final support assessment is complete.
How should I measure span and lifting height?
Use the horizontal distance between the two runway rail centre lines for span, and show the elevation of each rail. Describe the hook positions needed at pickup and landing, including rigging and the workpiece. The equipment drawing then resolves useful hook height, approaches and overhead clearances.
Can vehicles cross the ground-rail route?
Describe the proposed crossings and how vehicles use the area. The rail, wheels and moving leg must be coordinated with vehicle and pedestrian routes, including crane stopping positions. Any crossing arrangement belongs in the site layout and installation scope rather than being assumed clear from the span.
Does variable-frequency control specify the actual lifting speed?
It identifies the motion-control arrangement. The selected hoist and drive schedule establishes lifting and travel speeds and the required positioning functions. State how the load is picked up and set down, as well as the travel distance and handling frequency, to select a useful operating package.
Can a grab or electromagnetic chuck be supplied?
These are attachment options for suitable materials. The attachment, hoist, electrical supply and controls must be selected together, with attachment self-weight included in the complete suspended load. Ask the offer to identify the specific attachment and operating functions included.
What information is needed for an initial quotation?
Start with the load, approximate rail-centre span, useful lifting height and destination; leave any unknown dimension open. A sketch or photograph is helpful but optional. Runway elevations, support information, power supply and traffic clearances can be developed as the proposed arrangement takes shape.
