CONSTRUCTION CRANE SOLUTIONS

300 t Bridge Fabrication Overhead Crane

Bridge fabrication needs heavy lifts that remain smooth near weld fixtures, assembly jigs and adjacent teams.

ApplicationZhangjinggao bridge workshop equipment
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope
Heavy overhead crane over a bridge fabrication work area
Heavy overhead crane over a bridge fabrication work area.
THE OPERATING CHALLENGE

Start with the load and the process route.

Bridge fabrication needs heavy lifts that remain smooth near weld fixtures, assembly jigs and adjacent teams.

The load, lifting attachment, building interface and operating sequence need to be reviewed together.

Prepare the technical brief ↗
01 / DEFINE

Section and rigging schedule

02 / DEFINE

Workshop span and hook approach

03 / DEFINE

Fit-up station coordinates

04 / DEFINE

Drive and service requirements

ENGINEERED FOR THE APPLICATION

Move steel-bridge assemblies efficiently within a production bay.

Plan a 300 t bridge crane around the bay span, large-section pickup points and fabrication sequence. Modular construction, full variable-frequency control and service access can support positioning and later upgrades.

Heavy overhead crane over a bridge fabrication work area
Heavy overhead crane over a bridge fabrication work area.
01

Rig the fabricated section

Identify lift points and temporary stiffening or supports.

02

Cross the workshop

Use controlled bridge travel and clear working zones.

03

Place at fit-up

Slow the movement for alignment and verify support before detaching.

✓

Bay geometry

Check hook approach and neighboring jigs throughout the load sweep.

✓

Upgrade access

Reserve practical electrical and service interfaces for future changes.

PROJECT IN OPERATION

Zhangjinggao bridge workshop equipment

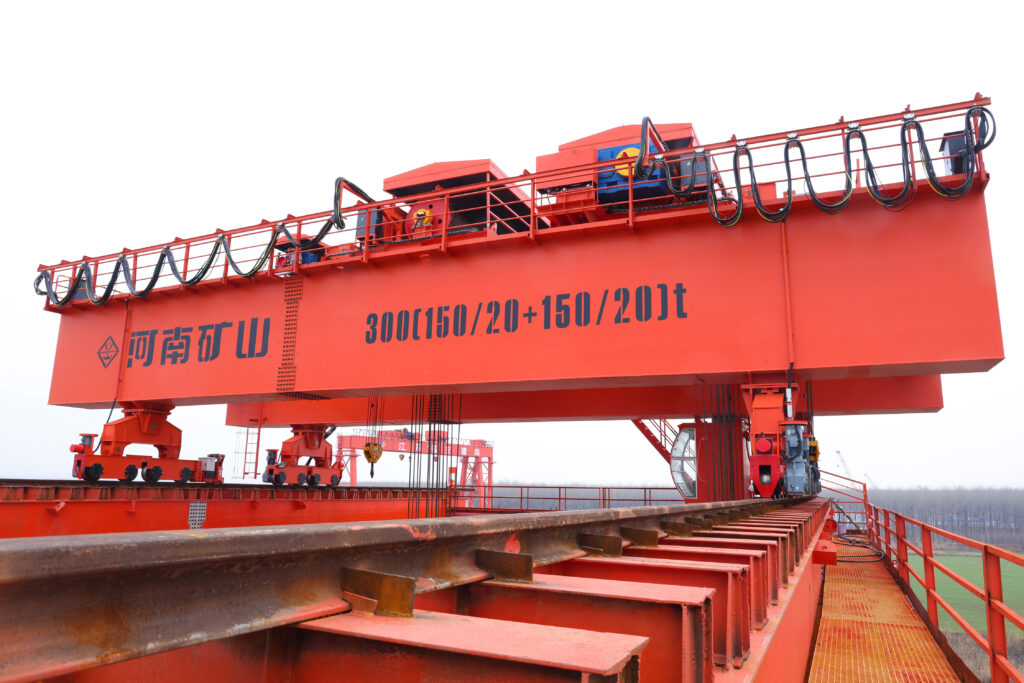

The project used a 300 t new-design double-girder bridge crane for the Zhangjinggao bridge project, with modular design and full variable-frequency control.

Process fit300 t Bridge Fabrication Overhead Crane Solution
EquipmentKSQE New-Design Double-Trolley Crane / QE Double-Trolley Hook Overhead Crane
ProjectZhangjinggao bridge workshop equipment
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementSection and rigging scheduleRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementWorkshop span and hook approachCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementFit-up station coordinatesDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Site requirementDrive and service requirementsProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane system be configured for our site and process?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.
