POWER PLANT CRANE SOLUTIONS

Wind Turbine Nacelle Production Crane

Wind-turbine main-unit production repeats large, precise moves and needs a crane layout that supports assembly takt without obstructing workstations.

ApplicationWindey wind-turbine production project
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

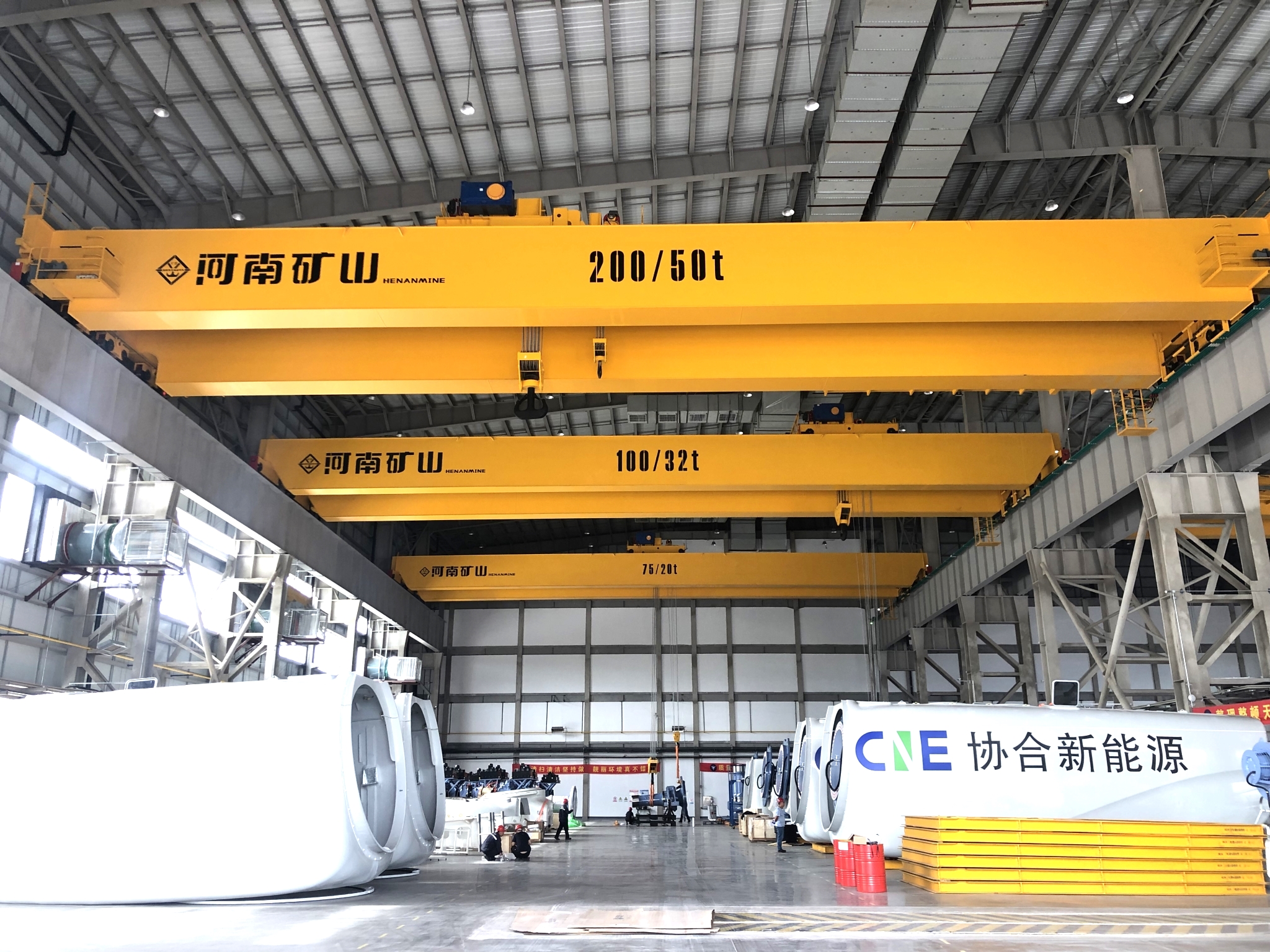

Heavy overhead crane serving a wind turbine nacelle production bay
Heavy overhead crane serving a wind turbine nacelle production bay.
THE OPERATING CHALLENGE

Start with the component and the lift route.

Wind-turbine main-unit production repeats large, precise moves and needs a crane layout that supports assembly takt without obstructing workstations.

The lifted component, rigging, building clearances and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Nacelle component mass and size

02 / DEFINE

Station plan and production takt

03 / DEFINE

Runway and hook-approach geometry

04 / DEFINE

Control and maintenance interfaces

ENGINEERED FOR THE APPLICATION

Link nacelle assembly stations with stable, energy-conscious lifting.

Plan the crane coverage and travel sequence from the component and fixture positions. Full variable-frequency control provides smooth motion, while modular connections can support efficient installation and later maintenance.

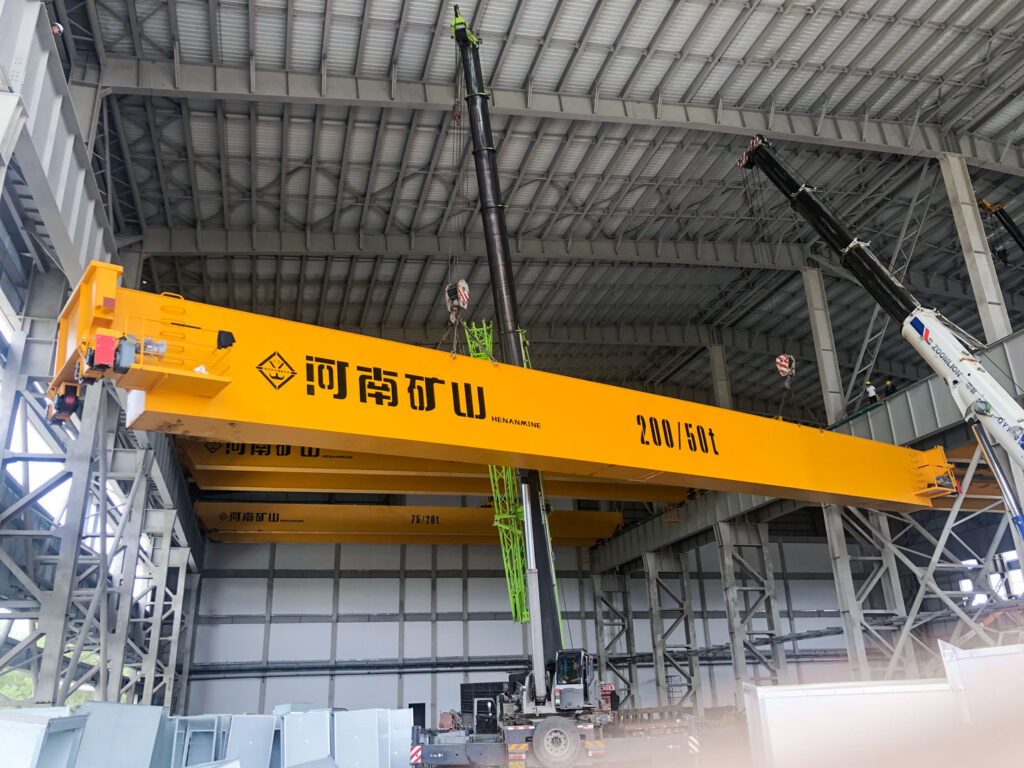

Heavy overhead crane serving a wind turbine nacelle production bay
Heavy overhead crane serving a wind turbine nacelle production bay.
01

Receive the component

Set pickup and laydown zones for major nacelle parts.

02

Carry through assembly

Travel between stations with controlled acceleration and clear sight lines.

03

Place at the fixture

Use slow movement to align the part and release only after support is confirmed.

✓

Factory coverage

Verify hook approach, lift height and service reach for each assembly cell.

✓

Electrical integration

Plan power, variable-frequency control and modular connections with the production building.

PROJECT IN OPERATION

Windey wind-turbine production project

Henan Mine Crane supplied large-span, high-precision cranes for Windey's wind-turbine main-unit production and assembly, using full variable-frequency control and modular connections.

Process fitWind Turbine Nacelle Production Crane Solution
EquipmentKSQ New-Design Hook Overhead Crane / QE Double-Trolley Hook Overhead Crane
ProjectWindey wind-turbine production project
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementNacelle component mass and sizeRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementStation plan and production taktCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementRunway and hook-approach geometryDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Site requirementControl and maintenance interfacesProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be configured for our powerhouse or factory?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
