CONSTRUCTION CRANE SOLUTIONS

Metro Shaft Spoil Removal Gantry

Metro construction needs repetitive vertical lifting where personnel, vehicles and shaft-edge geometry create distinct hazards.

ApplicationGuangfo intercity rail project
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

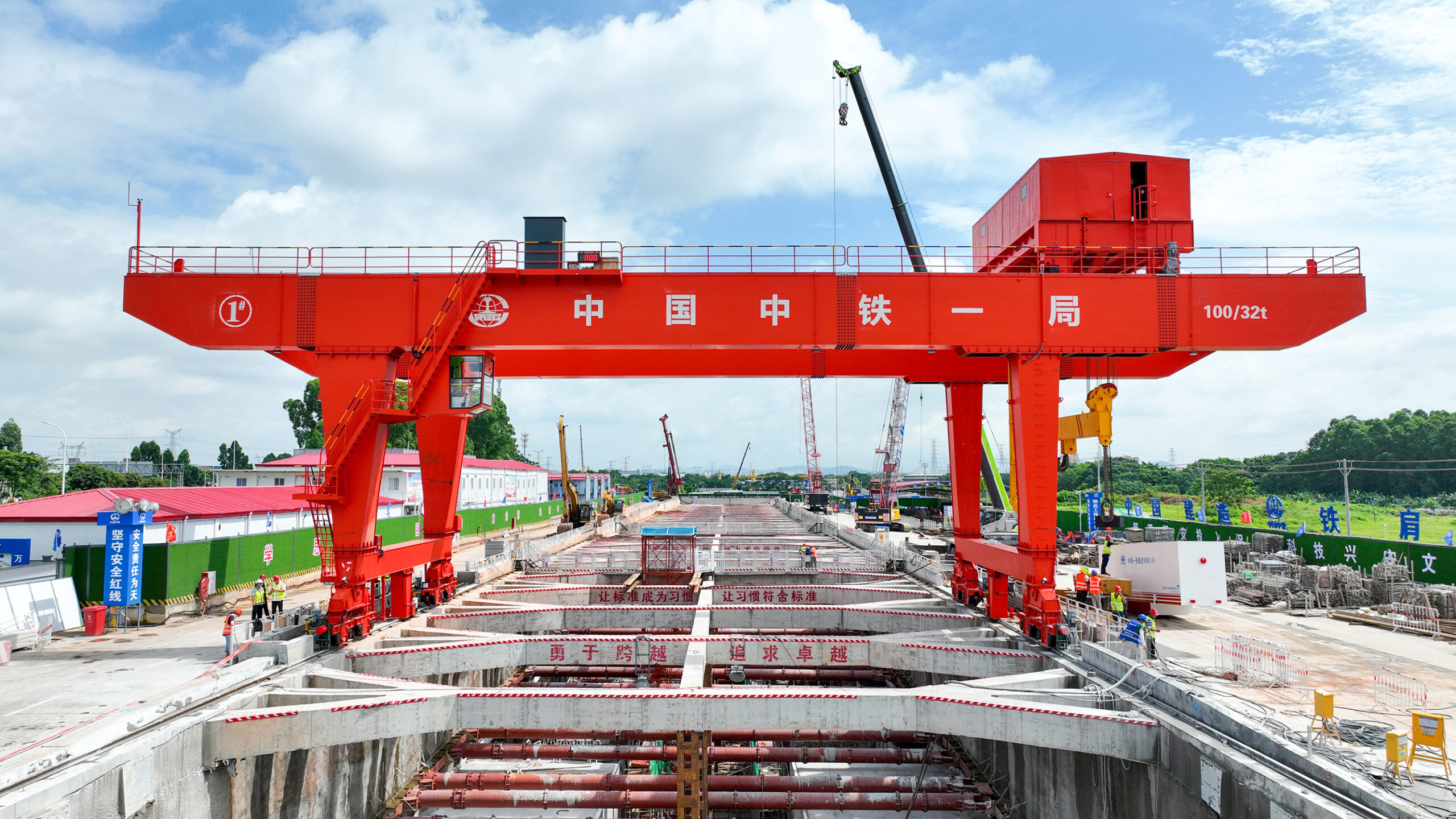

Gantry crane above a metro shaft excavation site
Gantry crane above a metro shaft excavation site.
THE OPERATING CHALLENGE

Start with the load and the process route.

Metro construction needs repetitive vertical lifting where personnel, vehicles and shaft-edge geometry create distinct hazards.

The load, lifting attachment, building interface and operating sequence need to be reviewed together.

Prepare the technical brief ↗
01 / DEFINE

Spoil bucket and other load schedule

02 / DEFINE

Shaft depth and edge geometry

03 / DEFINE

Surface vehicle route

04 / DEFINE

Hoist, limit and emergency requirements

ENGINEERED FOR THE APPLICATION

Lift spoil and construction supplies from a deep rail-worksite shaft.

Configure a dual-girder spoil gantry around the shaft, bucket or lifting gear and surface transfer point. Define the under-rail lift depth, hoist travel, controlled release and protected walking/vehicle routes.

Gantry crane above a metro shaft excavation site
Gantry crane above a metro shaft excavation site.
01

Fill below grade

Check bucket capacity and lifting attachment at the excavation level.

02

Hoist through the shaft

Manage the vertical path and shaft-edge clearance.

03

Discharge at surface

Move spoil to the planned vehicle or stockpile point.

✓

Deep lift

The 40 m under-rail depth requires a verified rope, drum and travel plan.

✓

Site protection

Define limits, alarms and exclusion areas around the shaft and surface route.

PROJECT IN OPERATION

Guangfo intercity rail project

The project used two 100 t dual-girder gantries for spoil and material handling on the Guangfo intercity rail project, with under-rail lift depth up to 40 m.

Process fitMetro Shaft Spoil Removal Gantry Solution
EquipmentSlag Removal Gantry Crane / Construction Gantry Crane
ProjectGuangfo intercity rail project
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementSpoil bucket and other load scheduleRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementShaft depth and edge geometryCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementSurface vehicle routePickup and discharge positions, crane and vehicle clearances, traffic separation and the surface transfer sequence.
04 / Site requirementHoist, limit and emergency requirementsProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane system be configured for our site and process?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
