CONSTRUCTION CRANE SOLUTIONS

Cruise Ship Block Assembly Lifting

Cruise-ship construction joins large blocks and numerous smaller systems, requiring careful crane coverage and hand-offs between trades.

ApplicationFirst domestically built large cruise ship
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

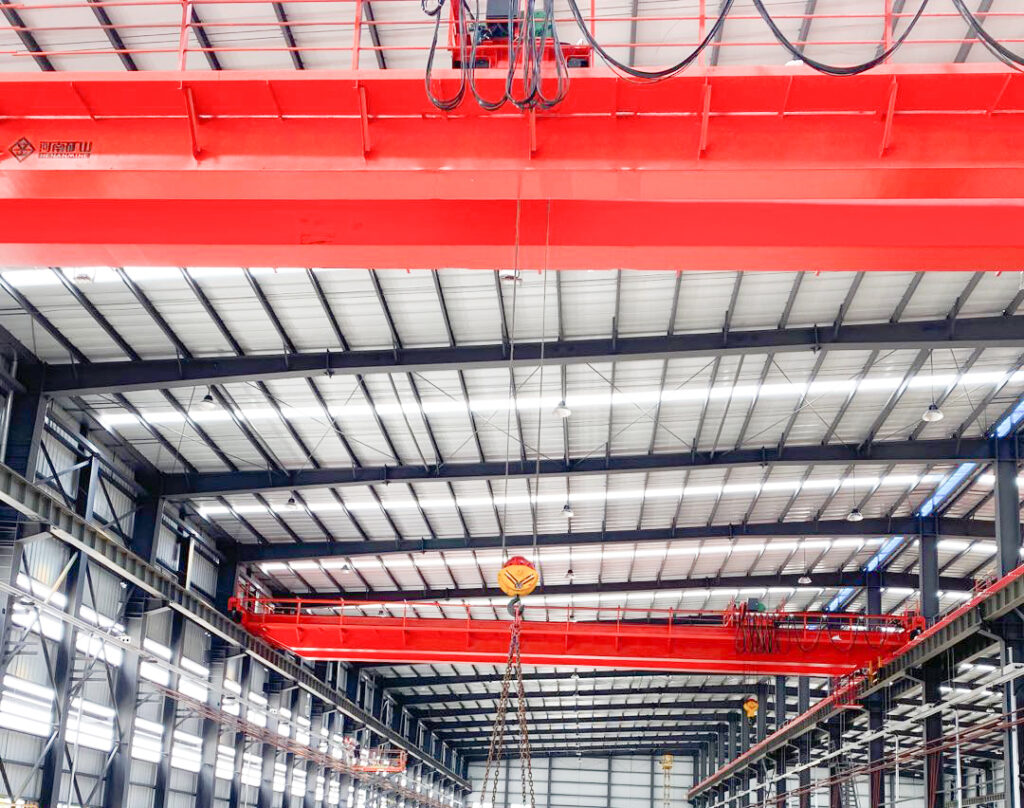

Crane installation for shipyard block assembly and handling
Crane installation for shipyard block assembly and handling.
THE OPERATING CHALLENGE

Start with the load and the process route.

Cruise-ship construction joins large blocks and numerous smaller systems, requiring careful crane coverage and hand-offs between trades.

The load, lifting attachment, building interface and operating sequence need to be reviewed together.

Prepare the technical brief ↗
01 / DEFINE

Block and equipment load list

02 / DEFINE

Shipyard bay or dock layout

03 / DEFINE

Rigging and fit-up sequence

04 / DEFINE

Concurrent crane and trade schedule

ENGINEERED FOR THE APPLICATION

Coordinate many component lifts during ship final assembly.

Allocate cranes to the shipbuilding production stages from block transport through outfitting. Match attachments and controlled travel to component geometry while reserving access for surrounding assembly work.

Crane installation for shipyard block assembly and handling
Crane installation for shipyard block assembly and handling.
01

Receive the block or part

Verify weight, lift points and staging at the shipyard.

02

Move to the build position

Coordinate crane travel with adjacent crews and structures.

03

Install and release

Confirm fit-up support and the next work team's access.

✓

Mixed load types

Separate heavy blocks from delicate equipment lifts in the schedule.

✓

Collaborative yard work

Plan exclusion areas and crane conflicts across trades.

PROJECT IN OPERATION

First domestically built large cruise ship

Henan Mine Crane supplied 12 cranes of various types for the final assembly phase of China's first domestically built large cruise ship.

Process fitCruise Ship Block Assembly Lifting Solution
EquipmentShipbuilding Gantry Crane / KSQ New-Design Hook Overhead Crane
ProjectFirst domestically built large cruise ship
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementBlock and equipment load listRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementShipyard bay or dock layoutCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementRigging and fit-up sequenceLifting-point geometry, rigging arrangement, orientation, fit-up clearance and permitted coordinated motions.
04 / Site requirementConcurrent crane and trade scheduleCrane operating zones, collision interfaces, exclusion areas and access windows agreed with adjacent trades.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane system be configured for our site and process?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
