Bring a vehicle to the bay
Confirm the repair position and access for crane movement.
INFRASTRUCTURE / LIFTING SOLUTIONS
Metro Depot Maintenance Crane System Solution
A metro depot needs crane coverage for car maintenance and equipment removal throughout the operating life of the line.

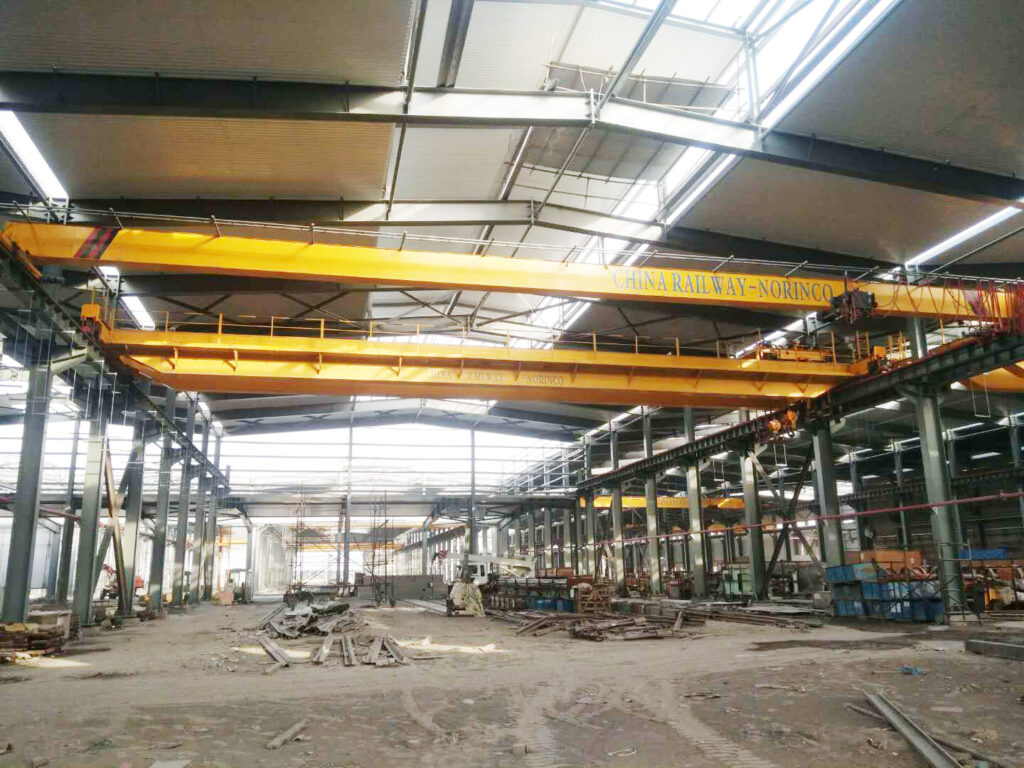

Henan Mine Crane equipment for Lahore Orange Line metro depot
THE LIFTING SOLUTION
Keep vehicle overhaul lifts available after a railway opens.
A metro depot needs crane coverage for car maintenance and equipment removal throughout the operating life of the line.
Map repair bays, vehicle clearance and lifted assemblies, then allocate workshop cranes to the depot and parking areas. Design hook approach, safe access and maintenance procedures around vehicles in service.
HANDLING SEQUENCE
How the solution works.
Follow the load through the operation to see where lifting equipment, tooling and controls must work together.
Lift the assembly
Use the designated attachment and maintain clearance from the car body.
Return to service
Record the lift and clear the bay for inspection or reassembly.
ENGINEERING DECISIONS
What determines the final configuration?
These choices affect safety, process fit and the operating life of the installation.
Vehicle clearance
Check hook position and load swing over parked rolling stock.
Operating continuity
Schedule crane inspections around depot maintenance windows.
DELIVERED PROJECTS
Experience on real jobs.
See how cranes and lifting systems were configured for demanding operating environments.
PROJECT 01
Lahore Orange Line metro depot
The project involved 32 cranes of various types for the Lahore Orange Line metro project, primarily serving maintenance and commissioning in the depot and parking areas.
RELEVANT EQUIPMENT
Equipment options for this solution.
These product families support the handling tasks above. The final crane and attachment are selected from the site brief.
SPECIFICATION BRIEF
What we need to size your crane.
Send the operating brief and the relevant layout drawings. The resulting proposal can address capacity, geometry, duty, controls, installation interface and safety requirements as one system.
Prepare your enquiry ↗- 01Vehicle and component dimensions
- 02Depot bay and runway drawings
- 03Maintenance lift frequency
- 04Operator and inspection plan
NEXT STEP
Tell us what your crane needs to lift.
Start with a load schedule and site plan. Our team can help develop the matched crane arrangement and technical scope.
