LX / ELECTRIC UNDERHUNG CRANE

LX Underhung
Single Girder
Overhead Crane

Lift components, tooling and maintenance loads across a workshop bay while keeping floor routes clear. The LX pairs an electric wire-rope hoist with a bridge running beneath suspended I-beam runways.

HELP CHOOSING YOUR CRANE

Send the heaviest load, required lifting height and approximate runway spacing. A workshop photo or sketch is enough to start the selection.

Rated capacity
0.5–10 t
Span
3–16 m
Lifting height
6 / 9 / 12 / 18 m
Working class
A3–A5
Suspended bridge with electric liftingLoad and lifting height configured to your bay

Include the weight of slings or lifting attachments in your enquiry. We will match the hoist, travel and hook coverage to your work.

01
Keep floor routes open

Suspended crane travel for assembly, maintenance and material handling.

02
Choose the lifting and control package

Compare single-speed or dual-speed lifting, then choose pendant or wireless operation.

03
Clear quotation

See the equipment, delivery and installation support included in your offer.

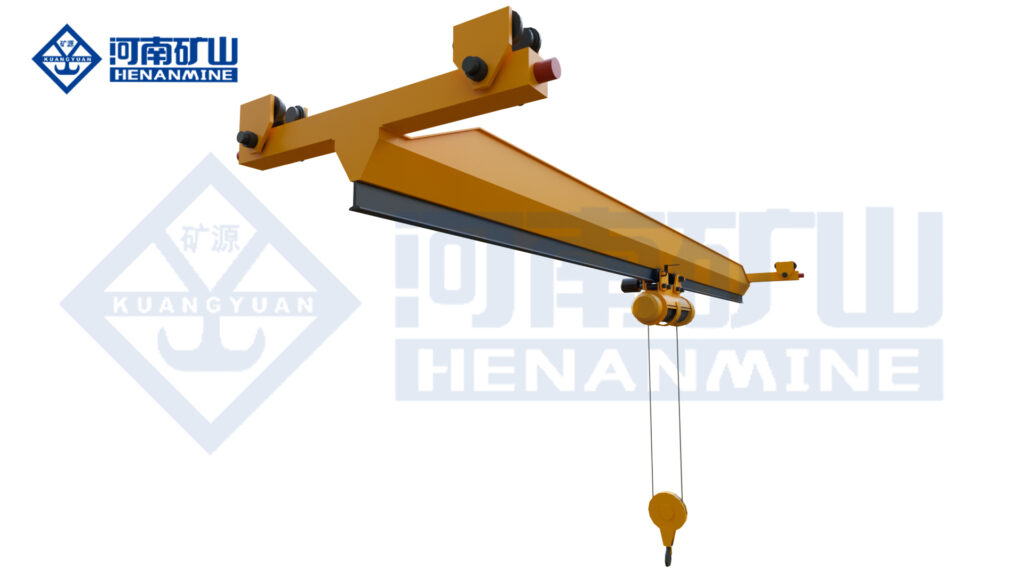

Electric underhung single-girder crane with hoist installed below a workshop support beam

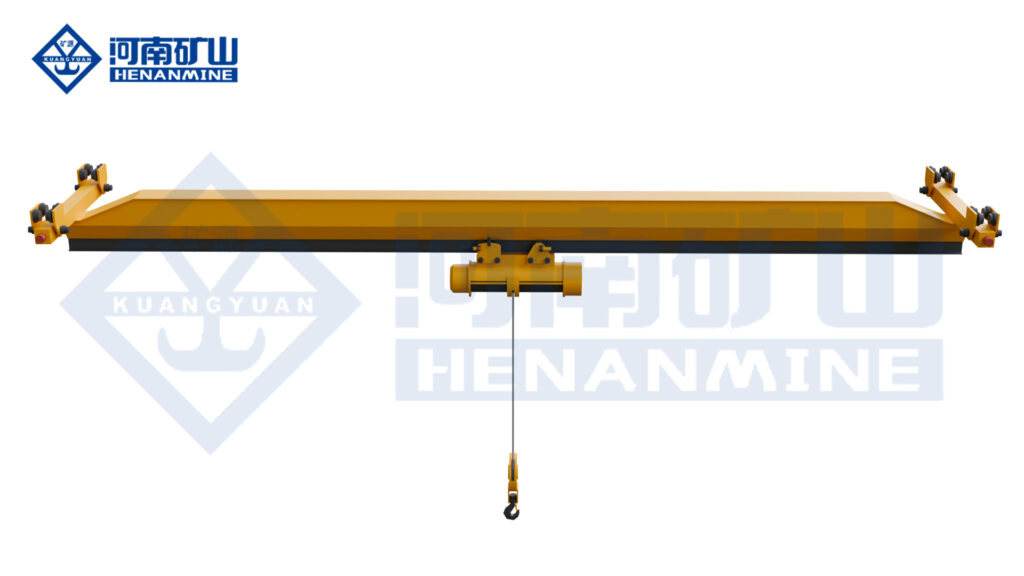

Suspended bridge serving a workshop bay
01 / APPLICATIONS

Lift across the bay while keeping the floor open.

01

Assembly & fabrication

Bring parts to welding, fitting or inspection stations along a defined lifting route. Set the rated load from the heaviest component together with its lifting gear.

02

Equipment maintenance

Remove motors, pumps or machine assemblies within the crane's hook coverage. Check the extraction path and highest hook position before selecting the hoist.

03

Stores & dispatch

Serve material staging, inspection and dispatch positions within the crane’s hook coverage. Plan the lifting route around racks, machinery and vehicle access.

An LX crane is suitable only where the proposed supporting structure and runway interfaces pass the project load check. For a building without suitable suspended supports, compare other single-girder arrangements.

02 / TECHNICAL SPECIFICATIONS

LX underhung crane specifications

Compare the standard load, span and motion options below. The selected combination must also provide the hook coverage and lifting duty your workshop needs.

Rated capacity0.5 / 1 / 2 / 3 / 5 / 10 t
Span3–16 m; custom spans available
Lifting height6 / 9 / 12 / 18 m
Working classA3–A5
Hoist typeCD1 single-speed / MD1 dual-speed wire-rope hoist
Hoisting speed, 0.5–5 t8 m/min or 8 / 0.8 m/min
Hoisting speed, 10 t7 m/min or 7 / 0.7 m/min
Trolley travel speed20 or 30 m/min
Crane travel speed20 or 30 m/min
Power supply380 V, 50 Hz, 3-phase; site supply options available
ControlGround pendant / wireless remote control
RunwaySuspended I-beam runway
Wheel diameter, 0.5–5 t130 mm
Wheel diameter, 10 t150 mm
Travel motor output2 × 0.4 kW (0.5–5 t); 2 × 0.8 kW (10 t)
I-beam runway section20a–45c (0.5–2 t); 32a–45c (3–5 t); 40b–63c (10 t)
Operating environmentGeneral workshops and warehouses
Minimum order1 crane set

The project drawing and technical offer confirm the rated load, span, lifting height, working class and structural reactions together.

03 / WORKSHOP VIEWS

LX cranes in the workshop

See how the bridge and hoist sit below the support beams, with the working bay accessible from the floor.

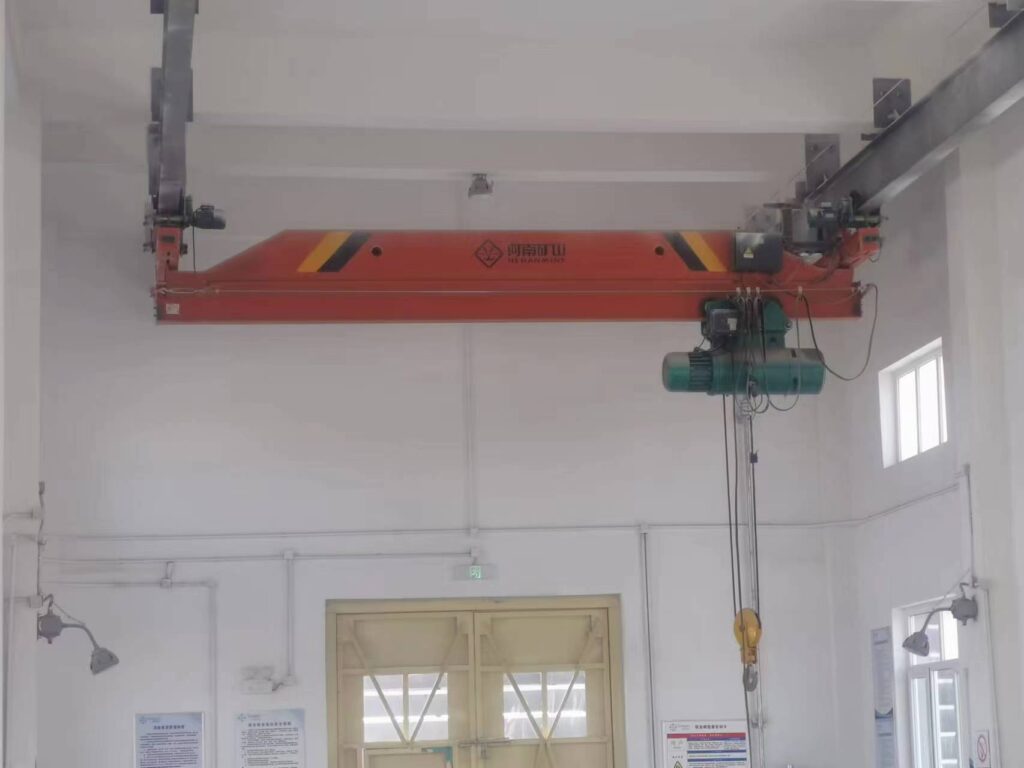

Orange underhung crane travelling beneath structural steel beams in a workshop
Below the support beamsReview the available overhead envelope and hanger locations.
Underhung single-girder crane with green wire-rope hoist beneath the workshop roof
Bridge and hoist arrangementConfirm lifting height and hook coverage for the actual production route.
04 / STRUCTURE & CONFIGURATION

Choose the hoist, travel and runway package.

Start with the loads and workstations the crane will serve. Select the lifting speed, controls and runway scope around that daily work.

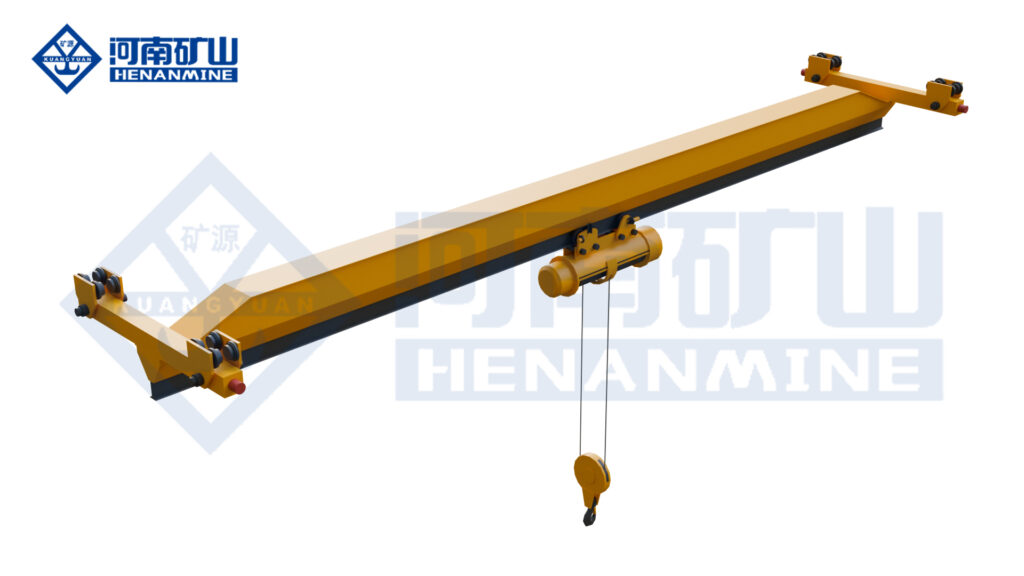

Underhung crane bridge and electric hoist installed below a workshop support structure
Suspended bridge, travel assembly and electric hoist
01 / SUPPORTS

Runway and support scope

Confirm whether you need the crane only or also runway beams and hangers. The support arrangement must suit the crane loads and the building.

02 / HOIST

Single-speed or dual-speed lifting

Choose a CD1 single-speed hoist for straightforward lifting, or an MD1 dual-speed hoist when a slower final approach helps position the load. Select lifting height with the available hook clearance.

03 / MOTION

Move through the working bay

Select trolley and bridge travel to reach your pickup and set-down positions. Choose speeds for the travel distance, positioning task and frequency of use.

04 / OPERATOR

Keep the lift in view

Choose pendant or radio control around the operator's walking route, visibility and site safety requirements.

05 / PURCHASING & DELIVERY

What comes with your LX crane?

Compare the equipment and service scope before ordering. Your offer sets out the selected crane specification, price, delivery terms and agreed support.

ORDER QUANTITY

Quote one bay or a factory package

The minimum order is one crane set. For several bays, list the quantity and lifting task for each crane so the offer can identify every configuration.

PRICE & SUPPLY BOUNDARY

Compare the quoted scope

Ask for the bridge, hoist, controls and power feed to be identified, together with any runway beams, hangers, packing, freight and installation services.

DOCUMENTS

Documents for your destination

State the destination country and any required standards. The offer identifies the drawings, manuals, inspection records and applicable conformity documents for the ordered equipment.

DELIVERY

Delivery time in your quotation

Your offer confirms production lead time and planned dispatch for the selected crane. Freight transit and any site work are scheduled separately to suit the destination.

INSTALLATION

Installation support

Request installation guidance, commissioning support or site assistance with your quotation. The agreed scope and costs should cover your location and installation schedule.

WARRANTY & SPARES

Warranty and spare parts

Check the warranty period, start date and coverage in the offer. Ask for recommended spares and service arrangements for the selected wire-rope hoist and travel drives.

07 / BUYER QUESTIONS

Answers before you specify an LX crane.

Compare the lifting options, working coverage and complete supply scope for your workshop.

When is an underhung crane the right choice?

Choose it when a suitable building structure can support suspended runways and the bridge gives the required floor coverage. Compare the load path, hook position and installed cost with a top-running arrangement before selection.

Can an LX crane hang from my existing roof beams?

It may be possible if the beams, connections and supports are suitable for the crane loads. Start with a workshop photo or available building drawing; the final support arrangement is checked before installation.

What load and span can I order?

Listed capacities are 0.5, 1, 2, 3, 5 and 10 t, with spans of 3–16 m and custom spans available. Capacity, span, lifting height and duty are selected together for your bay; the offer confirms the combination you can order.

How do I check hook coverage?

Mark the pickup and set-down positions, required upper hook level and obstacles on your floor plan and building section. The crane drawing will show usable side and end approaches.

What belongs in the quotation?

Ask for a line-by-line scope covering bridge, hoist, suspended runway and hangers, power feed, controls, inspections, packing, freight and any installation or commissioning service.

Can site voltage and controls be matched to my country?

Provide the plant's voltage, frequency and phase, destination country, operator position and preferred control method. The electrical package is specified for the ordered crane.

When will it be delivered, and what warranty applies?

The offer confirms production lead time, delivery terms and the applicable warranty period, start date and coverage. It also identifies the installation support, service contact and spare-parts scope agreed for your project.

Should I choose single-speed or dual-speed lifting?

Single-speed CD1 lifting suits straightforward pickup and set-down work. The MD1 dual-speed option adds a slower lifting speed for the final approach when fitting components or positioning a load. Tell us how the load is placed so the hoist can be selected for the task.

Is LX suitable for hazardous or special environments?

LX is listed for general workshops and warehouses. If your process involves an explosive atmosphere, high temperature or another special condition, include it in the enquiry so a suitable crane arrangement and protection package can be selected.

08 / YOUR LX PROJECT

Get an LX quotation for your workshop.

Tell us the heaviest load, working area and required hook height, plus your project location. Add a workshop photo or sketch if available; we can help you choose the remaining configuration.

  • LX bridge and hoist matched to your lifting task
  • Defined hook coverage and equipment scope
  • A project-specific quotation and delivery programme

info@cranehenanmine.com

PRODUCT SELECTEDLX electric underhung crane

Not sure about a dimension? Leave it blank.

↑
LX underhung craneRequest your project quotation
Get a quotation ↗
