KSLX / MODULAR SINGLE GIRDER SUSPENSION CRANE

KSLX Modular Underhung Crane

Move components from staging to assembly with a compact suspended crane. KSLX combines dual-speed electric lifting, variable-frequency bridge travel and a modular single-girder layout for controlled positioning over your production bay.

HELP CHOOSING YOUR CRANE

Tell us the maximum suspended load, approximate runway spacing and required hook travel. Include the positioning task so we can recommend the lifting and travel package.

Rated capacity
Configured to your load
Working span
Configured to your workshop
Lifting speed
5 / 0.83 m/min
Bridge travel
VFD stepless control
Dual-speed positioningPendant or wireless control

A workshop photo or sketch helps show the workstations and available overhead space. You can start an enquiry before every dimension is known.

01
Lift and position with two speeds

Use the normal lifting speed to raise the component, then the slower speed for a controlled final approach at the workstation.

02
Smooth movement across the bay

Variable-frequency crane travel gives the operator controlled acceleration and deceleration when moving suspended parts between work areas.

03
More room for production

Keep crane travel overhead while leaving floor space for machines, benches and staging. Configure the suspended bridge around the working area to be served.

Underhung crane handling cylindrical material above a workshop production area
Overhead handling with production space below
01 / APPLICATIONS

Controlled lifting for everyday production.

01

Machinery and component assembly

Bring motors, tooling and fabricated parts from staging to fitting stations. The slower lifting speed helps with the final approach when placing a component.

02

Manufacturing workstations

Serve several production stations from one overhead bay. Plan pickup and set-down positions around machinery, access aisles and the usable hook coverage.

03

Equipment servicing

Remove and refit machine components within the crane’s working area. Select the hook travel and pendant or wireless control around the maintenance task.

For handling across an exceptionally wide hall, compare the LXD multi-point suspension arrangement.

02 / TECHNICAL SPECIFICATIONS

KSLX specifications and configuration options

The dual-speed hoist and variable-frequency bridge travel support controlled handling. Capacity, runway spacing, hook travel and duty are selected together for your production cycle.

Rated capacityConfigured to your maximum lifted load
SpanConfigured to workshop width
Lifting heightConfigured to required hook travel
Hoist typeCompact electric hoist
Hoisting speed5 / 0.83 m/min dual speed
Crane travelVFD stepless speed control
Trolley travelSelected for positioning and cycle time
Working classSelected for load spectrum and lifting frequency
ControlGround pendant / wireless remote control
Remote optionsHandheld transmitter / joystick transmitter
Bridge structureLightweight modular single girder
RunwaySuspended overhead runway
Power supplyConfigured to site voltage and frequency
Operating environmentMachinery manufacturing, assembly and power-sector workshops
CustomizationCapacity, span, lift height and travel speed
03 / EQUIPMENT VIEWS

See the suspended arrangement in a working space.

These views show the bridge below the overhead runway and the electric hoist serving equipment and material positions underneath.

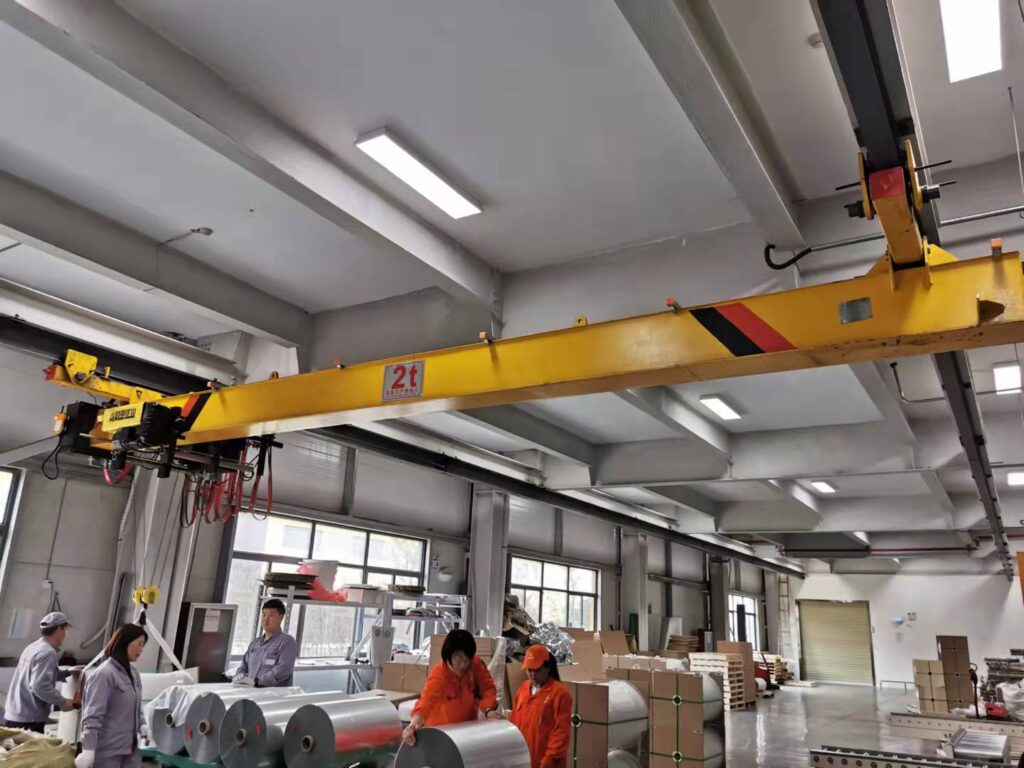

Henan mine crane co., ltd. single girder underhung crane above a manufacturing workstation
Suspended crane above a manufacturing work area
Underhung crane handling cylindrical material above a workshop production area
Overhead handling with production space below
04 / CONFIGURATION

Choose the handling package around your work.

Select the bridge and hoist for your complete load and working area, then match the motion settings and controls to the way your operators handle each lift.

Underside view of KSLX suspension crane showing compact hoist and underhung wheels
Compact hoist and underhung wheel arrangement
01 / OPTION

Capacity and lift height

Include slings and lifting attachments in the maximum suspended load. Choose hook travel to reach the lowest pickup position and the required placement height.

02 / OPTION

Dual-speed lifting

The listed 5 / 0.83 m/min lifting speeds combine normal lifting with a slower final approach for fitting, assembly and load placement.

03 / OPTION

Variable-speed bridge travel

Use variable-frequency bridge travel to control acceleration and deceleration between stations. Select travel settings for the distance, load and production cycle.

04 / OPTION

Operator controls

Choose a ground pendant or a wireless handheld or joystick transmitter. Select the operator position and control layout for clear visibility of the load.

05 / PURCHASING & DELIVERY

What comes with your KSLX crane?

Request a quotation for the complete handling package, with the equipment, delivery and service scope clearly identified.

ORDER QUANTITY

One crane or a workshop package

Single-crane enquiries are welcome. Request one unit or a coordinated package for several working bays.

QUOTATION

See the equipment included

Compare the modular bridge, compact hoist, travel drives, controls and power feed. The offer also identifies any runway supply, packing, freight and installation services.

DOCUMENTS

Documents for your destination

Include your destination country and required standards in the enquiry. The offer lists the drawings, operating and maintenance documents, inspection records and applicable conformity documents for the selected crane.

DELIVERY

Delivery time in your quotation

The offer confirms production lead time and planned dispatch for your chosen configuration. Shipping and site work are scheduled separately to fit the destination and installation plan.

INSTALLATION

Installation support

Tell us where the crane will be installed and whether you need installation guidance, commissioning assistance or site support. The quotation confirms the agreed services and costs.

WARRANTY & SPARES

Warranty and spare parts

The offer defines the warranty period, start date and coverage. Ask for recommended spares and service support for the compact hoist, travel drives and selected controls.

07 / BUYER QUESTIONS

Answers for your KSLX crane purchase

Choose the lifting, motion and control package around your production task, then compare the complete order scope.

What is the main reason to choose KSLX instead of a conventional LX crane?

KSLX offers a compact modular bridge, variable-frequency crane travel and listed 5 / 0.83 m/min dual-speed lifting. It is a useful comparison when your assembly or production work needs a slower lifting approach and controlled bridge acceleration.

Which capacity and span can I order?

Capacity, runway spacing and hook travel are configured for the lifting task and available workshop space. Send the heaviest load including lifting gear, the working area and lifting height; the offer confirms the matched crane arrangement.

Can the crane be operated by wireless remote control?

Yes. Handheld and joystick transmitter options are available, as well as ground pendant control. The selected control is included in the quotation.

What does the crane quotation include?

The quotation identifies the bridge, end carriages, electric hoist, travel drives and electrical controls. Runway equipment, power supply, packing and installation support can be priced as specified line items.

What documents, delivery time and warranty will I receive?

The quotation identifies the technical and operating documents, applicable conformity requirements, production lead time, dispatch basis and warranty terms for the selected crane. State any required standards and your target installation date when enquiring.

Can I buy one crane and receive installation support?

A single crane project can be quoted. Installation guidance, commissioning assistance and recommended spares can be included to match the destination and site schedule.

What information helps select the working duty?

Share the typical and maximum loads, approximate lifts per hour and operating shifts. These details help match the hoist and crane duty to the way the equipment will be used, including repeated production handling.

Can KSLX use an existing suspended runway?

An existing runway may be considered if its beam profile, clearances, supports and load capacity suit the selected crane. Share any available runway dimensions or workshop photographs so compatibility can be assessed before the final configuration is agreed.

08 / YOUR KSLX CRANE PROJECT

Get a KSLX quotation for your production bay.

Tell us what you lift, where it is picked up and how it needs to be placed. Add the load, working dimensions and project location for a crane proposal matched to your production task.

  • Dual-speed lifting and travel settings for your task
  • Clear equipment and service scope
  • Delivery and support terms in your offer
