AUTOMATED WAREHOUSE CRANES

Automated Power Cable Warehouse Handling

Power projects store cable and other electrical items with changing locations, so an automated crane must know both the load and its destination.

ApplicationElectrical equipment warehouse project
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

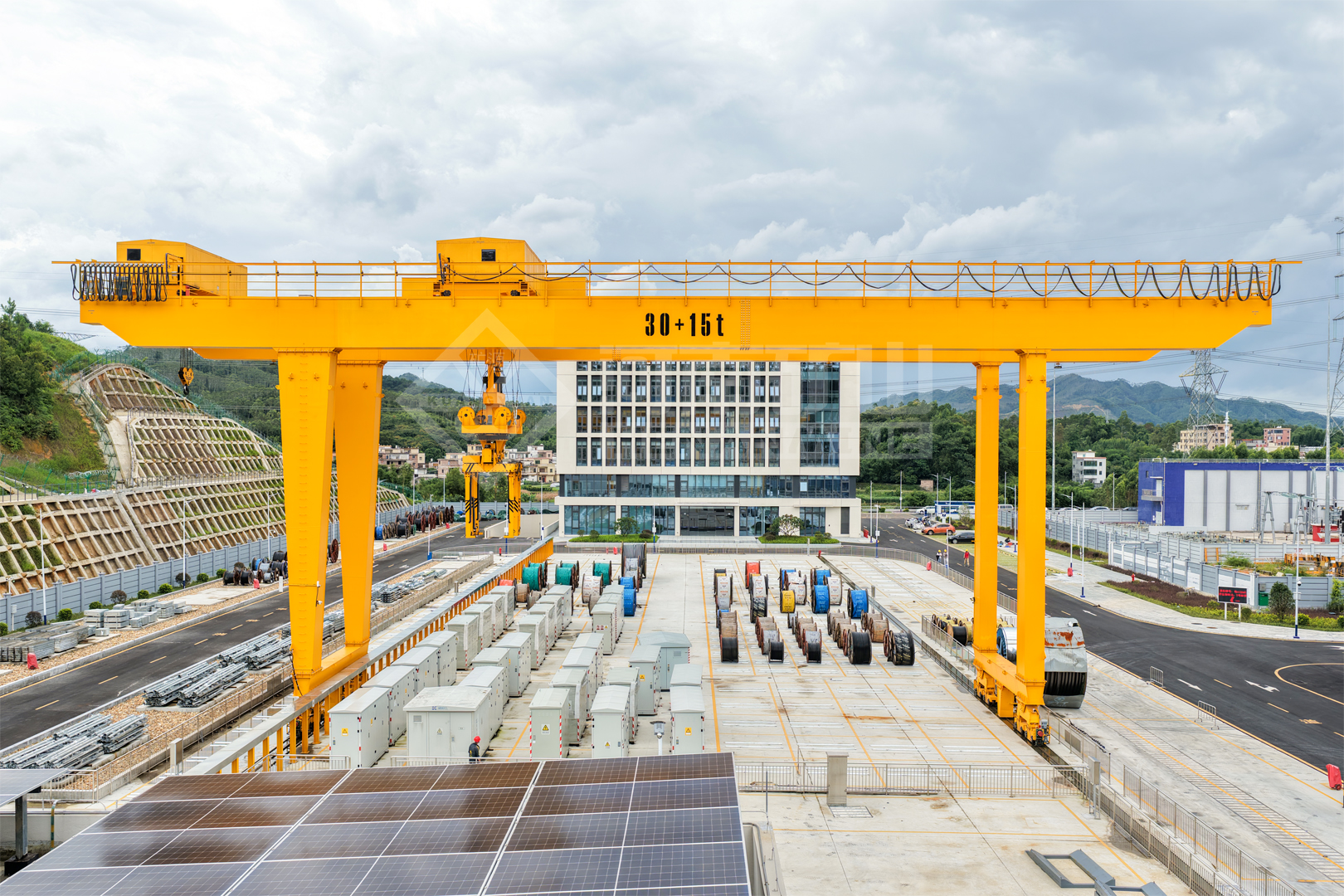

Crane arrangement for automated power cable warehouse handling
Crane arrangement for automated power cable warehouse handling.
THE OPERATING CHALLENGE

Start with the component and the lift route.

Power projects store cable and other electrical items with changing locations, so an automated crane must know both the load and its destination.

The lifted component, rigging, building clearances and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Cable package dimensions and mass

02 / DEFINE

Storage and vehicle layout

03 / DEFINE

Inventory and WCS/WMS interfaces

04 / DEFINE

Obstacle, sway and release rules

ENGINEERED FOR THE APPLICATION

Identify, lift and trace electrical materials without manual travel.

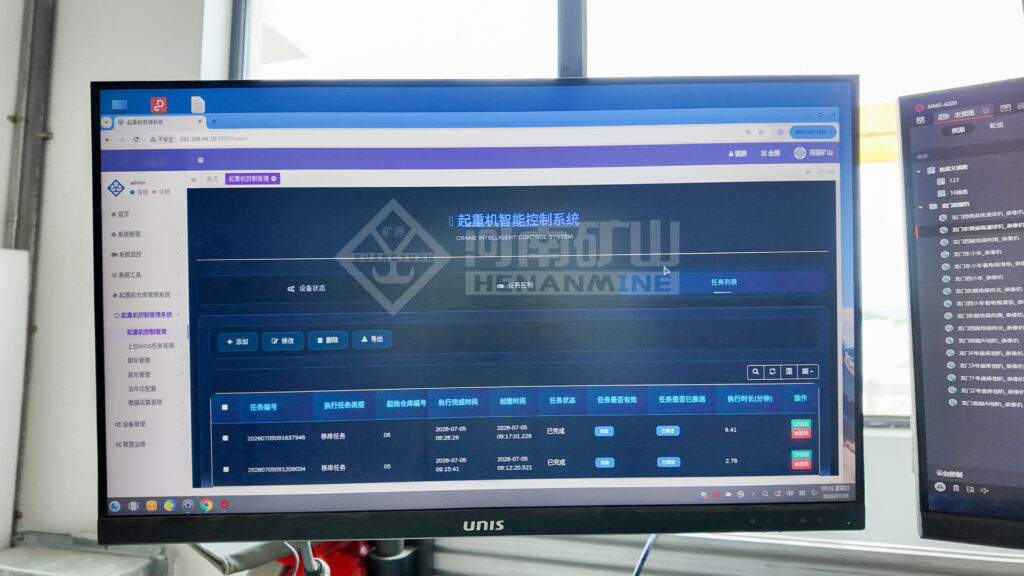

Connect a scanning-equipped crane to WCS dispatch and WMS inventory records. Position feedback, intelligent lifting gear, obstacle detection and anti-sway allow each pickup and release to be logged and supervised from the control room.

Crane arrangement for automated power cable warehouse handling
Crane arrangement for automated power cable warehouse handling.
01

Identify the item

Use scanning and visual checks to match a load with its warehouse record.

02

Execute the lift

Engage the monitored attachment and follow the assigned route with obstacle checks.

03

Close the task

Confirm placement and write the movement to the inventory system.

✓

Data integrity

Define how load identity, position and exception states pass between crane, WCS and WMS.

✓

Attachment verification

Test the detection switch and release logic with actual cable packages.

PROJECT IN OPERATION

Electrical equipment warehouse project

The project used two automated cranes for a power project handling cables for box-type substations, using PLC control, 3D scanning, visual detection, WCS scheduling and WMS records.

Process fitAutomated Power Cable Warehouse Handling Solution
EquipmentKSQ New-Design Hook Overhead Crane / QE Double-Trolley Hook Overhead Crane
ProjectElectrical equipment warehouse project
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementCable package dimensions and massRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementStorage and vehicle layoutCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementInventory and WCS/WMS interfacesLoad identification, storage addresses, WCS dispatch messages, WMS inventory updates, task acknowledgements and exception recovery agreed at the system interface.
04 / Site requirementObstacle, sway and release rulesProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be configured for our powerhouse or factory?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.
