STEEL MILL CRANES

Hot Slab Clamp Crane Handling

Slabs leaving steel production can exceed 650 °C, making the clamp, structure and control system part of the thermal risk plan.

ApplicationShandong Iron and Steel Rizhao slab-handling project
Installed equipmentProject-specific lifting arrangement
Site-specificLoad, route, duty and delivery scope

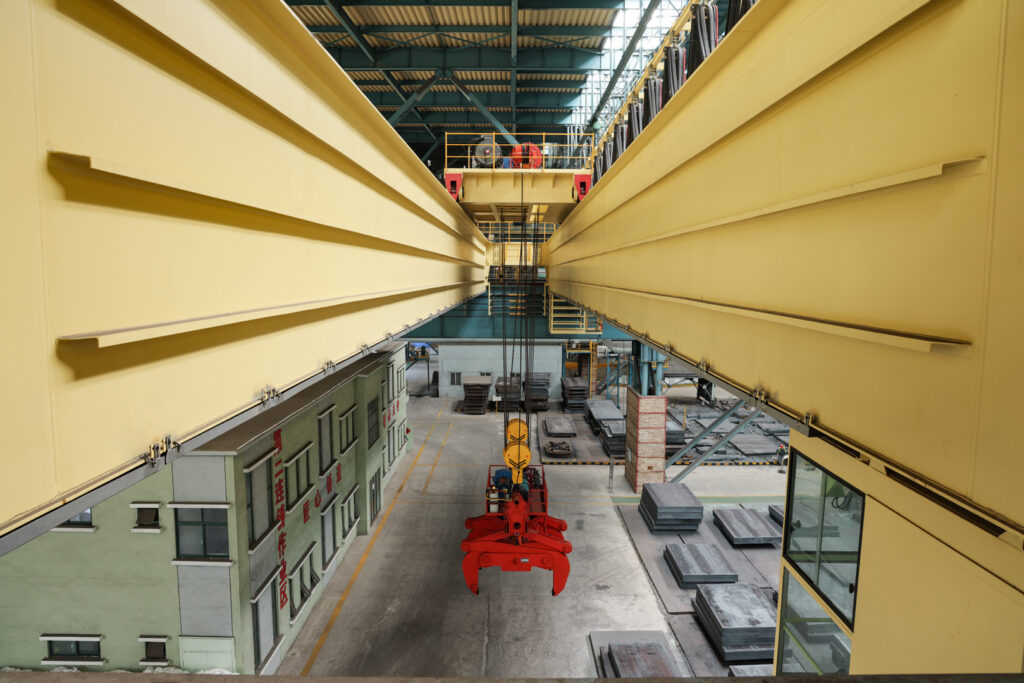

Slab clamp overhead crane installed above a steel slab handling bay
Slab clamp overhead crane installed above a steel slab handling bay.
THE OPERATING CHALLENGE

Start with the load and the process route.

Slabs leaving steel production can exceed 650 C, making the clamp, structure and control system part of the thermal risk plan.

The crane, lifting attachment, building interface and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Slab size and maximum temperature

02 / DEFINE

Clamp and trolley geometry

03 / DEFINE

Stack and runway drawings

04 / DEFINE

Monitoring and automation interfaces

ENGINEERED FOR THE APPLICATION

Grip and position hot slabs without exposing a worker beneath the load.

Use an adjustable slab clamp matched to slab width and a double-trolley crane arrangement suited to the lifting sequence. Guided movement, digital speed control and monitoring support precise pickup and set-down in the hot bay.

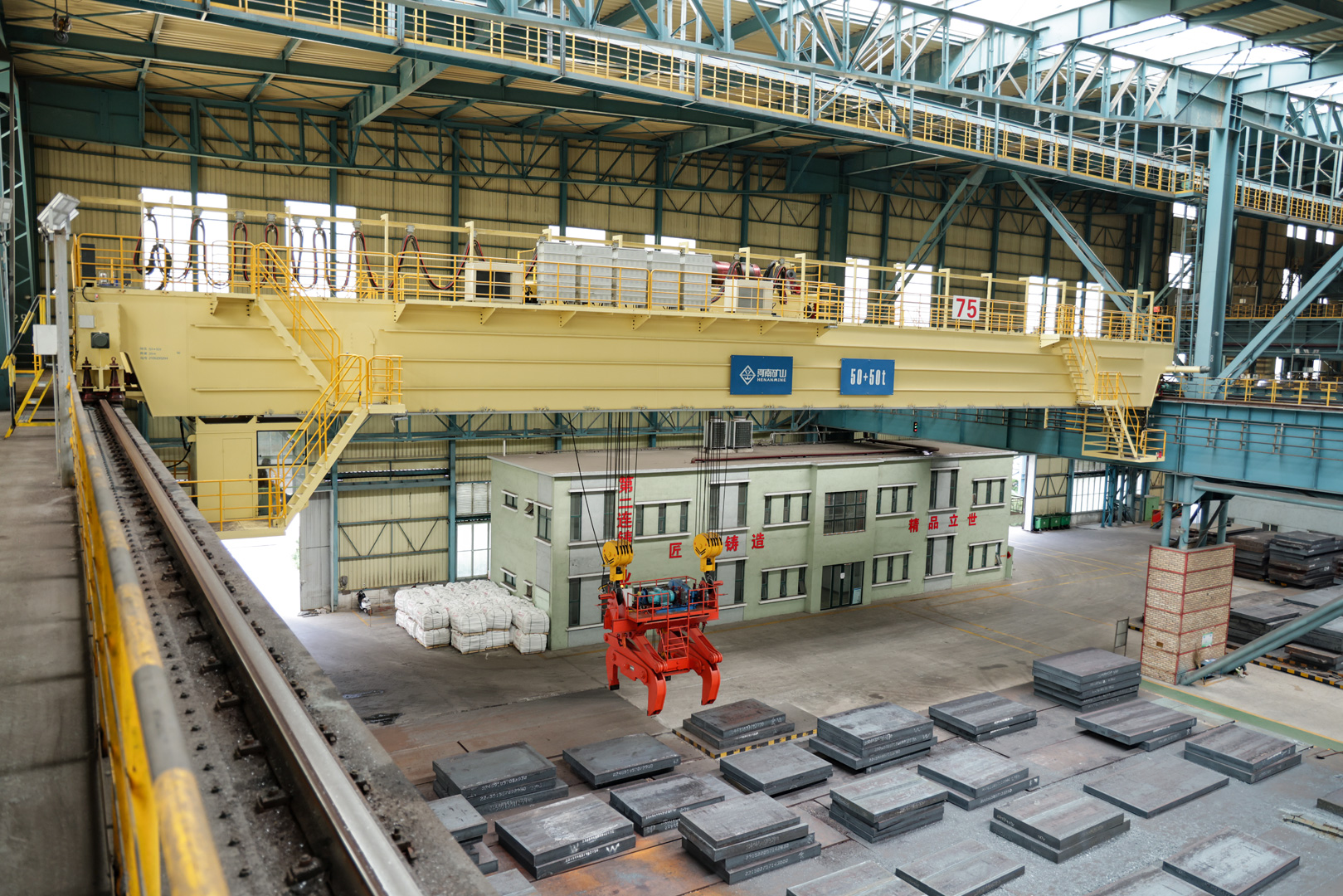

Slab clamp overhead crane installed above a steel slab handling bay
Slab clamp overhead crane installed above a steel slab handling bay.
01

Measure the slab

Check width, thickness, temperature and surface condition before choosing the clamp.

02

Grip and transfer

Verify clamp engagement and load balance while moving through the bay.

03

Release in stack

Provide the stack positions, runway geometry and support levels needed to plan pickup, travel and set-down.

✓

Thermal exposure

Select material and component protection for the hot-slab temperature range.

✓

Future automation

Reserve weighing, sensing and positioning data interfaces where required.

PROJECT IN OPERATION

Shandong Iron and Steel Rizhao slab-handling project

A 50+50 t slab-clamp crane entered service at the Rizhao steel base, using adjustable clamps, monitoring, weighing and digital speed control for slabs that can exceed 650 °C.

Process fitHot Slab Clamp Crane Handling Solution
EquipmentSlab Handling Crane / QE Double-Trolley Hook Overhead Crane
ProjectShandong Iron and Steel Rizhao slab-handling project
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Load and attachmentSlab size and maximum temperatureRated load including the attachment, lifting-point arrangement and load cases.
02 / Plant geometryClamp and trolley geometryCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Stack and runway geometryStack and runway drawingsStack dimensions and access, pickup and release levels, hook approaches, runway layout, support reactions and permitted load routes.
04 / Environment and controlsMonitoring and automation interfacesProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be customized for our plant?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send the hot slab clamp crane handling brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.
