FACTORY CRANE SOLUTIONS

Multi-Line Factory Crane Automation

A large factory may need many crane capacities and automatic work-position recognition without losing fleet-wide availability.

ApplicationLarge factory expansion project
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

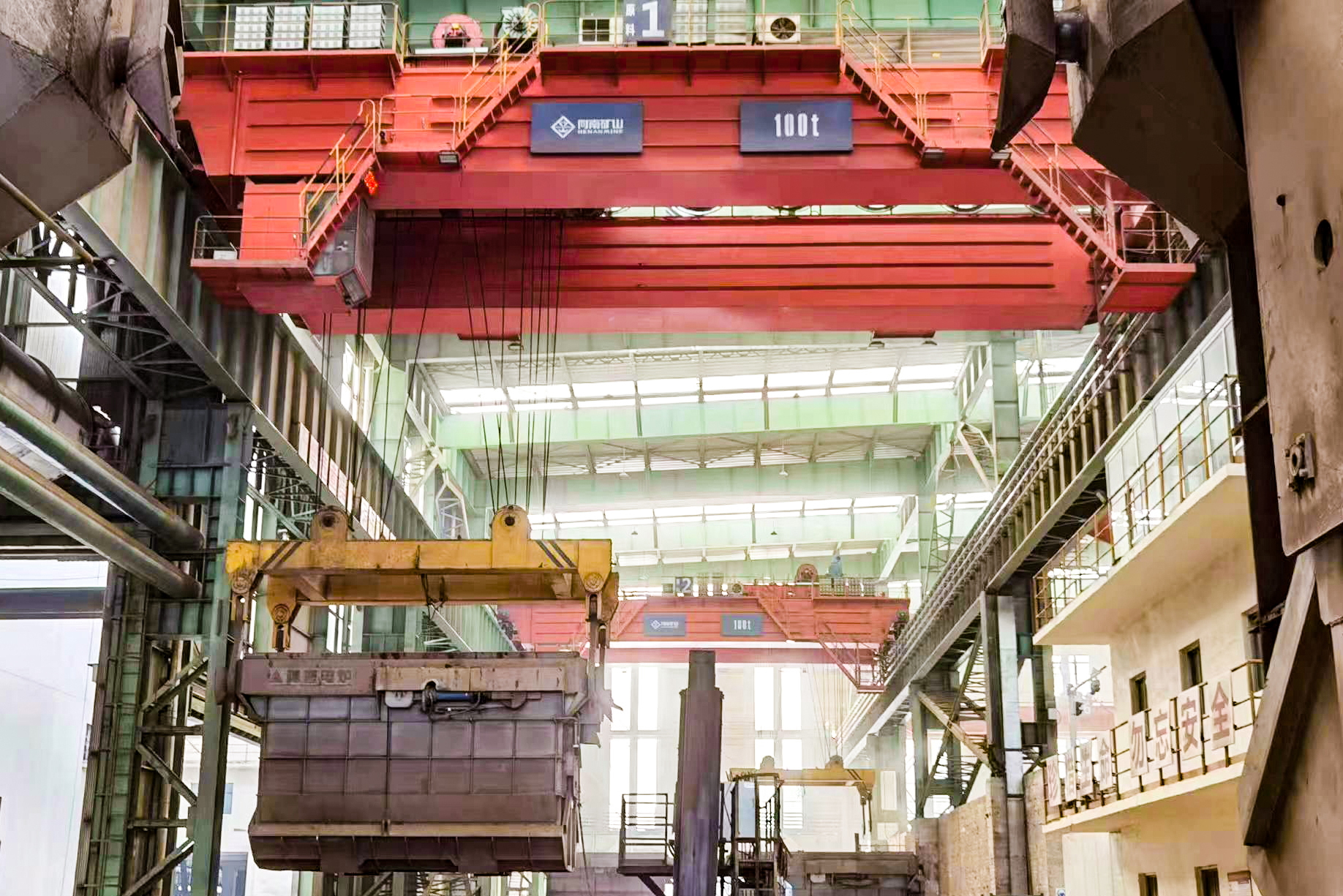

Overhead crane installation serving multiple factory production lines
Overhead crane installation serving multiple factory production lines.
THE OPERATING CHALLENGE

Start with the load and the production route.

A large factory may need many crane capacities and automatic work-position recognition without losing fleet-wide availability.

The lifted load, rigging, building clearances and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Load matrix by line

02 / DEFINE

Station and runway drawings

03 / DEFINE

Required automatic sequences

04 / DEFINE

Availability and redundancy target

ENGINEERED FOR THE APPLICATION

Coordinate repeated lifts across several production lines.

Map each line's load and station sequence, then assign crane capacity and coverage. Position tracking, variable-frequency travel, diagnosis and redundant systems support automatic operations where the process is repeatable.

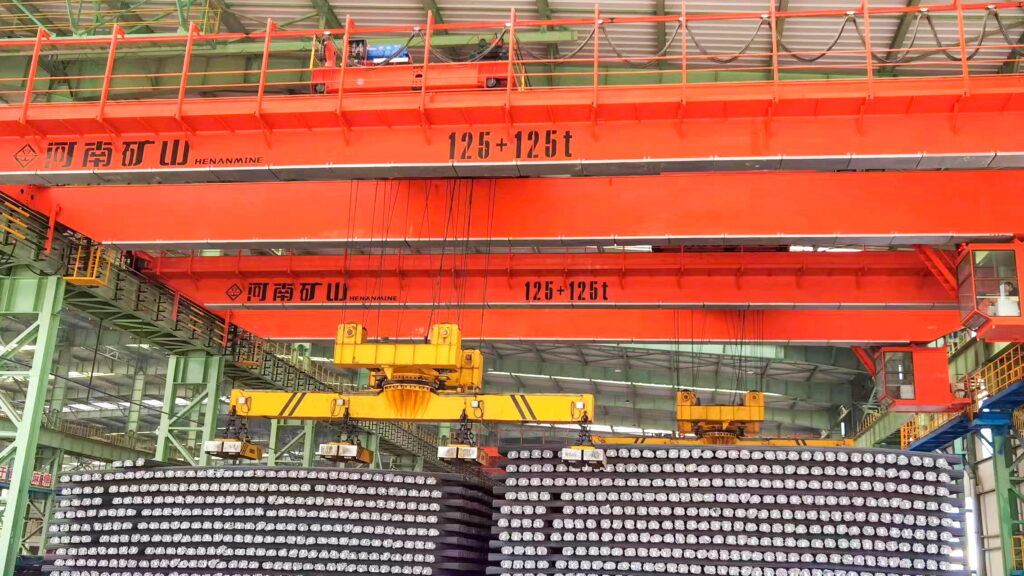

Overhead crane installation serving multiple factory production lines
Overhead crane installation serving multiple factory production lines.
01

Record work positions

Define pickup and delivery coordinates for each line.

02

Schedule crane tasks

Route loads without conflicts between neighboring cranes.

03

Monitor the fleet

Use diagnostics and status data to plan maintenance.

✓

Scalable architecture

Keep control interfaces consistent as additional production lines are commissioned.

✓

Redundant operation

Specify which failures must not stop critical material flow.

PROJECT IN OPERATION

Large factory expansion project

The project involved more than 150 cranes for a 6 million-ton factory project, including two 100 t intelligent cranes, with work-position recognition and automatic running functions.

Process fitMulti-Line Factory Crane Automation Solution
EquipmentKSQ New-Design Hook Overhead Crane / KSQE New-Design Double-Trolley Crane
ProjectLarge factory expansion project
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementLoad matrix by lineRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementStation and runway drawingsCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementRequired automatic sequencesDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Site requirementAvailability and redundancy targetProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the lifting system be configured for our load and factory?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
