ALUMINUM PLANT CRANE SOLUTIONS

Crane Inspection for Battery Anode Material Plants

A carbon-anode-material project needs cranes whose fabrication, dimensions and running gear can be checked against the building and process duty before installation.

ApplicationLanzhou Baohang negative-electrode project
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope
Inspectors checking a crane component and inspection records
Inspectors checking a crane component and inspection records.
THE OPERATING CHALLENGE

Start with the load and the process route.

A carbon-anode-material project needs cranes whose fabrication, dimensions and running gear can be checked against the building and process duty before installation.

The load, lifting attachment, building interface and operating sequence need to be reviewed together.

Prepare the technical brief ↗
01 / DEFINE

Equipment schedule and loads

02 / DEFINE

Building/runway tolerances

03 / DEFINE

Inspection and NDT records

04 / DEFINE

Factory acceptance criteria

ENGINEERED FOR THE APPLICATION

Specify and verify lifting equipment for a carbon-material production line.

Develop an acceptance plan alongside the crane layout. Review design records and material reports, measure span and wheel geometry, and test the running mechanisms before the equipment is released to site.

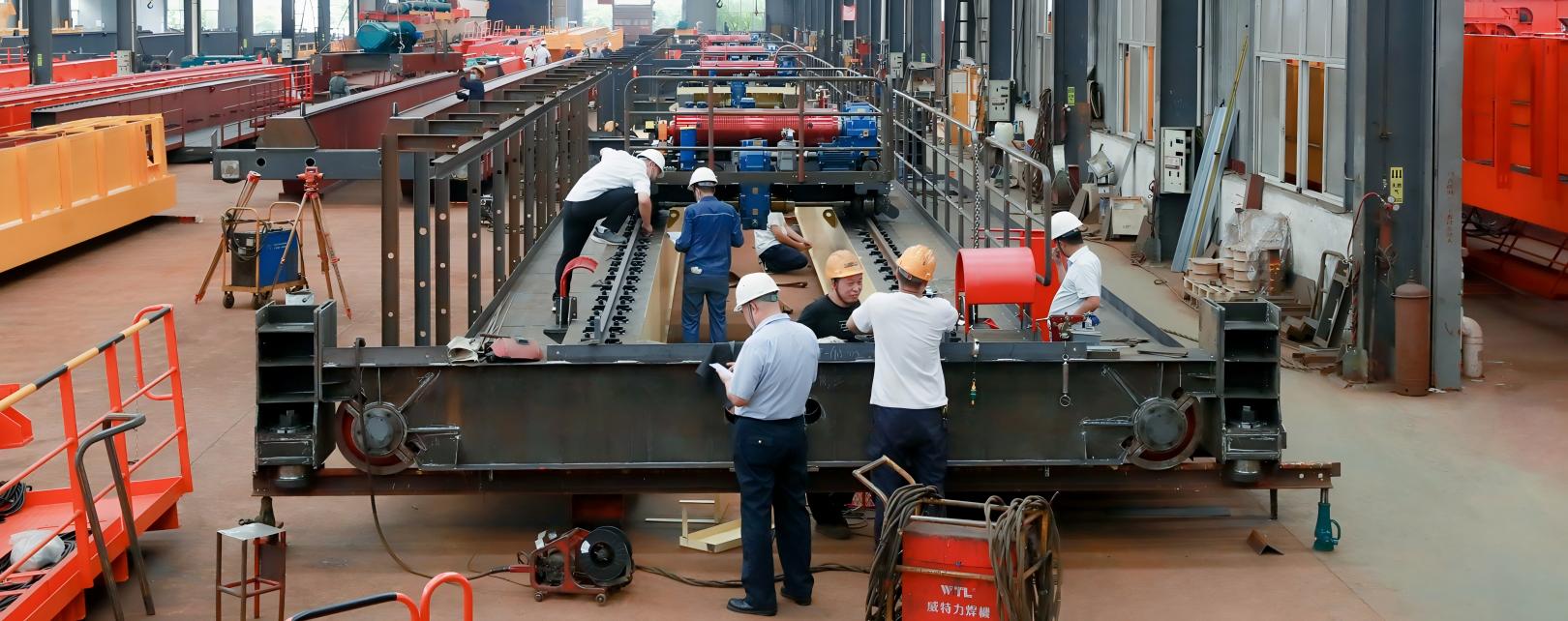

Inspection team reviewing crane equipment inside the manufacturing workshop
Inspection team reviewing crane equipment inside the manufacturing workshop.
01

Set design inputs

Confirm loads, process route and runway drawings for the material line.

02

Inspect fabrication

Review material, welding and non-destructive-test records.

03

Measure and test

Check span, brake wheel, wheel tread and travel mechanism against agreed criteria.

✓

Document control

Link each inspection result to the correct crane and project drawing.

✓

Installation fit

Resolve dimensional exceptions before shipping to the production plant.

PROJECT IN OPERATION

Lanzhou Baohang negative-electrode project

Cranes for a 100,000-ton negative-electrode-material project underwent acceptance checks on material records, NDT reports, main-girder span, brake-wheel runout and wheel hardness.

Process fitCarbon Anode Material Crane Acceptance Solution
EquipmentKSQ New-Design Hook Overhead Crane / YDJ Anode-Block Stacking Crane
ProjectLanzhou Baohang negative-electrode project
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementEquipment schedule and loadsRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementBuilding/runway tolerancesCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementInspection and NDT recordsMaterial, fabrication and NDT records, applicable methods, acceptance levels and traceability.
04 / Site requirementFactory acceptance criteriaFactory inspection and test scope, witness/hold points, acceptance criteria and required reports.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane system be configured for our site and process?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
