Henan Mine Crane · Zinc pot service

Galvanizing Overhead Cranes for Zinc Pot Handling

QDXG galvanizing overhead cranes are designed for empty zinc-pot lifting and equipment maintenance in hot-dip galvanizing workshops. Compare single- and double-girder bridge options, with cantilever hook reach where the pot or service area extends beyond normal bridge coverage.

View QDXG craneRequest a quote
Henan Mine Crane QDXG bridge underside, cantilever structure and extended hook position

QDXG Zinc Pot Service Crane

Choose the crane around the empty pot, lifting points and removal route. The bridge structure and cantilever reach are parts of the same engineered handling system.

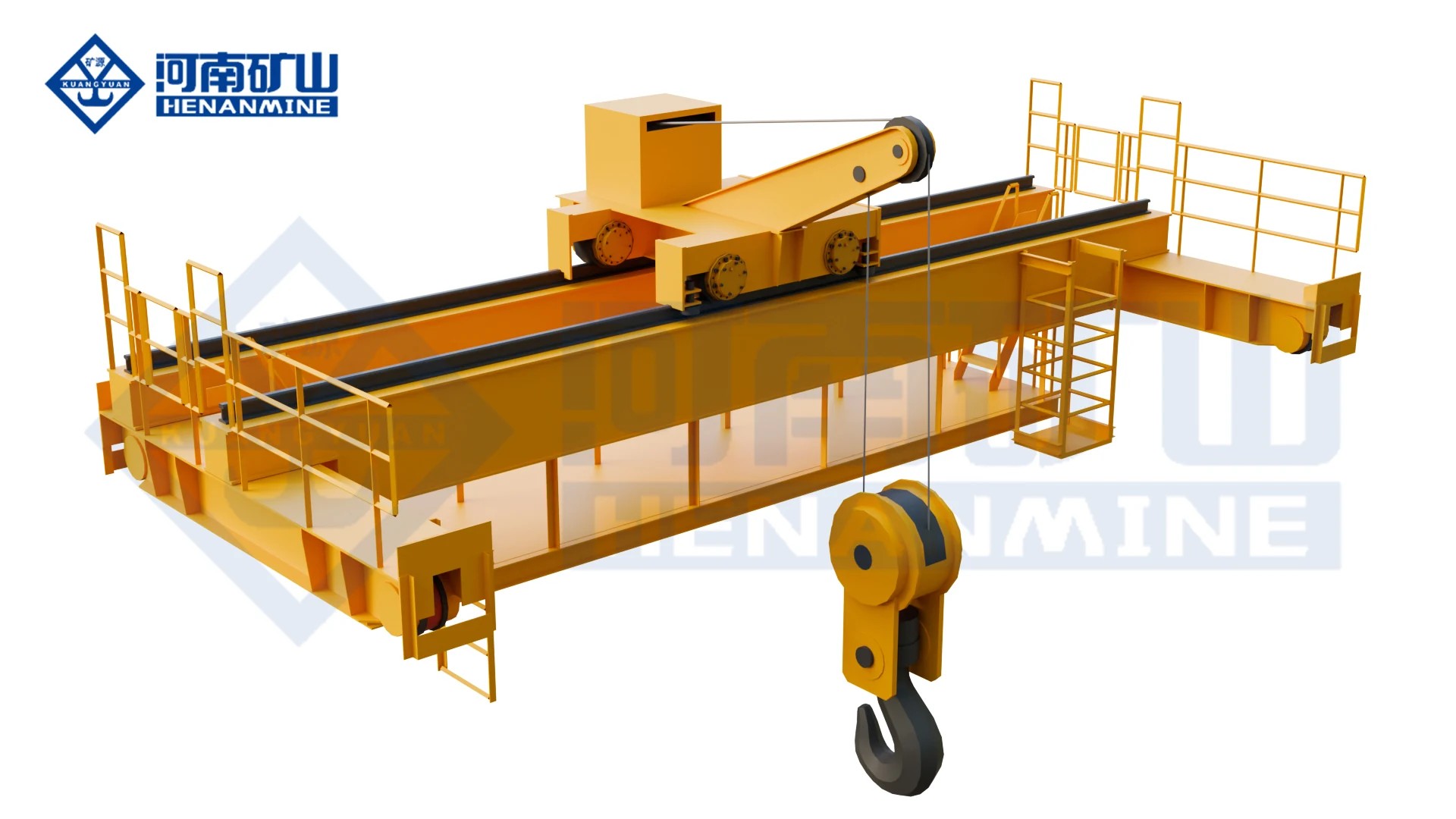

Henan Mine Crane QDXG double-girder zinc-pot service crane with a transverse cantilever lifting arm
QDXG

QDXG Zinc Pot Service Overhead Crane

Empty zinc-pot lifting and equipment maintenance with extended cantilever reach.

QDXG zinc-pot service crane, shown in a double-girder arrangement with a transverse cantilever.

Primary taskEmpty-pot and equipment maintenance
Bridge optionsSingle or double girder
Hook reachPerpendicular trolley cantilever
View detailsRequest a quote
All specifications
Model QDXG
Product type Zinc-pot service overhead crane
Type-test product family General overhead crane
Main handling task Empty zinc-pot lifting and galvanizing-line equipment maintenance
Bridge options Single girder or double girder, selected for the project
Cantilever arrangement Trolley-mounted cantilever perpendicular to the main girder
Hook coverage Selected to reach maintenance lifting positions outside the conventional bridge envelope
Effective cantilever reach L Horizontal distance from the trolley-rail centerline on the cantilever-side main girder to the hook center
Rated capacity Selected from the empty pot or maintenance component plus rigging and other suspended attachments
Span and runway length Specified from the actual building and maintenance transfer route
Lifting height Specified from pot elevation, pit depth, pickup level and removal clearance
Crane and mechanism duty Selected from the real load spectrum and maintenance cycle
Hoisting and travel speeds Selected for approach, lifting and transfer tasks; numerical speeds confirmed in the offer
Motion control Smooth speed control; drive arrangement and positioning requirements specified for the project
Hook and rigging interface Matched to lifting points, pot dimensions, center of gravity and the removal route
Heat exposure Ambient and radiant heat, exposure duration and distance from hot equipment stated for component selection
Dust, fumes and corrosion Actual site media and protection requirements stated in the specification
Electrical enclosure protection Selected for the actual environment; specified in the electrical equipment schedule
Control method Specified for operator visibility and maintenance access
Power supply Site voltage, frequency and electrical conditions confirmed in the offer
Building interface Crane envelope, cantilever load cases and runway reactions provided for the selected drawing
Structural materials High-strength bridge/end-girder steel and alloy-steel gears, wheels, drums and shafts

The QDXG family offers single- or double-girder construction. A cantilever is an additional hook-reach arrangement, not a third mutually exclusive bridge type. Capacity, working duty and operating speeds are confirmed together for the selected crane.

Price & supply scope

Galvanizing crane price and supply scope

A QDXG crane is quoted for the required load and working envelope. A standard overhead-crane price does not define the cost of the cantilever trolley, environmental protection or zinc-pot maintenance coverage.

Price factor What to compare in the offer
Load and lifting attachment State the empty-pot weight, service loads, lifting points and all below-hook attachment weight.
Bridge and hook reach Compare the span, useful hook travel, approach distances and effective cantilever length against the pot-removal route.
Environment and motion control Specify heat exposure, dust, moisture and corrosive conditions, together with the required low-speed positioning.
Delivery and site work Identify the crane, controls and selected lifting attachment, then list runway works, power feed, freight, installation and commissioning separately.

Request an itemized equipment quotation with a stated delivery basis. Include the same load, span, lifting height, cantilever reach and site conditions when comparing offers.

Get a configured crane quote
Factory equipment example

Zinc-Pot Service Crane Manufacturing

Henan Mine Crane manufactures custom zinc-pot service bridges and hoisting equipment. This factory photograph shows bridge and hoisting units during assembly.

The bridge and lifting arrangement are configured around the maintenance load, available building space and required hook coverage.

Discuss your zinc-pot handling task

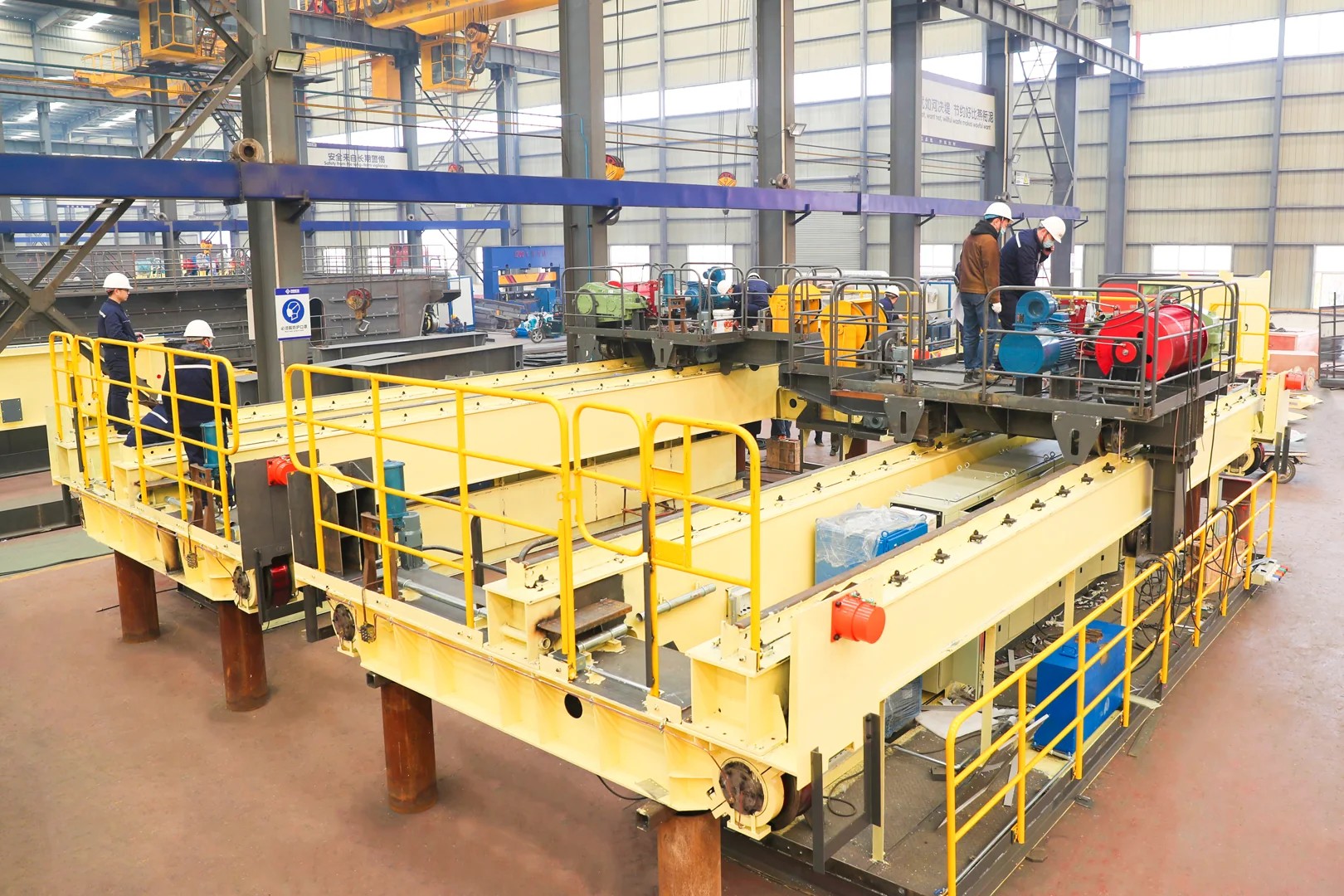

Henan Mine Crane zinc-pot service crane bridge and hoisting units during factory assembly
Zinc-pot service bridge and hoisting units during factory assembly.

For general lifting or another process duty, compare the wider overhead-crane range.

Overhead Crane Range

Galvanizing crane buying questions

Is this a zinc-pot service crane or a galvanizing production-line crane?

The QDXG range here is for empty zinc-pot lifting and equipment maintenance. A crane that repeatedly dips workpieces through pretreatment tanks and molten zinc has a different handling cycle and process interface. State which task you need so the crane is specified for that duty.

Can the crane lift a zinc pot containing molten zinc?

The empty-pot service specification does not establish suitability for a pot containing molten zinc. Any molten-metal handling task must be defined separately, including the complete suspended load, lifting method and required equipment package.

How is effective cantilever length measured?

For the QDXG layout, effective cantilever length L is the horizontal distance from the trolley-rail centreline on the cantilever-side main girder to the hook centre. It is not measured from the bridge runway rail or the outside edge of the girder. Show the pot centreline and required lifting position on a plan drawing.

Should I choose a single- or double-girder bridge?

Both are QDXG bridge options. Select the structure with the complete suspended load, span, available headroom, useful lifting height and service cycle. Cantilever reach is checked with that bridge arrangement rather than selected as a separate crane model.

Does galvanizing crane mean the whole crane is hot-dip galvanized?

Here galvanizing describes the workshop application. It does not specify a hot-dip galvanized surface finish. The coating, electrical enclosures and heat protection must be stated for the actual plant environment.

What should I send for a quotation?

Start with the empty-pot or maximum service load, crane span, required lifting height and project location. Add the pot dimensions, lifting points and removal route if available. A workshop sketch or photographs can help define the required hook reach.

Compare the range

Galvanizing crane configuration comparison

Compare bridge structures and hook reach within the QDXG family. Cantilever coverage is a layout feature that can be considered with the selected bridge structure.

Swipe across the table to compare specifications.

Product / configuration Configuration role Load and geometry Hook coverage Selection focus
QDXG Single-Girder Galvanizing Overhead Crane Single-girder bridge option Full suspended load, span and useful hook height Confirmed for the selected bridge and trolley Check the pot-removal route and building envelope
QDXG Double-Girder Galvanizing Overhead Crane Double-girder bridge option Full suspended load, lifting height and bridge envelope Confirmed for the selected bridge and trolley Check the bridge, hoisting equipment and service clearances together
QDXG Cantilever Zinc-Pot Service Crane Additional cantilever hook reach Effective L, required hook location and reach load cases Extends the hook beyond normal bridge coverage Combine with the selected bridge structure where required

These are configuration choices within one QDXG family, not three standard rated models. Cantilever reach can be considered with the chosen bridge structure. The technical offer confirms the resulting load cases, dimensions, duty and equipment supplied together.

Get a galvanizing overhead crane quote

Send the empty-pot or service load, span, lifting height and project location. Include the pot dimensions and a sketch of the lifting points and removal route if available.

State whether the task is empty-pot maintenance or repeated production-line handling.
