Hot-dip galvanizing maintenance
HENAN MINE CRANE / OVERHEAD CRANES
QDXG Zinc-Pot Service Crane
A purpose-built crane for empty zinc-pot handling and maintenance, with a cantilevered trolley arrangement to reach beyond the bridge.
QDXGModel designationProject-matchedRated load selection
PRODUCT CONFIGURATION / QDXGTHE LIFTING TASK
Designed for your handling path.
A purpose-built crane for empty zinc-pot handling and maintenance, with a cantilevered trolley arrangement to reach beyond the bridge.
Crane arrangement
Overhead Cranes with Service hook / cantilever trolley.
MODEL QDXG
Technical configuration
Size the crane against the load, installation geometry and work cycle. The final equipment schedule follows the project drawings and operating brief.
Rated capacityTo project load schedule
Crane spanTo runway drawing
Duty classSet by cycle assessment
Trolley / attachmentCantilever reach
ControlHigh-temperature duty to confirm
Lifting heightSet from the pickup level and highest required hook position
Lifting attachmentService hook / cantilever trolley
Power supplyMatch voltage and frequency to the destination site
Runway and building interfaceCheck runway geometry, wheel loads and building reactions
Hook approach and clearanceConfirm required lifting envelope against the site drawings
BUYER'S SELECTION GUIDE
Specify the crane around the job.
Hot-dip galvanizing maintenance
Compare the Overhead Cranes range ↗Load and lifting attachment
Share the maximum lifted mass, load dimensions, center of gravity and any grab, magnet, spreader or lifting beam.
Runway and building interface
Confirm runway centers, wheel loads, building clearances and hook approaches.
Duty and controls
State typical load, lifts per hour, travel distance, shifts, control position and site power supply.
Model-specific check
Pot mass, reach and hot-zone layout

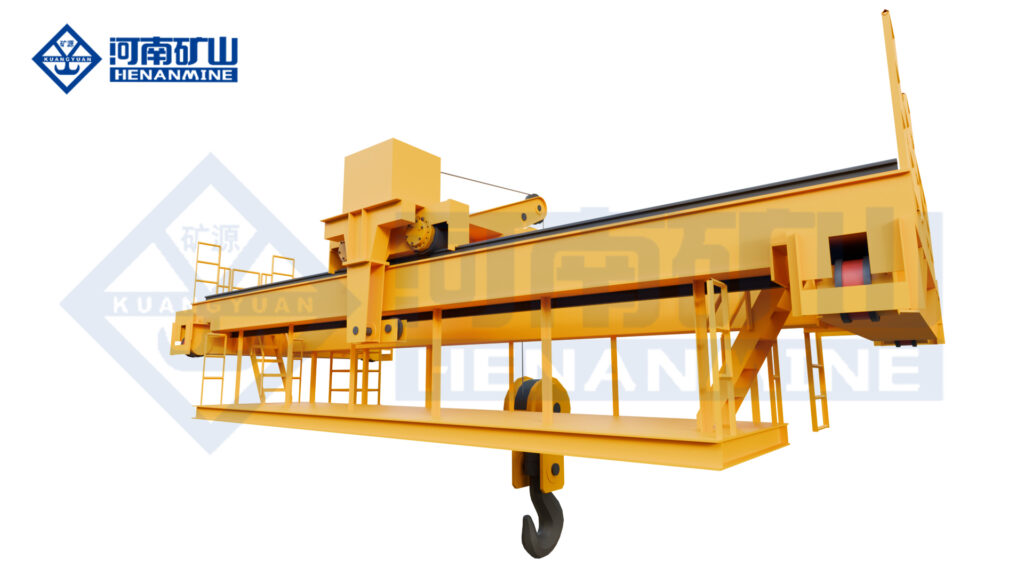

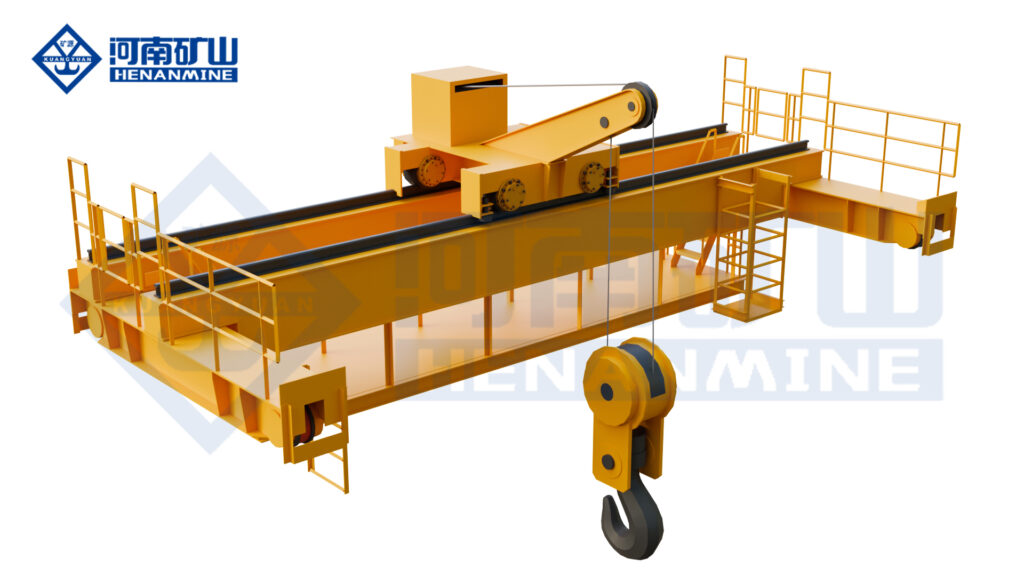

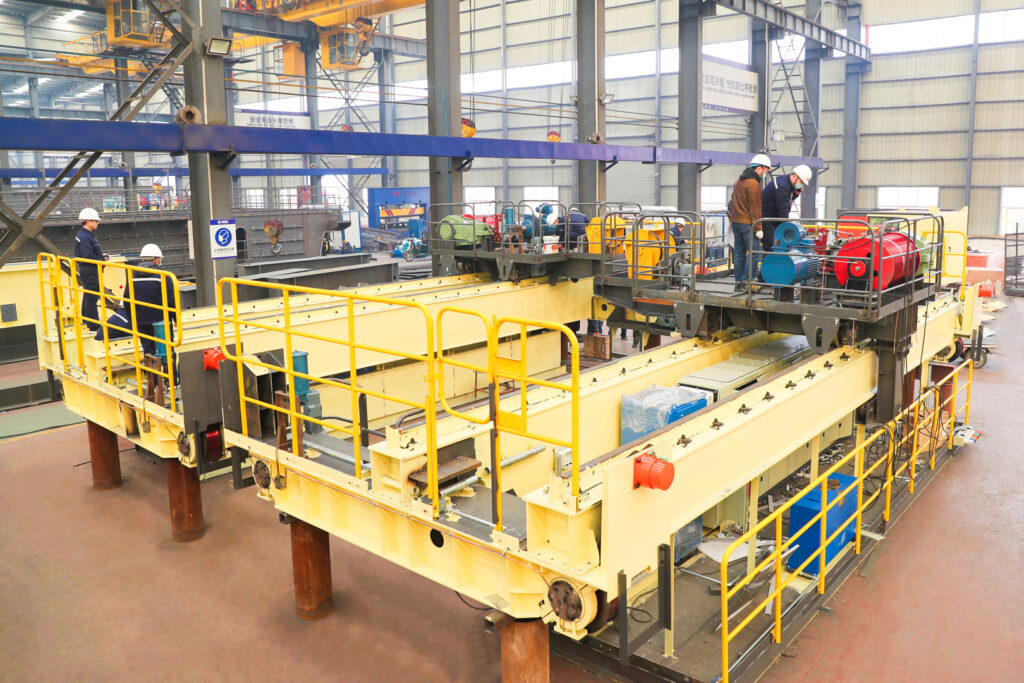

PRODUCT PHOTOS
See the QDXG configuration.
Review the equipment arrangement alongside your proposed site layout and lifting route.
TALK TO OUR ENGINEERS
Get a QDXG crane proposal.
Send the load schedule and site drawings. We can configure the crane, lifting system and installation interface for your operating conditions.
Request a technical proposal ↗- Maximum lifted load and attachment
- Span, travel length and available clearances
- Daily lifting cycle and control choice
- Power supply, environment and destination
