Machinery and fabricated assemblies
Lift castings, machine frames and welded assemblies between production stations. Select hook capacity for the workpiece together with its slings or lifting beam.
QD / WINCH-TROLLEY HOOK CRANE
QD Double Girder Hook Overhead Crane
Move machine parts, fabricated assemblies and heavy equipment across your workshop with a double girder bridge and a winch trolley. Choose a single hook for general lifting or a main and auxiliary hook arrangement for a wider range of load sizes.
HELP CHOOSING YOUR CRANE
Tell us what you need to lift and your approximate span. We’ll help you choose the lifting arrangement.

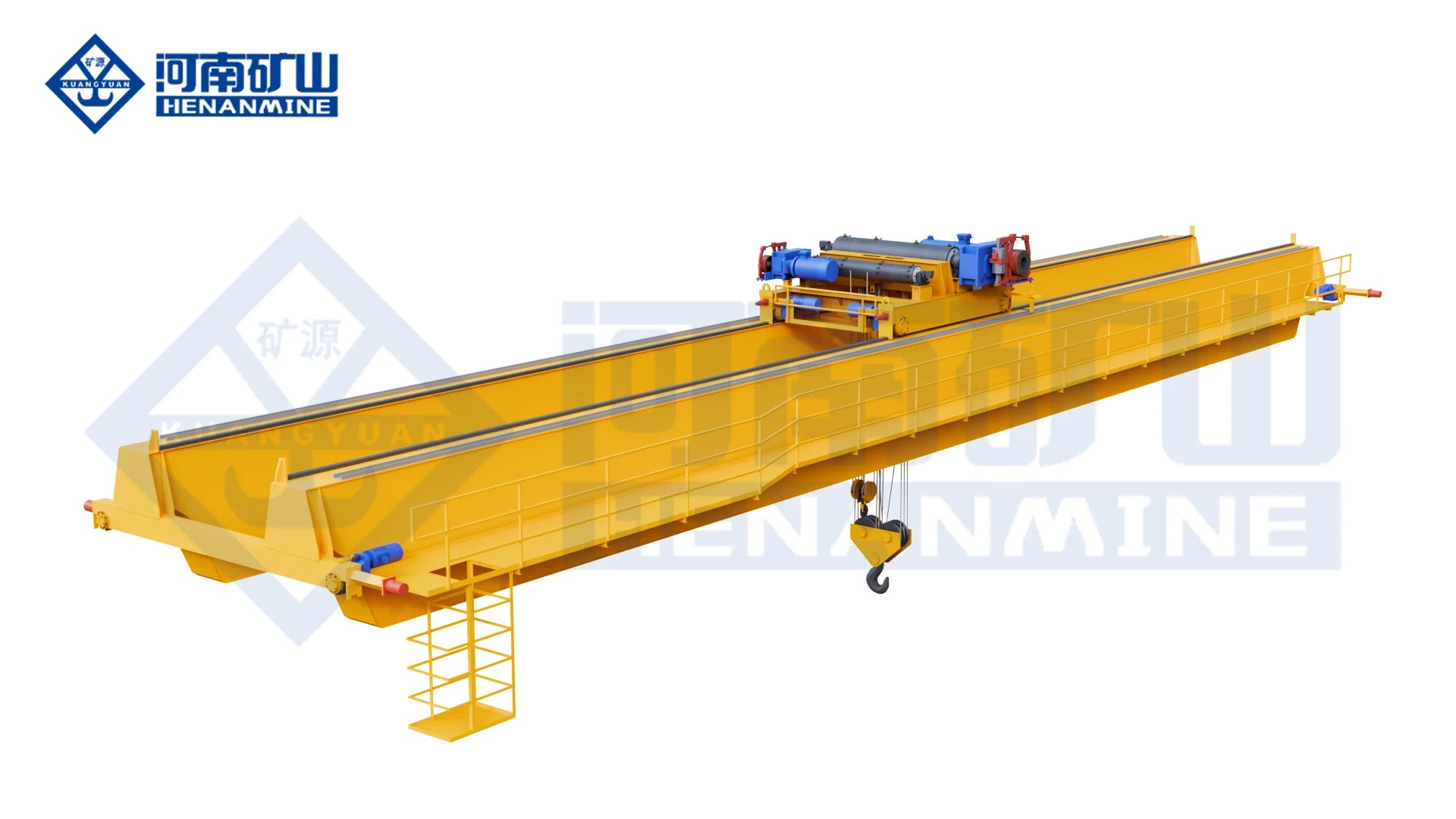

PRODUCT RENDERING
- Standard main-hook selections
- 5–50 t
- Standard span selections
- 10.5–31.5 m
- Standard working duty
- A5 / A6
- Heavy lifting options
- Up to 450/80 t
Start with the dimensions you already know. A workshop photo or sketch can help us recommend a configuration.
01
Choose the hook for each load
Use a single hook for routine lifting, or choose a main and auxiliary hook crane when the same bay handles both large equipment and smaller components.
02
Match the crane to the work cycle
A5 and A6 selections let the bridge, lifting mechanism and travel equipment follow the frequency and severity of the lifting task.
03
Cover the complete workshop bay
Bridge travel and trolley travel move the hook between receiving, assembly, storage and maintenance positions on one overhead runway.
01 / APPLICATIONS01 02 03
Move heavy work through the workshop.
Equipment assembly and maintenance
Move motors, gearboxes and complete machines into position. Add an auxiliary hook when smaller components need a separate lifting mechanism.
Industrial storage and dispatch
Transfer heavy finished equipment between storage and loading positions. Outdoor service can be specified for an exposed runway.
For a 20/5 t crane, the main hook is rated 20 t and the auxiliary hook 5 t. The technical offer defines the permitted hook combinations.
02 / TECHNICAL SPECIFICATIONS
QD specifications and configuration options
Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.
| Model | QD |
|---|---|
| Rated capacity | 5 / 10 / 16/3.2 / 20/5 / 32/5 / 50/10 t; larger engineered options to 450/80 t |
| Span | 5–50 t: 10.5–31.5 m; larger cranes use capacity-specific spans |
| Lifting height | 5/10 t: 16 m; 16/3.2 t: 16/18 m; 20/5 t: 12/14 m; 32/5 t: 16/18 m; 50/10 t: 12/16 m |
| Working duty | 5–50/10 t standard: A5 / A6; slow-speed versions: A3; 400/80–450/80 t: A1–A3 |
| Hoisting speed | 5 t A5: 11.3 m/min; 16/3.2 t A5: 7.9/14.6 m/min |
| Trolley / bridge travel | 5 t A5, 19.5 m span: trolley 37.2 / bridge 89.8 m/min |
| Lifting arrangement | Winch trolley; hook or main/auxiliary hooks |
| Control | Cabin, pendant or radio control to the ordered arrangement |
| Power supply | 380 V / 50 Hz, three-phase; destination supply by specification |
| Operating environment | General workshops and warehouses; outdoor package available |
| Heavy-load configurations | 75/20 / 100/20 / 125/32 / 160/50 / 200/50 / 250/50 / 300/40 / 350/75 / 400/80 / 450/80 t |
| Heavy-load geometry | 300/40 t: 17 m span; 350/75 t: 22 m; 400/80 t: 21 m; 450/80 t: 20.8 m |
Matched capacity and dimensional configurations
| Hook capacity | Duty | Span | Main / auxiliary lift | Main / auxiliary hoisting speed |
|---|---|---|---|---|
| 5 t | A5 | 19.5 m | 16 m | 11.3 m/min |
| 10 t | A6 | 19.5 m | 16 m | 10.4 m/min |
| 16/3.2 t | A5 | 19.5 m | 16/18 m | 7.9/14.6 m/min |
| 20/5 t | A6 | 19.5 m | 12/14 m | 9.8/15.5 m/min |
| 32/5 t | A5 | 19.5 m | 16/18 m | 7.5/15.5 m/min |
| 50/10 t | A6 | 19.5 m | 12/16 m | 7.8/10.4 m/min |
| 400/80 t | A1–A3 | 21 m | 25/30 m | 1.165/4.78 m/min |
| 450/80 t | A1–A3 | 20.8 m | 25/33 m | 0.895/4.84 m/min |
Each row is a complete selection. A slash identifies main and auxiliary hook values. Capacity, span, duty and speeds stay together; heavy configurations use their own geometry and duty.
03 / EQUIPMENT VIEWS
See the bridge and winch trolley.

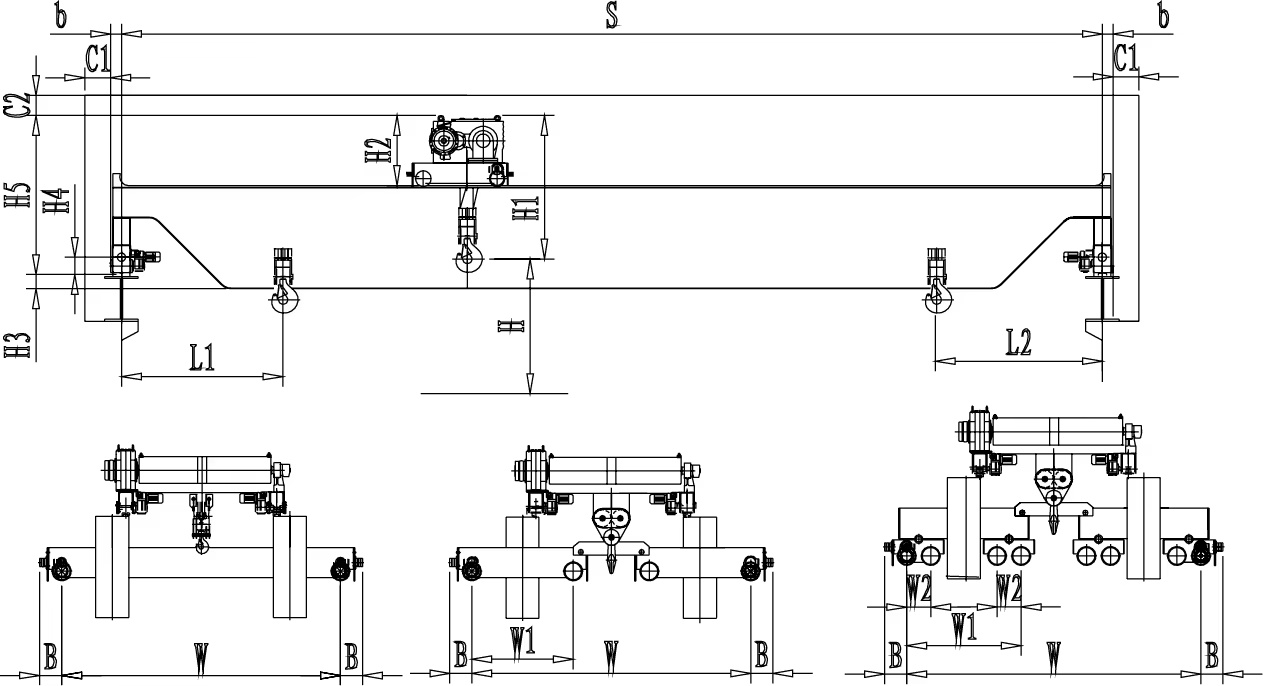

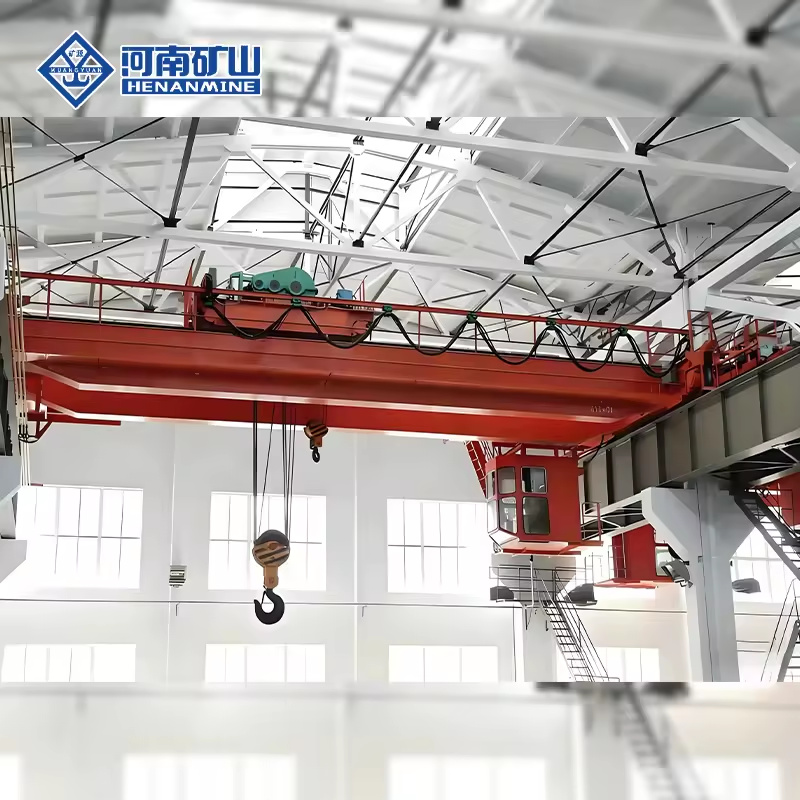

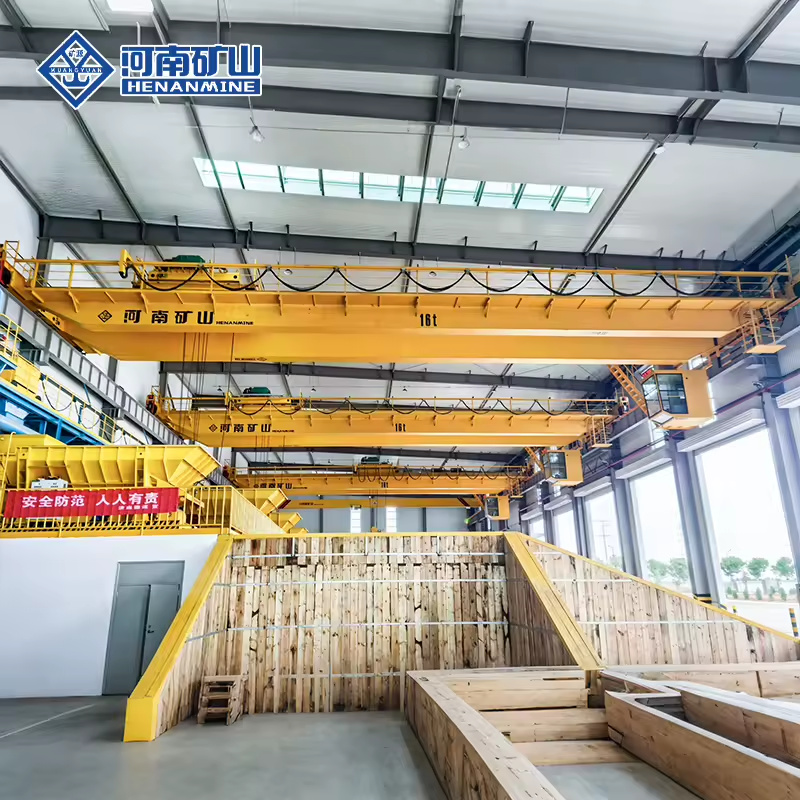

Compare the complete crane arrangement with workshop views to see the main girders, trolley and hook system.
04 / CONFIGURATION
Select the load, hook arrangement and working speed.
A clear starting point is your largest load, working span and required lifting height. The crane package can then be matched to the handling cycle.
Single hook or main and auxiliary hooks
Standard selections include 5 and 10 t single-hook cranes, plus 16/3.2, 20/5, 32/5 and 50/10 t main/auxiliary arrangements. Each hook retains its own rating.
Duty and lifting speed
Choose the duty with the lifting cycle. For example, the 16/3.2 t arrangement has 7.9 m/min main hoisting at A5 and 10.7 m/min at A6, with a 14.6 m/min auxiliary hook.
Operator position and travel control
Select cabin, pendant or radio control to suit visibility of the load and the production route. State any requirement for slow positioning or variable-frequency travel.
Heavy lifting and destination supply
Larger configurations use their own spans, speeds and duty classes. Match the electrical package to the destination voltage, frequency and indoor or outdoor operation.
05 / PURCHASING & DELIVERY
What comes with your QD crane?
Compare the equipment, documentation, delivery and service scope for the configuration you need.
Order the crane you need
Request a quotation for one QD crane or a multi-crane project. The offer confirms the order quantity and selected hook arrangement.
See the equipment included
Compare the bridge, winch trolley, hook equipment, controls and electrical supply equipment on the same scope. List rails, conductor system, lifting attachments, freight and site services separately.
Documents for your destination
Include the approved crane arrangement, selected mechanism data, electrical drawings, operating and maintenance manuals, and agreed inspection and load-test records. Destination-specific conformity documents are defined in the order.
Plan production and dispatch
Factory dispatch is scheduled for the selected capacity, span, duty and electrical package after the technical arrangement is approved. Freight and site installation dates are stated separately.
Installation and commissioning support
Choose equipment supply, installation guidance or an agreed installation scope. Confirm unloading access, runway readiness, installation equipment and site load-test responsibilities.
Know the warranty and support scope
Agree the warranty period and coverage for the bridge, winch, motors, brakes, wheels and controls. The support package identifies service contacts and recommended operating spares.
06 / COMPARE RELATED CRANES
All double-girder cranes ↗Compare the arrangements for your lifting task.
DOUBLE-GIRDER CRANE RANGE

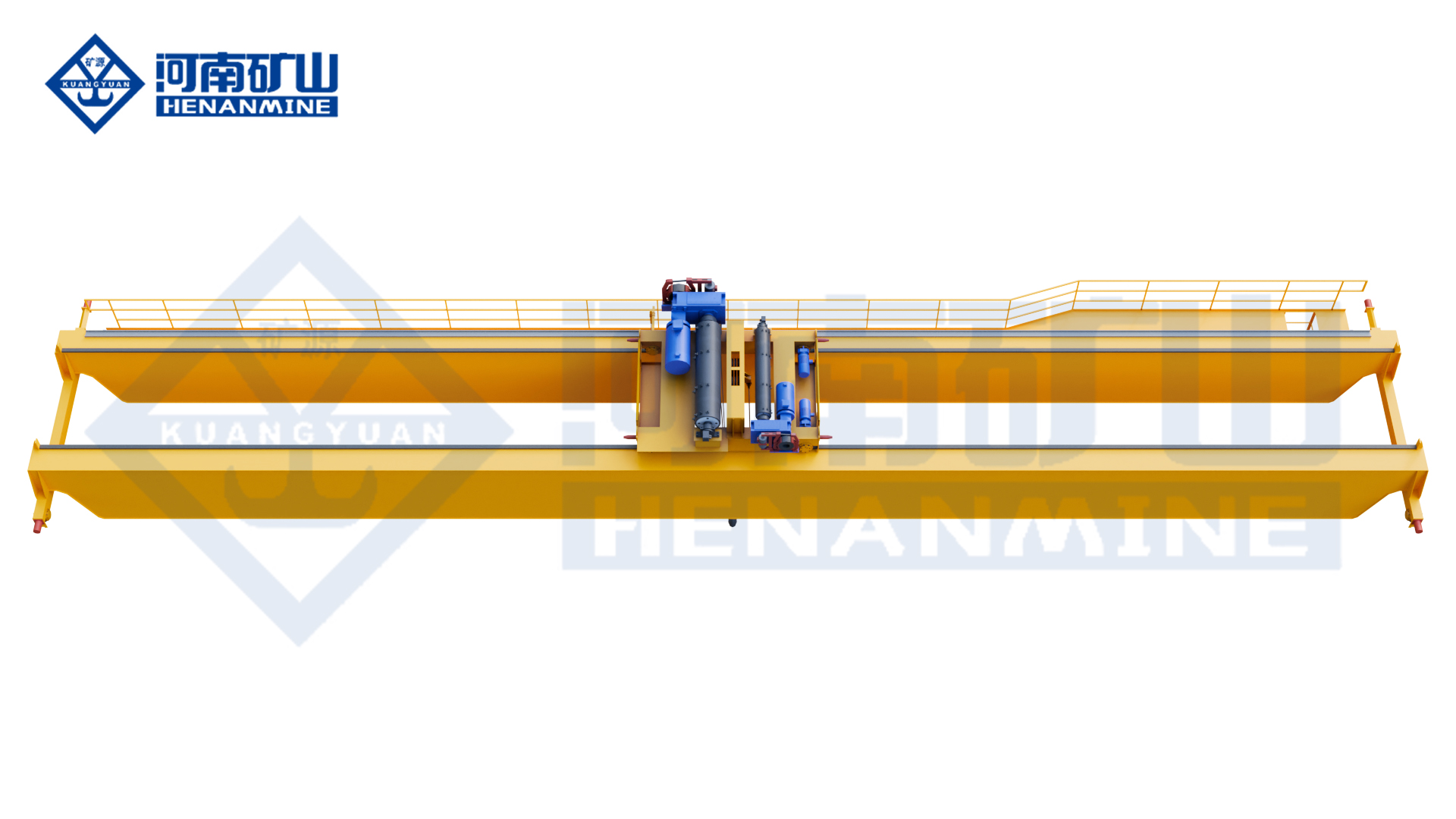

KSQ New-Design Hook Overhead Crane
Position production loads with modular hook lifting, stepless speed control and optional electronic anti-sway.
Compare this model ↗
DOUBLE-GIRDER CRANE RANGE

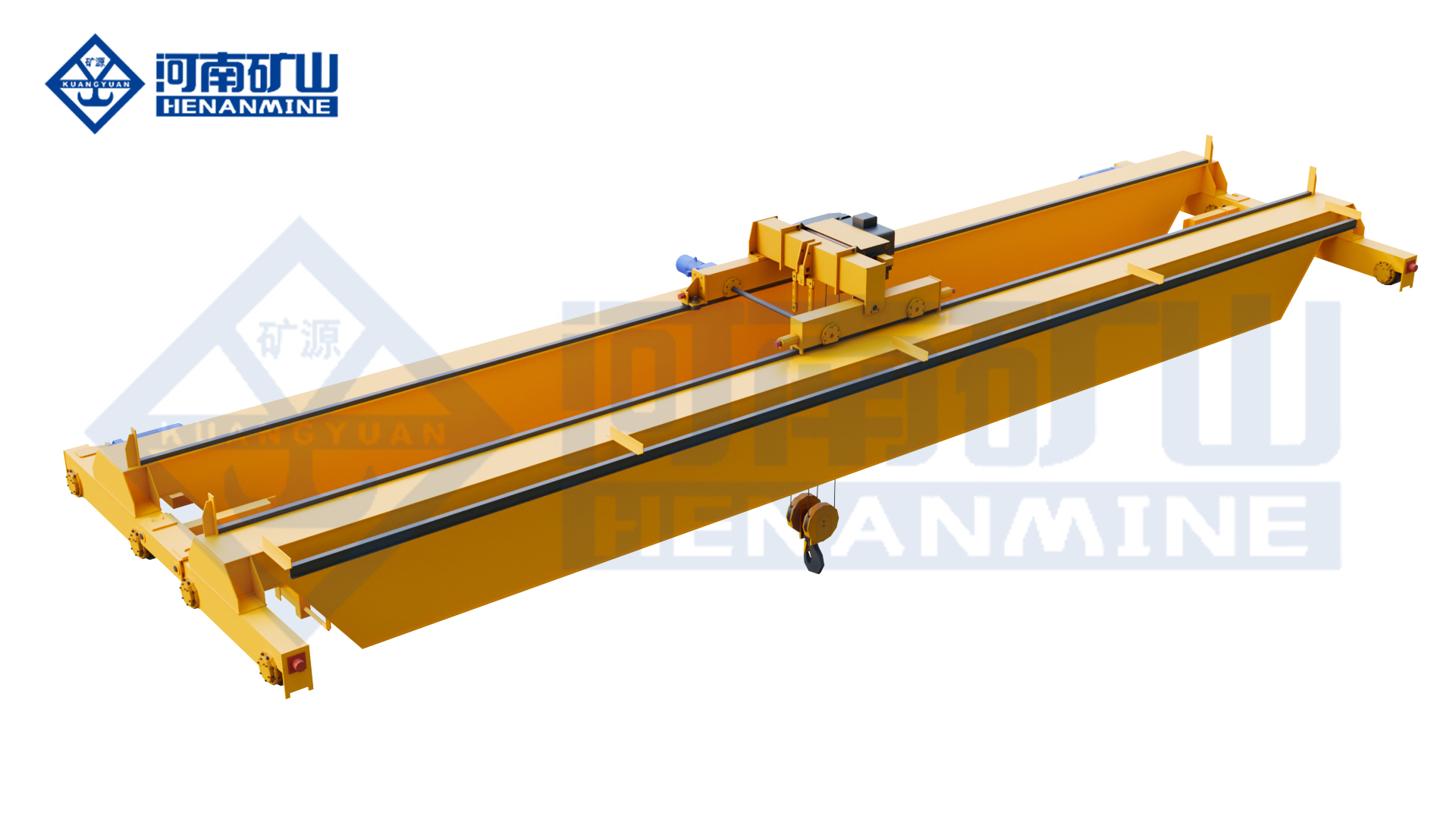

LH Electric-Hoist Overhead Crane
Handle workshop and warehouse loads with an electric hoist on a double-girder bridge.
Compare this model ↗
DOUBLE-GIRDER CRANE RANGE
QE Double-Trolley Hook Overhead Crane
Two hook trolleys can lift independently or together when long loads need two controlled lifting points.
Compare this model ↗07 / BUYER QUESTIONS
Answers for your QD crane purchase
Find the arrangement, equipment options and order information that suit your application.
When should I choose a QD winch-trolley crane?
QD suits workshop lifting where the load and operating cycle call for a winch trolley on a double girder bridge. Compare the selected duty and speeds with an LH electric-hoist crane when choosing the lifting package.
What does 32/5 t mean?
It identifies a 32 t main hook and a 5 t auxiliary hook. It is not a 37 t hook rating. The order defines whether the hooks can operate together and the permitted load case.
Which standard capacities and spans can I compare?
The standard group includes 5, 10, 16/3.2, 20/5, 32/5 and 50/10 t selections, with 10.5–31.5 m spans. The configuration table pairs capacity, duty, span, lifting height and hoisting speeds.
How do A5 and A6 affect the crane?
Duty follows the load spectrum and lifting frequency. A5 and A6 versions can have different hoisting speeds, structural details, crane masses and wheel loads. Select the duty with your typical load and operating hours.
Can you supply a crane above 50 t?
The QD family includes heavy main/auxiliary configurations from 75/20 to 450/80 t. These use capacity-specific geometry and mechanisms; for example, the 450/80 t selection has a 20.8 m span and A1–A3 duty.
Can I use the same crane indoors and outdoors?
The operating environment is specified with the order. For an outdoor runway, include the wind, rain, temperature and corrosion conditions so the electrical protection, coatings and parking arrangement can be selected.
What information is enough to get a price?
Send the maximum lifted load, span, lifting height and lifting frequency. Include the destination power supply, preferred control and whether rails, power supply equipment, installation or shipping are required in the offer.
How are delivery, warranty and certification confirmed?
The offer identifies the selected crane, dispatch schedule, warranty terms and required inspection or conformity documents. Production, international transport and site installation are scheduled as separate parts of the order.
