AUTOMATED WAREHOUSE CRANES

Automated Steel Plate Warehouse Crane

A steel-plate store loses time when unloading, identification, marking and stack selection are disconnected manual tasks.

ApplicationSteel-structure plate warehouse
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

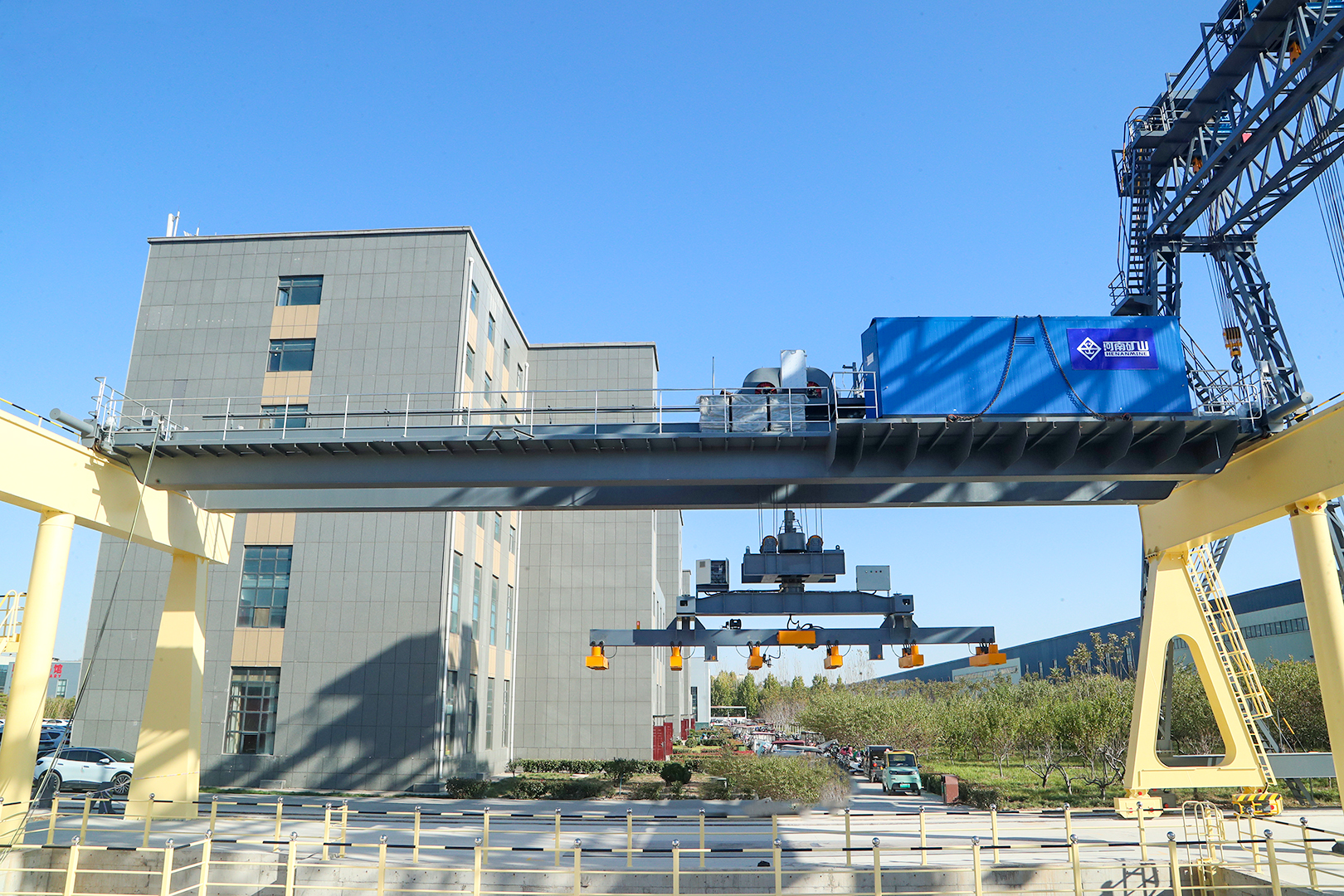

Gantry crane and lifting attachment for automated steel plate storage
Gantry crane and lifting attachment for automated steel plate storage.
THE OPERATING CHALLENGE

Start with the load and the process route.

A steel-plate store loses time when unloading, identification, marking and stack selection are disconnected manual tasks.

The load, lifting attachment, traffic interface and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Plate dimensions and weights

02 / DEFINE

Truck bay and rack layout

03 / DEFINE

Inventory identification rules

04 / DEFINE

Automation and recovery requirements

ENGINEERED FOR THE APPLICATION

Connect truck unloading, plate identification and storage in one flow.

Treat the crane as part of the warehouse system. Identify the arriving vehicle and plate, assign a storage location, then use automated unloading, rotation, stacking and restacking with movement records.

Gantry crane and lifting attachment for automated steel plate storage
Gantry crane and lifting attachment for automated steel plate storage.
01

Receive and recognize

Link truck identification to the plate and its storage instruction.

02

Handle the plate

Use the selected lifting tool to unload and rotate the plate safely.

03

Store and retrieve

Sequence stacking, restacking and dispatch around inventory data.

✓

Plate identification

Agree how plate dimensions and marks are checked before an automated lift.

✓

Traffic and collision control

Validate crane movement beside vehicles and other warehouse activity.

PROJECT REFERENCE

Steel-structure plate warehouse

Henan Mine Crane completed function testing of an intelligent warehouse crane for a steel-structure company, including vehicle and plate recognition, automatic marking, 5G millimeter-wave communication, anti-collision and automated stacking functions.

Process fitAutomated Steel Plate Warehouse Crane Solution
EquipmentElectromagnetic Carrier-Beam Overhead Crane / Upper-Rotating Electromagnetic Beam Crane
ProjectSteel-structure plate warehouse
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementPlate dimensions and weightsRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementTruck bay and rack layoutCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementInventory identification rulesPlate identification method, marking data, inventory codes, storage-location rules and the agreed warehouse-system interface.
04 / Site requirementAutomation and recovery requirementsProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be customized for our site?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.
