FACTORY CRANE SOLUTIONS

Construction Machinery Factory Crane Network

A construction-equipment factory moves large weldments and assemblies through many production cells, so crane coverage is a plant-wide planning issue.

ApplicationXCMG intelligent-manufacturing cooperation
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

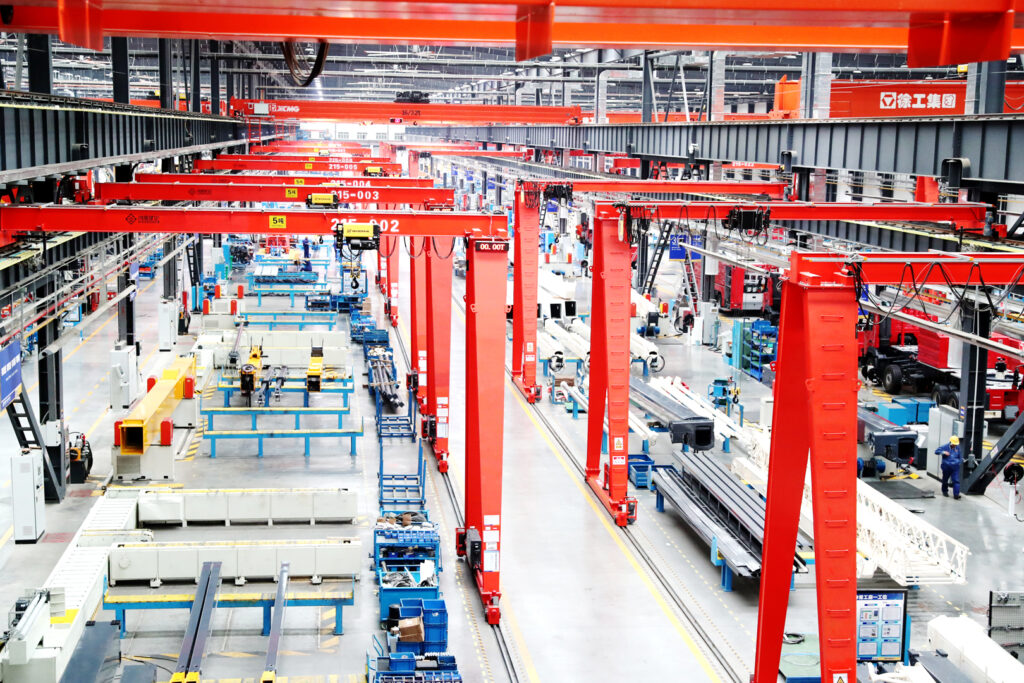

Overhead crane network serving construction machinery production lines
Overhead crane network serving construction machinery production lines.
THE OPERATING CHALLENGE

Start with the load and the production route.

A construction-equipment factory moves large weldments and assemblies through many production cells, so crane coverage is a plant-wide planning issue.

The lifted load, rigging, building clearances and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Part masses and pickup points

02 / DEFINE

Plant bay and line layout

03 / DEFINE

Peak concurrent lifts

04 / DEFINE

Fleet maintenance strategy

ENGINEERED FOR THE APPLICATION

Keep structural fabrication and equipment assembly supplied by a large crane fleet.

Map the part flow and allocate suitable cranes by bay. Precision positioning and smart controls can support assembly, while common fleet procedures help operators and maintenance teams manage many installed units.

Overhead crane network serving construction machinery production lines
Overhead crane network serving construction machinery production lines.
01

Trace part movement

List the heavy structures passing through fabrication and assembly.

02

Assign bay coverage

Set capacity, span and approach for each production area.

03

Coordinate maintenance

Schedule inspections and spare support without stopping all lines.

✓

Production overlap

Avoid crane and workstation conflicts during peak assembly periods.

✓

Fleet standardization

Keep training and service interfaces consistent across mixed crane types.

PROJECT IN OPERATION

XCMG intelligent-manufacturing cooperation

Henan Mine Crane delivered more than 300 cranes of various types to XCMG for assembly and structural-production material handling.

Process fitConstruction Machinery Factory Crane Network Solution
EquipmentKSQ New-Design Hook Overhead Crane / QE Double-Trolley Hook Overhead Crane
ProjectXCMG intelligent-manufacturing cooperation
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementPart masses and pickup pointsRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementPlant bay and line layoutCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementPeak concurrent liftsDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Site requirementFleet maintenance strategyProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the lifting system be configured for our load and factory?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
