CONSTRUCTION CRANE SOLUTIONS

Bridge Caisson Spoil Removal Gantry

A large bridge caisson needs continuous spoil removal from confined cells without blocking the excavation equipment or surface logistics.

ApplicationChangtai Yangtze River Bridge caisson
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

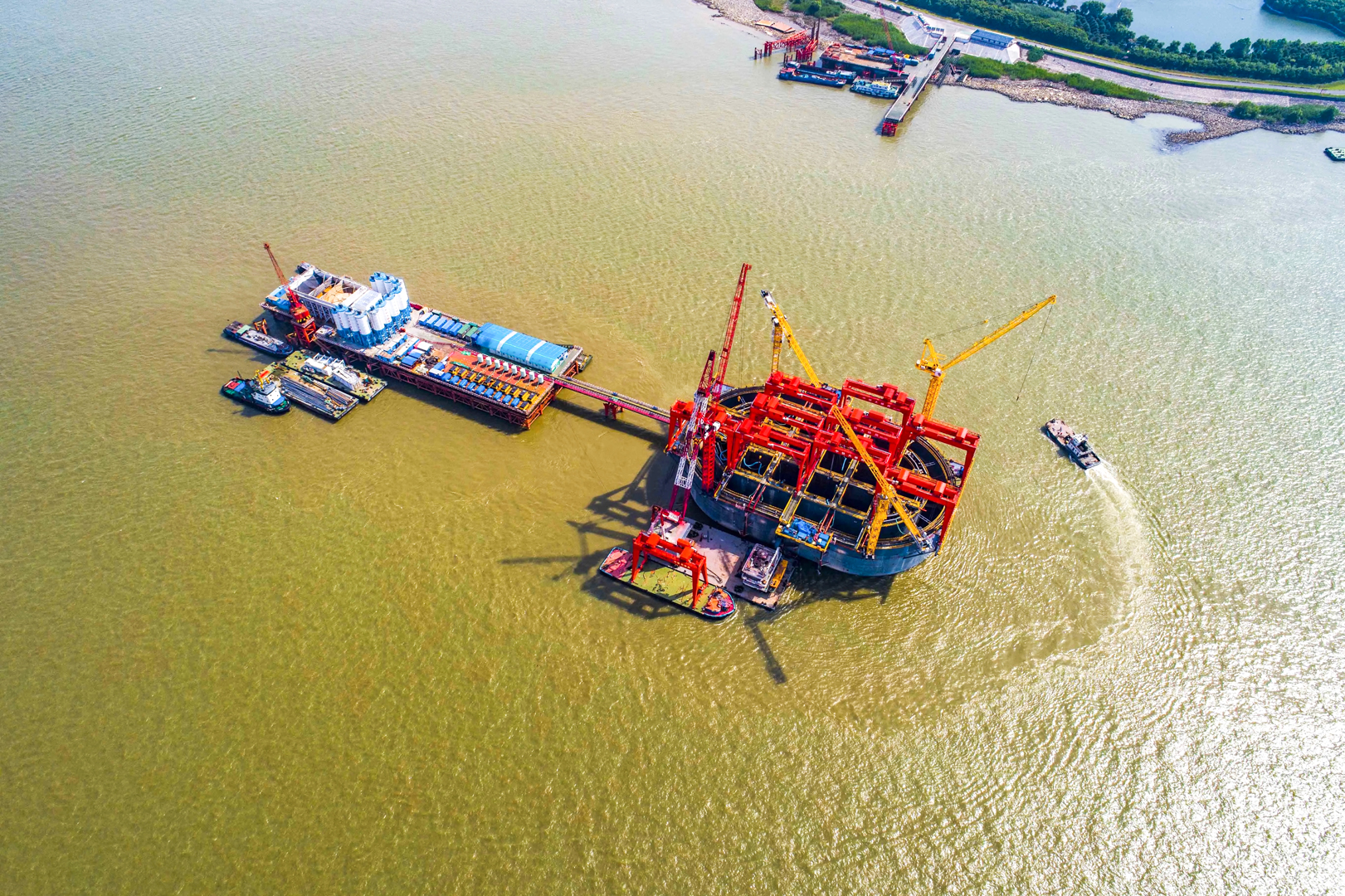

Gantry crane mounted over a bridge caisson construction work area
Gantry crane mounted over a bridge caisson construction work area.
THE OPERATING CHALLENGE

Start with the load and the process route.

A large bridge caisson needs continuous spoil removal from confined cells without blocking the excavation equipment or surface logistics.

The load, lifting attachment, building interface and operating sequence need to be reviewed together.

Prepare the technical brief ↗
01 / DEFINE

Spoil load and container size

02 / DEFINE

Caisson cell geometry

03 / DEFINE

Temporary rail/support design

04 / DEFINE

Robot-to-crane sequencing

ENGINEERED FOR THE APPLICATION

Coordinate gantry lifting with automated caisson excavation.

Place gantries over the caisson work zone and define how each spoil container is presented by the excavation system, lifted and discharged. Coordinate crane tasks with the automated cutter-suction equipment and caisson sinking sequence.

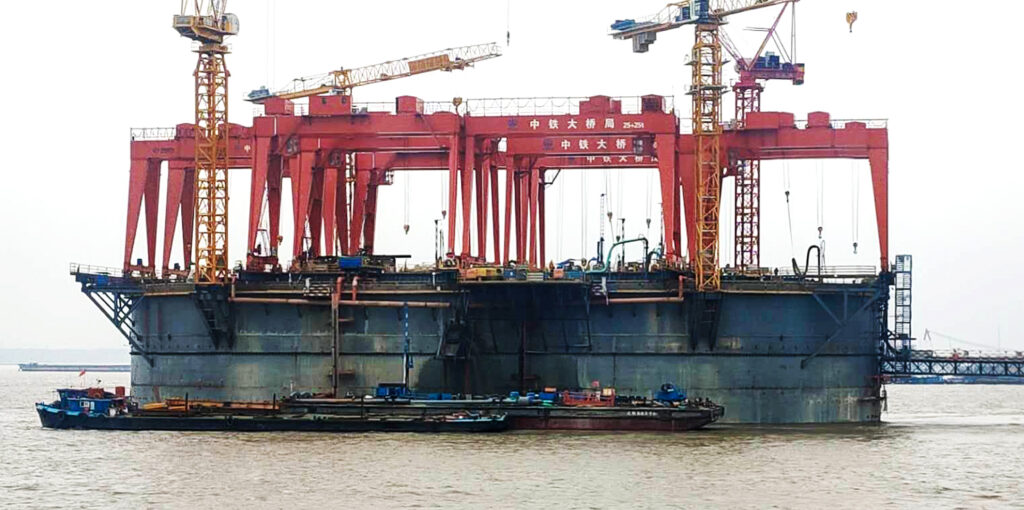

Gantry crane mounted over a bridge caisson construction work area
Gantry crane mounted over a bridge caisson construction work area.
01

Collect from the cell

Confirm container or grab interface at the excavation point.

02

Lift clear of the caisson

Keep the vertical path separated from personnel and equipment.

03

Discharge at surface

Route spoil to a vehicle or stockpile without interrupting the next excavation cycle.

✓

Robot interface

Define signals and exclusion zones between gantry and excavation equipment.

✓

Temporary works

Check gantry rails and support changes as the caisson sinks.

PROJECT IN OPERATION

Changtai Yangtze River Bridge caisson

Multiple gantries supported the Changtai bridge project alongside intelligent cutter-suction equipment for single-cell steel-caisson spoil removal.

Process fitBridge Caisson Spoil Removal Gantry Solution

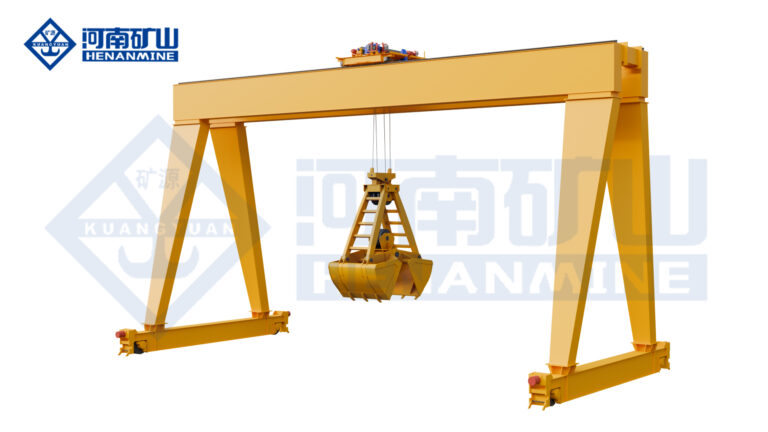

EquipmentSlag Removal Gantry Crane / Grab Gantry Crane
ProjectChangtai Yangtze River Bridge caisson
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementSpoil load and container sizeRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementCaisson cell geometryCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementTemporary rail/support designDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Site requirementRobot-to-crane sequencingProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane system be configured for our site and process?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
