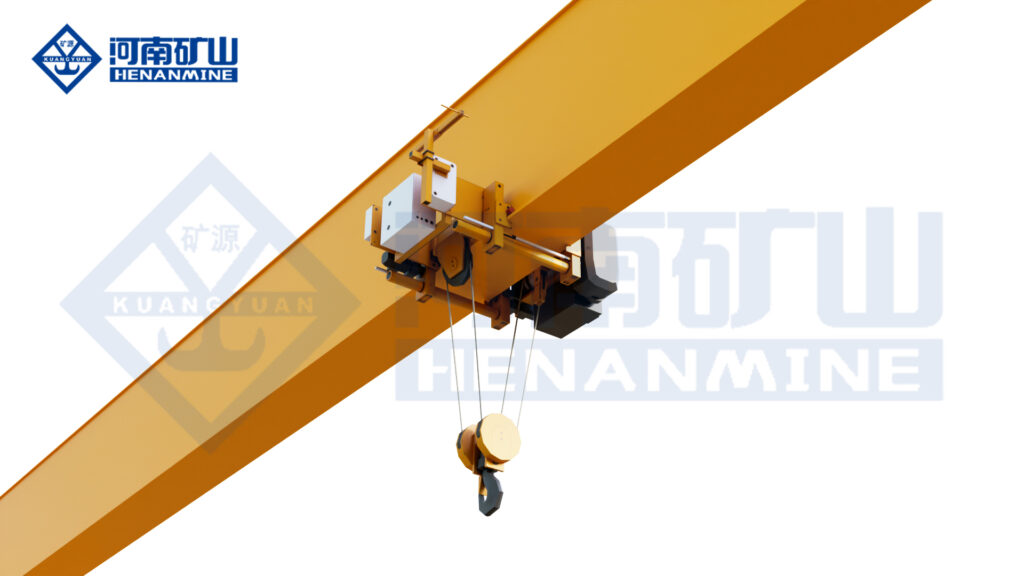

KSMH / European-style electric hoist

KSMH new-design single-girder gantry crane

Choose a new-design electric-hoist gantry around the way your components are lifted and positioned. KSMH pairs a single-girder full-gantry structure with a European-style wire-rope hoist. Compare the capacity, working envelope and motion package for repeated workshop or yard handling.

Rated capacity
5–20 t; 30 t by design
Span
10–30 m
Lifting height
6 / 9 / 12 / 15 m
Working duty
A5 for the reference configuration
Photograph: Factory-listed new-design electric-hoist gantry in a workshop
Cover workshop pickup and set-down points with a ground-rail gantry. Installation / series photograph.Equipment application photograph
01 / APPLICATIONS

Where the KSMH
fits the work.

01

Workshop fabrication and assembly

Move parts between planned assembly positions. Compare the usable upper hook position and the room occupied by the hoist, lifting beam and component before fixing the overall crane height.

02

Repeated component transfer

Match the motion package to lift frequency and the way the component is placed. State the proportion of near-rated lifts and whether the final approach needs slower controlled movement.

03

Yard handling with a new-design hoist

Use a defined ground-rail route to connect storage and work positions. For outdoor operation, include wind, rain, corrosion and parking conditions with the runway and power-feed layout.

02 / TECHNICAL SPECIFICATIONS

KSMH specifications
and equipment configuration.

Compare the lifting mechanism, control functions and site interfaces for the selected crane.

These figures describe a reference equipment package. Select the 30 t arrangement by design and agree lifting and travel speeds for each mechanism in the equipment schedule.

KSMH technical specifications and configuration
ModelKSMHRated capacity options5 / 10 / 16 / 20 t; 30 t configuration by design
Span options10–30 m; custom span by designLifting-height options6 / 9 / 12 / 15 m; custom lift by design
Working classA5 for the reference configurationHoist typeNew-design European-style wire-rope electric hoist
Girder arrangementSingle girder / full gantryHoisting-speed reference7 m/min; selected for the load and working cycle
Travel-speed reference20 m/min; final mechanism speeds in the equipment schedulePositioning configurationHoist and travel controls selected for pickup and set-down tasks
Power supply380 V, 50 Hz, 3-phase; site supply optionsOperating controlsPendant buttons / wireless remote, by configuration
Crane runwayTwo ground-level railsCantilever arrangementWith or without cantilever
Lifting attachmentsHook; grab or electromagnetic attachment by configurationWorking motionsVertical lifting, hoist cross travel and crane long travel
Load-dependent operationHeavy-load slow / light-load fast operation with the selected packageCore-component layoutModular design with replaceable wheels and couplings
Headroom and approachHoist envelope and upper hook position checked against the bayRail and foundation interfaceSelected wheel reactions and rail geometry define the civil interface
Operating patternIntermittent, repeated loading and material handlingApplication focusWorkshop and yard tasks comparing a new-design hoist package
03 / EQUIPMENT VIEWS

See the KSMH arrangement.

Review the original equipment views alongside the selected crane drawing.

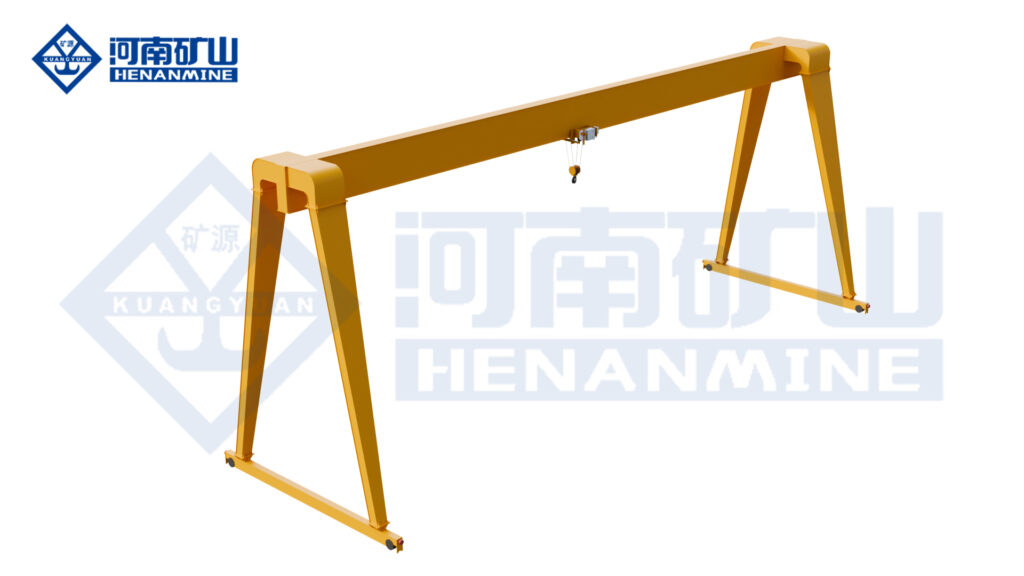

Manufacturer rendering: Three-quarter view of the new-design single-girder gantry
Three-quarter view of the new-design single-girder gantry — manufacturer rendering.

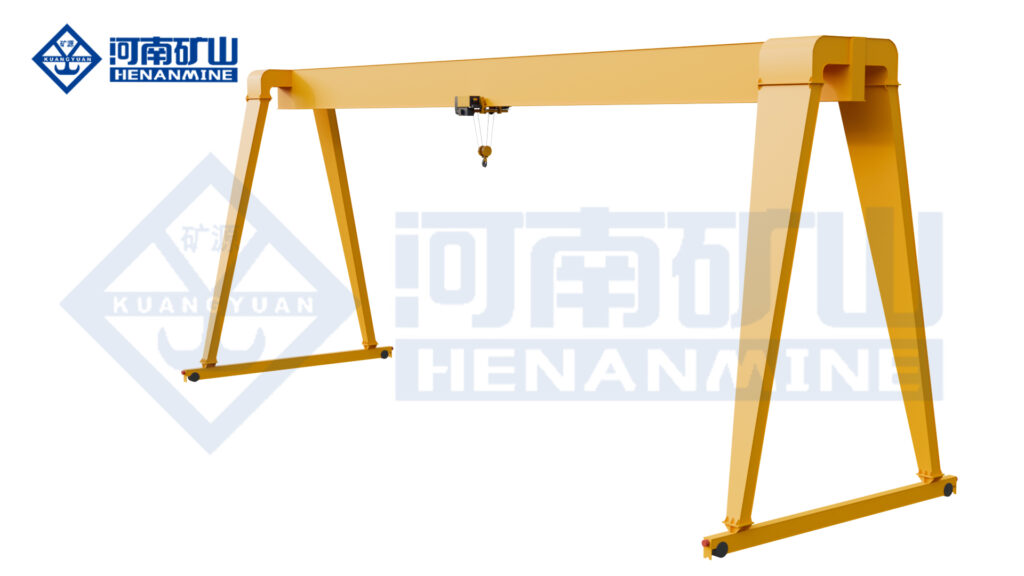

Manufacturer rendering: Opposite three-quarter view of the new-design single-girder gantry
Opposite three-quarter view of the new-design single-girder gantry — manufacturer rendering.

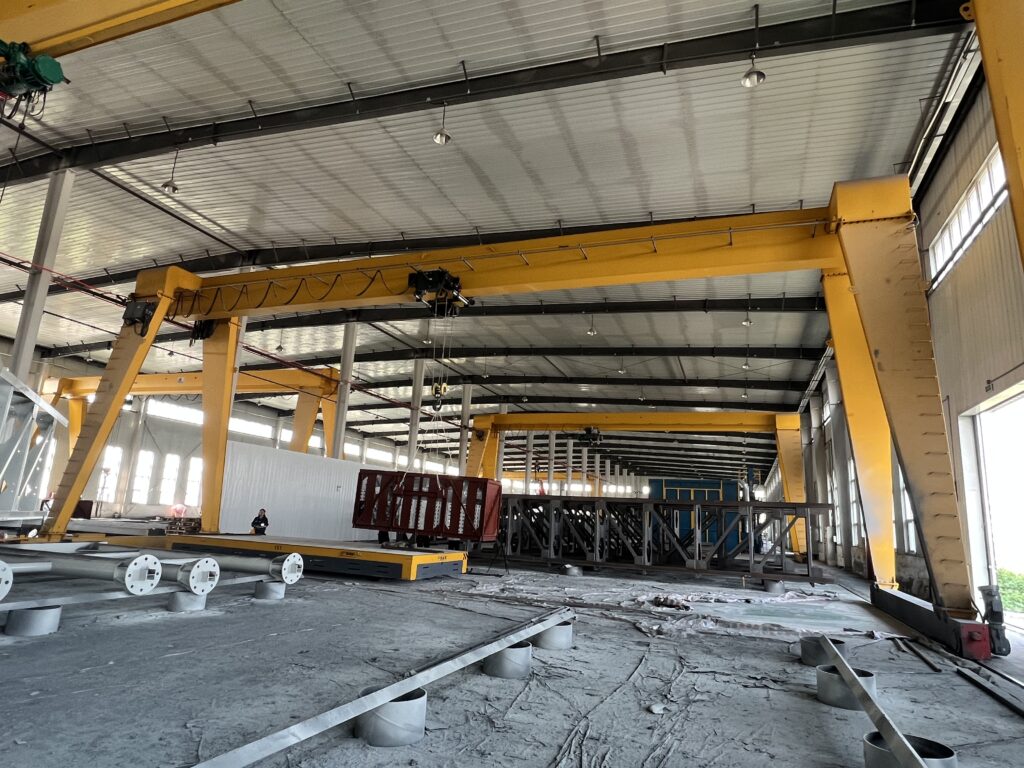

Photograph: Factory-listed new-design electric-hoist gantry in a workshop
Factory-listed new-design electric-hoist gantry in a workshop — installation / series example.
04 / CONFIGURATION

Choose the KSMH equipment and site interfaces.

01 / OPTION

One matched hoist configuration

Choose capacity, span, lift and duty together; the 30 t option and custom dimensions require a selected design. The A5, 7 m/min lifting and 20 m/min travel references do not establish every combination. Confirm each mechanism’s speeds in the schedule.

02 / OPTION

Coverage and attachments

Check the European-style hoist, upper hook position, rigging, leg opening and approaches. Coordinate both ground rails and any cantilever coverage. Hook, grab or electromagnetic handling changes self-weight, connections, electrical interfaces and the working cycle.

03 / OPTION

Operating cycle and controls

Specify lifts, daily hours, near-rated-load frequency and placement needs. Select pendant or wireless remote control for visibility; agree the selected heavy-load-slow/light-load-fast motion behavior and site voltage, phases, frequency and power-feed route.

04 / OPTION

Runway and modular service

Use final wheel reactions and rail profile for the site. Keep travel corridors workable for legs, vehicles and people; provide access to replaceable wheels, couplings, hoist and drives. Specify protection and outdoor parking or restraint for the complete indoor/outdoor route.

05 / PURCHASING & DELIVERY

Confirm the complete KSMH supply scope.

ORDER

Order quantity

Start with one complete KSMH crane or state the number of units your project needs. The quotation confirms quantity, lifting equipment, controls, power feed and any rails or runway equipment included.

QUOTATION

Equipment and quotation scope

Capacity, dimensions, duty, selected components, packing, freight and installation services influence the quoted price.

DOCUMENTS

Drawings and equipment documents

Include the technical drawing, mechanism and electrical schedules, inspection or test records, operating instructions and destination requirements in the supply scope.

ACCEPTANCE

Standards and acceptance

Any required certification, inspection standard or equipment protection must apply to the selected model and configuration.

DELIVERY

Delivery and installation

The offer sets the manufacturing and delivery schedule after the equipment is agreed. Confirm packing, shipment, site lifting access, assembly and commissioning responsibilities.

SUPPORT

Warranty and spare parts

Ask the written offer to state the warranty period, service arrangements and spare-parts scope for your crane.

CONTINUE YOUR COMPARISON

Compare related
gantry arrangements.

All 9 single-girder models ↗
07 / QUESTIONS BEFORE ORDERING

Choose the KSMH
with the job in view.

Compare the handling task, selected lifting equipment and supply scope before ordering.

When should I compare KSMH with MH?

Compare KSMH when the new-design hoist, headroom, control arrangement and repeated handling cycle matter to your project. Use the same load, span and working hook height for the comparison. The selected equipment schedule gives a more useful comparison than the model name alone.

Does the 20 m/min travel reference apply to both axes?

Use 20 m/min as the travel reference when comparing the proposed package. The equipment schedule states trolley and crane-travel speeds separately, including the loaded and positioning behaviour required for each movement.

Can I choose a 30 t KSMH?

The range includes a 30 t configuration by design. Provide the required span, lifting height, operating cycle and lifting attachment so the complete crane can be reviewed. A capacity option alone does not confirm every possible dimension or duty combination.

What should I compare for maintenance?

Review access to the hoist and travel equipment, replaceable wheels and couplings, the maintenance instructions and the agreed spare-parts scope. Warranty and service arrangements belong in the written offer for the actual equipment package.

What is useful for the first enquiry?

Send the load, approximate span, lifting height and destination. Add the handling frequency and the part of the movement that requires careful positioning. A workshop photo or simple route sketch helps establish the starting configuration.

Can KSMH be configured for a grab or electromagnetic attachment?

These are configurations for suitable material tasks. Select the attachment with its self-weight, connections and power or control needs so the complete suspended load and duty match the hoist package. The written offer should identify the equipment included.

What matters if the working route extends outdoors?

Describe the weather, wind and corrosion conditions over the complete route, together with the parking position. Coordinate equipment protection, power feed, rail supports and access with that environment when comparing the crane arrangement.

Are runway work and installation included in a KSMH quotation?

State the scope you need. The offer should identify crane equipment, rails, supporting civil work, power feed, packing, transport, assembly and commissioning responsibilities. This makes the complete supplied package clear when comparing proposals.

08 / YOUR KSMH GANTRY PROJECT

Get a quotation
for your KSMH crane.

Tell us what you lift, the approximate span, the required lifting height and your destination. If a dimension is unknown, describe the task and leave that field open.

  • An arrangement matched to the lifting task
  • A clear equipment and service scope
  • Delivery and support terms in the offer
