HENAN MINE CRANE / ELECTRIC HOIST GANTRY CRANES
New-Design Double-Girder Electric Hoist Gantry Crane
Twin-girder coverage with smoother control.
A full gantry combines a double-girder bridge and electric-hoist lifting for outdoor transfer. Match the hoist speed and travel control to the actual handling cycle.
KSMHSModel designationProject-matchedRated load selection
PRODUCT CONFIGURATION / KSMHSTHE LIFTING TASK
Designed for your handling path.
A full gantry combines a double-girder bridge and electric-hoist lifting for outdoor transfer. Match the hoist speed and travel control to the actual handling cycle.
Crane arrangement
Double girder / full gantry with Electric hoist and hook.
MODEL KSMHS
Technical configuration
Size the crane against the load, installation geometry and work cycle. The final equipment schedule follows the project drawings and operating brief.
Duty classA3–A5
Bridge / structureDouble girder / full gantry
Lifting systemElectric hoist and hook
Rated capacitySelect from maximum load including lifting attachments
Crane spanSet from the required coverage and rail centers
Lifting heightSet from the pickup level and highest required hook position
Control arrangementPendant or radio remote to suit operator visibility
Power supplyMatch voltage and frequency to the destination site
Runway and foundationsCheck rail gauge, wheel loads and foundation design
Hook approach and clearanceConfirm required lifting envelope against the site drawings
BUYER'S SELECTION GUIDE
Specify the crane around the job.
Frequent outdoor transfer and controlled positioning
Compare the Electric Hoist Gantry Cranes range ↗Load and lifting attachment
Share the maximum lifted mass, load dimensions, center of gravity and any grab, magnet, spreader or lifting beam.
Rails and working envelope
Confirm rail gauge, runway length, foundation capacity, cantilever and end approaches.
Duty and controls
State typical load, lifts per hour, travel distance, shifts, control position and site power supply.
Model-specific check
Span; lift height; frequency and control requirements

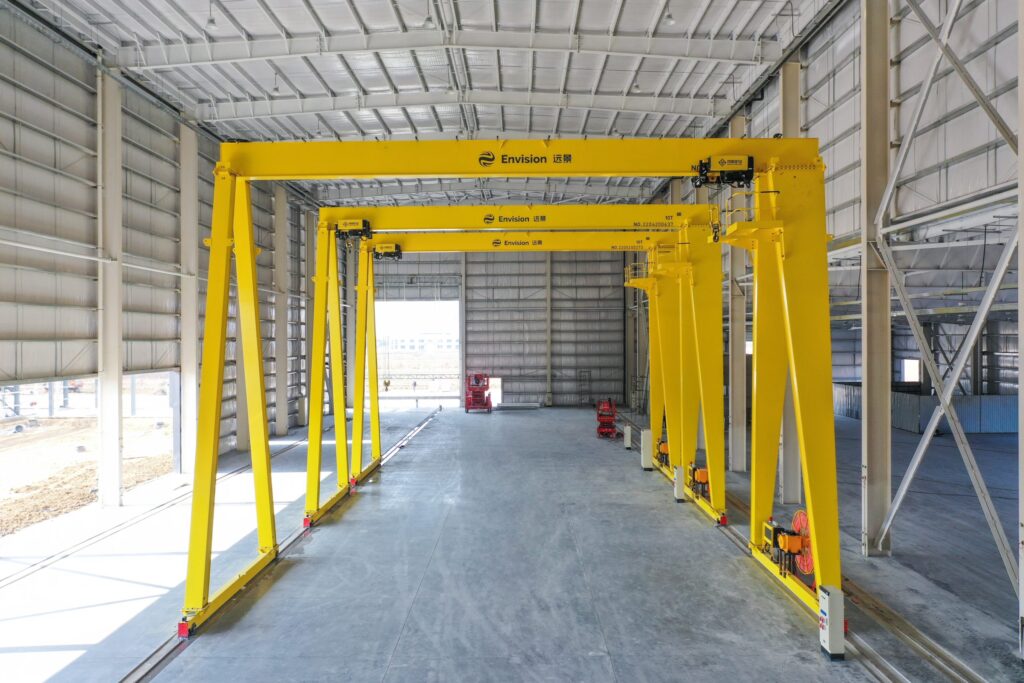

PRODUCT PHOTOS
See the KSMHS configuration.
Review the equipment arrangement alongside your proposed site layout and lifting route.
TALK TO OUR ENGINEERS
Get a KSMHS crane proposal.
Send the load schedule and site drawings. We can configure the crane, lifting system and installation interface for your operating conditions.
Request a technical proposal ↗- Maximum lifted load and attachment
- Span, travel length and available clearances
- Daily lifting cycle and control choice
- Power supply, environment and destination
