HENAN MINE CRANE / ELECTRIC HOIST GANTRY CRANES
New-Design Double-Girder Electric Hoist Semi-Gantry Crane
Two girders, one side on the building.
Use this configuration where a semi-gantry is required but the hoist trolley, hook approach or load path calls for a double-girder bridge.
MBESModel designationProject-matchedRated load selection
PRODUCT CONFIGURATION / MBESTHE LIFTING TASK
Designed for your handling path.
Use this configuration where a semi-gantry is required but the hoist trolley, hook approach or load path calls for a double-girder bridge.
Crane arrangement
Double girder / semi-gantry with Electric hoist and hook.
MODEL MBES
Technical configuration
Size the crane against the load, installation geometry and work cycle. The final equipment schedule follows the project drawings and operating brief.
Duty classA3–A5
Bridge / structureDouble girder / semi-gantry
Lifting systemElectric hoist and hook
Rated capacitySelect from maximum load including lifting attachments
Crane spanSet from the required coverage and rail centers
Lifting heightSet from the pickup level and highest required hook position
Control arrangementPendant or radio remote to suit operator visibility
Power supplyMatch voltage and frequency to the destination site
Runway and foundationsCheck rail gauge, wheel loads and foundation design
Hook approach and clearanceConfirm required lifting envelope against the site drawings
BUYER'S SELECTION GUIDE
Specify the crane around the job.
Industrial bays with one elevated runway
Compare the Electric Hoist Gantry Cranes range ↗Load and lifting attachment
Share the maximum lifted mass, load dimensions, center of gravity and any grab, magnet, spreader or lifting beam.
Rails and working envelope
Confirm rail gauge, runway length, foundation capacity, cantilever and end approaches.
Duty and controls
State typical load, lifts per hour, travel distance, shifts, control position and site power supply.
Model-specific check
Building reactions; hook approach; ground rail

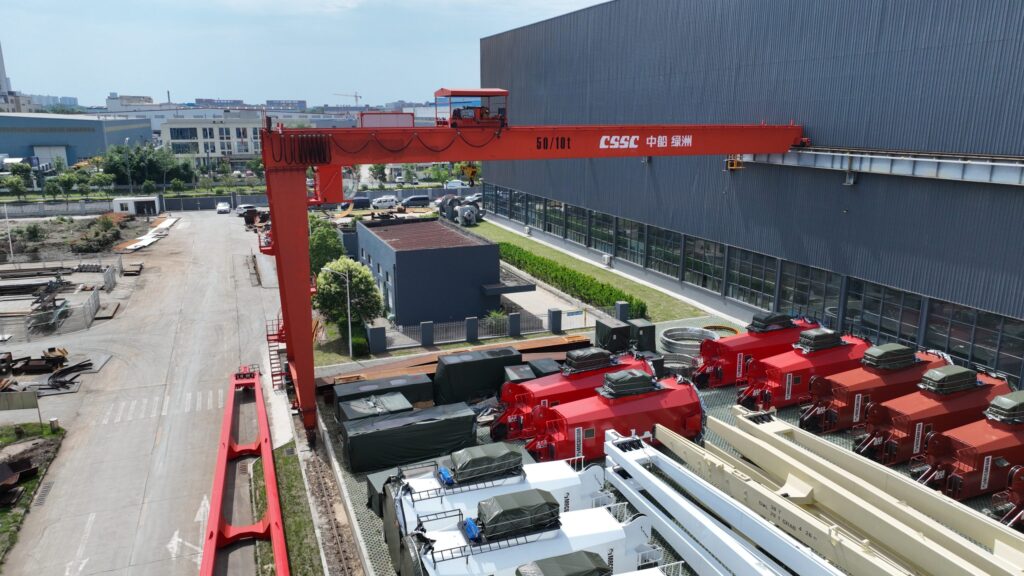

PRODUCT PHOTOS
See the MBES configuration.
Review the equipment arrangement alongside your proposed site layout and lifting route.
TALK TO OUR ENGINEERS
Get a MBES crane proposal.
Send the load schedule and site drawings. We can configure the crane, lifting system and installation interface for your operating conditions.
Request a technical proposal ↗- Maximum lifted load and attachment
- Span, travel length and available clearances
- Daily lifting cycle and control choice
- Power supply, environment and destination
