100 t Precision Gantry Crane Accepted for a Nuclear Project
A 100 t double-girder gantry completed heavy-load positioning tests, with servo travel and dual hoist brakes.
The project and its handling task.

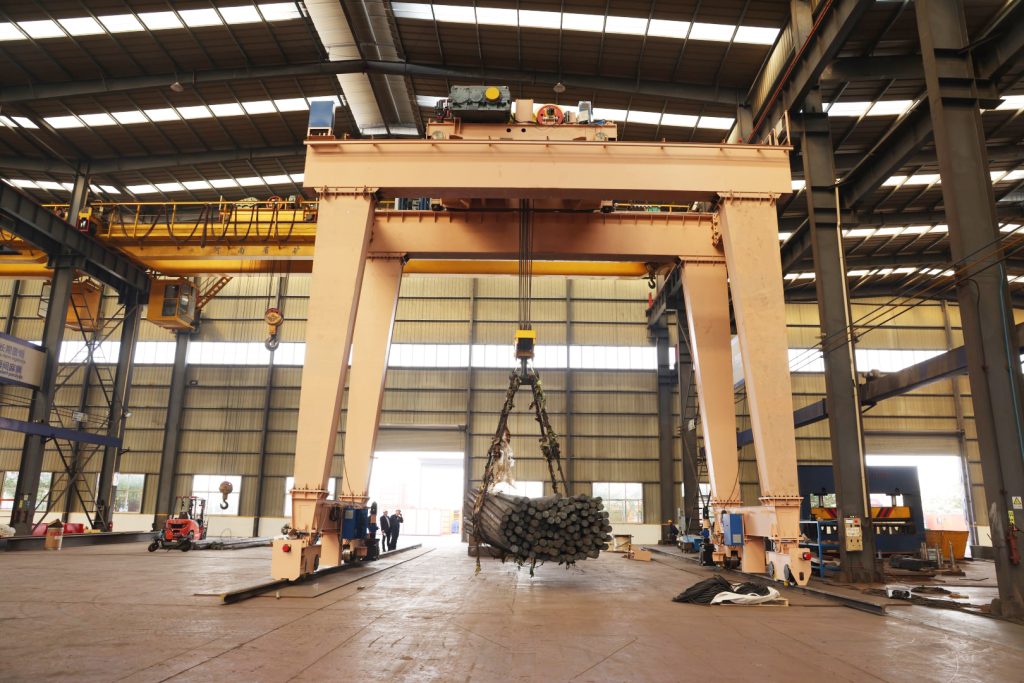

Henan Mine Crane manufactured a 100 t double-girder gantry crane for a China Nuclear Power project. Factory acceptance included heavy-load moving and positioning tests, and the tested items met the acceptance requirements.
Servo-controlled crane and trolley travel provide a minimum inching distance of 0.5 mm. Variable-frequency vector hoisting and PLC anti-sway support positioning within 5 mm. The hoist uses dual brakes, and the manufacturer’s broader programme for the project includes more than 100 crane units.
Move a 100 t load with documented positioning and brake performance.
Nuclear-project fabrication requires controlled heavy-load movement and acceptance evidence for precise stopping and holding.
Set mass, rigging and target coordinates for the acceptance procedure.
Check servo travel and anti-sway at the specified speeds.
Verify brake behavior and record positioning under load.
Verify brake behavior and record positioning under load.
The equipment behind this project.
Servo-controlled crane and trolley travel provide a minimum inching distance of 0.5 mm. Variable-frequency vector hoisting and PLC anti-sway support positioning within 5 mm. The hoist uses dual brakes, and the manufacturer’s broader programme for the project includes more than 100 crane units.
- Rated capacity100 t
- Crane/trolley minimum inching0.5 mm
- Positioning accuracyWithin 5 mm
- Hoist controlVariable-frequency vector control and PLC anti-sway
- BrakesDual hoist brakes
- AcceptanceHeavy-load movement and positioning tests
What to compare with your own project.
Match the project configuration to your load, layout and operating sequence before selecting a crane package.
| Design area | This project configuration | Define for your site |
|---|---|---|
| Rated capacity | 100 t | Load and rigging details. Define the required operating envelope and acceptance checks in your technical brief. |
| Crane/trolley minimum inching | 0.5 mm | Runway and target positions. Define the required operating envelope and acceptance checks in your technical brief. |
| Positioning accuracy | Within 5 mm | Acceptance tolerance and test procedure. Define the required operating envelope and acceptance checks in your technical brief. |
| Hoist control | Variable-frequency vector control and PLC anti-sway | Braking and safety documentation. Define the required operating envelope and acceptance checks in your technical brief. |
| Brakes | Dual hoist brakes | Load and rigging details. Define the required operating envelope and acceptance checks in your technical brief. |
| Acceptance | Heavy-load movement and positioning tests | Runway and target positions. Define the required operating envelope and acceptance checks in your technical brief. |
See the equipment and working environment.
Explore the equipment arrangement and handling environment.
Factory acceptance completed.
The crane passed factory acceptance. The tested servo movement, positioning and braking functions provide a project-specific equipment basis for precision handling.
For a similar project, specify a double-girder gantry around the load route and test points. Servo travel and vector-controlled hoisting support precise movement, while PLC anti-sway, dual brakes and factory load tests verify the required behavior.
Continue from the project to the right crane family.
Use the project as a reference and specify the crane against your own yard layout and cargo.
Prepare a comparable crane quotation.
Share the load schedule and site drawings. Specify a double-girder gantry around the load route and test points. Servo travel and vector-controlled hoisting support precise movement, while PLC anti-sway, dual brakes and factory load tests verify the required behavior.
We can quote a single crane or a coordinated fleet. The offer sets out the destination standards, required certificates and inspection records, manufacturing programme after drawing approval, shipment, installation support and agreed acceptance scope.
- Load and rigging details
- Runway and target positions
- Acceptance tolerance and test procedure
- Braking and safety documentation
- Destination standards, quantity and inspection documentation
- Manufacturing programme, shipment, commissioning, training and spares
