POWER PLANT CRANE SOLUTIONS

Nuclear Project Precision Gantry Lifting

Nuclear-project fabrication requires controlled heavy-load movement and acceptance evidence for precise stopping and holding.

ApplicationChina nuclear project gantry acceptance
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

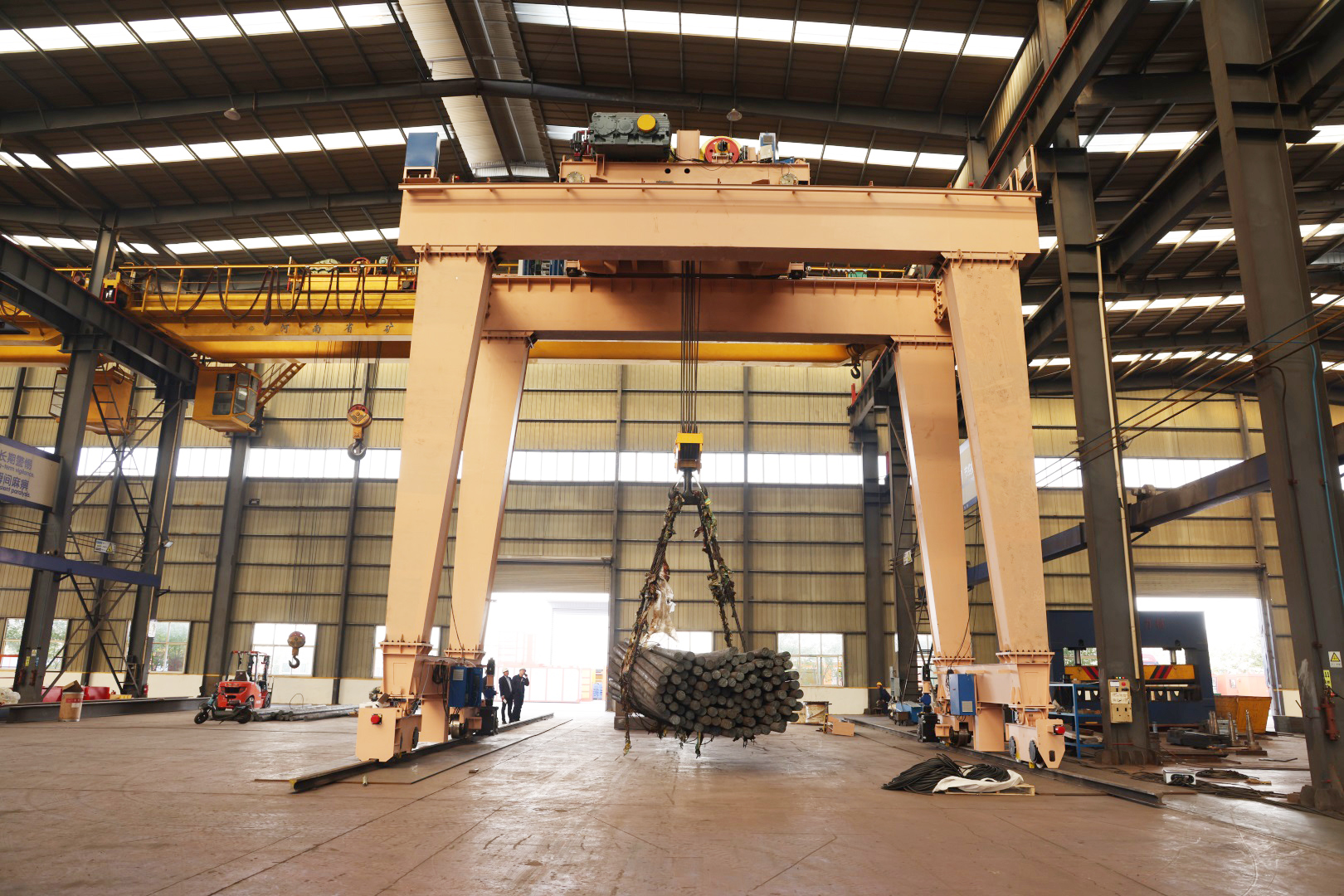

Precision gantry crane installed in an energy equipment workshop
Precision gantry crane installed in an energy equipment workshop.
THE OPERATING CHALLENGE

Start with the component and the lift route.

Nuclear-project fabrication requires controlled heavy-load movement and acceptance evidence for precise stopping and holding.

The lifted component, rigging, building clearances and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Load and rigging details

02 / DEFINE

Runway and target positions

03 / DEFINE

Acceptance tolerance and test procedure

04 / DEFINE

Braking and safety documentation

ENGINEERED FOR THE APPLICATION

Move a 100 t load with documented positioning and brake performance.

Specify a double-girder gantry around the load route and test points. Servo travel and vector-controlled hoisting support precise movement, while PLC anti-sway, dual brakes and factory load tests verify the required behavior.

Precision gantry crane installed in an energy equipment workshop
Precision gantry crane installed in an energy equipment workshop.
01

Prepare the test load

Set mass, rigging and target coordinates for the acceptance procedure.

02

Move under control

Check servo travel and anti-sway at the specified speeds.

03

Hold and document

Verify brake behavior and record positioning under load.

✓

Acceptance precision

Agree the measurement method for inching and final position before testing.

✓

Brake redundancy

Define holding and inspection requirements for both hoist brakes.

PROJECT IN OPERATION

China nuclear project gantry acceptance

A 100 t double-girder gantry passed factory acceptance for a China nuclear project. Its test scope included a 0.5 mm minimum inching distance, positioning within 5 mm and dual hoist brakes.

Process fitNuclear Project Precision Gantry Lifting Solution

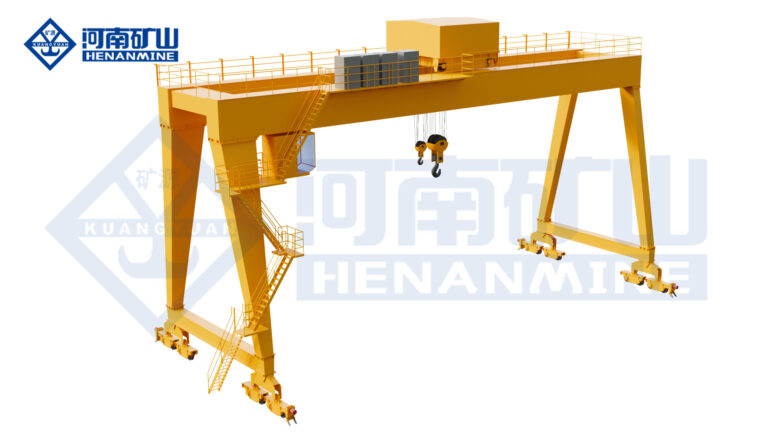

EquipmentHook Gantry Crane / New-Design Double-Trolley Gantry Crane
ProjectChina nuclear project gantry acceptance
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementLoad and rigging detailsRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementRunway and target positionsCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementAcceptance tolerance and test procedureRequired positioning/holding tolerance, loaded-test method, witness points and acceptance records.
04 / Site requirementBraking and safety documentationProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be configured for our powerhouse or factory?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
